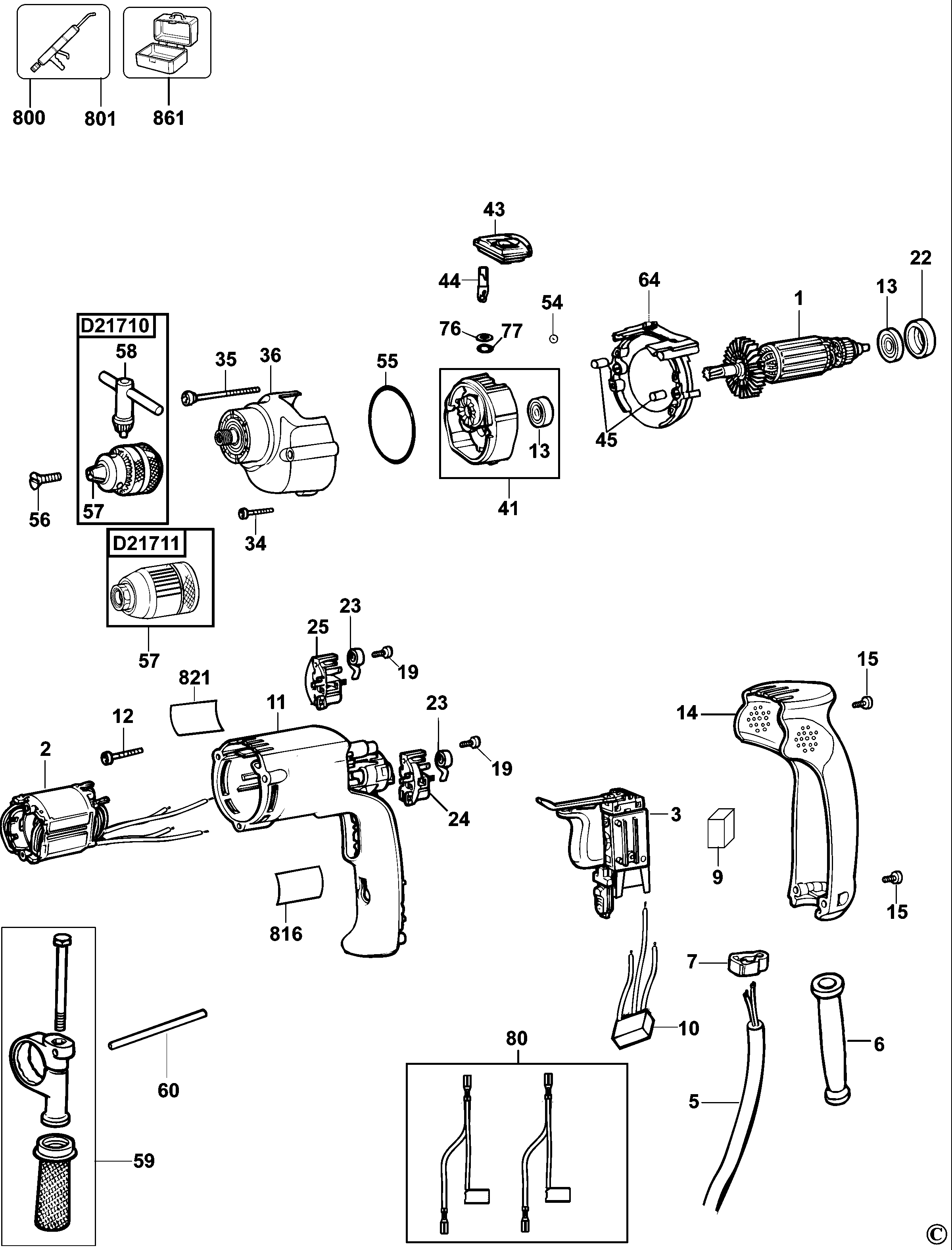

D21710 HAMMER DRILL Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495832-00 | 1 | ARMATURE SA | B1 |  |
||
| 2 | N082441 | 1 | FIELD 220V | B1 | |
||
| 3 | 1006250-00 | 1 | SWITCH SA | B1 |  |
||
| 5 | 330048-11 | 1 | CORDSET (EURO) | B1 | |
||
| 6 | 401751-00 | 1 | CORD PROTECTOR | B1 | |
||
| 7 | 603255-00 | 1 | CORD CLAMP | B1 | |
||
| 9 | 930026-01 | 1 | BUMPER | B1 | |
||
| 11 | N016876 | 1 | FIELDCASE | B1 | |||
| 12 | 496932-00 | 2 | SCREW | B1 | |||
| 13 | 605040-08 | 2 | BEARING | B1 | |
||
| 14 | 610140-00 | 1 | HANDLE COVER | B1 | |
||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | B1 | |
|
| 19 | 330065-06 | 2 | SCREW | B1 | |
||
| 22 | 389824-00 | 1 | BOOT | B1 | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | B1 | |
||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | B1 | |
||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | B1 | |
||
| 34 | 330019-14 | 1 | SCREW | B1 | |
||
| 35 | 330019-17 | 2 | SCREW | B1 | |
||
| 41 | 584525-02 | 1 | GEARCASE SA | B1 | |
||
| 43 | 590107-00 | 1 | SELECTOR SA | B1 | |
||
| 44 | 946106-00 | 1 | PIN | B1 | |
||
| 45 | 949638-02 | 2 | DAMPER | B1 | |
||
| 54 | 000903-00 | 1 | BALL | B1 | |
||
| 55 | 401847-00 | 1 | SEAL | B1 | |
||
| 56 | 490910-00 | 1 | SCREW | B1 | |
||
| 57 | 584925-02 | 1 | CHUCK 13MM | B1 | |
||
| 58 | 330034-07 | 1 | CHUCK KEY | B1 | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | B1 | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | B1 | |
||
| 64 | 585994-00 | 1 | BAFFLE FAN | B1 | |
||
| 76 | 050050-00 | 1 | RING | B1 | |
||
| 77 | 176659-00 | 1 | WASHER | B1 | |
||
| 80 | N079928 | 1 | BRUSH KIT 230V | B1 | |
||
| 800 | 429911-00 | 1 | GREASE 40 GMS | B1 | |
||
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B1 | ||
| 816 | 395047-00 | 1 | BRAND LABEL | B1 | |
||
| 821 | N064602 | 1 | RATING PLATE | B1 | B1 | ||
| 861 | 496146-00 | 1 | KITBOX | B1 |
