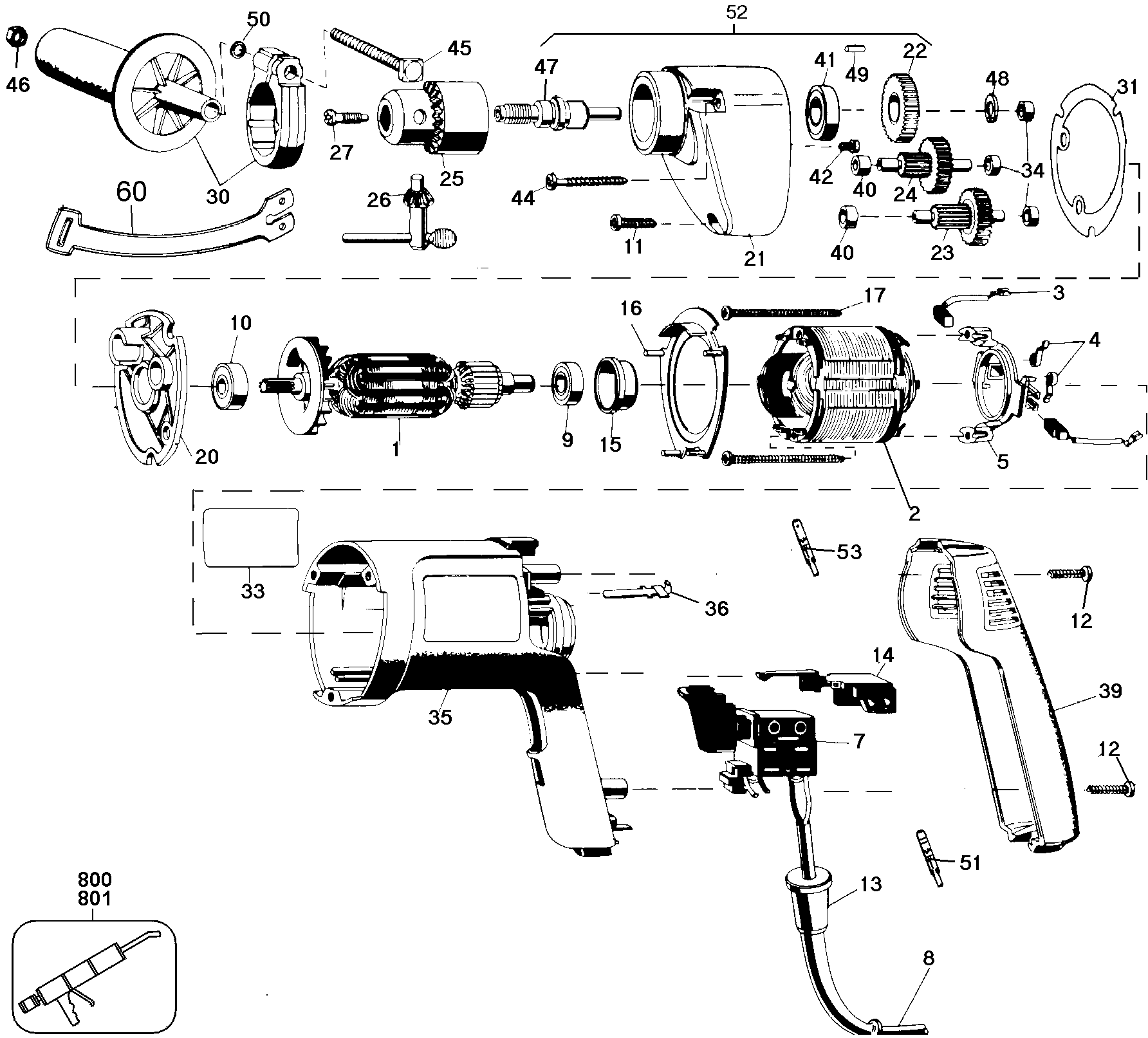

1311-40 13MM DRILL 220/240V-ASIA Type 100 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	000000-00	1	NO LONGER AVAILABLE			B5
2	447859-00	1	FIELD	NLS	INC 17	B5
3	143803-05	2	BRUSH			B5
4	445860-00	2	BRUSH SPRING			B5
5	449899-05	1	RING			B5
7	286244-00	1	SWITCH,VS,AC			B5
8	147360-06	1	CORD/2M/1MM-2			B5
9	330003-04	2	BEARING			B5
10	330003-04	1	BEARING			B5
11	330019-16	1	SCREW			B5
12	146679-00	2	SCREW			B5
13	330005-01	1	CORD PROTECTOR			B5
14	150196-00	1	SWITCH,REV.			B5
15	445217-02	1	SLEEVE			B5
16	447866-00	1	BAFFLE FAN			B5
17	448269-00	2	SCREW			B5
20	448658-01	1	COVER		INC 10, 34	B5
21	448655-00	1	CASE,GEAR	NLS	INC 40-42	B5
22	148555-00	1	GEAR		28 TEETH	B5
23	448044-05	1	GEAR & PINION	NLS	44/10 TEETH	B5
24	445265-00	1	GEAR & PINION	NLS	37/11 TEETH	B5
25	449644-00	1	CHUCK & KEY			B5
26	330034-03	1	CHUCK KEY		K32, S-9	B5
27	448847-01	1	SCREW			B5
30	448671-03	1	SPARE PART		INC 45, 46, 50	B5
31	386422-00	1	GASKET			B5
33	000000-00	1	NO LONGER AVAILABLE			B5
34	093128-00	3	BEARING NEEDLE			B5
35	464231-00	1	CASE,FIELD			B5
36	449192-00	3	TERMINAL			B5
39	450594-01	1	COVER,HANDLE			B5
40	330004-00	2	BEARING			B5
41	605040-20	1	BEARING	12 x 28 x 8mm		B5
42	052819-00	1	SCREW			B5
44	330019-18	2	SCREW	M4.55 x 50 PLASTIC THD FMG		B5
45	448674-00	1	SCREW			B5
46	2281-00	1	NUT			B5
47	148554-00	1	SPINDLE	NLS		B5
48	34984-00	1	RING			B5
49	99227-02	1	PIN,ROLLER			B5
50	146652-00	1	WASHER, PLAIN			B5
51	464230-00	5	TERMINAL			B5
52	148565-01	1	CASE ASSY,GEAR		INC 21, 22, 47-49	B5
53	448387-00	1	TERMINAL			B5
60	065288-01	1	HOLDER CHUCK KEY			B5
800	761995-01	1	GREASE	180 Grams	6 OZ \| CVJ GREASE	B5
801	283484-01	1	GREASE	32oz, EXXON CVJ		B5
