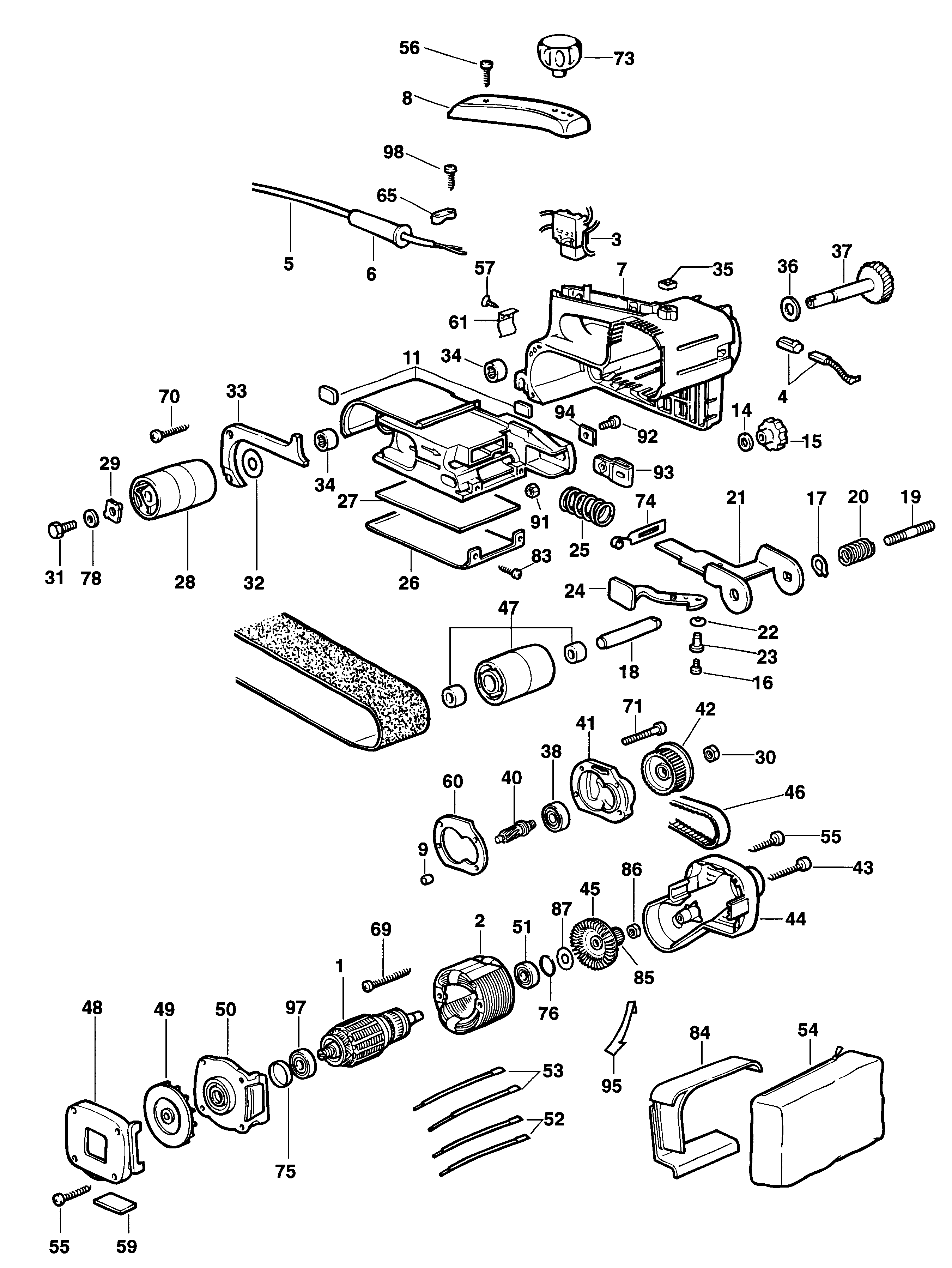

D430-04 BANDSCHLEIFER Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 3 | 155160303 | 1 | SCHALTERFESTST. | XJ |  |
36.40 EUR | ||
| 6 | 320785 | 1 | KABELTUELLE | XJ |  |
1.10 EUR | ||
| 7 | 324595-02 | 1 | GEHAEUSE | Yellow | XJ | |
39.00 EUR | |
| 8 | 324593-02 | 1 | ABDECKUNG | Yellow | XJ | |
3.50 EUR | |
| 9 | 330004-19 | 1 | KUGELLAGER | XJ | |
1.80 EUR | ||
| 11 | 248479-01 | 1 | GEHAEUSEREP.KIT | XJ | |
106.10 EUR | ||
| 14 | 249223-00 | 1 | WASHER M8 | XJ | |
0.80 EUR | ||
| 15 | 248428-00 | 1 | KNOPF | XJ | |
4.40 EUR | ||
| 16 | 157813400 | 1 | SCHRAUBE | XJ | |
0.90 EUR | ||
| 17 | 860079-03 | 1 | SPRENGRING | XJ | |
0.80 EUR | ||
| 18 | 157152601 | 1 | SPINDEL | XJ | |
5.90 EUR | ||
| 19 | 249122-00 | 1 | SCHRAUBE | XJ | |
2.40 EUR | ||
| 20 | 157934045 | 1 | FEDER | XJ | |
0.90 EUR | ||
| 21 | 157113202 | 1 | GABEL | XJ | |
9.99 EUR | ||
| 22 | 760261-00 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 23 | 157152300 | 1 | DISTANZSCHEIBE | XJ | |
0.80 EUR | ||
| 24 | 157110800 | 1 | BUEGEL | XJ | |
9.00 EUR | ||
| 25 | 157934046 | 1 | FEDER | XJ | |
1.10 EUR | ||
| 26 | 325024-00 | 1 | PLATTE | XJ | |
4.40 EUR | ||
| 27 | 157111700 | 1 | PLATTE | XJ | |
2.90 EUR | ||
| 28 | 157121400 | 1 | ROLLER | XJ | |
39.00 EUR | ||
| 29 | 157123400 | 1 | UNTERLEGSCHEIBE | XJ | |
1.80 EUR | ||
| 30 | 248426-00 | 1 | MUTTER | XJ | |
0.80 EUR | ||
| 31 | 157814100 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 32 | 180980044 | 1 | UNTERLEGSCHEIBE | XJ | |
2.90 EUR | ||
| 33 | 248423-00 | 1 | ABDECKUNG | XJ | |
2.90 EUR | ||
| 34 | 050980118 | 2 | KUGELLAGER | XJ | |
5.40 EUR | ||
| 35 | 061822500 | 1 | MUTTER | XJ | |
0.80 EUR | ||
| 36 | 157980057 | 1 | WASHER M8 | XJ | |
2.20 EUR | ||
| 37 | 575217-00 | 1 | REPARATURSATZ | XJ | |
52.00 EUR | ||
| 38 | 330003-17 | 1 | KUGELLAGER | XJ | |
3.50 EUR | ||
| 38 | N130916 | 1 | KUGELLAGER | XJ | |
1.80 EUR | ||
| 40 | 325021-00 | 1 | ZWISCHENWELLE | XJ | |
25.10 EUR | ||
| 41 | 157120203 | 1 | ABDECKUNG RECHTS | XJ | |
9.99 EUR | ||
| 42 | 325017-00 | 1 | ANTRIEBSRAD | XJ | |
22.30 EUR | ||
| 43 | 249416-04 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 44 | 248424-00 | 1 | ABDECKUNG | Black | XJ | |
4.40 EUR | |
| 45 | 325016-00 | 1 | LÜFTER | XJ | |
6.50 EUR | ||
| 46 | 325018-00 | 1 | RIEMEN | XJ | |
9.00 EUR | ||
| 47 | 157121405 | 1 | ROLLER ZSB | XJ | |
20.90 EUR | ||
| 48 | 248421-05 | 1 | ABDECKUNG | XJ | |
5.90 EUR | ||
| 49 | 325026-00 | 1 | LÜFTER | XJ | |
3.80 EUR | ||
| 50 | 248422-05 | 1 | ABDECKUNG | XJ | |
12.20 EUR | ||
| 51 | 157830001 | 1 | KUGELLAGER | XJ | |
7.20 EUR | ||
| 54 | 248427-00 | 1 | BAG DUST | XJ | |
29.30 EUR | ||
| 55 | 949896-12 | 6 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 56 | 249437-00 | 3 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 57 | 247613-05 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 59 | 157118902 | 1 | STEIN | XJ | |
4.40 EUR | ||
| 60 | 157970316 | 1 | DICHTUNG | XJ | |
1.10 EUR | ||
| 61 | 157930705 | 1 | FEDER | XJ | |
0.80 EUR | ||
| 65 | 379684 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 69 | 911442 | 2 | HALTER | XJ | |
0.80 EUR | ||
| 70 | 760978-01 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 71 | 249416-03 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 73 | 249118-01 | 1 | KNOPF | XJ | |
5.40 EUR | ||
| 74 | 325023-00 | 1 | FEDER | XJ | |
1.50 EUR | ||
| 75 | 247600-00 | 1 | DICHTUNG | XJ | |
0.80 EUR | ||
| 76 | 247601-00 | 1 | DICHTUNG | XJ | |
0.80 EUR | ||
| 78 | 249221-00 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 83 | 249415-00 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 84 | 248425-00 | 1 | HALTERUNG | XJ | |
9.99 EUR | ||
| 85 | 325019-00 | 1 | ANTRIEBSRAD | XJ | |
16.70 EUR | ||
| 86 | 248354-00 | 1 | MUTTER | XJ | |
0.80 EUR | ||
| 87 | 247650-00 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 91 | 249411-00 | 1 | 6KT-MUTTER M6-DIN985 5 GZ | XJ | |
0.80 EUR | ||
| 92 | 249408-10 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 93 | 157116220 | 1 | VERLAENGERUNG | XJ | |
5.40 EUR | ||
| 94 | 157930431 | 1 | PLATTE | XJ | |
2.60 EUR | ||
| 95 | 248396-00 | 1 | STOP | XJ | |
2.40 EUR | ||
| 97 | 330003-17 | 1 | KUGELLAGER | XJ | |
3.50 EUR | ||
| 97 | N130916 | 1 | KUGELLAGER | XJ | |
1.80 EUR | ||
| 98 | 249437-01 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 821 | 249511-01 | 1 | AUFKLEBER | DW430 | XJ | |
2.60 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
