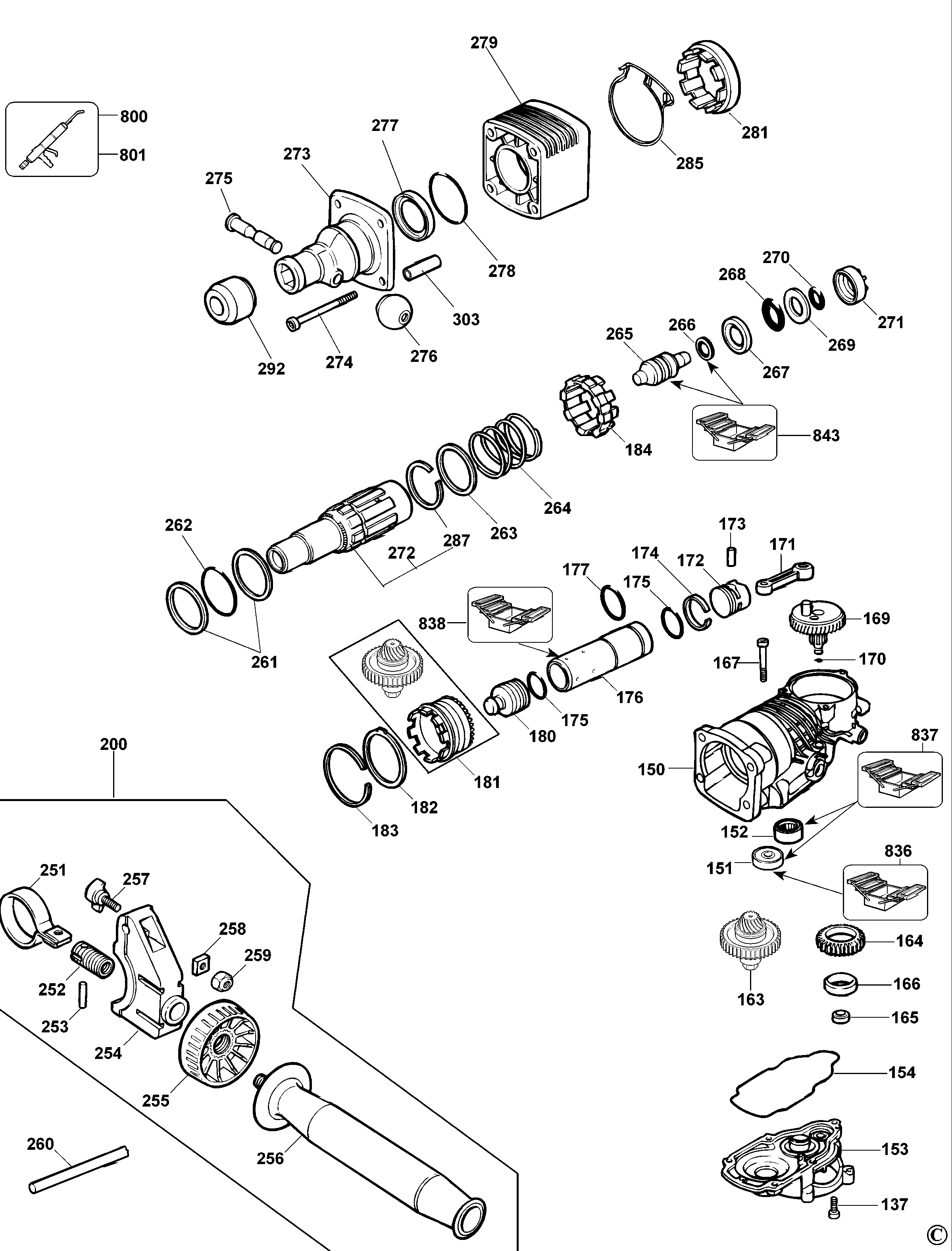

D25550K DREHHAMMER Type 2 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 103 | 581070-00 | 1 | SCHALTER | XJ |  |
13.90 EUR | ||
| 107 | 582574-03 | 1 | ELECTRONIC 120V | XJ |  |
52.00 EUR | ||
| 112 | 323091-01 | 1 | KABELTUELLE | XJ | |
1.30 EUR | ||
| 113 | 821070 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 114 | 330065-08 | 18 | SCHRAUBE | M4x18 T20 | XJ | |
0.80 EUR | |
| 115 | 577716-00 | 1 | KABELFÜHRUNG | XJ | |
1.30 EUR | ||
| 118 | 577712-00 | 1 | GRIFFBEDECKUNG | XJ | |
9.00 EUR | ||
| 120 | 325919-00 | 1 | SCHALTGRIFF | XJ | |
1.30 EUR | ||
| 123 | 492073-00 | 1 | ABDECKUNG | XJ | |
1.10 EUR | ||
| 124 | 330065-11 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 126 | 577745-00 | 1 | KUGELLAGER | XJ | |
4.40 EUR | ||
| 127 | 325279-00 | 1 | HUELSE | XJ | |
0.90 EUR | ||
| 129 | 577736-00 | 1 | LÜFTER | XJ | |
9.99 EUR | ||
| 130 | 324119-02 | 1 | SCHRAUBE | XJ | |
1.10 EUR | ||
| 131 | 326579-00 | 2 | BLENDE | XJ | |
1.10 EUR | ||
| 133 | 326667-00 | 2 | KOHLEFEDER | XJ | |
1.10 EUR | ||
| 134 | 326933-01 | 2 | HALTER | XJ | |
2.60 EUR | ||
| 136 | 324007-11 | 8 | SCHRAUBE | M5 X 18 | XJ | |
0.80 EUR | |
| 137 | 324007-11 | 4 | SCHRAUBE | M5 X 18 | XJ | |
0.80 EUR | |
| 151 | 577745-01 | 1 | BEARING,BALL | XJ | |
4.40 EUR | ||
| 152 | 330004-33 | 1 | KUGELLAGER | XJ | |
4.40 EUR | ||
| 153 | 578486-01 | 1 | GETR.GEH. ABD. ZSB | XJ | |
36.40 EUR | ||
| 154 | 325936-00 | 1 | DICHTUNG | XJ | |
1.30 EUR | ||
| 163 | 496367-00 | 1 | KUPPLUNG ZSB | >012007 | XJ | |
60.40 EUR | |
| 163 | 496440-00 | 1 | REPARATURSATZ | XJ | |
97.60 EUR | ||
| 164 | 492618-00 | 1 | GETRIEBE | XJ | |
6.50 EUR | ||
| 165 | 327141-05 | 1 | DICHTUNG | XJ | |
4.40 EUR | ||
| 166 | 325616-00 | 1 | BUCHSE | XJ | |
3.50 EUR | ||
| 167 | 918825-02 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 169 | 582431-00 | 1 | KURBELWELLE | XJ | |
47.90 EUR | ||
| 170 | 323711-26 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 171 | 325002-00 | 1 | STANGE | XJ | |
3.80 EUR | ||
| 172 | N041843 | 1 | KOLBEN | XJ | |
9.00 EUR | ||
| 173 | 330041-22 | 1 | STIFT | XJ | |
1.30 EUR | ||
| 174 | 325905-00 | 1 | HALTER | XJ | |
1.30 EUR | ||
| 175 | 576232-01 | 2 | O-RING | 23 X 4 | XJ | |
3.80 EUR | |
| 176 | 582576-00 | 1 | ZYLINDER | XJ | |
34.80 EUR | ||
| 177 | 577744-00 | 1 | O-RING | 25.5 X 2 | XJ | |
1.80 EUR | |
| 180 | 582575-00 | 1 | KOLBEN | XJ | |
22.30 EUR | ||
| 181 | 496440-00 | 1 | REPARATURSATZ | XJ | |
97.60 EUR | ||
| 182 | 326085-00 | 1 | GROSSE SCHEIBE | XJ | |
2.40 EUR | ||
| 183 | 323763-03 | 1 | SPRENGRING | XJ | |
1.30 EUR | ||
| 184 | 1005697-00 | 1 | SPINDELVERSCHLUSS | XJ | |
9.00 EUR | ||
| 196 | 577711-01 | 1 | HANDLE | XJ | |
7.20 EUR | ||
| 200 | N021271 | 1 | GRIFF ZSB | XJ | |
25.10 EUR | ||
| 205 | 585379-00 | 1 | DECKEL | Yellow | >482004 | XJ | |
4.40 EUR |
| 205 | 577710-00 | 1 | ABDECKUNG | Yellow | <482004 | XJ | |
4.40 EUR |
| 206 | 323711-22 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 207 | 581578-00 | 1 | FILTER | XJ | |
0.80 EUR | ||
| 207 | 487229-00 | 1 | FILTER | >482004 | XJ | |
0.90 EUR | |
| 208 | 491348-01 | 1 | DECKEL + DICHTUNG | XJ | |
2.60 EUR | ||
| 251 | 326555-00 | 1 | KRAGEN | XJ | |
4.40 EUR | ||
| 252 | 326552-01 | 1 | BUCHSE | XJ | |
3.80 EUR | ||
| 253 | N079374 | 1 | STIFT | XJ | |
0.80 EUR | ||
| 254 | N021108 | 1 | KLAMMER | XJ | |
4.40 EUR | ||
| 255 | 326553-00 | 1 | FESTSTELLRING | XJ | |
5.90 EUR | ||
| 256 | N021121 | 1 | HANDLE | XJ | |
15.30 EUR | ||
| 257 | 326573-00 | 1 | SCREW WING | XJ | |
0.80 EUR | ||
| 258 | 326556-00 | 1 | MUTTER | XJ | |
1.10 EUR | ||
| 259 | 330021-01 | 1 | MUTTER | XJ | |
2.90 EUR | ||
| 260 | 326205-00 | 1 | TIEFENANSCHLAG | XJ | |
1.80 EUR | ||
| 261 | 323753-11 | 2 | UNTERLEGSCHEIBE | XJ | |
1.50 EUR | ||
| 262 | 577744-05 | 1 | O-RING | 40.6x4 | XJ | |
5.90 EUR | |
| 263 | 323753-14 | 1 | UNTERLEGSCHEIBE | XJ | |
1.30 EUR | ||
| 264 | 323395-07 | 1 | FEDER | XJ | |
0.90 EUR | ||
| 265 | 582432-01 | 1 | SCHLAGSTUECK | XJ | |
36.40 EUR | ||
| 266 | 577484-00 | 1 | DICHTUNG | XJ | |
27.30 EUR | ||
| 267 | 582381-00 | 1 | UNTERLEGSCHEIBE | XJ | |
4.40 EUR | ||
| 268 | 577744-02 | 1 | O-RING | XJ | |
1.50 EUR | ||
| 269 | 323753-16 | 1 | UNTERLEGSCHEIBE | XJ | |
1.50 EUR | ||
| 270 | N210233 | 1 | O-RING | XJ | |
1.30 EUR | ||
| 271 | 326044-01 | 1 | KAPPE | Black | XJ | |
1.80 EUR | |
| 272 | 493132-00 | 1 | SPINDEL | XJ | |
91.80 EUR | ||
| 273 | 584339-00 | 1 | HALTER WERKZEUG | XJ | |
97.60 EUR | ||
| 274 | 918825-03 | 4 | SCHRAUBE | XJ | |
1.30 EUR | ||
| 275 | 325405-00 | 1 | HALTER | XJ | |
5.90 EUR | ||
| 276 | 325404-00 | 1 | GUMMI | XJ | |
2.20 EUR | ||
| 277 | 327141-00 | 1 | DICHTUNG | XJ | |
2.20 EUR | ||
| 278 | 323711-15 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 279 | 578490-01 | 1 | VORDERES GEHAEUSE | XJ | |
43.70 EUR | ||
| 281 | 588560-00 | 1 | SPINDELVERSCHLUSS | XJ | |
2.90 EUR | ||
| 285 | 577727-01 | 1 | DICHTUNG | XJ | |
2.20 EUR | ||
| 287 | 323763-04 | 1 | RING | XJ | |
1.10 EUR | ||
| 290 | 578493-00 | 1 | ENDKAPPE | XJ | |
7.20 EUR | ||
| 292 | 327210-00 | 1 | STAUBABLENKER | XJ | |
2.20 EUR | ||
| 303 | 328051-00 | 4 | PLASTIKROHR | XJ | |
0.80 EUR | ||
| 317 | 577746-00 | 1 | RING | XJ | |
1.10 EUR | ||
| 319 | 577709-00 | 1 | GEHAEUSE | DeWALT | XJ | |
9.00 EUR | |
| 320 | 323924-08 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 322 | 326619-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 400 | 493136-00 | 1 | DECKEL ZSB | 40mm | XJ | |
6.50 EUR | |
| 800 | 328771-02 | 1 | GREASE 100 GMS | XJ | |
12.20 EUR | ||
| 801 | 328771-07 | 1 | FETT | 50G, BIT GREASE | XJ | |
4.40 EUR | |
| 836 | 559632-99 | 1 | S.T.ABZIEHER | Bearing Puller | XJ | |
27.00 EUR | |
| 837 | 559633-99 | 1 | S.T.DORN | Bearing Mandrel | XJ | |
19.60 EUR | |
| 838 | 559631-99 | 1 | S.T.ABZIEHER | Cylinder removal | XJ | |
63.00 EUR | |
| 839 | 559656-99 | 1 | HALTEVORRICHTUNG | XJ | |
61.10 EUR | ||
| 840 | 559597-99 | 1 | S.T.MONTAGEGESTELL | Support Jig | XJ | |
27.00 EUR | |
| 841 | 559598-99 | 1 | S.T.BLOCK | Block | XJ | |
23.10 EUR | |
| 843 | 559645-99 | 1 | S.T.DICHTUNGS EINPRESSWERKZEUG | XJ | |
23.10 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
