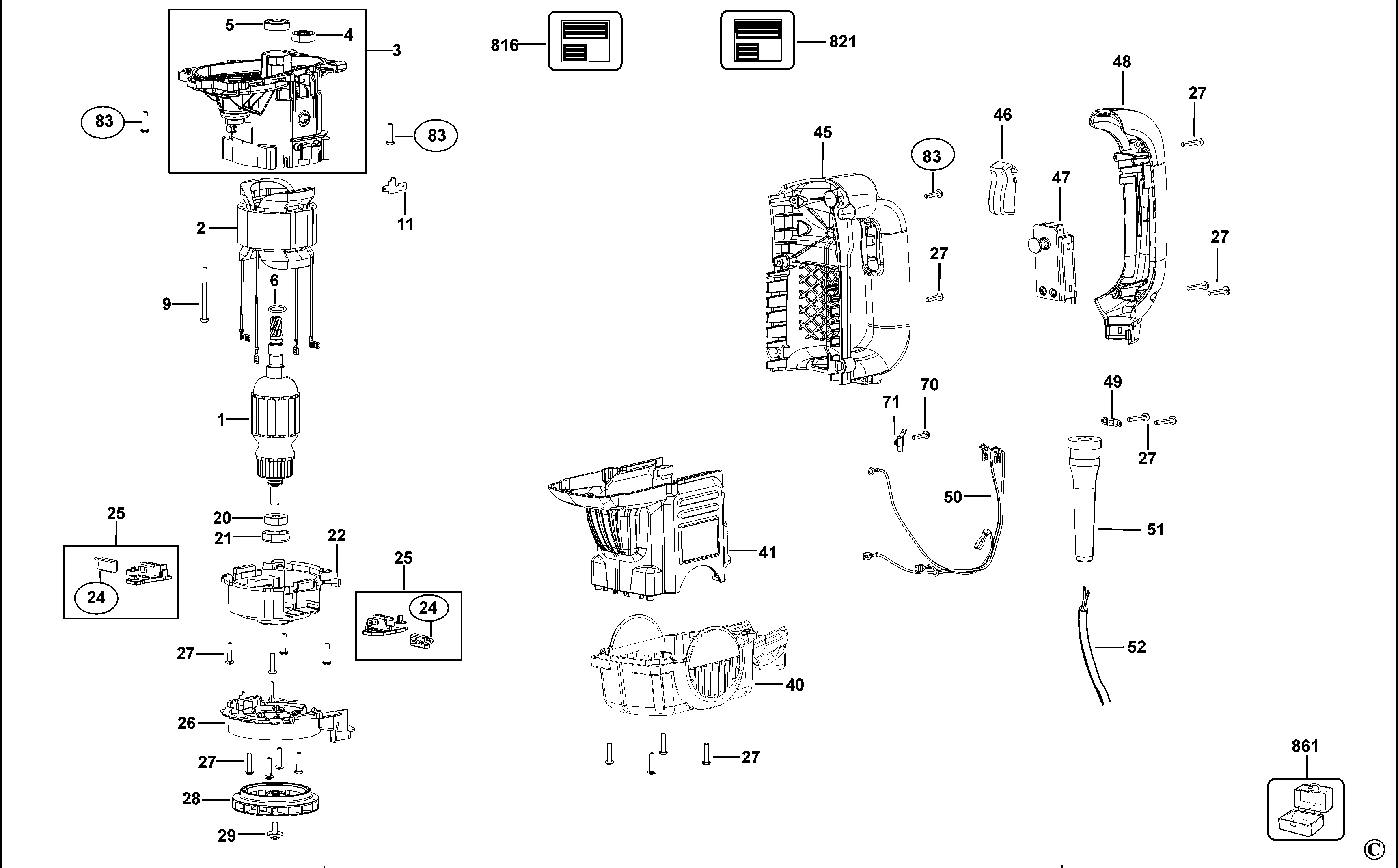

D25553K DREHHAMMER Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 3 | N047284 | 1 | ZSB GEHAEUSE | XJ |  |
20.90 EUR | ||
| 4 | 330003-39 | 1 | KUGELLAGER | XJ | |
2.90 EUR | ||
| 5 | 327141-03 | 1 | DICHTUNG | XJ | |
9.99 EUR | ||
| 6 | 577746-00 | 1 | RING | XJ | |
1.10 EUR | ||
| 9 | 330065-21 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 11 | 1007970-00 | 1 | VERBINDER | XJ | |
0.90 EUR | ||
| 20 | 330003-60 | 1 | KUGELLAGER | XJ | |
2.60 EUR | ||
| 21 | 1007732-00 | 1 | HUELSE | XJ | |
0.80 EUR | ||
| 22 | 1007798-00 | 1 | BRUECKE | XJ | |
4.40 EUR | ||
| 26 | N016922 | 1 | LÜFTERGEHÄUSE | XJ | |
3.50 EUR | ||
| 27 | 330065-08 | 15 | SCHRAUBE | M4x18 T20 | XJ | |
0.80 EUR | |
| 28 | 1006592-00 | 1 | LÜFTER | XJ | |
5.90 EUR | ||
| 29 | 324119-02 | 1 | SCHRAUBE | XJ | |
1.10 EUR | ||
| 40 | N021935 | 1 | ENDKAPPE | XJ | |
9.00 EUR | ||
| 41 | 1006576-02 | 1 | MOTORABDECKUNG | XJ | |
7.20 EUR | ||
| 45 | 1008798-00 | 1 | GEHAEUSEGRIFF | XJ |  |
7.20 EUR | ||
| 46 | 587114-01 | 1 | SCHALTGRIFF | XJ | |
1.10 EUR | ||
| 48 | 1008682-00 | 1 | GRIFFBEDECKUNG | XJ | |
9.00 EUR | ||
| 49 | 821070 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 51 | 323091-01 | 1 | KABELTUELLE | XJ | |
1.30 EUR | ||
| 83 | 326619-00 | 21 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 100 | N049332 | 1 | STAUBSCHUTZ | XJ | |
3.50 EUR | ||
| 101 | 487205-01 | 1 | HALTEKLAMMER | XJ | |
0.80 EUR | ||
| 102 | 1008282-00 | 1 | BUCHSE | XJ | |
3.80 EUR | ||
| 103 | N058328 | 1 | KLIP | XJ | |
1.80 EUR | ||
| 104 | 1008281-00 | 1 | ROHR | XJ | |
5.90 EUR | ||
| 105 | 1008264-00 | 1 | STIFT | XJ | |
2.60 EUR | ||
| 106 | 323395-06 | 1 | FEDER | XJ | |
0.80 EUR | ||
| 107 | 325930-00 | 1 | FEDERFUHRUNG | XJ | |
1.80 EUR | ||
| 108 | N080645 | 1 | HALTER WERKZEUG | Hex | XJ | |
41.60 EUR | |
| 109 | 1008275-00 | 6 | ROLLER | XJ | |
0.80 EUR | ||
| 110 | N021036 | 1 | KLIP | XJ | |
1.50 EUR | ||
| 111 | 1008280-00 | 1 | FESTSTELLRING | XJ | |
1.30 EUR | ||
| 112 | 918825-02 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 113 | 1006572-00 | 1 | ABDECKUNG | XJ | |
5.40 EUR | ||
| 117 | N075956 | 1 | FEDERSCHEIBE | XJ | |
3.80 EUR | ||
| 119 | N038151 | 1 | FILZ | XJ | |
1.30 EUR | ||
| 120 | N045793 | 1 | BUCHSE | XJ | |
1.30 EUR | ||
| 122 | 1007828-00 | 1 | DICHTUNG | 32x42x7/9 | XJ | |
7.20 EUR | |
| 123 | N041835 | 1 | GEHAEUSE | Inc 120, 122 | XJ | |
34.80 EUR | |
| 126 | 1005982-00 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 127 | 496191-00 | 1 | DAMPER | XJ | |
1.50 EUR | ||
| 128 | N080644 | 1 | SPINDEL | XJ | |
71.40 EUR | ||
| 129 | N455684 | 1 | SCHLAGSTUECK | XJ | |
33.70 EUR | ||
| 130 | 577484-00 | 1 | DICHTUNG | XJ | |
27.30 EUR | ||
| 131 | 323711-10 | 1 | O-RING | XJ | |
1.50 EUR | ||
| 135 | N064329 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 140 | 494857-00 | 1 | BUCHSE | XJ | |
2.20 EUR | ||
| 141 | 1006283-00 | 1 | DICHTUNG | XJ | |
2.40 EUR | ||
| 142 | 1005748-00 | 1 | FEDER | 2X40.2 | XJ | |
1.30 EUR | |
| 143 | N210233 | 2 | O-RING | XJ | |
1.30 EUR | ||
| 144 | 1006778-00 | 1 | BUCHSE | XJ | |
1.30 EUR | ||
| 145 | N041846 | 1 | ZYLINDER | XJ | |
27.30 EUR | ||
| 146 | 577744-00 | 2 | O-RING | 25.5 X 2 | XJ | |
1.80 EUR | |
| 147 | N041845 | 1 | KOLBEN | 5KG | XJ | |
27.30 EUR | |
| 148 | 576232-01 | 2 | O-RING | 23 X 4 | XJ | |
3.80 EUR | |
| 149 | N041844 | 1 | HUELSE | XJ | |
12.20 EUR | ||
| 150 | 1005749-00 | 1 | EINSTELLGABEL | XJ | |
1.30 EUR | ||
| 160 | N551764 | 1 | VORD GETRIEBE | | XJ |
20.90 EUR |
| ||
| 161 | 325905-00 | 1 | HALTER | XJ | |
1.30 EUR | ||
| 162 | 330041-22 | 1 | STIFT | XJ | |
1.30 EUR | ||
| 163 | N041843 | 1 | KOLBEN | XJ | |
9.00 EUR | ||
| 164 | 494724-00 | 1 | STANGE | XJ | |
3.50 EUR | ||
| 165 | 1008393-00 | 1 | ABDECKUNG RECHTS | R/H | XJ | |
5.40 EUR | |
| 166 | 1006786-00 | 1 | REGLER | XJ | |
1.50 EUR | ||
| 167 | 326467-00 | 1 | SPERRKLINKE | XJ | |
0.80 EUR | ||
| 168 | 1006575-00 | 1 | DECKEL | XJ | |
4.40 EUR | ||
| 169 | 323711-57 | 1 | O-RING | 8 X 2.2 | XJ | |
0.80 EUR | |
| 172 | 496856-00 | 1 | EXZENTER | XJ | |
0.80 EUR | ||
| 180 | 1006784-00 | 1 | SCHIEBER | 5 KG | XJ | |
3.50 EUR | |
| 181 | 323395-32 | 2 | FEDER | XJ | |
0.80 EUR | ||
| 182 | 1006783-00 | 1 | VERBINDER | 5 KG | XJ | |
0.80 EUR | |
| 183 | 496857-00 | 1 | ABDECKUNG | XJ | |
2.90 EUR | ||
| 184 | 323711-59 | 1 | O-RING | 65 X 4 | XJ | |
0.80 EUR | |
| 185 | 1006785-00 | 1 | PLATTE | XJ | |
1.50 EUR | ||
| 186 | N041841 | 1 | KURBELWELLE | 5 KG | XJ | |
47.90 EUR | |
| 187 | 323711-26 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 188 | N041840 | 1 | ZSB GEHAEUSE | 5 KG | XJ | |
60.40 EUR | |
| 190 | 577745-01 | 1 | BEARING,BALL | XJ | |
4.40 EUR | ||
| 191 | 586301-00 | 1 | BEARING,NEEDLE | XJ | |
3.80 EUR | ||
| 192 | 323711-57 | 1 | O-RING | 8 X 2.2 | XJ | |
0.80 EUR | |
| 193 | 1008427-00 | 1 | SCREW.SPECIAL | XJ | |
1.50 EUR | ||
| 201 | 1008392-00 | 1 | ABDECKUNG LINKS | R/H | XJ | |
5.40 EUR | |
| 202 | N041839 | 1 | KETTE | P8 X 40 | XJ | |
5.90 EUR | |
| 203 | N041837 | 1 | GETRIEBE | XJ | |
3.50 EUR | ||
| 204 | 1006280-00 | 1 | FUHRUNG | XJ | |
1.80 EUR | ||
| 205 | N551770 | 1 | KUPPLUNG ZSB | 1 STEP | XJ | |
64.90 EUR | |
| 206 | 1006282-00 | 1 | DICHTUNG | XJ | |
2.90 EUR | ||
| 800 | 870889-03 | 1 | FETT | RENOLIT PARAGON EP ½ - 20 GRAMS | XJ | |
4.40 EUR | |
| 810 | N040237 | 1 | OELROHR | Renolin PG150 - 90ml | XJ | |
18.30 EUR | |
| 816 | N064908 | 1 | MARKENAUFKLEBER | XJ | |
0.80 EUR | ||
| 836 | 1003938-99 | 1 | WARTUNGSWERKZEUG | XJ | |
57.50 EUR | ||
| 837 | 559645-99 | 1 | S.T.DICHTUNGS EINPRESSWERKZEUG | XJ | |
23.10 EUR | ||
| 861 | 574931-22 | 1 | KOFFER | XJ | |
52.00 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
