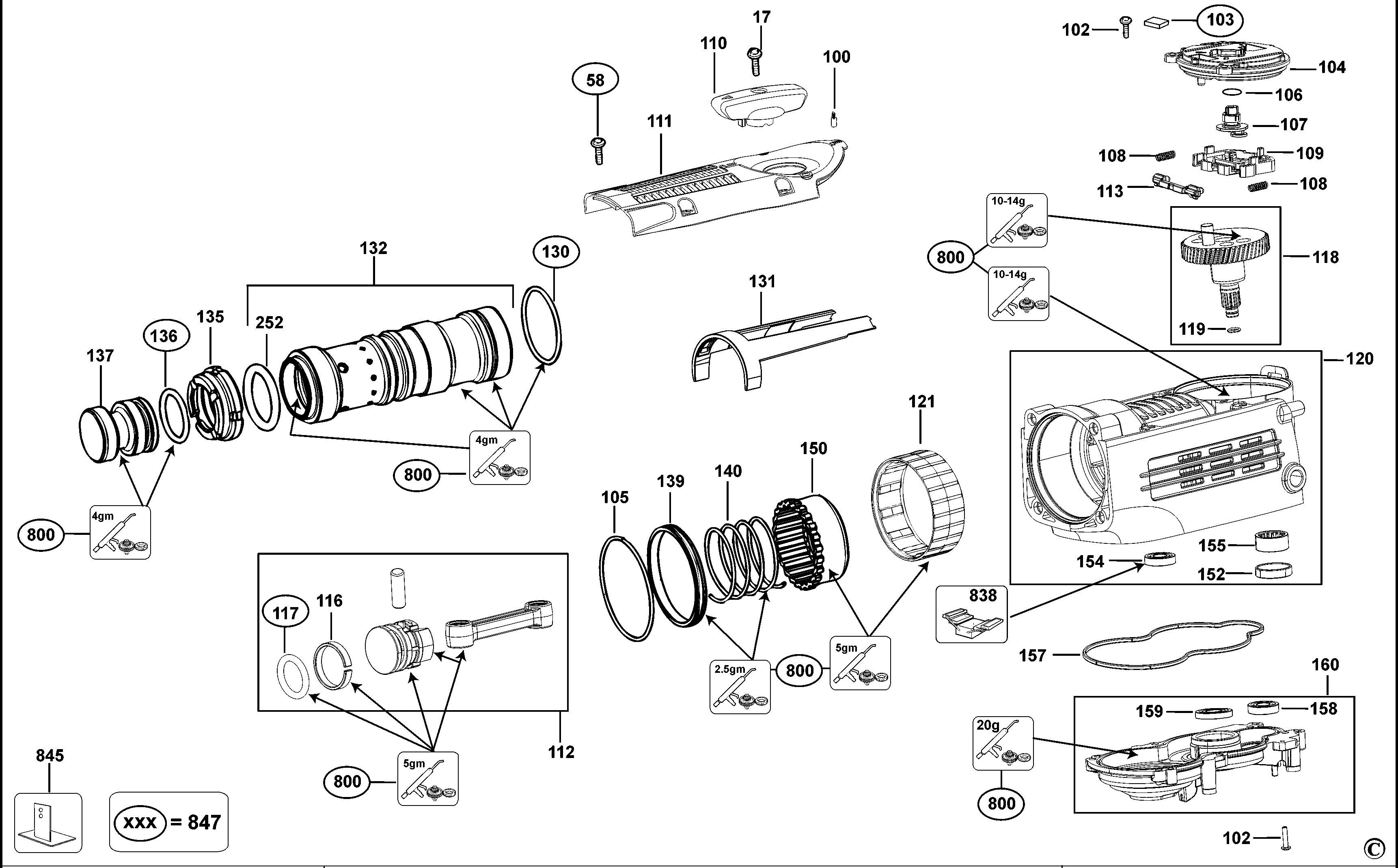

D25891K MEISSELHAMMER Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 3 | 581070-01 | 1 | SCHALTER | XJ |  |
16.70 EUR | ||
| 5 | 330019-30 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 6 | 577746-00 | 1 | RING | XJ | |
1.10 EUR | ||
| 7 | 577745-00 | 1 | KUGELLAGER | XJ | |
4.40 EUR | ||
| 8 | 590191-00 | 1 | ISOLATIONSHUELSE | XJ | |
1.10 EUR | ||
| 9 | N053065-02 | 1 | GEHAEUSE MOTOR | XJ |  |
18.30 EUR | ||
| 10 | N542569 | 1 | LUEFTER ZSB | XJ | |
9.00 EUR | ||
| 11 | 330065-08 | 2 | SCHRAUBE | M4x18 T20 | XJ | |
0.80 EUR | |
| 15 | 324119-02 | 1 | SCHRAUBE | XJ | |
1.10 EUR | ||
| 16 | N029960 | 1 | LÜFTERGEHÄUSE | XJ | |
33.70 EUR | ||
| 17 | 330065-08 | 19 | SCHRAUBE | M4x18 T20 | XJ | |
0.80 EUR | |
| 19 | N022762-01 | 1 | MOTORABDECKUNG | XJ | |
12.20 EUR | ||
| 20 | N026164 | 1 | ENDKAPPE | XJ | |
7.20 EUR | ||
| 27 | 1005672-00 | 1 | SCHRAUBE | XJ | |
1.30 EUR | ||
| 28 | N026163-01 | 1 | HALTERUNGSPLATTE | XJ | |
12.20 EUR | ||
| 29 | 1007569-00 | 1 | FEDER | XJ | |
0.90 EUR | ||
| 30 | 1007567-00 | 1 | BUCHSE | XJ | |
1.30 EUR | ||
| 35 | 1007566-00 | 1 | STOP | XJ | |
5.40 EUR | ||
| 36 | 1007565-00 | 1 | FALTENBALG | XJ | |
2.20 EUR | ||
| 37 | 1006579-01 | 1 | SCHALTERGRIFF | XJ | |
5.90 EUR | ||
| 38 | 488065-01 | 1 | SCHALTGRIFF | XJ | |
1.80 EUR | ||
| 39 | 1006580-00 | 1 | GRIFFBEDECKUNG | XJ | |
9.00 EUR | ||
| 46 | 1008678-00 | 1 | FALTENBALG | XJ | |
2.40 EUR | ||
| 47 | N038214 | 2 | BUCHSE | XJ | |
0.80 EUR | ||
| 48 | N062047 | 1 | STIFT | XJ | |
0.90 EUR | ||
| 49 | N030728 | 1 | LINSE | XJ | |
2.20 EUR | ||
| 50 | 1008391-00 | 1 | ABDECKUNG | XJ | |
2.40 EUR | ||
| 55 | 821070 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 56 | 323091-01 | 1 | KABELTUELLE | XJ | |
1.30 EUR | ||
| 58 | 324007-11 | 4 | SCHRAUBE | M5 X 18 | XJ | |
0.80 EUR | |
| 100 | 326467-00 | 1 | SPERRKLINKE | XJ | |
0.80 EUR | ||
| 102 | 324007-11 | 18 | SCHRAUBE | M5 X 18 | XJ | |
0.80 EUR | |
| 103 | 488067-00 | 1 | FILTER | XJ | |
1.30 EUR | ||
| 104 | N027968 | 1 | GETR.GEH. DECKEL | XJ | |
5.40 EUR | ||
| 105 | 323711-56 | 1 | O-RING | XJ | |
1.30 EUR | ||
| 106 | 323711-48 | 1 | O-RING | XJ | |
1.80 EUR | ||
| 107 | 586032-00 | 1 | EXZENTER | XJ | |
1.10 EUR | ||
| 108 | 323395-32 | 2 | FEDER | XJ | |
0.80 EUR | ||
| 109 | N027969 | 1 | SCHIEBER | XJ | |
2.20 EUR | ||
| 110 | 586038-00 | 1 | REGLER | XJ | |
2.40 EUR | ||
| 111 | 585168-04 | 1 | DECKEL | XJ | |
5.90 EUR | ||
| 112 | N079390 | 1 | KOLBENSATZ | >352010 | XJ | |
25.10 EUR | |
| 112 | 492489-00 | 1 | KOLBENSATZ | <352010 | XJ | |
20.90 EUR | |
| 113 | N027970 | 1 | HALTER | XJ | |
1.80 EUR | ||
| 116 | N029957 | 1 | KLIP | XJ | |
1.30 EUR | ||
| 117 | 487213-00 | 1 | O-RING | XJ | |
2.90 EUR | ||
| 118 | N503087 | 1 | KURBELWELLE | <352010 | XJ | |
78.10 EUR | |
| 118 | N091329 | 1 | KURBELWELLE | >352010 | XJ | |
62.50 EUR | |
| 119 | 323711-26 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 120 | N079382 | 1 | GEHAEUSE | XJ | |
129.80 EUR | ||
| 121 | 489244-00 | 1 | BUCHSE | XJ | |
4.40 EUR | ||
| 130 | 577744-07 | 1 | O-RING | XJ | |
1.10 EUR | ||
| 131 | 586034-00 | 1 | SCHIEBER | XJ | |
2.40 EUR | ||
| 132 | N079395 | 1 | ZYLINDER | XJ | |
39.00 EUR | ||
| 135 | 584715-00 | 1 | BUCHSE | XJ | |
2.90 EUR | ||
| 136 | 487296-00 | 1 | O-RING | XJ | |
2.90 EUR | ||
| 137 | 492501-00 | 1 | KOLBEN | XJ | |
39.00 EUR | ||
| 139 | 478650-00 | 1 | BUCHSE | XJ | |
2.40 EUR | ||
| 140 | 584726-00 | 1 | FEDER | XJ | |
1.80 EUR | ||
| 150 | 489181-01 | 1 | HUELSE | XJ | |
34.80 EUR | ||
| 152 | 479974-00 | 1 | DISTANZSCHEIBE | XJ | |
1.30 EUR | ||
| 154 | 577745-02 | 1 | BEARING,BALL | XJ | |
4.40 EUR | ||
| 155 | 586301-00 | 1 | BEARING,NEEDLE | XJ | |
3.80 EUR | ||
| 157 | 586022-00 | 1 | DICHTUNG | XJ | |
1.80 EUR | ||
| 158 | 330003-39 | 1 | KUGELLAGER | XJ | |
2.90 EUR | ||
| 159 | 327141-08 | 1 | DICHTUNG | XJ | |
3.50 EUR | ||
| 160 | N079388 | 1 | GETR.GEH. ABD. ZSB | XJ | |
27.30 EUR | ||
| 200 | 487238-01 | 1 | DICHTUNG | XJ | |
5.40 EUR | ||
| 201 | 487205-00 | 1 | RING | XJ | |
1.10 EUR | ||
| 202 | 487241-00 | 1 | UNTERLEGSCHEIBE | XJ | |
5.40 EUR | ||
| 203 | 487244-00 | 1 | GUMMI | XJ | |
2.90 EUR | ||
| 204 | 487236-00 | 1 | HUELSE | XJ | |
5.90 EUR | ||
| 205 | 579784-00 | 1 | FESTSTELLRING | XJ | |
12.20 EUR | ||
| 206 | 487218-00 | 1 | FEDER | XJ | |
0.80 EUR | ||
| 207 | 489672-00 | 2 | SCHLUESSEL | XJ | |
5.40 EUR | ||
| 208 | 487249-00 | 1 | BUCHSE | XJ | |
5.90 EUR | ||
| 209 | 590377-00 | 1 | FUEHRUNGSHUELSE | XJ | |
1.50 EUR | ||
| 210 | 487216-00 | 1 | FEDER | XJ | |
0.80 EUR | ||
| 220 | 584696-00 | 1 | FUHRUNG | XJ | |
2.90 EUR | ||
| 221 | 587081-00 | 1 | ABDECKUNG -LT- | XJ | |
3.80 EUR | ||
| 223 | 949886-32 | 4 | SCHRAUBE | XJ | |
0.90 EUR | ||
| 224 | 327141-09 | 1 | RANDDICHTUNG | XJ | |
3.80 EUR | ||
| 225 | 488679-00 | 1 | LAGERSATZ | XJ | |
18.30 EUR | ||
| 226 | 488787-00 | 1 | RING | XJ | |
0.80 EUR | ||
| 227 | 492697-00 | 1 | VORDERES GEHAEUSE | XJ | |
43.70 EUR | ||
| 228 | 584722-00 | 1 | UNTERLEGSCHEIBE | XJ | |
2.90 EUR | ||
| 229 | 589223-00 | 1 | DAMPER | XJ | |
1.30 EUR | ||
| 230 | 584727-00 | 1 | BUCHSE | XJ | |
2.40 EUR | ||
| 240 | 487287-00 | 1 | O-RING | XJ | |
5.90 EUR | ||
| 250 | 492698-00 | 1 | SPINDEL ZSB | XJ | |
81.70 EUR | ||
| 251 | N014007 | 1 | DICHTUNG | XJ | |
3.50 EUR | ||
| 252 | 491004-00 | 1 | O-RING | XJ | |
2.90 EUR | ||
| 253 | 1007543-00 | 1 | LAGERHUELSE | XJ | |
16.70 EUR | ||
| 254 | 579832-00 | 1 | SCHLAGSTUECK | XJ | |
27.30 EUR | ||
| 255 | 487270-00 | 1 | BUCHSE | XJ | |
5.40 EUR | ||
| 256 | 496678-00 | 1 | DAMPER | XJ | |
7.20 EUR | ||
| 257 | 579786-00 | 1 | BUCHSE | XJ | |
22.30 EUR | ||
| 260 | 496441-00 | 1 | SEITENGRIFF ZSB | XJ | |
36.40 EUR | ||
| 261 | 479319-00 | 2 | KLEMMSTÜCK | XJ | |
0.80 EUR | ||
| 262 | 479317-00 | 2 | SCHEIBE | XJ | |
1.10 EUR | ||
| 263 | 487277-00 | 1 | HANDLE | XJ | |
15.30 EUR | ||
| 264 | 487343-00 | 1 | BOLZEN | XJ | |
2.60 EUR | ||
| 265 | 479320-00 | 2 | SCHEIBENKLEMME | XJ | |
2.90 EUR | ||
| 266 | 488140-00 | 1 | KLAMMER | XJ | |
5.90 EUR | ||
| 267 | 487291-00 | 1 | KNOPF ZSB | XJ | |
4.40 EUR | ||
| 800 | 578970-04 | 1 | FETT | 80g | XJ | |
22.30 EUR | |
| 816 | N061824 | 1 | MARKENAUFKLEBER | XJ | |
0.80 EUR | ||
| 817 | 487395-01 | 1 | SCHILD | XJ | |
0.90 EUR | ||
| 836 | 559651-99 | 1 | S.T.SICHERUNGSRING DEMONTAGEZWERKZEUG | XJ | |
92.00 EUR | ||
| 836 | 559652-99 | 1 | S.T.SICHERUNGSRING DEMONTAGEZWERKZEUG | XJ | |
20.10 EUR | ||
| 837 | 559653-99 | 1 | S.T.LAGERABZIEHER | O Ring/Bush extracto | XJ | |
8.30 EUR | |
| 838 | 559657-99 | 1 | S.T.LAGERABZIEHER | Bearing puller, assm | XJ | |
51.80 EUR | |
| 840 | 559659-99 | 1 | S.T.DICHTUNGS EINPRESSWERKZEUG | XJ | |
19.60 EUR | ||
| 845 | 559656-99 | 1 | HALTEVORRICHTUNG | XJ | |
61.10 EUR | ||
| 861 | N072214 | 1 | KOFFER | XJ | |
54.40 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
