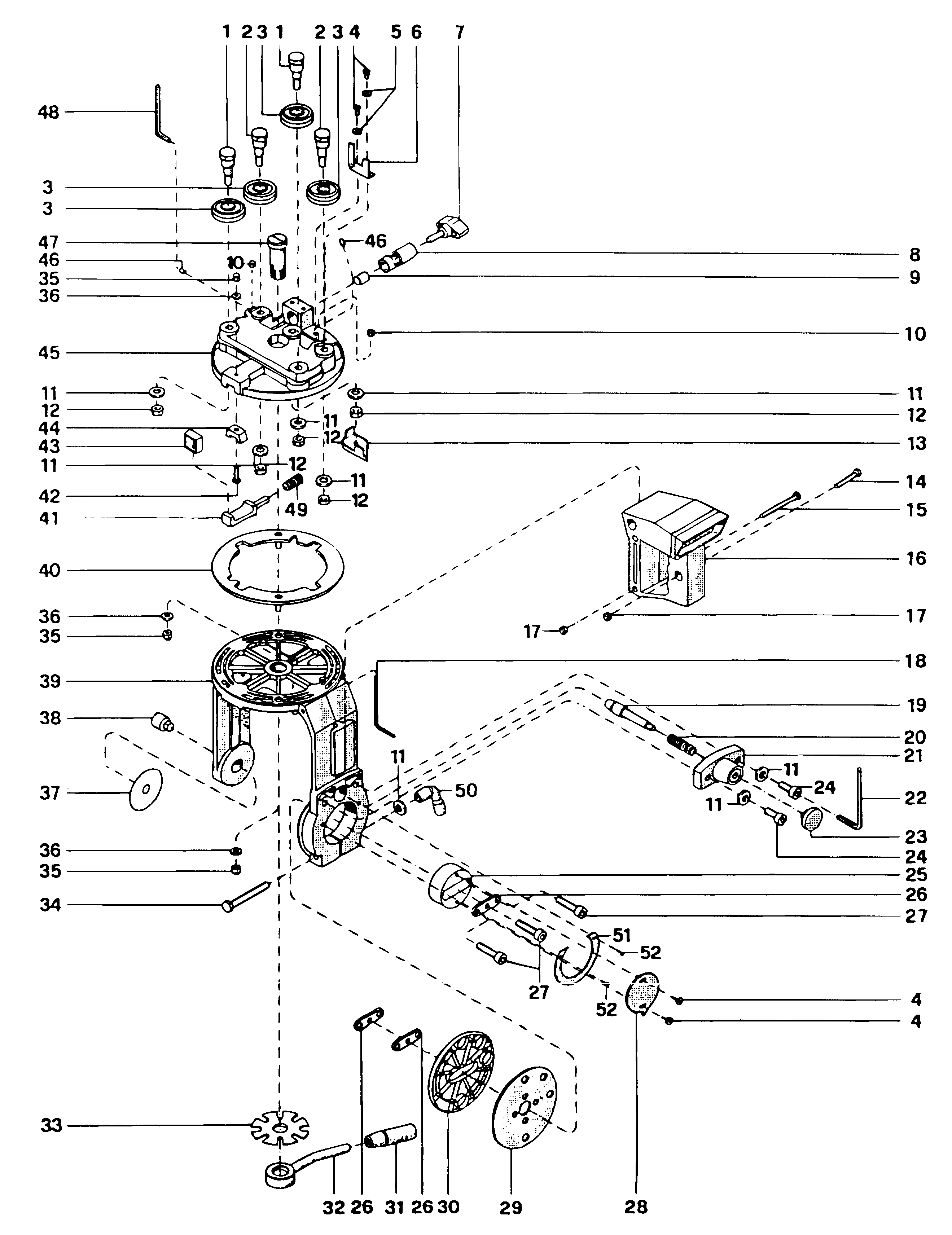

DW8001----C RADIALKREISSÄGE Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 1 | 760421-00 | 2 | SCHAFT | YOKE/RLLR HEAD | XJ |  |
4.40 EUR | |
| 2 | 760417-00 | 1 | SCHAFT | YOKE/RLLR HEAD | XJ | |
6.50 EUR | |
| 3 | 860154-00 | 4 | KUGELLAGER | YOKE/RLLR HEAD | XJ | |
33.70 EUR | |
| 4 | 860094-02 | 2 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 5 | 860094-02 | 4 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 6 | 863727-00 | 1 | ZEIGER | YOKE/RLLR HEAD | XJ |  |
2.60 EUR | |
| 7 | 862427-00 | 1 | KNOPF | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 8 | 860121-00 | 1 | KLAMMER | YOKE/RLLR HEAD | XJ | |
6.50 EUR | |
| 10 | 860083-03 | 2 | MUTTER | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 11 | 860074-03 | 5 | UNTERLEGSCHEIBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 12 | 860083-08 | 4 | MUTTER | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 13 | 860817-01 | 1 | ABDECKUNG | YOKE/RLLR HEAD | XJ | |
1.50 EUR | |
| 14 | 949701-12 | 1 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 15 | 860089-39 | 1 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 16 | 862423-00 | 1 | HANDLE | YOKE/RLLR HEAD | XJ | |
5.40 EUR | |
| 17 | 860083-02 | 2 | MUTTER | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 18 | 949882-01 | 1 | WRENCH 4 MM | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 19 | 863977-00 | 1 | STIFT | YOKE/RLLR HEAD | XJ | |
18.30 EUR | |
| 20 | 860112-11 | 1 | FEDER | YOKE/RLLR HEAD | XJ | |
2.20 EUR | |
| 21 | 76521 | 1 | HALTERUNG | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 22 | 860098-04 | 1 | WRENCH 6 MM | YOKE/RLLR HEAD | XJ | |
0.90 EUR | |
| 23 | 946469-00 | 1 | KNOPF | YOKE/RLLR HEAD | XJ | |
0.90 EUR | |
| 24 | 860093-07 | 2 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 25 | 860119-01 | 1 | VORDERACHSE | YOKE/RLLR HEAD | XJ | |
54.40 EUR | |
| 26 | 860120-00 | 1 | PLATTE | YOKE/RLLR HEAD | XJ | |
1.50 EUR | |
| 27 | 860093-02 | 3 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 28 | 860832-00 | 1 | ZEIGER | YOKE/RLLR HEAD | XJ | |
2.90 EUR | |
| 29 | 860830-00 | 1 | PLATTE | YOKE/RLLR HEAD | XJ | |
2.90 EUR | |
| 30 | 860827-00 | 1 | SCHILD | YOKE/RLLR HEAD | XJ | |
20.90 EUR | |
| 31 | 860796-01 | 1 | KNOPF | YOKE/RLLR HEAD | XJ | |
1.50 EUR | |
| 32 | 864057-01 | 1 | KLAMMER | YOKE/RLLR HEAD | XJ | |
13.90 EUR | |
| 33 | 860113-00 | 1 | KLAMMER | YOKE/RLLR HEAD | XJ | |
3.80 EUR | |
| 34 | 860086-11 | 1 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
1.10 EUR | |
| 35 | 860092-03 | 2 | MUTTER M5 | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 36 | 860073-01 | 2 | UNTERLEGSCHEIBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 37 | 864160-00 | 1 | SCHEIBE | YOKE/RLLR HEAD | XJ | |
5.90 EUR | |
| 38 | 864058-00 | 1 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
5.90 EUR | |
| 39 | 860823-02 | 1 | BUEGEL | YOKE/RLLR HEAD | XJ | |
64.90 EUR | |
| 40 | 860824-00 | 1 | RING ZSB | YOKE/RLLR HEAD | XJ | |
39.00 EUR | |
| 41 | 860818-01 | 1 | RASTER | YOKE/RLLR HEAD | XJ | |
2.90 EUR | |
| 42 | 860085-06 | 1 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 43 | 760427-00 | 1 | KAPPE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 44 | 860816-00 | 1 | RASTER | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 45 | 860814-03 | 1 | ROLLENKOPF | YOKE/RLLR HEAD | XJ | |
30.75 EUR | |
| 46 | 941880-00 | 2 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 47 | 860123-00 | 1 | DREHACHSENWELLE | YOKE/RLLR HEAD | XJ | |
64.90 EUR | |
| 48 | 938539-00 | 1 | SCHLUESSEL | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 49 | 32582 | 1 | FEDER | YOKE/RLLR HEAD | XJ | |
0.80 EUR | |
| 50 | 860825-00 | 1 | KLAMMER | YOKE/RLLR HEAD | XJ | |
4.40 EUR | |
| 51 | 860829-00 | 1 | ZEIGER | YOKE/RLLR HEAD | XJ | |
3.80 EUR | |
| 52 | 860205-06 | 2 | SCHRAUBE | YOKE/RLLR HEAD | XJ | |
0.80 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
