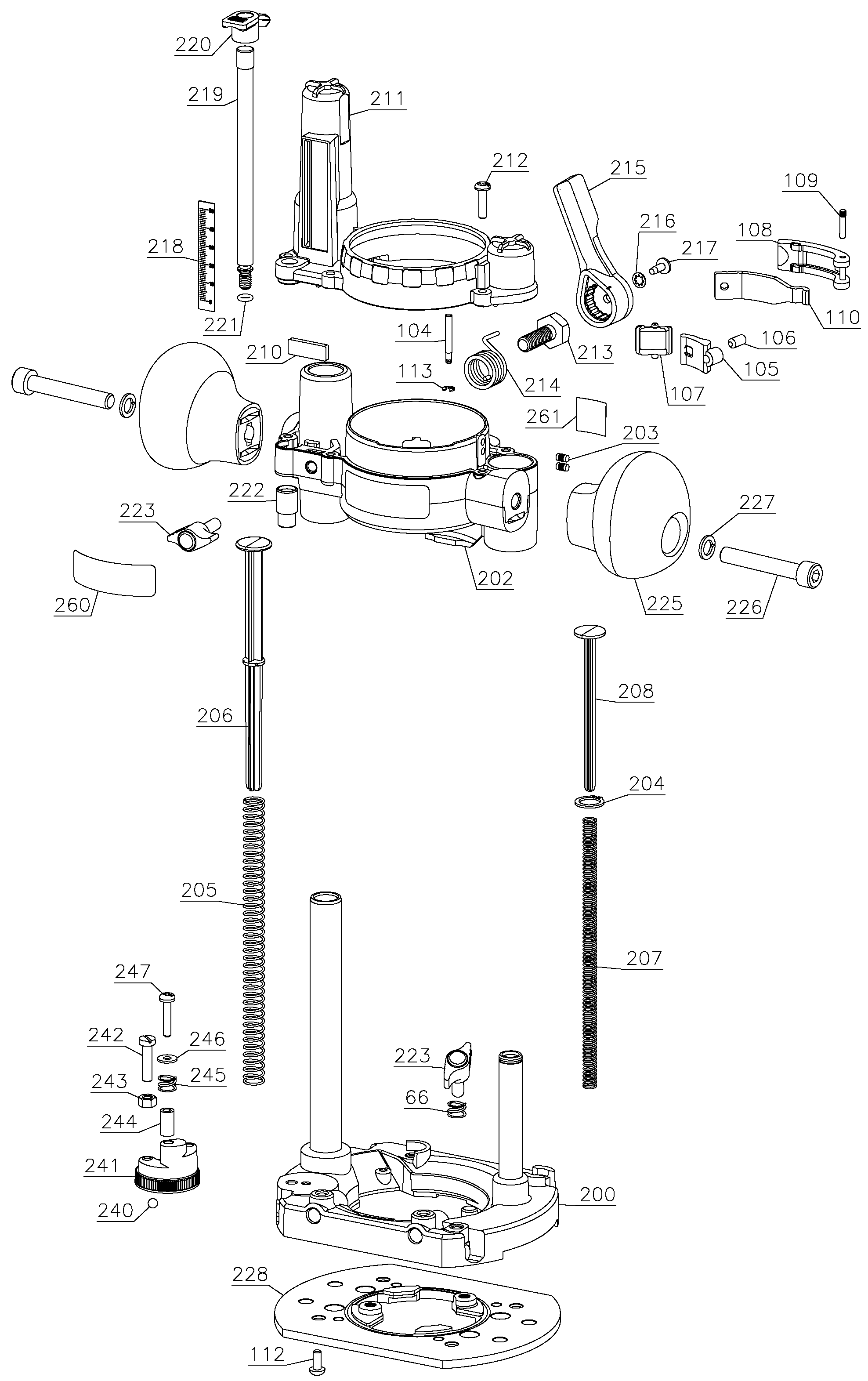

D26203 PLUNGE BASE COMPACT ROUTE Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 1 | A26126SV | 1 | MOTORGEHAUSE ZSB | INCL. BEARING | QS |  |
62.50 EUR | |
| 2 | N074107 | 1 | LED ANZEIGE | QS | |
27.30 EUR | ||
| 3 | A26131 | 1 | EINSATZ | QS | |
0.90 EUR | ||
| 4 | N038183 | 1 | FESTSTELLKNOPF | QS | |
0.90 EUR | ||
| 5 | A23489 | 1 | FEDER | QS | |
0.80 EUR | ||
| 6 | 330065-06 | 2 | SCHRAUBE | QS | |
0.80 EUR | ||
| 7 | A28455SV | 1 | ARMATURE 230V | 230V | INCL. 53,54 | QS | |
85.10 EUR |
| 8 | A25248 | 1 | MUTTER | QS | |
2.40 EUR | ||
| 9 | A28680 | 1 | GEHAEUSE | QS | 9.00 EUR | |||
| 10 | 330065-07 | 1 | SCHRAUBE | QS | |
0.80 EUR | ||
| 11 | A28458 | 2 | KOHLEHALTER ZSB | INCL. 59 | QS | |
6.50 EUR | |
| 12 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | QS | |
0.80 EUR | |
| 13 | N074135 | 1 | STEUERMODUL ZSB | 230V W/WIRE HARNESS | INCL. LC FILTER & CAPACITOR | QS | |
50.00 EUR |
| 14 | N074109 | 1 | STEUERMODUL ZSB | V.S. 230V | QS | |
60.40 EUR | |
| 15 | A28461 | 1 | CORDSET (EURO) | QS | |
15.30 EUR | ||
| 16 | 329301-00 | 1 | KABELKLEMME | QS | |
0.80 EUR | ||
| 17 | 330019-02 | 3 | SCHRAUBE | QS | |
0.80 EUR | ||
| 18 | 887453 | 1 | SCHALTER | QS | |
2.40 EUR | ||
| 19 | A29360 | 1 | SCHALTERABDECKUNG | QS | |
1.30 EUR | ||
| 20 | A28679 | 1 | ENDKAPPE | QS | |
15.30 EUR | ||
| 21 | A27330 | 1 | MAGNET | QS | |
2.90 EUR | ||
| 22 | 330045-09 | 2 | SCHRAUBE | M4x30 T20 MTLTHDFMG | QS | |
0.80 EUR | |
| 23 | 330065-08 | 3 | SCHRAUBE | M4x18 T20 | QS | |
0.80 EUR | |
| 24 | A28462SV | 1 | KLEMMHUELSE | QS | |
31.40 EUR | ||
| 25 | N103802 | 1 | AUFKLEBER | D26203-QS TY1 | QS |  |
3.80 EUR | |
| 26 | A28464 | 1 | WARNSCHILD | QS | |
0.80 EUR | ||
| 28 | A28476 | 1 | TRAEGER | CORD CLAMP | QS | |
1.10 EUR | |
| 29 | 398100-00 | 1 | ANSCHLUSSBLOCK | QS | |
1.30 EUR | ||
| 30 | A29361 | 1 | LITZE ZSB | 171MM, BROWN, 18GA | QS | |
2.90 EUR | |
| 50 | A26125 | 1 | EINSATZ | FAN END BEARING | QS | |
1.30 EUR | |
| 51 | A27537 | 1 | KUGELLAGER | QS | |
3.50 EUR | ||
| 52 | A25250 | 1 | MUTTER LINKS | QS | |
1.10 EUR | ||
| 53 | N110359 | 1 | KUGELLAGER | QS | |
1.50 EUR | ||
| 54 | A25585 | 1 | ISOLATION | QS | |
0.80 EUR | ||
| 55 | N278879 | 1 | FIELD 230V | 230V PKG'D A28457 | QS | |
39.00 EUR | |
| 56 | A23504 | 1 | ABDECKUNG | QS | |
2.40 EUR | ||
| 57 | 949638-02 | 2 | DAMPER | QS | |
0.80 EUR | ||
| 58 | A27937 | 1 | UNTERLEGSCHEIBE | PRELOAD | QS | |
0.80 EUR | |
| 59 | A28459 | 2 | KOHLE | QS | |
4.40 EUR | ||
| 60 | 330005-01 | 1 | KABELTUELLE | QS | 1.30 EUR | |||
| 65 | A27895 | 1 | SPEZIALSCHLUESSEL | QS | |
5.90 EUR | ||
| 66 | 609118-00 | 4 | FEDER | QS | |
0.80 EUR | ||
| 67 | 945121-00 | 2 | SCREW.TEMP | QS | |
0.80 EUR | ||
| 68 | 948651-00 | 1 | ANSCHLAG ZSB | INCL. PLASTIC GUIDES & 71,72 | QS | |
33.70 EUR | |
| 71 | 249090-00 | 2 | FUHRUNG | QS | |
1.80 EUR | ||
| 72 | 860205-04 | 4 | SCHRAUBE | QS | |
0.80 EUR | ||
| 73 | 868080-00 | 2 | STANGE | QS | |
2.40 EUR | ||
| 75 | 931405-00 | 1 | SCHRAUBE | QS | |
0.80 EUR | ||
| 76 | A27315 | 1 | KEGEL | QS | |
0.90 EUR | ||
| 77 | A27316 | 1 | STIFT | QS | |
2.40 EUR | ||
| 78 | 249014-01 | 1 | BUCHSE | TEMPLATE GUIDE | QS | |
6.50 EUR | |
| 79 | 945121-00 | 2 | SCREW.TEMP | QS | |
0.80 EUR | ||
| 104 | A24452 | 1 | STIFT | QS | |
1.10 EUR | ||
| 105 | A24764 | 1 | EINSTELLER | QS | |
3.50 EUR | ||
| 106 | 330022-18 | 1 | SCHRAUBE | QS | |
0.90 EUR | ||
| 107 | A24767 | 1 | PLATTE | QS | |
2.20 EUR | ||
| 108 | A24771 | 1 | CLAMPING BAR | QS | |
2.90 EUR | ||
| 109 | A24770 | 2 | STIFT | QS | |
0.90 EUR | ||
| 110 | A27362 | 1 | FEDER | QS | |
2.60 EUR | ||
| 112 | N029178 | 4 | SCHRAUBE | QS | |
0.80 EUR | ||
| 113 | N028373 | 1 | HALTER | QS | |
0.80 EUR | ||
| 200 | N095607 | 1 | PLATTE ZSB | QS | |
18.30 EUR | ||
| 202 | N095608 | 1 | CARRIER SA | QS | |
25.10 EUR | ||
| 203 | N042079 | 2 | STIFT | QS | |
0.80 EUR | ||
| 204 | 684179 | 1 | RING | QS | |
0.80 EUR | ||
| 205 | N037001 | 1 | FEDER | QS | |
1.10 EUR | ||
| 206 | N034346 | 1 | FUHRUNG | QS | |
1.30 EUR | ||
| 207 | A29112 | 1 | FEDER | QS | |
0.80 EUR | ||
| 208 | A29651 | 1 | FUHRUNG | QS | |
1.10 EUR | ||
| 210 | N027873 | 1 | PLATTE | QS | |
0.80 EUR | ||
| 211 | N029880 | 1 | ABDECKUNG | QS | |
2.90 EUR | ||
| 212 | 330045-06 | 5 | SCHRAUBE | QS | |
0.80 EUR | ||
| 213 | N029497 | 1 | BOLZEN | QS | |
3.80 EUR | ||
| 214 | N029508 | 1 | FEDER | QS | |
0.80 EUR | ||
| 215 | N027646 | 1 | HEBEL | QS | |
1.10 EUR | ||
| 216 | 608298-00 | 1 | SPEZIALSCHEIBE | QS | |
0.80 EUR | ||
| 217 | 324007-10 | 1 | SCHRAUBE | QS | |
0.80 EUR | ||
| 218 | N032095 | 1 | SKALA | QS | |
0.80 EUR | ||
| 219 | A28031 | 1 | STANGE | QS | |
2.40 EUR | ||
| 220 | N031168 | 1 | EINSTELLER | QS | |
0.80 EUR | ||
| 221 | N027984 | 1 | O-RING | QS | |
0.80 EUR | ||
| 222 | N027987 | 1 | EINSTELLER | QS | |
2.60 EUR | ||
| 223 | 608930-00 | 6 | SCHRAUBE | QS | |
0.80 EUR | ||
| 225 | 397560-00 | 2 | KNOPF | QS | |
3.80 EUR | ||
| 226 | 607395-00 | 2 | SCHRAUBE | QS | |
0.90 EUR | ||
| 227 | 098197-09 | 2 | UNTERLEGSCHEIBE | QS | |
0.80 EUR | ||
| 228 | N029742 | 1 | BODENPLATTE | QS | |
4.40 EUR | ||
| 230 | A29660 | 1 | ADAPTER | INCL. 23 | QS | |
5.40 EUR | |
| 231 | N028927 | 2 | UNTERLEGSCHEIBE | 1 OPTIONAL FOR EDGE GUIDE | QS | |
0.80 EUR | |
| 232 | 147107-00 | 1 | KNOPF | OPTIONAL NOT INCLUDED | QS | |
1.30 EUR | |
| 233 | N026733 | 1 | FUEHRUNG ZSB | OPTIONAL NOT INCLUDED | QS | |
9.00 EUR | |
| 240 | 652836-00 | 1 | KUGEL | QS | |
0.80 EUR | ||
| 241 | 326976-01 | 1 | DREHKOPF | QS | |
3.80 EUR | ||
| 242 | 608928-00 | 1 | SCHRAUBE | QS | |
0.80 EUR | ||
| 243 | 330015-04 | 1 | MUTTER | QS | |
0.80 EUR | ||
| 244 | 652835-00 | 1 | DISTANZSCHEIBE | QS | |
0.80 EUR | ||
| 245 | 652834-00 | 1 | FEDER | QS | |
0.80 EUR | ||
| 246 | 653599-00 | 1 | UNTERLEGSCHEIBE | QS | |
0.80 EUR | ||
| 247 | 330045-07 | 1 | SCHRAUBE | QS | |
0.80 EUR | ||
| 260 | N029502 | 1 | MARKENAUFKLEBER | QS | |
0.80 EUR | ||
| 261 | N029503 | 1 | TYPENSCHILD | QS | |
0.80 EUR | ||
| 861 | A28470 | 1 | KOFFER | not included with unit | QS | |
39.00 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
