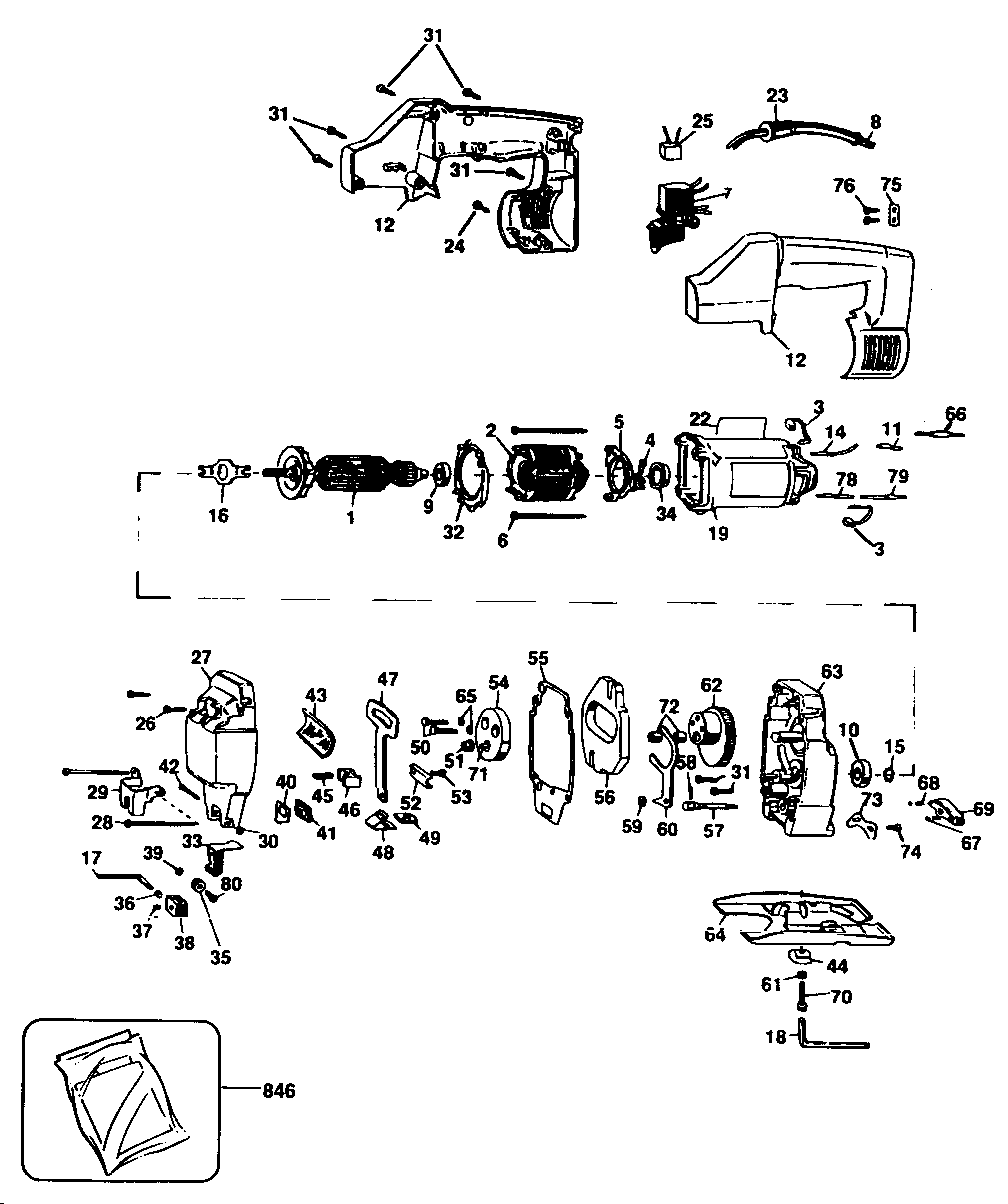

3157 STICHSÄGE Type 100 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 1 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | XJ |  |
47.90 EUR | |
| 2 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | XJ | |
47.90 EUR | |
| 3 | 445861-04 | 2 | KOHLE | XJ | |
1.50 EUR | ||
| 4 | 445860-00 | 2 | KOHLEFEDER | XJ |  |
0.80 EUR | ||
| 5 | 449899-05 | 1 | RING | XJ | |
5.40 EUR | ||
| 6 | 445880-00 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 7 | 147147 | 1 | SCHALTER | XJ | |
60.40 EUR | ||
| 8 | 330060-24 | 1 | KABELSATZ | XJ | |
31.40 EUR | ||
| 8 | 93548-21 | 1 | CORDSET (EURO) | XJ | |
16.70 EUR | ||
| 8 | 93548-21 | 1 | CORDSET (EURO) | SE-FI-DK-NO | XJ | |
16.70 EUR | |
| 9 | 605040-06 | 1 | BEARING,BALL | XJ | |
2.40 EUR | ||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | XJ | |
2.90 EUR | |
| 11 | 445881-99 | 2 | STREIFEN | XJ | |
0.80 EUR | ||
| 12 | 449474-03 | 1 | GRIFF ZSB | XJ | |
9.00 EUR | ||
| 12 | 449474-03 | 1 | GRIFF ZSB | SE-FI-DK-NO | XJ | |
9.00 EUR | |
| 12 | 449474-03 | 1 | GRIFF ZSB | IT | XJ | |
9.00 EUR | |
| 14 | 449192-00 | 2 | ANSCHLUSSKLEMME | XJ | |
0.80 EUR | ||
| 15 | 444793-00 | 1 | SPRENGRING | XJ | |
0.80 EUR | ||
| 17 | 99056-04 | 1 | SCHLUESSEL | 1/8 INCH | XJ | |
0.80 EUR | |
| 18 | 098000-11 | 1 | IMBUSSCHLUESSEL | XJ | |
0.90 EUR | ||
| 19 | 445857-00 | 1 | GEHAEUSE | XJ | |
3.80 EUR | ||
| 22 | 145073 | 1 | TYPENSCHILD | XJ | ||||
| 22 | 145073-02 | 1 | TYPENSCHILD | XJ | ||||
| 23 | N542553 | 1 | KABELTUELLE | XJ | 3.80 EUR | |||
| 23 | N542553 | 1 | KABELTUELLE | XJ | 3.80 EUR | |||
| 24 | 330019-13 | 1 | SCHRAUBE | M4X19 T20 | XJ | |
0.80 EUR | |
| 26 | 330045-08 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 27 | 133775-03 | 1 | GETR.GEH.ABDECKUNG | XJ | |
15.30 EUR | ||
| 29 | 444745 | 1 | KLAMMER | XJ | ||||
| 30 | 133825-00 | 1 | KLIP | XJ | |
0.80 EUR | ||
| 31 | 330019-14 | 7 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 32 | 445876-00 | 1 | ABDECKUNG | XJ | |
0.90 EUR | ||
| 33 | 608389-00 | 1 | HALTER | XJ | |
6.50 EUR | ||
| 34 | 445217-02 | 1 | HUELSE | XJ | |
0.90 EUR | ||
| 35 | 608389-00 | 1 | HALTER | XJ | |
6.50 EUR | ||
| 36 | 445405-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 37 | 330022-16 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 38 | 444520-00 | 1 | MESSERKLEMME | XJ | |
5.40 EUR | ||
| 39 | 98155-03 | 1 | MUTTER | XJ | |
0.80 EUR | ||
| 40 | 133751-00 | 1 | SCHILD | XJ | |
0.80 EUR | ||
| 41 | 133755-00 | 1 | DICHTUNG | XJ | |
0.90 EUR | ||
| 42 | 133820-00 | 1 | STIFT | XJ | |
0.80 EUR | ||
| 44 | 133750-00 | 1 | KLAMMER | XJ | |
0.80 EUR | ||
| 45 | 49161-00 | 1 | FEDER | XJ | |
0.80 EUR | ||
| 46 | 133756-00 | 1 | KUGELLAGER | XJ | |
0.80 EUR | ||
| 47 | 445387-00 | 1 | SCHIENE | XJ | |
4.40 EUR | ||
| 48 | 450285-00 | 1 | PLATTE | XJ | |
0.80 EUR | ||
| 49 | 133807-00 | 1 | DICHTUNG | XJ | |
0.80 EUR | ||
| 50 | 98022-26 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 51 | 620203-00 | 1 | ROLLER | XJ | |
1.30 EUR | ||
| 52 | 133844-00 | 1 | KUGELLAGER | XJ | |
0.80 EUR | ||
| 53 | 330045-05 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 54 | 133828-01SV | 1 | PLATTE | XJ | |
13.90 EUR | ||
| 55 | 133765-00 | 1 | DICHTUNG | XJ | |
0.80 EUR | ||
| 56 | 133761-00 | 1 | GEWICHT | XJ | |
4.40 EUR | ||
| 57 | 429882-64 | 1 | STANGE | XJ | |
6.50 EUR | ||
| 58 | 98185-20 | 1 | STIFT | XJ | |
0.80 EUR | ||
| 59 | 330015-07 | 1 | UNTERLEGSCHEIBE | M5x0.8 | XJ | |
0.80 EUR | |
| 60 | 133799-00 | 1 | GABEL | XJ | |
5.40 EUR | ||
| 61 | 098198-05 | 1 | UNTERLEGSCHEIBE | LOCK, M6 | XJ | |
0.80 EUR | |
| 62 | 133827-02SV | 1 | GETRIEBE ZSB | XJ | |
50.00 EUR | ||
| 63 | 448817-02 | 1 | GETR.GEH. | XJ | |
15.30 EUR | ||
| 64 | 133770-00 | 1 | SCHUH | XJ | |
3.50 EUR | ||
| 65 | 445687-00 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 66 | 145074-00 | 2 | DROSSEL | XJ | |
4.40 EUR | ||
| 67 | 000475-00 | 2 | STAHLKUGEL | XJ | |
0.80 EUR | ||
| 68 | 51658-00 | 2 | FEDER | XJ | |
0.80 EUR | ||
| 69 | 448809-00 | 1 | KNOPF | XJ | |
1.10 EUR | ||
| 70 | 932318 | 1 | SCHRAUBE | XJ | ||||
| 71 | 386700-00 | 1 | STIFT | XJ | |
0.80 EUR | ||
| 72 | 330004-06 | 2 | NADELLAGER | XJ | |
1.80 EUR | ||
| 73 | 449977-00 | 1 | QUADRANT | XJ | |
0.80 EUR | ||
| 74 | 80164 | 1 | SCHRAUBE | XJ | ||||
| 75 | 142519-00 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 76 | 330013-03 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 80 | 400851-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 846 | 065288-01 | 1 | HOLDER CHUCK KEY | XJ | |
1.10 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
