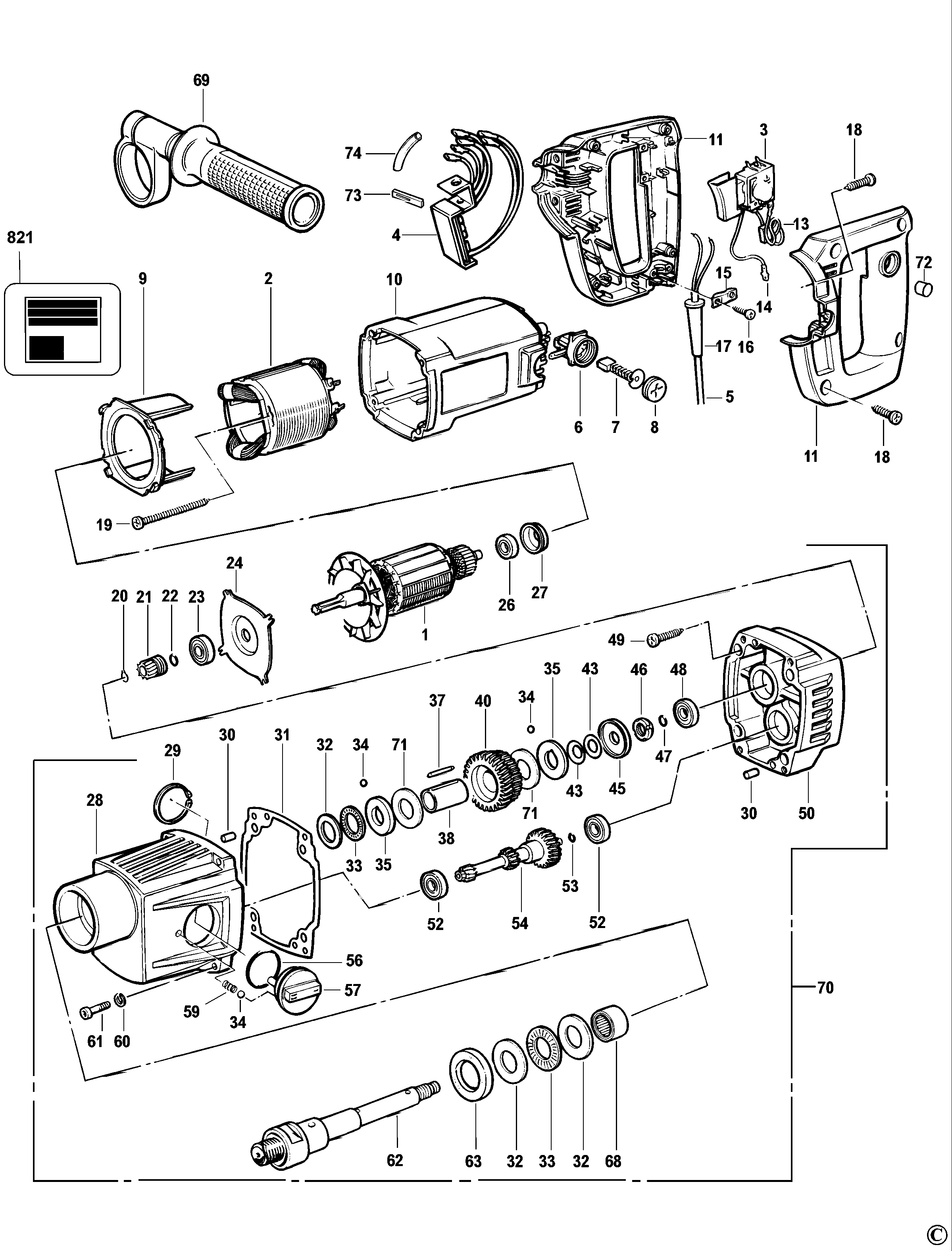

DB10EK DIAMANT-BOHRER Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 1 | 248158-00 | 1 | ANKER ZSB | 240V TYPE 3 | XJ |  |
106.10 EUR | |
| 1 | 248158-00 | 1 | ANKER ZSB | 240V TYPE 2 | XJ | |
106.10 EUR | |
| 1 | 248158-01 | 1 | ARMATURE 115V | 115V TYPE 2 | XJ | |
106.10 EUR | |
| 2 | 587020-01 | 1 | FIELD 115V | 115V TYPE 2 | XJ | |
36.40 EUR | |
| 2 | 587020-00 | 1 | FELD | 240V TYPE 3 | XJ | |
20.90 EUR | |
| 2 | 587020-00 | 1 | FELD | 240V TYPE 2 | XJ | |
20.90 EUR | |
| 3 | 249579-00 | 1 | SCHALTERKIT | XJ | |
27.30 EUR | ||
| 4 | 328372-02 | 1 | SERVICE KIT 115V | ELU Grey | 115V TYPE 2 | XJ | |
68.30 EUR |
| 4 | 328372-00 | 1 | SERVICE KIT 230V | ELU Grey | 240V TYPE 2 | XJ | |
91.80 EUR |
| 4 | 328372-00 | 1 | SERVICE KIT 230V | ELU Grey | 240V TYPE 3 | XJ | |
91.80 EUR |
| 5 | 330061-20 | 1 | KABELSATZ | 115V TYPE 2 | XJ | |
53.10 EUR | |
| 5 | 325612-10 | 1 | CORDSET (M/PLUG) | 240V TYPE 3 | XJ | |
16.70 EUR | |
| 5 | 325612-10 | 1 | CORDSET (M/PLUG) | 240V TYPE 2 | XJ | |
16.70 EUR | |
| 5 | 278031-00 | 3 | DICHTUNG | XJ | |
0.80 EUR | ||
| 6 | 448083-01 | 2 | KOHLEBUERSTENBOX ZSB | XJ |  |
4.40 EUR | ||
| 6 | 90543891 | 6 | ZSB GEHAEUSE | XJ | 5.40 EUR | |||
| 7 | 248155-01 | 2 | KOHLE | TYPE 2 115V | XJ | |
6.50 EUR | |
| 7 | 248155-00 | 2 | KOHLE | 240V TYPE 3 | XJ | |
9.99 EUR | |
| 7 | 248155-00 | 2 | KOHLE | TYPE 2 230V | XJ | |
9.99 EUR | |
| 8 | 448084-01 | 2 | KOHLEKAPPE | XJ | |
3.80 EUR | ||
| 8 | 011811001 | 6 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 9 | 447786-00 | 1 | LÜFTERGEHÄUSE | XJ | |
1.10 EUR | ||
| 10 | 447799-00 | 1 | GEHAEUSE | XJ | |
7.20 EUR | ||
| 11 | 572000-01 | 1 | GRIFF ZSB | Yellow | 240V TYPE 2 | XJ | |
16.70 EUR |
| 11 | 572000-01 | 1 | GRIFF ZSB | Yellow | 115V TYPE 2 | XJ | |
16.70 EUR |
| 11 | 572000-01 | 1 | GRIFF ZSB | Yellow | 240V TYPE 3 | XJ | |
16.70 EUR |
| 12 | 402759-01 | 2 | KOHLEFEDER | XJ | |
0.80 EUR | ||
| 13 | 320842-03 | 1 | KONDENSATOR | XJ | |
1.80 EUR | ||
| 13 | 975877-03 | 2 | HANDLE | XJ | |
1.30 EUR | ||
| 14 | 248022-01 | 1 | LEAD 115V | 115V TYPE 2 | XJ | |
0.80 EUR | |
| 14 | 248022-00 | 1 | LITZE | 240V TYPE 2 | XJ | |
0.80 EUR | |
| 15 | 910556 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 16 | 949896-12 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 16 | 90522900 | 4 | AUFKLEBER | XJ | 0.80 EUR | |||
| 17 | 403395-00 | 1 | KABELTUELLE | XJ | |
2.40 EUR | ||
| 18 | 330019-13 | 8 | SCHRAUBE | M4X19 T20 | XJ | |
0.80 EUR | |
| 19 | 844217-03 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 20 | 248311-00 | 1 | SPRENGRING | XJ | |
0.80 EUR | ||
| 21 | 248035-00 | 1 | ZWISCHENWELLE | XJ | |
50.00 EUR | ||
| 22 | 248036-00 | 1 | O-RING | XJ | |
13.90 EUR | ||
| 23 | 330003-64 | 1 | KUGELLAGER | ID 12 x OD 28 x 8mm | XJ | |
5.40 EUR | |
| 23 | 584833-00 | 8 | CORDSET (EURO) | XJ | |
2.60 EUR | ||
| 24 | 448079-00 | 1 | PLATTE | XJ | |
1.50 EUR | ||
| 24 | 949738-40 | 2 | KABELSATZ | XJ | |
0.80 EUR | ||
| 25 | 487080-03 | 2 | ABDECKUNG | Wurth | XJ | |
0.90 EUR | |
| 26 | 605040-06 | 1 | BEARING,BALL | XJ | |
2.40 EUR | ||
| 26 | 605786-00 | 1 | ZSB GEHAEUSE | XJ | 13.90 EUR | |||
| 27 | 445217-02 | 1 | HUELSE | XJ | |
0.90 EUR | ||
| 28 | 248075-00 | 1 | GETR.GEH. | XJ | |
200.30 EUR | ||
| 28 | 992779 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 29 | 278814-00 | 1 | SPRENGRING | XJ | |
1.80 EUR | ||
| 30 | 832327 | 2 | STIFT | XJ | |
1.10 EUR | ||
| 30 | 868242-03 | 2 | KONTAKT | XJ | |
29.30 EUR | ||
| 31 | 248049-00 | 1 | DICHTUNG | XJ | |
2.20 EUR | ||
| 32 | 278811-00 | 3 | RING | XJ | |
9.99 EUR | ||
| 32 | 023820800 | 1 | FEDERSCHEIBE | XJ | |
0.80 EUR | ||
| 33 | 278810-00 | 2 | KUGELLAGER | XJ | |
9.00 EUR | ||
| 34 | 832343 | 3 | KUGEL | XJ | |
1.10 EUR | ||
| 34 | 013814500 | 1 | STEHBOLZEN | XJ | |
0.80 EUR | ||
| 35 | 040260300 | 1 | FSO BELT,GROOVED | XJ | |
13.90 EUR | ||
| 37 | 278821-00 | 1 | STIFT | XJ | |
4.40 EUR | ||
| 37 | 040820700 | 2 | SPRENGRING | XJ | 0.80 EUR | |||
| 38 | 279196-00 | 1 | KUPPLUNGSKIT | XJ | |
97.60 EUR | ||
| 38 | 419661-10 | 4 | GEHAEUSE | XJ | |
6.50 EUR | ||
| 39 | N422048 | 4 | BUMPER | Upper Left | XJ | |
0.80 EUR | |
| 40 | 248057-00 | 1 | GETRIEBE ZSB | XJ | |
91.80 EUR | ||
| 43 | 248058-00 | 4 | UNTERLEGSCHEIBE | XJ | |
1.10 EUR | ||
| 45 | 248060-00 | 1 | SCHALE | XJ | |
20.90 EUR | ||
| 46 | 248061-00 | 1 | MUTTER | XJ | |
3.50 EUR | ||
| 47 | 278699-00 | 1 | DICHTUNG | XJ | |
1.10 EUR | ||
| 48 | 050830000 | 1 | BEARING 6001 RSZ | XJ | |
7.20 EUR | ||
| 49 | 330019-42 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 50 | 248065-04 | 1 | GETR.GEH. | XJ | |
85.10 EUR | ||
| 52 | 832337 | 2 | KUGELLAGER | XJ | |
15.30 EUR | ||
| 53 | 278778-00 | 1 | DICHTUNG | XJ | |
1.10 EUR | ||
| 54 | 248069-00 | 1 | ZWISCHENGETRIEBE | XJ | |
115.50 EUR | ||
| 56 | 832348 | 1 | RING | XJ | |
1.10 EUR | ||
| 57 | 248071-00 | 1 | KNOPF | XJ | |
29.30 EUR | ||
| 59 | 832344 | 1 | FEDER | XJ | |
1.10 EUR | ||
| 60 | 832364 | 4 | UNTERLEGSCHEIBE | XJ | |
1.10 EUR | ||
| 61 | 248063-00 | 4 | SCREW.TEMP | XJ | |
1.10 EUR | ||
| 62 | 248074-02 | 1 | SPINDEL | 5/8"-16 UNF | XJ | |
81.70 EUR | |
| 63 | 278812-00 | 1 | DICHTUNG | XJ | |
12.20 EUR | ||
| 68 | 278809-00 | 1 | KUGELLAGER | XJ | |
33.70 EUR | ||
| 69 | 248190-00 | 1 | SEITENGRIFF ZSB | XJ | |
31.40 EUR | ||
| 70 | 248019-06 | 1 | GETR.GEH. | XJ | |
575.40 EUR | ||
| 72 | 917650-01 | 1 | LEER | XJ | |
0.80 EUR | ||
| 73 | 248037-00 | 1 | SCHUTZ | TYPE 3 | XJ | |
0.80 EUR | |
| 74 | 249666-00 | 1 | SCHEIDE | TYPE 3 | XJ | |
0.90 EUR | |
| 821 | 569038-00 | 1 | AUFKLEBER | XJ | |
2.20 EUR | ||
| 836 | 559505-99 | 1 | STECKHUELSE | XJ | |
32.10 EUR | ||
| 837 | 559569-99 | 1 | STECKHUELSE | XJ | |
48.80 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
