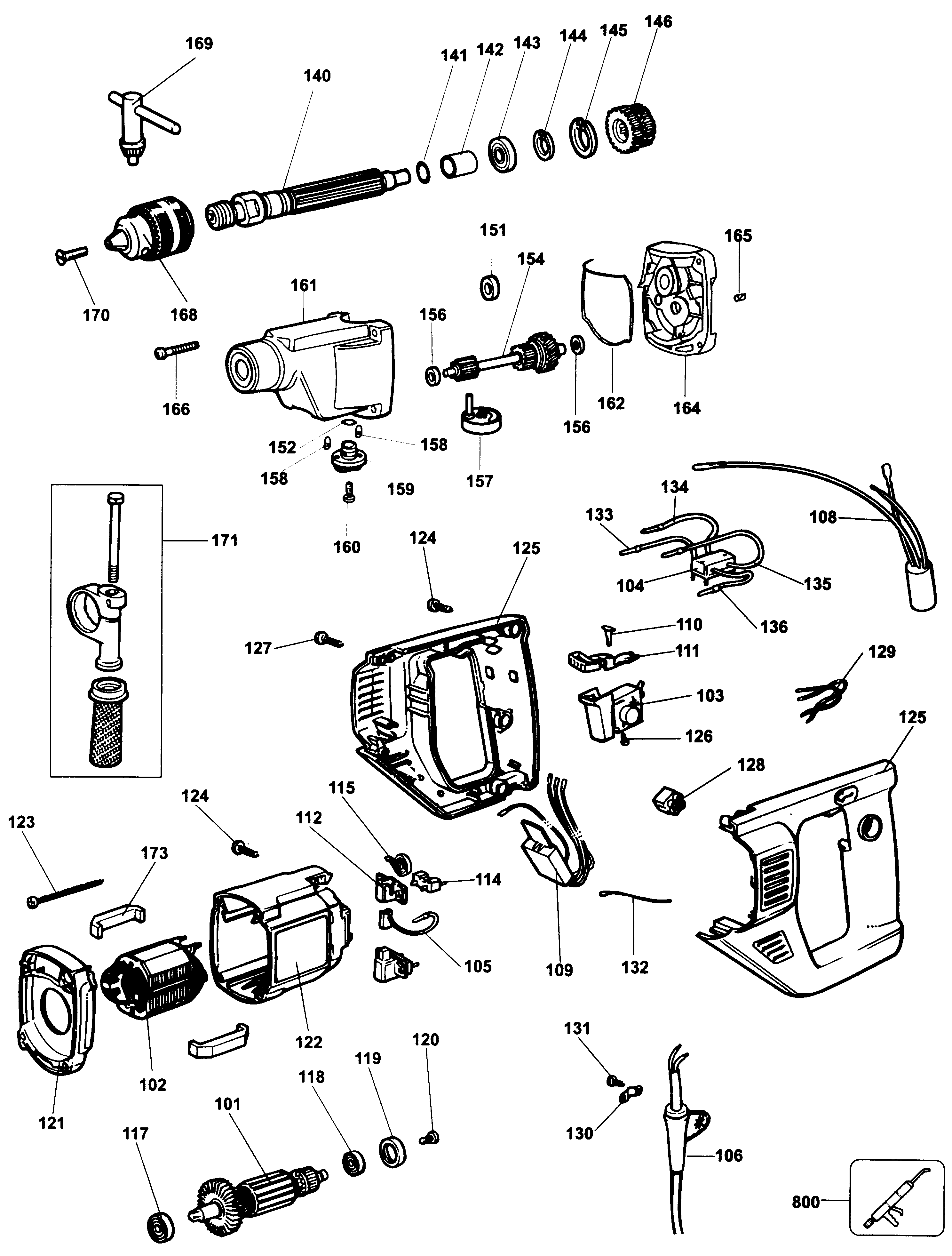

BM43E BOHRER Type 2 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 101 | 328620-10 | 1 | ARMATURE 230V | XJ |  |
47.90 EUR | ||
| 102 | 572393-02 | 1 | FIELD 230V | XJ | |
29.30 EUR | ||
| 103 | 324556-49 | 1 | SCHALTER | XJ | |
27.30 EUR | ||
| 104 | 324400-00 | 1 | 2 G.-SCHALTER M232R | XJ | |
9.00 EUR | ||
| 105 | 323660-08 | 2 | KOHLE | XJ | |
12.20 EUR | ||
| 106 | N571221 | 1 | CORDSET (EURO) | XJ | |
13.90 EUR | ||
| 108 | 320843-05 | 1 | KONDENSATOR | XJ | |
2.90 EUR | ||
| 109 | 324552-06 | 1 | ELECTRONIC 240V | XJ | |
16.70 EUR | ||
| 110 | 324165-02 | 1 | EINSATZ | XJ | |
0.80 EUR | ||
| 111 | 323490-08 | 1 | HEBEL | XJ | |
1.10 EUR | ||
| 112 | 323496-02 | 2 | KOHLEHALTER | XJ | |
1.50 EUR | ||
| 114 | 491366-00 | 2 | KOHLEKIT | XJ | |
12.20 EUR | ||
| 115 | 872843 | 2 | FEDER | XJ | |
0.80 EUR | ||
| 117 | 329047-49 | 1 | LAGERSATZ | XJ | |
13.90 EUR | ||
| 118 | 330003-19 | 1 | KUGELLAGER | XJ |  |
2.60 EUR | ||
| 119 | 870052 | 1 | HUELSE | XJ | |
0.80 EUR | ||
| 120 | 911276 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 121 | 326184-05 | 1 | ABDECKUNG | XJ | |
3.80 EUR | ||
| 122 | 324188-05 | 1 | GEHAEUSE | XJ | |
5.40 EUR | ||
| 123 | 916231 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 124 | 323924-02 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 125 | 324189-02 | 1 | GRIFF ZSB | XJ | |
9.99 EUR | ||
| 126 | 911026 | 3 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 127 | 330065-13 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 128 | 323534-00 | 1 | VERBINDER | XJ | |
1.10 EUR | ||
| 129 | 323635-10 | 2 | LEAD 70MM | XJ | |
0.80 EUR | ||
| 130 | 821070 | 1 | KABELKLEMME | XJ | |
0.80 EUR | ||
| 131 | 323924-08 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 132 | 878846 | 1 | LEAD 360MM | XJ | |
1.30 EUR | ||
| 133 | 877358 | 1 | LEAD 220MM | XJ | |
0.80 EUR | ||
| 134 | 877357 | 1 | LEAD 160MM BLACK | XJ | |
0.80 EUR | ||
| 135 | 877357 | 1 | LEAD 160MM BLACK | XJ | |
0.80 EUR | ||
| 136 | 323768-02 | 1 | LEAD 120MM BLACK | XJ | |
0.80 EUR | ||
| 140 | 327313-02 | 1 | SPINDEL ZSB | XJ | |
33.70 EUR | ||
| 141 | 930028-00 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 142 | 327289-00 | 1 | HUELSE | XJ | |
1.30 EUR | ||
| 143 | 605040-25 | 1 | BEARING,BALL | XJ | |
2.90 EUR | ||
| 144 | 944137-00 | 1 | SPRENGRING | XJ | |
0.90 EUR | ||
| 145 | 931398 | 1 | RING | XJ | |
0.80 EUR | ||
| 146 | 1008288-00 | 1 | GETRIEBE | XJ | |
31.40 EUR | ||
| 151 | 1006305-00 | 1 | DICHTUNG | XJ | |
0.90 EUR | ||
| 152 | 323711-34 | 1 | O-RING | XJ | |
0.80 EUR | ||
| 154 | 577850-01 | 1 | ZW.GETR. ZSB | XJ | |
68.30 EUR | ||
| 156 | 930102-00 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 157 | 327314-00 | 1 | AKTIVIERUNGSHEBEL | XJ | |
5.90 EUR | ||
| 158 | 326467-00 | 2 | SPERRKLINKE | XJ | |
0.80 EUR | ||
| 159 | 327309-01 | 1 | KNOPF | XJ | |
1.10 EUR | ||
| 160 | 330065-22 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 161 | 327311-00 | 1 | GETR.GEH. | XJ | |
29.30 EUR | ||
| 162 | 327291-00 | 1 | DICHTUNG | XJ | |
1.10 EUR | ||
| 164 | 583999-02 | 1 | GETR.GEH. ABD. ZSB | XJ | |
15.30 EUR | ||
| 165 | 916010 | 1 | BUMPER | XJ | |
0.80 EUR | ||
| 166 | 330065-10 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 168 | 5140071-68 | 1 | CHUCK 13MM | XJ | |
9.00 EUR | ||
| 169 | 330034-07 | 1 | BOHRF.SCHLUESSEL | XJ | |
1.10 EUR | ||
| 170 | 575237-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 171 | 939794-02 | 1 | SEITENGRIFF ZSB | XJ | |
9.00 EUR | ||
| 173 | 327033-00 | 2 | DAMPER | XJ | |
0.80 EUR | ||
| 800 | 279830-00 | 1 | FETT | XJ | |
22.30 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
