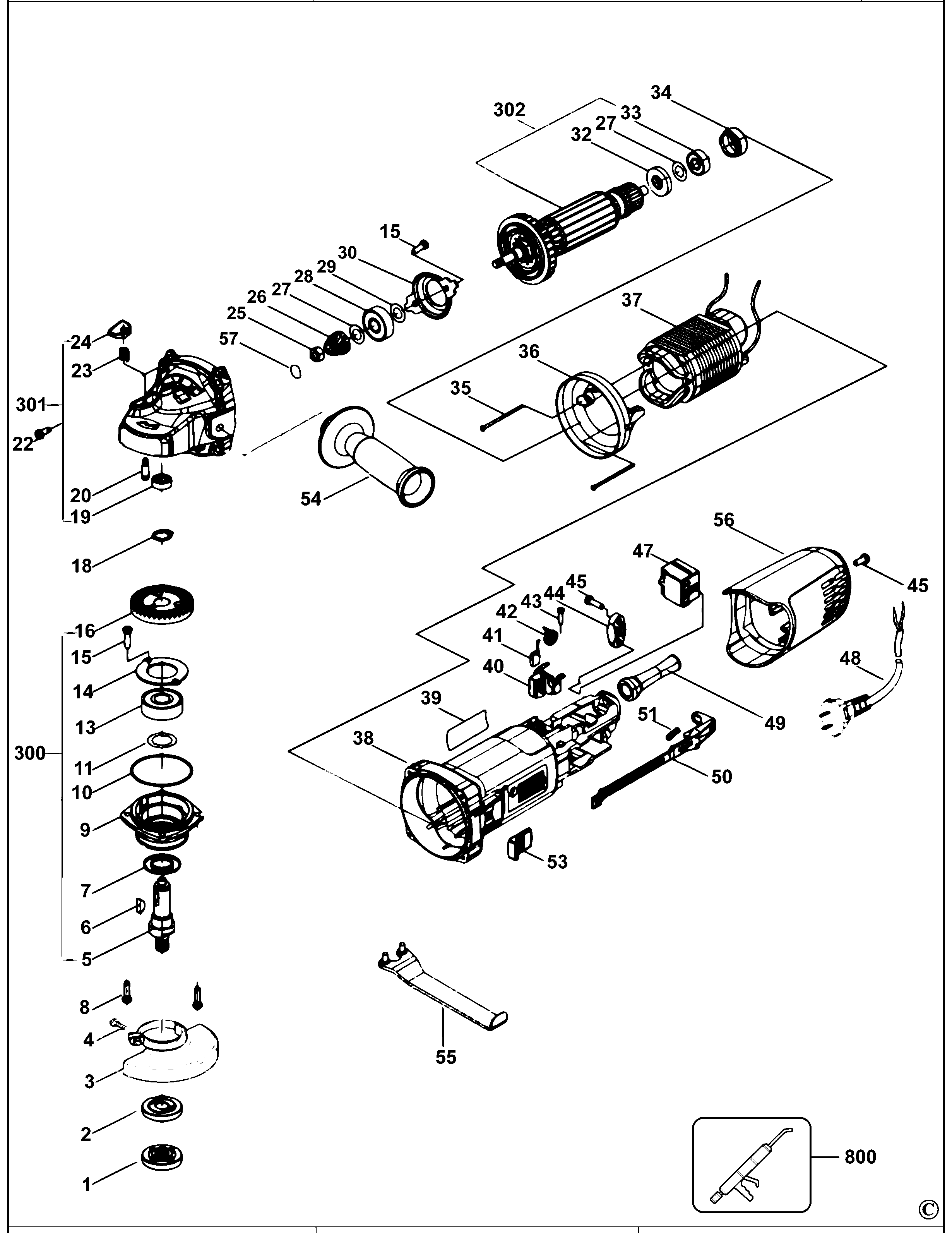

BPGS8115 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | B9 |  |
||
| 2 | 4145104002 | 1 | INNER FLANGE | B9 | |
||
| 3 | 4140304601 | 1 | GUARD SA | B9 | |
||
| 4 | 49203052 | 1 | SCREW | B9 | |
||
| 5 | 4141404601 | 1 | SPINDLE | B9 |  |
||
| 6 | 49208003 | 1 | LOCK PIN | B9 | |
||
| 7 | 4141004012 | 1 | DUST GUARD | B9 | |
||
| 8 | 49203015 | 4 | SCREW | 4 x 14 mm; 4*14 | B9 | |
|
| 9 | N569767 | 1 | GEARCASE COVER | B9 | |
||
| 10 | 000000-11 | 1 | NO LONGER REQUIRED ON THIS UNIT | B9 | |||
| 11 | 4140704002 | 1 | WASHER | 12 x 26.5 x 0.2 mm; 12*26.5*0.2 | B9 | |
|
| 13 | 49111017 | 1 | BEARING | B9 | |
||
| 14 | 4141404606 | 1 | BASE PLATE | B9 | |
||
| 15 | 49203006 | 4 | SCREW | 4 x 10 mm; 4*10 | B9 | ||
| 16 | N539401 | 1 | GEAR | B9 | |
||
| 18 | 49207027 | 1 | CIRCLIP | B9 | |
||
| 19 | 49111032 | 1 | BEARING | B9 | |
||
| 20 | 4141004008 | 1 | LOCK PIN | B9 | |
||
| 22 | 49206022 | 4 | SCREW | B9 | |
||
| 23 | 4140308003 | 1 | SPRING | B9 | |
||
| 24 | 4141001005 | 1 | BUTTON | B9 | |
||
| 25 | 49205005 | 1 | NUT | M6 | B9 | |
|
| 26 | N539400 | 1 | PINION | B9 | |
||
| 27 | 4141004002 | 1 | WASHER | 7 x 16.5 x 0.3 mm; 7*16.5*0.3 | B9 | |
|
| 28 | 49106028 | 1 | BEARING | B9 | |
||
| 29 | 000000-11 | 1 | NO LONGER REQUIRED ON THIS UNIT | B9 | |||
| 30 | 4141304001 | 1 | FLANGE | B9 | |
||
| 32 | 4140901007 | 1 | WASHER INSULATING | B9 | |
||
| 33 | 49106002 | 1 | BEARING | B9 | |
||
| 34 | 4140703004 | 1 | SLEEVE BEARING | B9 | |
||
| 35 | 49206031 | 2 | SCREW | 4 x 75 mm; 4*75 | B9 | |
|
| 36 | 4141401603 | 1 | BAFFLE | B9 | |
||
| 37 | 60314063 | 1 | FIELD SA | B9 | |
||
| 38 | 4141401703 | 1 | FIELDCASE | B9 | |
||
| 39 | 4141421704 | 1 | RATING LABEL | B9 | |
||
| 40 | 4141007001 | 1 | BRUSH HOLDER | B9 | |
||
| 41 | 4141406601 | 1 | BRUSH PAIR | B9 | |
||
| 42 | 4141008001 | 1 | BRUSH SPRING | B9 | |
||
| 43 | 49206001 | 4 | SCREW | B9 | |
||
| 44 | 4240201013 | 1 | CORD CLAMP | B9 | |
||
| 45 | 49206018 | 3 | SCREW | SELF-TAPPING 4*15 | B9 | |
|
| 47 | 4140305605 | 1 | SWITCH SA | B9 | |
||
| 48 | Z49306009-1 | 1 | CORDSET | B9 | |
||
| 49 | 49303005 | 1 | CORD PROTECTOR | B9 | |
||
| 50 | 4141401002 | 1 | LINK | B9 | |
||
| 51 | 4141408001 | 1 | SPRING | B9 | |
||
| 53 | 4141401003 | 1 | BUTTON | B9 | |
||
| 54 | 4140401001 | 1 | HANDLE SIDE SA | B9 | |
||
| 55 | 4148004004 | 1 | WRENCH SET | B9 | |
||
| 56 | 4141401702 | 1 | END CAP | B9 | |
||
| 57 | 4240103002 | 1 | O RING | B9 | |||
| 300 | N592303 | 1 | SPINDLE & GEAR SA | B9 | |
||
| 301 | 4141450002 | 1 | GEARCASE SA | B9 | |
||
| 302 | 4141450003 | 1 | ARMATURE SA | B9 | |
||
| 800 | 901181 | 1 | GREASE | 1kg; specification:1KG | B9 |
