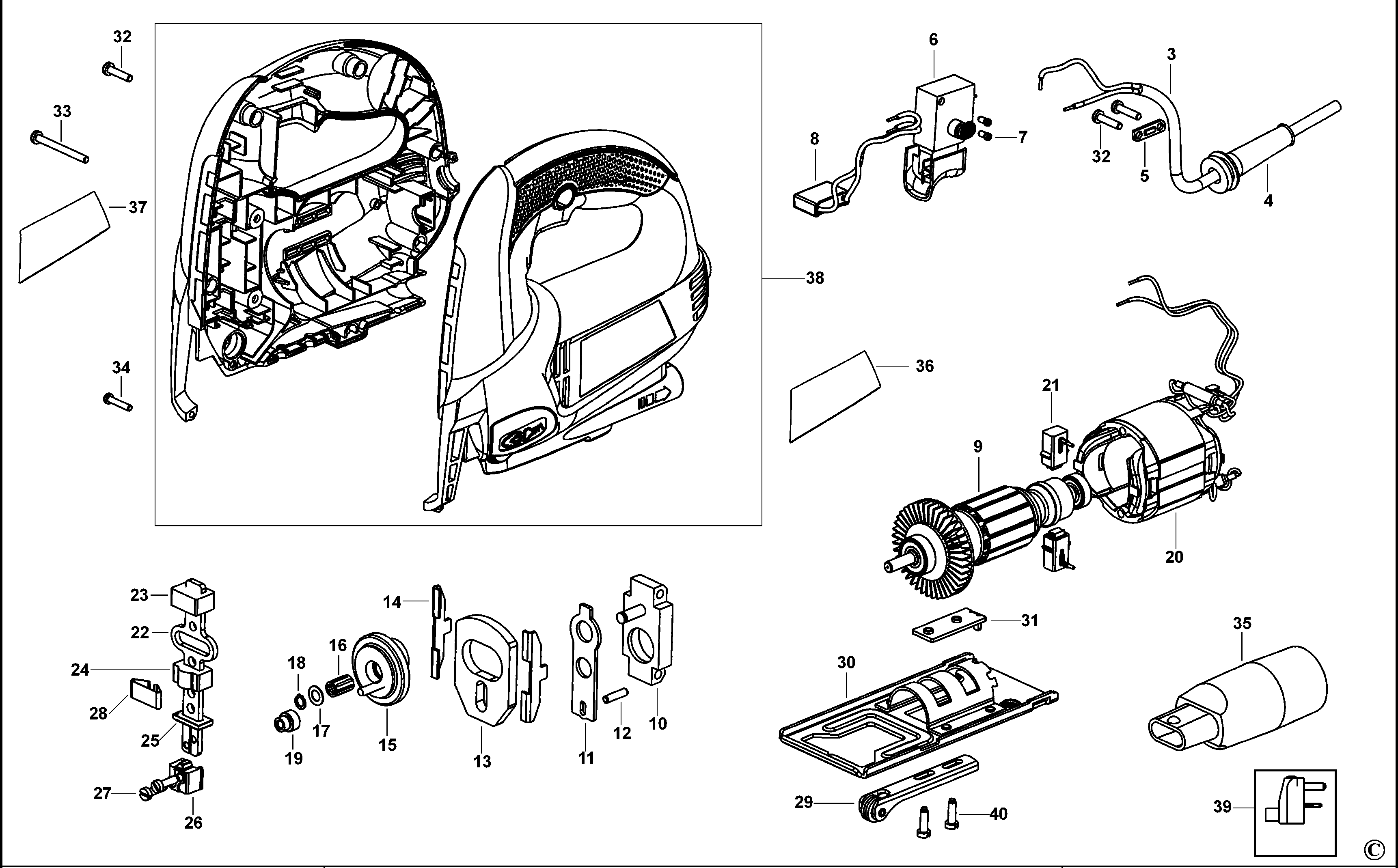

KS602E SCIE SAUTEUSE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 589164-00 | 1 | JEU DE CORDONS | 5A | GB |  |
|
| 4 | 148481-00 | 1 | PROTECTEUR DE CORDON | GB |  |
||
| 5 | 329301-00 | 1 | COLLIER DE CORDON | GB | |
||
| 6 | 90513109 | 1 | INTERRUPTEUR | GB | |
||
| 7 | 90512961 | 2 | VIS | GB | |
||
| 8 | 90513112 | 1 | CONDENSATEUR | GB | |
||
| 9 | 90513113 | 1 | S/E ARMATURE | GB | |
||
| 10 | 90510498 | 1 | BLOC PALIER | GB | |||
| 11 | 90510501 | 1 | FOURCHE | GB | |
||
| 12 | 330041-07 | 1 | AXE | GB | |
||
| 13 | 90510500 | 1 | CONTREPOIDS | GB | |
||
| 14 | 90510499 | 2 | GUIDE | GB | |
||
| 15 | 90510503 | 1 | S/E PIGNON | GB | |
||
| 16 | 90512896 | 1 | ROULEMENT A AIGUILLES | GB | |
||
| 17 | 582717-00 | 1 | RONDELLE AVANT | GB | |
||
| 18 | 90510502 | 1 | PIECE DE RETENUE | 6 X 0.65 | GB | |
|
| 19 | 90510504 | 1 | GALET D'ENTRAINEMENT | GB | |
||
| 20 | 90513214 | 1 | FIELD SA 230V | GB | |
||
| 21 | 90510508 | 2 | BOITIER DE BALAIS SECURITE | GB | |
||
| 22 | 90512881 | 1 | ALESOIR | GB | |
||
| 23 | 90510505 | 1 | PALIER | GB | |
||
| 24 | 90510509 | 1 | PALIER | GB | |
||
| 25 | 90510510 | 1 | JOINT EN FEUTRE | GB | |
||
| 26 | 90515265 | 1 | PINCE DE LAME | GB | |
||
| 27 | 797123 | 2 | VIS | GB | |
||
| 28 | 90513143 | 1 | RESSORT A LAME | GB | |
||
| 29 | 90512888 | 1 | S/E SUPPORT DE LAME | GB | |
||
| 30 | 90512884 | 1 | PATIN | GB | |
||
| 31 | 90512885 | 1 | PLATE DE VERROUILLAGE | GB | |
||
| 32 | 330019-03 | 8 | VIS | GB | |
||
| 33 | 330019-07 | 2 | VIS | GB | |
||
| 34 | 330019-00 | 1 | VIS | M3x16 T10 PLASTITE | GB | |
|
| 35 | 368608 | 1 | ADAPTATEUR D'ASPIRATION | GB | |
||
| 36 | 90513704 | 1 | ETIQUETTE MARQUE | GB | |
||
| 39 | 588384-00 | 1 | S/E ADAPTATEUR | GB | |
||
| 40 | 90519315 | 2 | VIS | GB | |
