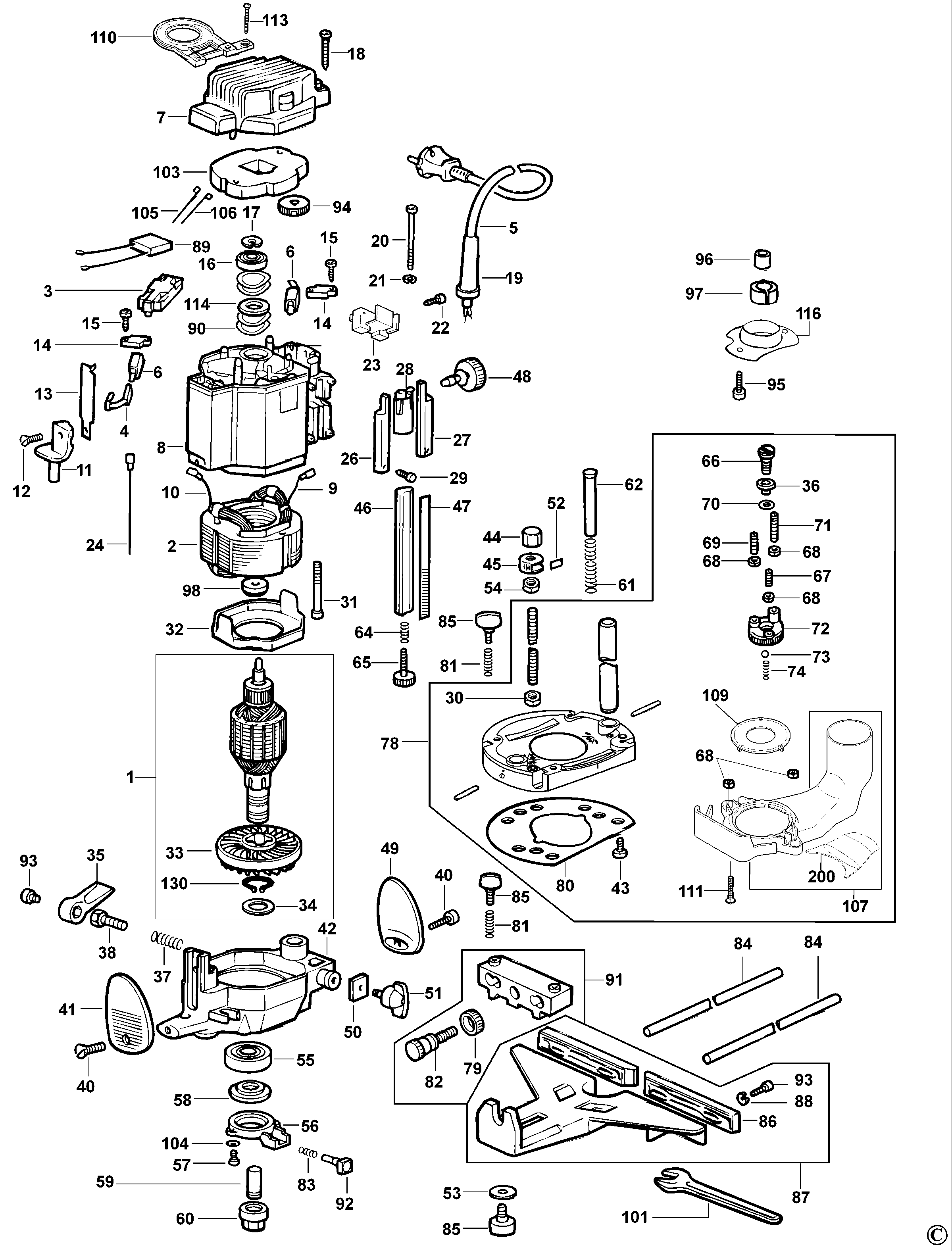

DW625E HOHLFRÄSER Type 5 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N496601 | 1 | SERVICE KIT 230V | CH |  |
||
| 2 | N496591 | 1 | FIELD 230V | CH | |
||
| 3 | 868128-00 | 1 | SCHALTER | CH | |
||
| 4 | 940146-00 | 2 | BRUSH 230V | CH |  |
||
| 5 | 861388-01 | 1 | KABEL ZSB | CH | |
||
| 6 | 761202-00 | 2 | KOHLEBUERSTENBOX ZSB | CH | |||
| 7 | N348019 | 1 | ENDKAPPE | CH | |
||
| 8 | 942934-03 | 1 | GEHAEUSE | CH | |
||
| 9 | 868129-12 | 2 | KOHLELITZE | CH | |
||
| 10 | 868129-04 | 1 | LEAD 95MM RED | CH | |
||
| 11 | 868145-00 | 1 | HEBEL | CH | |
||
| 12 | 249412-10 | 1 | SCHRAUBE | CH | |
||
| 13 | 868123-00 | 1 | SCHIEBER | CH | |
||
| 14 | 868133-00 | 2 | KLAMMER | CH | |
||
| 15 | 860428-04 | 4 | SCHRAUBE | CH | |
||
| 16 | 868768-13 | 1 | KUGELLAGER | CH | |
||
| 17 | 860079-03 | 1 | SPRENGRING | CH | |
||
| 18 | 249220-00 | 2 | SCHRAUBE | CH | |
||
| 19 | 720703-00 | 1 | SCHUTZ | CH | |
||
| 20 | 249424-24 | 4 | SCHRAUBE | CH | |
||
| 21 | 930248-00 | 4 | UNTERLEGSCHEIBE | CH | |
||
| 22 | 860084-04 | 2 | SCHRAUBE | CH | |
||
| 23 | 248180-00 | 1 | KABELKLEMME | CH | |
||
| 24 | 868129-02 | 1 | LEAD 80MM RED | CH | |
||
| 26 | 248395-00 | 1 | HALTERUNG LINKS | CH | |
||
| 27 | 248394-00 | 1 | HALTERUNG RECHTS | CH | |
||
| 28 | 868124-01 | 1 | LINSE | CH | |
||
| 29 | 860428-04 | 4 | SCHRAUBE | CH | |
||
| 30 | 761225-02 | 1 | MUTTER | CH | |
||
| 31 | 248934-00 | 2 | SCHRAUBE | CH | |
||
| 32 | 942902-01 | 1 | LÜFTERGEHÄUSE | CH | |
||
| 33 | N041821 | 1 | LÜFTER | CH | |
||
| 34 | 868127-02 | 1 | DISTANZSCHEIBE | CH | |
||
| 35 | 942906-00 | 1 | HEBEL | CH | |
||
| 36 | 329836-00 | 1 | BUCHSE | CH | |
||
| 37 | 942909-00 | 1 | FEDER | CH | |
||
| 38 | 868204-00 | 1 | SCHRAUBE | CH | |
||
| 40 | 869355-00 | 2 | REPARATURSATZ | >202008 | CH | |
|
| 40 | 869355-00 | 1 | REPARATURSATZ | <192008 | CH | |
|
| 41 | 869355-00 | 1 | REPARATURSATZ | >202008 | CH | |
|
| 41 | 869355-00 | 1 | REPARATURSATZ | <192008 | CH | |
|
| 42 | 942898-00 | 1 | GEHAEUSE | CH | |
||
| 43 | 860205-04 | 6 | SCHRAUBE | CH | |
||
| 44 | 868150-00 | 1 | MUTTER | CH | |
||
| 45 | 942910-00 | 1 | MUTTER | CH | |
||
| 46 | 868122-00 | 1 | GESTELL | CH | |
||
| 47 | 249281-00 | 1 | SKALA | CH | |
||
| 48 | 761243-05 | 1 | ZWISCHENWELLE | CH | |
||
| 49 | 869355-00 | 1 | REPARATURSATZ | >202008 | CH | |
|
| 49 | 869355-00 | 1 | REPARATURSATZ | <192008 | CH | |
|
| 50 | 868119-00 | 1 | PLATTE | CH | |
||
| 51 | 939840-05 | 1 | SCREW WING | CH | |
||
| 52 | 942912-00 | 2 | FEDER | CH | |
||
| 53 | 249221-00 | 1 | UNTERLEGSCHEIBE | CH | |
||
| 54 | 942911-00 | 1 | KNOPF | CH | |
||
| 55 | 868132-03 | 1 | KUGELLAGER | CH | |
||
| 56 | 942900-03 | 1 | KLAMMER | CH | |
||
| 57 | 249424-02 | 3 | SCHRAUBE | CH | |
||
| 58 | 942901-00 | 1 | BEFESTIGUNGSMUTTER | CH | |
||
| 59 | 868116-00 | 1 | KLEMMHUELSE | CH | |
||
| 60 | 942893-01 | 1 | SPANNZANGENMUTTER | CH | |
||
| 61 | 868115-00 | 2 | FEDER | CH | |
||
| 62 | 868566-01 | 2 | STANGE | CH | |
||
| 64 | 868113-00 | 1 | FEDER | CH | |
||
| 65 | 868125-00 | 1 | SCHRAUBE | CH | |
||
| 66 | 330045-05 | 1 | SCHRAUBE | CH | |
||
| 67 | 942931-02 | 1 | SCREW.TEMP | CH | |
||
| 68 | 860083-02 | 5 | MUTTER | CH | |
||
| 69 | 942931-01 | 1 | SCHRAUBE | CH | |
||
| 70 | 327012-00 | 1 | FEDERSCHEIBE | CH | |
||
| 71 | 942931-00 | 1 | SCHRAUBE | CH | |
||
| 72 | N547463 | 1 | DREHKOPF | CH | |
||
| 73 | 720664-00 | 1 | KUGEL | CH | |
||
| 74 | 868082-00 | 1 | FEDER | CH | |
||
| 78 | 329820-49 | 1 | BODENPLATTE ZSB | CH | |
||
| 79 | 942918-00 | 1 | MERKMAL | CH | |
||
| 80 | 328645-00 | 1 | BODENPLATTE | CH | |
||
| 81 | 868082-00 | 5 | FEDER | CH | |
||
| 82 | 942917-00 | 1 | SPEZIALSCHREUBAE | CH | |
||
| 83 | 942904-00 | 1 | FEDER | CH | |
||
| 84 | 326966-00 | 2 | ROD 10MM X 300MM | CH | |
||
| 84 | 868147-01 | 2 | STANGE | 10mm x 360mm | CH | |
|
| 85 | 326573-01 | 5 | SCREW WING | CH | |
||
| 86 | 942915-00 | 2 | FUHRUNG | CH | |
||
| 87 | 948581-01 | 1 | ANSCHLAG ZSB | CH | |
||
| 88 | 860073-01 | 4 | UNTERLEGSCHEIBE | CH | |
||
| 89 | 868120-00 | 1 | KONDENSATOR | CH | |
||
| 90 | 248978-00 | 4 | FEDERSCHEIBE | CH | |
||
| 91 | 948582-01 | 1 | HALTER ZSB | CH | |
||
| 92 | 942930-00 | 1 | SCHLOSS | CH | |
||
| 93 | 943023-00 | 5 | SCHRAUBE | CH | |
||
| 94 | 249067-01 | 1 | RAD | CH | |
||
| 95 | 249412-20 | 2 | SCHRAUBE | CH | |
||
| 98 | 868141-00 | 1 | POLSTUECK | CH | |
||
| 101 | 868111-00 | 1 | SCHLUESSEL | CH | |
||
| 103 | 868142-07 | 1 | PCB 230V | CH | |
||
| 104 | 932839-00 | 3 | UNTERLEGSCHEIBE | CH | |
||
| 105 | 868129-03 | 1 | LEAD 100MM RED | CH | |
||
| 106 | 868129-05 | 1 | LEAD 100MM RED | CH | |
||
| 107 | 329839-00 | 1 | GEHAEUSE | CH | |
||
| 109 | 326599-01 | 1 | KAPPE | CH | |
||
| 110 | 944817-00 | 1 | HALTER | CH | |
||
| 111 | 869076-00 | 2 | SCHRAUBE | CH | |
||
| 113 | 931297-00 | 1 | SCHRAUBE | CH | |
||
| 114 | 868127-01 | 1 | DISTANZSCHEIBE | CH | |
||
| 116 | 249098-00 | 1 | FUEHRUNGSHUELSE | CH | |
||
| 130 | 941541-00 | 1 | SPRENGRING | CH | |
||
| 200 | 329538-00 | 1 | ABDECKUNG | CH | |
