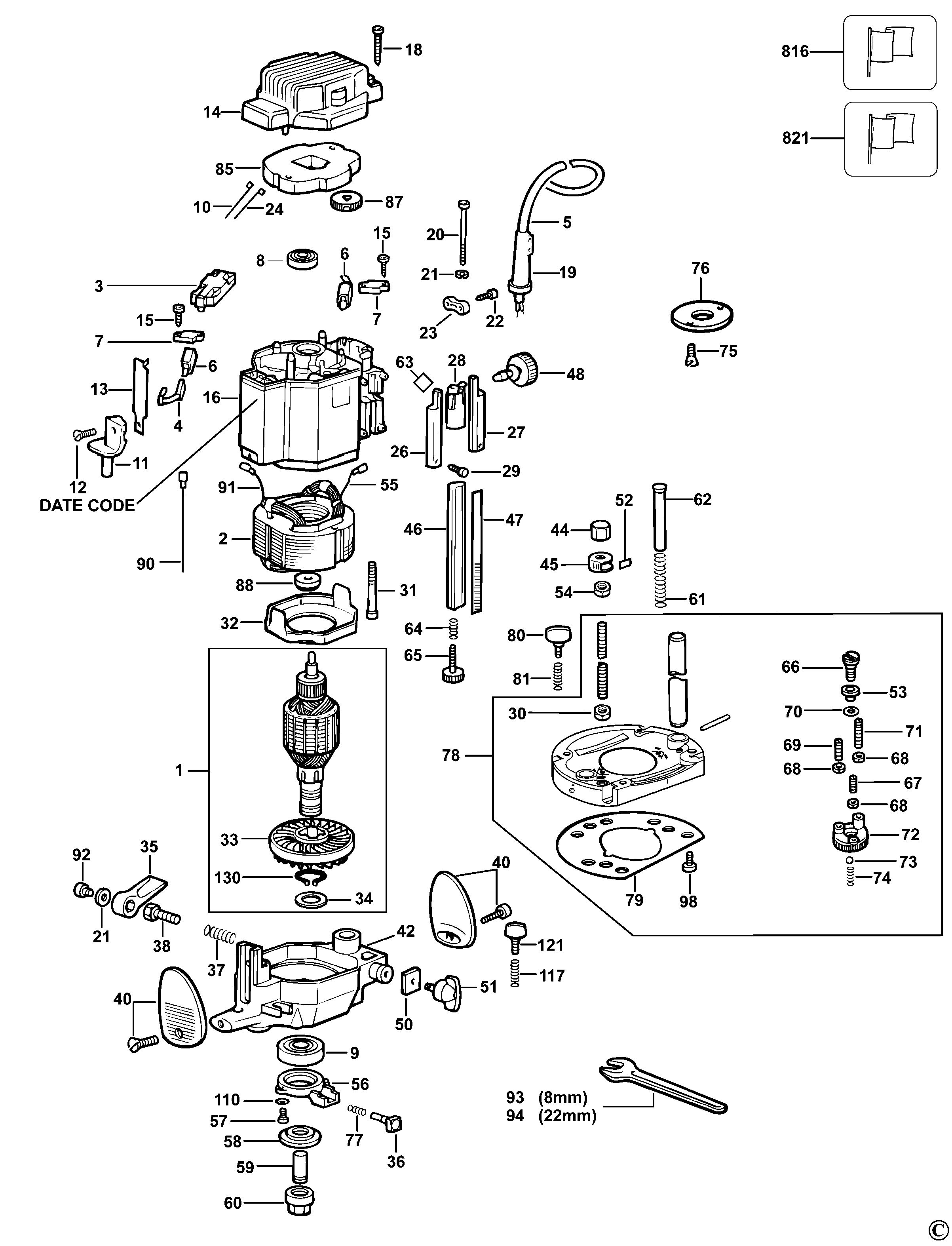

DW625 FRÄSMASCHINE Type 4 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 868128-00 | 1 | SCHALTER | XJ |  |
||
| 4 | 940146-01 | 2 | BRUSH 115V | XJ |  |
||
| 6 | 761202-00 | 1 | KOHLEBUERSTENBOX ZSB | XJ | |||
| 7 | N348019 | 1 | ENDKAPPE | XJ | |
||
| 8 | N110359 | 1 | KUGELLAGER | XJ | |
||
| 9 | 868132-03 | 1 | KUGELLAGER | XJ | |
||
| 10 | 868129-04 | 1 | LEAD 95MM RED | XJ | |
||
| 11 | 868145-00 | 1 | HEBEL | XJ | |
||
| 12 | 249412-10 | 1 | SCHRAUBE | XJ | |
||
| 13 | 868123-00 | 1 | SCHIEBER | XJ | |
||
| 14 | 761203-00 | 2 | KLAMMER | XJ | |
||
| 15 | 860428-04 | 1 | SCHRAUBE | XJ | |
||
| 16 | N410361 | 1 | GEHAEUSE MOTOR | XJ | |
||
| 18 | 249220-00 | 4 | SCHRAUBE | XJ | |
||
| 19 | 942277-00 | 1 | SCHUTZ | XJ | |
||
| 20 | 249424-24 | 4 | SCHRAUBE | XJ | |
||
| 21 | 930248-00 | 5 | UNTERLEGSCHEIBE | XJ | |
||
| 22 | 860084-04 | 2 | SCHRAUBE | XJ | |
||
| 23 | 248611-00 | 1 | KABELKLEMME | XJ | |
||
| 24 | 868129-10 | 1 | LEAD BLUE | XJ | |
||
| 26 | 248395-00 | 1 | HALTERUNG LINKS | XJ | |
||
| 27 | 248394-00 | 1 | HALTERUNG RECHTS | XJ | |
||
| 28 | 868124-01 | 1 | LINSE | XJ | |
||
| 29 | 860428-04 | 4 | SCHRAUBE | XJ | |
||
| 30 | 761225-02 | 1 | MUTTER | XJ | |
||
| 31 | 248934-00 | 2 | SCHRAUBE | XJ | |
||
| 32 | N388121 | 1 | LÜFTERGEHÄUSE | XJ | |
||
| 33 | N388100 | 1 | LÜFTER | XJ | |
||
| 34 | 868127-02 | 1 | DISTANZSCHEIBE | XJ | |
||
| 35 | 942906-00 | 1 | HEBEL | XJ | |
||
| 36 | 942930-00 | 1 | SCHLOSS | XJ | |
||
| 37 | 942909-00 | 1 | FEDER | XJ | |
||
| 38 | 868204-00 | 1 | SCHRAUBE | XJ | |
||
| 40 | 869355-00 | 1 | REPARATURSATZ | XJ | |
||
| 42 | 942898-00 | 1 | GEHAEUSE | XJ | |
||
| 44 | 868150-00 | 1 | MUTTER | XJ | |
||
| 45 | 942910-00 | 1 | MUTTER | XJ | |
||
| 46 | 868122-00 | 1 | GESTELL | XJ | |
||
| 47 | 248339-00 | 1 | SKALA | XJ | |
||
| 48 | 761243-05 | 1 | ZWISCHENWELLE | XJ | |
||
| 50 | 868119-00 | 1 | PLATTE | XJ | |
||
| 51 | 939840-05 | 1 | SCREW WING | XJ | |
||
| 52 | 942912-00 | 2 | FEDER | XJ | |
||
| 53 | 329836-00 | 1 | BUCHSE | XJ | |
||
| 54 | 942911-00 | 1 | KNOPF | XJ | |
||
| 55 | N426130 | 1 | LEAD YELLOW | XJ | |
||
| 56 | 942900-03 | 1 | KLAMMER | XJ | |
||
| 57 | 249424-02 | 3 | SCHRAUBE | XJ | |
||
| 58 | N436230 | 1 | BEFESTIGUNGSMUTTER | XJ | |
||
| 59 | 868149-00 | 1 | KLEMMHUELSE | XJ | |
||
| 60 | 942893-01 | 1 | SPANNZANGENMUTTER | XJ | |
||
| 61 | 868115-00 | 2 | FEDER | XJ | |
||
| 62 | 868566-01 | 2 | STANGE | XJ | |
||
| 63 | 868124-01 | 1 | LINSE | XJ | |
||
| 64 | 868113-00 | 1 | FEDER | XJ | |
||
| 65 | 868125-00 | 1 | SCHRAUBE | XJ | |
||
| 66 | 330045-05 | 1 | SCHRAUBE | XJ | |
||
| 67 | 942931-02 | 1 | SCREW.TEMP | XJ | |
||
| 68 | 860083-02 | 3 | MUTTER | XJ | |
||
| 69 | 942931-01 | 1 | SCHRAUBE | XJ | |
||
| 70 | 327012-00 | 1 | FEDERSCHEIBE | XJ | |
||
| 71 | 942931-00 | 1 | SCHRAUBE | XJ | |
||
| 72 | N547463 | 1 | DREHKOPF | XJ | |
||
| 73 | 720664-00 | 1 | KUGEL | XJ | |
||
| 74 | 868082-00 | 1 | FEDER | XJ | |
||
| 75 | 249412-20 | 2 | SCHRAUBE | XJ | |
||
| 76 | 868151-00 | 1 | FUEHRUNGSHUELSE | XJ | |
||
| 77 | 942904-00 | 1 | FEDER | XJ | |
||
| 78 | 329820-49 | 1 | BODENPLATTE ZSB | XJ | |
||
| 79 | 328645-00 | 1 | BODENPLATTE | XJ | |
||
| 80 | 326573-01 | 1 | SCREW WING | XJ | |
||
| 81 | 868082-00 | 1 | FEDER | XJ | |
||
| 87 | 249067-01 | 1 | RAD | XJ | |
||
| 88 | 868141-00 | 1 | POLSTUECK | XJ | |
||
| 90 | 868129-08 | 1 | LEAD RED | XJ | |
||
| 91 | 868129-07 | 1 | LEAD 100MMRED | XJ | |
||
| 92 | 943023-00 | 1 | SCHRAUBE | XJ | |
||
| 93 | 868148-00 | 1 | SCHLUESSEL | XJ | |
||
| 94 | 868111-00 | 1 | SCHLUESSEL | XJ | |
||
| 98 | 860205-04 | 6 | SCHRAUBE | XJ | |
||
| 110 | 932839-00 | 3 | UNTERLEGSCHEIBE | XJ | |
||
| 117 | 868082-00 | 3 | FEDER | XJ | |
||
| 121 | 326573-01 | 3 | SCREW WING | XJ | |
||
| 130 | 941541-00 | 1 | SPRENGRING | XJ | |
