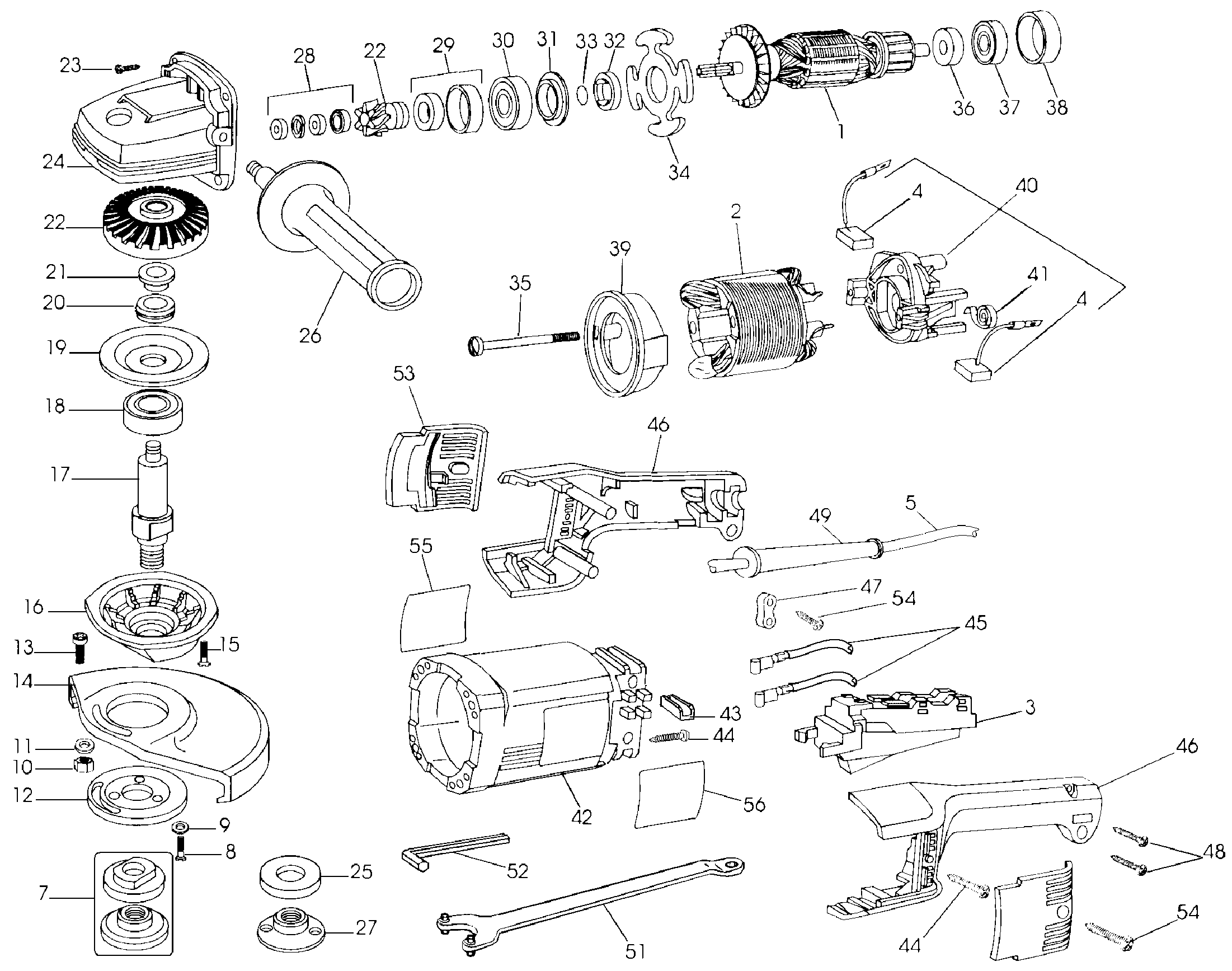

DW474 ANGLE GRINDER Type 4 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	578246-02	1	ARMATURE		B2
2	578248-01	1	FIELD		B2
3	949825-04	1	SWITCH LOCK-ON		B2
4	940160-01	2	BRUSH CUT OFF	230V	B2
5	185274-00	1	CORD & PLUG		B2
7	947451-03	1	FLANGE ASSY.		B2
8	933058-00	3	SCREW		B2
9	932369	3	WASHER		B2
10	860083-03	1	NUT		B2
11	930925	1	WASHER		B2
12	930929	1	FLANGE		B2
13	949892-07	1	SCREW		B2
14	932525-02	1	GUARD 7"		B2
15	330024-14	4	SCREW,PLASTIC		B2
16	947962-00	1	GEARCASE COVER		B2
17	578243-00	1	SPINDLE		B2
18	574853-11	1	BEARING		B2
19	930924	1	FLANGE		B2
20	930923	1	SEAL		B2
21	930922	1	SPACER		B2
22	932522	1	GEAR & PINION SA		B2
23	186210-00	4	SCREW		B2
24	401048-00	1	GEARCASE SA		B2
25	184744-00	1	FLANGE		B2
26	933499	1	HANDLE SIDE SA		B2
27	184713-00	1	FLANGE		B2
28	937098	1	CLIP SA		B2
29	930909	1	SEAL SA		B2
30	330003-14	1	BEARING		B2
31	931067	1	SEAL SA		B2
32	931062	1	SPACER		B2
33	930028-00	1	O RING		B2
34	931066	1	FLANGE		B2
35	931421	2	SCREW		B2
36	938331	1	SPACER		B2
37	330003-36	1	BEARING		B2
38	938332	1	SLEEVE		B2
39	402808-00	1	BAFFLE		B2
40	949405-01	1	BRUSH & PLATE		B2
41	402816-00	2	SPRING		B2
42	578192-00	1	FIELD CASE		B2
43	930934	4	SHOCK ABSORBER		B2
44	931297-00	4	SCREW		B2
45	403462-00	2	LEAD		B2
46	578194-00	1	HANDLE & COVER		B2
47	931477	1	CORD CLAMP		B2
48	930284-01	2	SCREW		B2
49	947964-01	1	CORD PROTECTOR		B2
51	938733	1	WRENCH PIN		B2
52	807043	2	WRENCH	4mm	B2
53	933364-02	2	COVER		B2
54	931469-02	4	SCREW		B2
55	578506-01	1	NAMEPLATE		B2
