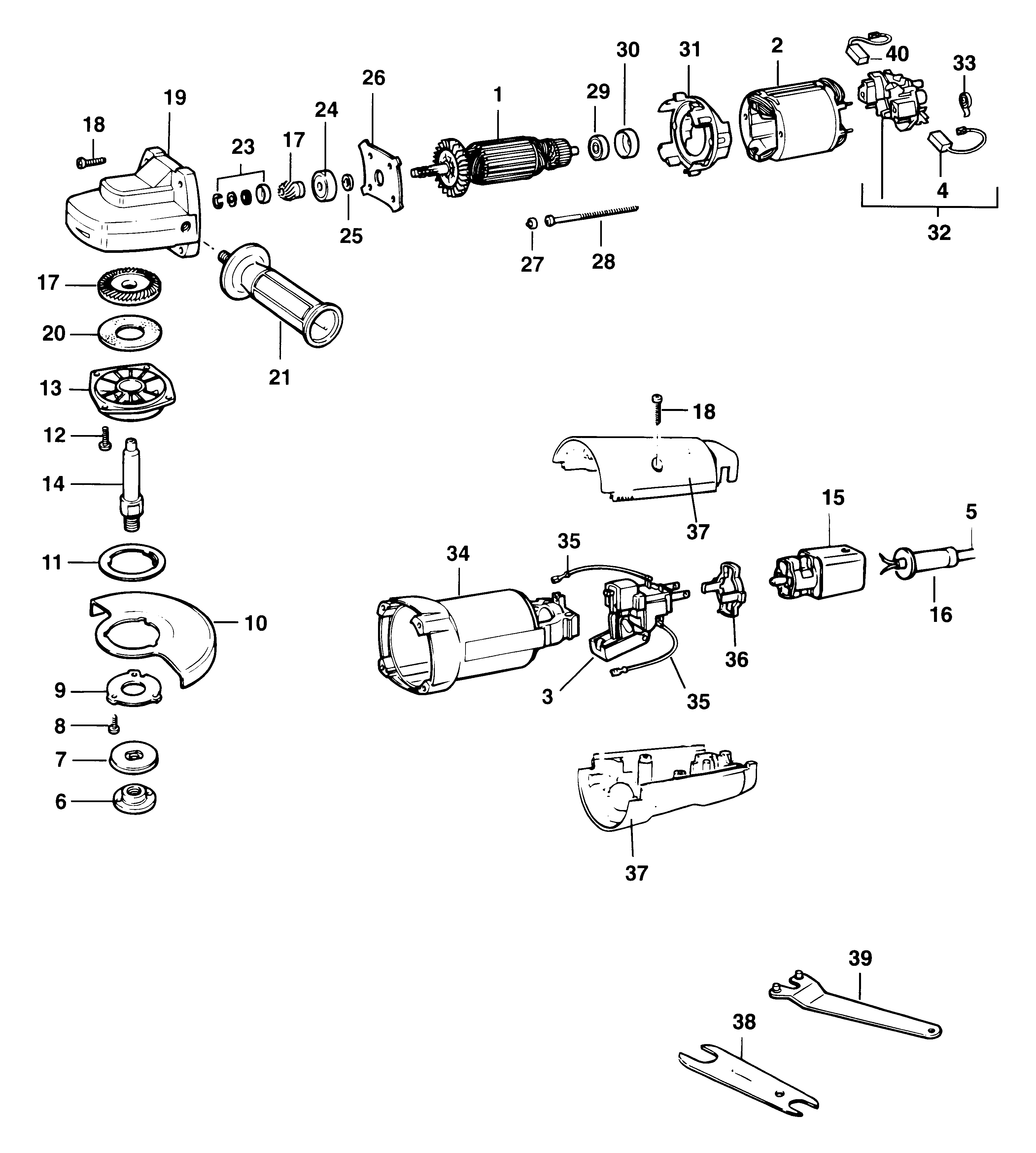

DW816 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949846-02 | 1 | ARMATURE | CH | |||
| 1 | 949846-03 | 1 | ARMATURE 115V | CH | |||
| 2 | 868629-02 | 1 | FIELD | CH | |||
| 2 | 949847-09 | 1 | FIELD 115V | CH | |||
| 3 | 949822-04 | 1 | SWITCH | CH | |||
| 3 | 949822-03 | 1 | SWITCH | CH | |||
| 4 | 930151-00 | 1 | BRUSH 220V | CH | |||
| 4 | 930897-00 | 1 | BRUSH 115-120V | CH | |||
| 5 | 330061-14 | 1 | CORDSET | CH | |||
| 5 | 330080-29 | 1 | CABLE SA | CH | CH | ||
| 6 | 403430-00 | 1 | OUTER FLANGE | CH | |||
| 7 | 930771-00 | 1 | INNER FLANGE | CH | |||
| 8 | 930251-00 | 3 | SCREW | CH | |||
| 10 | 937411-00 | 1 | GUARD | CH | |||
| 11 | 938272 | 1 | RING | CH | |||
| 12 | 930770-00 | 4 | SCREW | CH | |||
| 13 | 944055 | 1 | GEARCASE COVER SA | CH | |||
| 14 | 946414-00 | 1 | SPINDLE | CH | |||
| 15 | 869067-00 | 1 | PLUG | CH | |||
| 15 | 945899-00 | 1 | PLUG | CH | |||
| 16 | N542553 | 1 | CORD PROTECTOR | CH | |||
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | CH | ||
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | CH | ||
| 16 | N542553 | 1 | CORD PROTECTOR | CH | |||
| 17 | 932592 | 1 | GEAR & PINION | CH | |||
| 18 | 930079-01 | 6 | SCREW | CH | |||
| 19 | 946570-00 | 1 | GEARBOX SA | CH | |||
| 20 | 946418-00 | 1 | FELT | CH | |||
| 21 | 573115-00 | 1 | SIDE HANDLE | CH | |||
| 23 | 937668 | 1 | CIRCLIP SA | CH | |||
| 24 | 577745-00 | 1 | BEARING | CH | |||
| 25 | 930753-00 | 1 | WASHER | CH | |||
| 27 | 933657-00 | 2 | CAP | CH | |||
| 28 | 930077-00 | 2 | SCREW | CH | |||
| 29 | 330003-34 | 1 | BEARING | CH | |||
| 30 | 930029-00 | 1 | HOLDER BEARING | CH | |||
| 31 | 946134-00 | 1 | BAFFLE | CH | |||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | CH | |||
| 32 | 930167-00 | 1 | BRUSH PLATE SA | CH | |||
| 33 | 930090-00 | 2 | BRUSH SPRING | CH | |||
| 34 | 930811-06 | 1 | FIELDCASE | CH | |||
| 35 | 930728-00 | 2 | LEAD | CH | |||
| 36 | 930761 | 1 | RING | CH | |||
| 37 | 930836-06 | 1 | HANDLE & COVER | CH | |||
| 38 | 931637 | 1 | SPANNER | CH | |||
| 39 | 401253-00 | 1 | WRENCH ROUND-PINS | CH | |||
| 40 | 939539-00 | 1 | BRUSH CUT OFF | CH | |||
| 40 | 939539-01 | 1 | BRUSH CUT OFF | CH |
