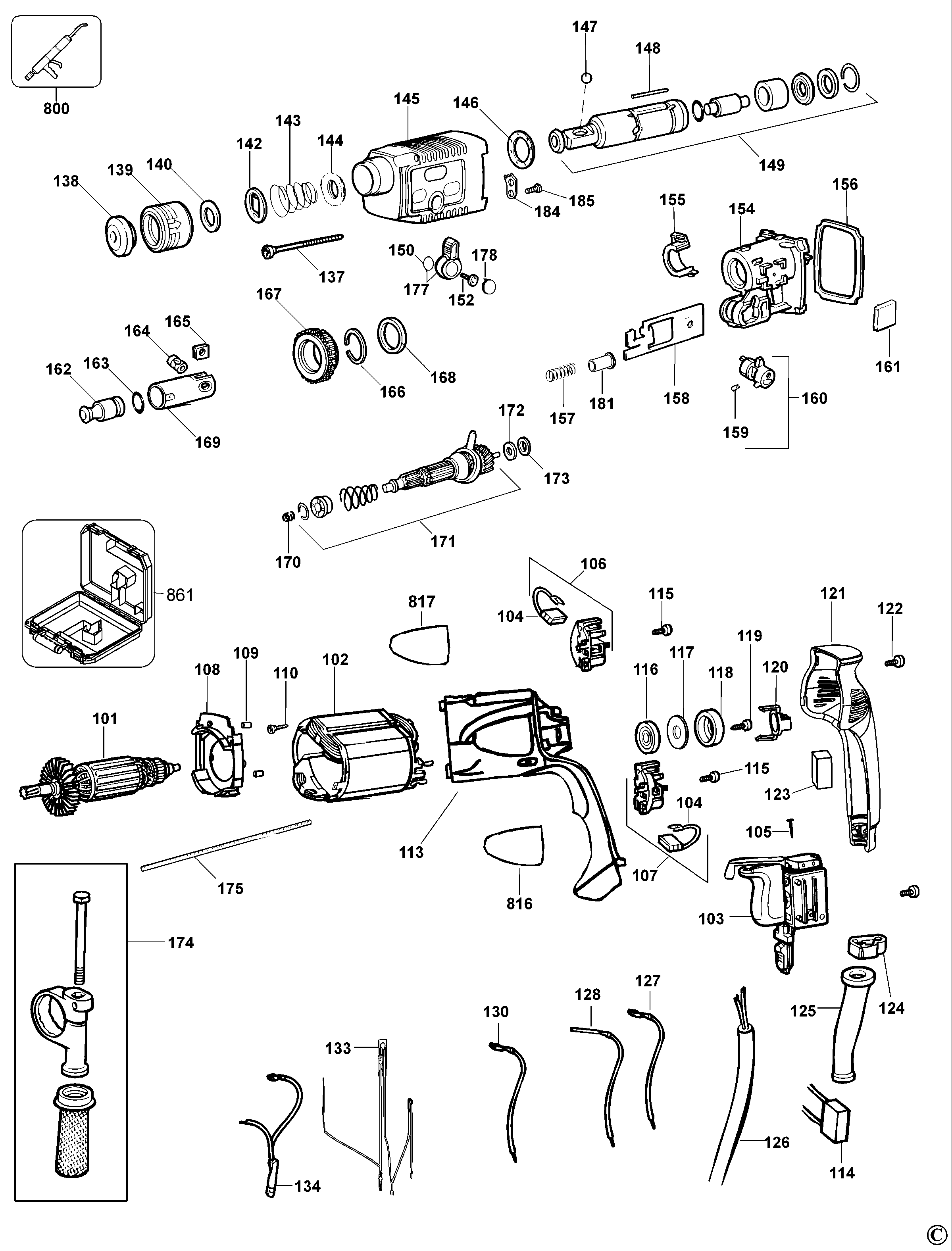

D25003K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 585289-00 | 1 | ARMATURE SA | AR | |||
| 102 | 585290-00 | 1 | FIELD | AR | |||
| 103 | 176830-15 | 1 | SWITCH | Tyco | AR | ||
| 104 | 401853-01 | 2 | BRUSH 230V | AR | |||
| 105 | 590480-00 | 1 | PIN | AR | |||
| 106 | 401845-00 | 1 | BRUSH HOLDER SA | AR | |||
| 107 | 401845-04 | 1 | BRUSH HOLDER 240V | AR | |||
| 108 | 327293-00 | 1 | BAFFLE FAN | AR | |||
| 109 | 949638-01 | 2 | BUFFER | AR | |||
| 110 | 5103541-00 | 2 | SCREW | AR | |||
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | AR | ||
| 114 | 949877-01 | 1 | CAPACITOR | AR | |||
| 115 | 330065-06 | 2 | SCREW | AR | |||
| 116 | 330003-19 | 1 | BEARING | AR | |||
| 117 | 949876-25 | 1 | WASHER | AR | |||
| 118 | 870052 | 1 | SLEEVE | AR | |||
| 119 | 329794-00 | 1 | SCREW | AR | |||
| 120 | 327296-00 | 1 | CAP | AR | |||
| 121 | 327298-01 | 1 | SWITCH COVER | AR | |||
| 122 | 330065-07 | 3 | SCREW | AR | |||
| 123 | 930026-01 | 1 | BUMPER | AR | |||
| 124 | 402649-00 | 1 | CORD CLAMP | AR | |||
| 125 | 403395-00 | 1 | CORD PROTECTOR | AR | |||
| 126 | 573379-12 | 1 | CORDSET | AR | AR | ||
| 127 | 949801-86 | 1 | LEAD BLACK 90MM | AR | |||
| 128 | 949801-85 | 1 | LEAD BLACK 90MM | AR | |||
| 130 | 578984-00 | 1 | LEAD SA | AR | |||
| 133 | 578985-00 | 1 | CHOKE SA | AR | |||
| 134 | 945402-19 | 1 | CHOKE SA | AR | |||
| 137 | 324044-02 | 4 | SCREW | AR | |||
| 138 | 323489-00 | 1 | CAP | AR | |||
| 139 | 576756-00 | 1 | COLLAR | AR | |||
| 140 | 323480-00 | 1 | SPACER | AR | |||
| 142 | 578387-00 | 1 | WASHER | AR | |||
| 143 | 871690 | 1 | SPRING | AR | |||
| 144 | 324432-00 | 1 | SEAL SA | AR | |||
| 145 | 329968-01SV | 1 | GEAR CASE | AR | |||
| 146 | 329907-00 | 1 | WASHER | AR | |||
| 147 | 583890-00 | 1 | BALL | AR | |||
| 148 | 325880-05 | 1 | PIN | AR | |||
| 149 | 577080-01 | 1 | SPINDLE SA | AR | |||
| 150 | 916323-00 | 1 | SEAL | AR | |||
| 152 | 323924-08 | 1 | SCREW | AR | |||
| 154 | 327100-00S | 1 | CASTING | AR | |||
| 155 | 328507-00 | 1 | SHIELD | AR | |||
| 156 | 323572-00 | 1 | SEAL | AR | |||
| 157 | 323395-17 | 1 | SPRING | AR | |||
| 158 | 487047-49 | 1 | REPAIR KIT | AR | |||
| 159 | 326467-00 | 1 | DETENT | AR | |||
| 160 | 327094-01SV | 1 | CAM ASSEMBLY | AR | |||
| 161 | 327093-00 | 1 | FILTER | AR | |||
| 162 | N032136 | 1 | RAM SA | INCL. 163 | AR | ||
| 163 | 577168-00 | 1 | O RING | AR | |||
| 164 | 487143-00 | 1 | AXLE | AR | |||
| 165 | 327072-00 | 1 | SHIM | AR | |||
| 166 | 323762-02 | 1 | CIRCLIP | AR | |||
| 167 | 487401-01 | 1 | CLUTCH SA | AR | |||
| 168 | 327074-00 | 1 | RING | AR | |||
| 169 | 487067-00 | 1 | PISTON | AR | |||
| 170 | 323395-33 | 1 | SPRING | AR | |||
| 171 | 327101-01S | 1 | INTERSHAFT | AR | |||
| 172 | 324430-03 | 1 | BEARING AXIAL | AR | |||
| 173 | 324431-03 | 1 | WASHER 7 | AR | |||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | AR | |||
| 175 | 580787-00 | 1 | DEPTH STOP | AR | |||
| 177 | 327119-00 | 1 | LEVER | AR | |||
| 178 | 328809-00 | 1 | COVER | AR | |||
| 181 | 329211-00 | 1 | SLEEVE | AR | |||
| 184 | 577058-00 | 1 | PLATE | AR | |||
| 185 | 930553-00 | 2 | SCREW | AR | |||
| 800 | 870889-02 | 1 | GREASE | AR | |||
| 816 | 395047-00 | 1 | BRAND LABEL | AR | |||
| 817 | 579473-35 | 1 | NAME PLATE | AR | |||
| 861 | 491057-00 | 1 | KIT BOX | AR |
