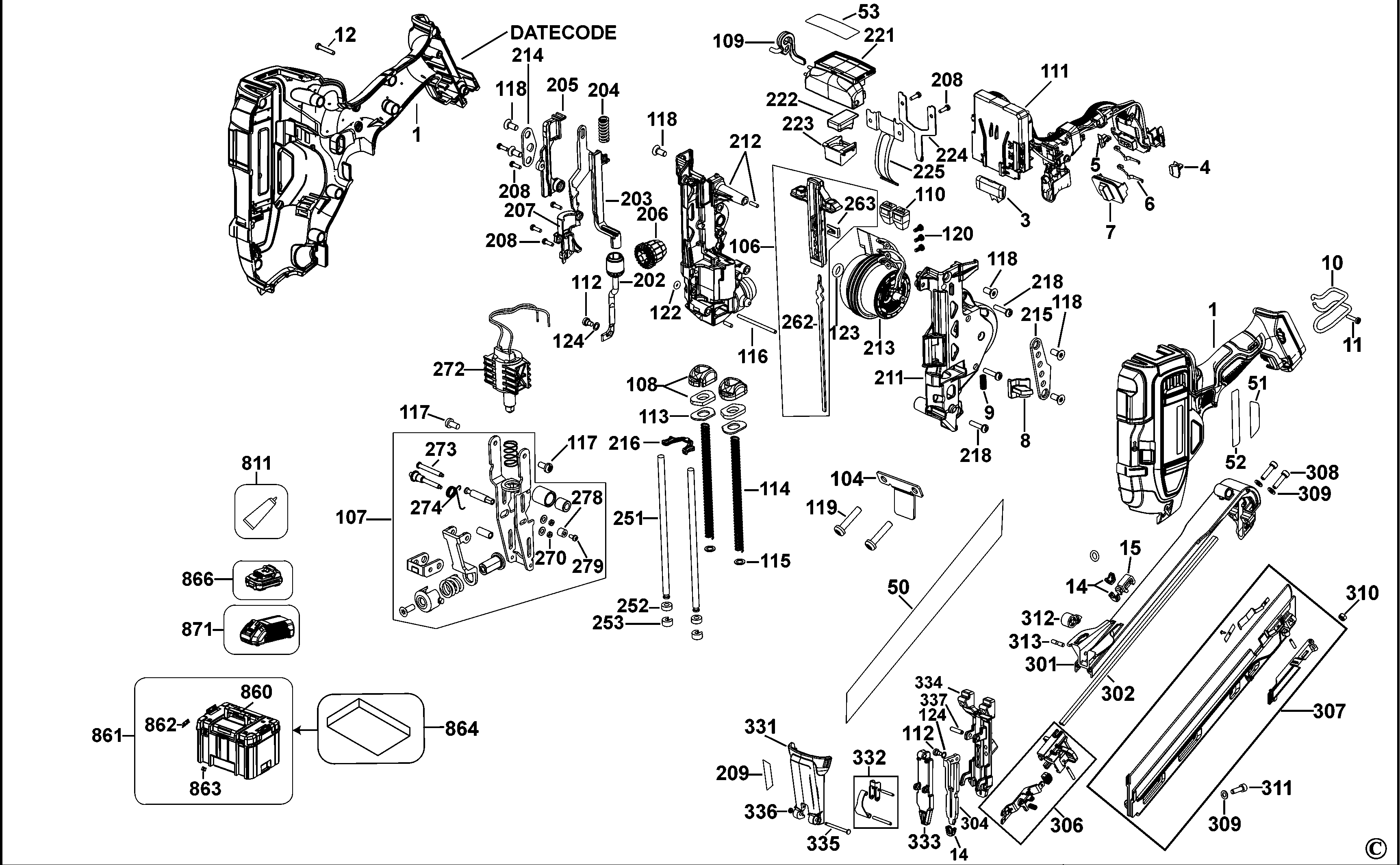

DCN650 ANGLED FINISH NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N534480 | 1 | CLAMSHELL SET | DCN650 | QW | ||
| 3 | N505451 | 1 | BUTTON LOCK-OFF | QW | |||
| 4 | N488751 | 1 | LENS | Assembly Side | QW | ||
| 5 | N488782 | 1 | LENS | Cover Side | QW | ||
| 6 | N388602 | 1 | LEAF SPRING | QW | |||
| 7 | N505458 | 1 | SELECTOR | QW | |||
| 8 | N505465 | 1 | BUTTON RELEASE | STALL RELEASE | QW | ||
| 9 | N411486 | 1 | SPRING COMPRESSION | QW | |||
| 10 | N410943 | 1 | HOOK | QW | |||
| 11 | 330019-52 | 1 | SCREW | QW | |||
| 12 | 330019-24 | 12 | SCREW | QW | |||
| 14 | N490008 | 3 | NO MAR TIP | QW | |||
| 15 | N496662 | 1 | ADAPTOR | NO-MAR | QW | ||
| 50 | N512101 | 1 | RATING PLATE | DN650 TYPE 1 | QW | ||
| 51 | N512102 | 1 | LABEL | 15GA FINISH NAILER | QW | ||
| 52 | N502011 | 1 | LABEL | 18V XR Brushless | QW | ||
| 53 | N515516 | 1 | LABEL | REAR 15 Ga. | QW | ||
| 104 | N477029 | 1 | GUIDE | QW | |||
| 106 | N532145 | 1 | DRIVER SA | QW | |||
| 107 | N568372 | 1 | CARRIAGE SA | w/o Solenoid | QW | ||
| 108 | N446577 | 2 | SERVICE KIT | QW | |||
| 109 | N532613 | 1 | ACTUATOR | QW | |||
| 110 | 650974-00 | 2 | CONNECTOR | QW | |||
| 111 | N532140 | 1 | CONTROL MODULE SA | 15GA EU | QW | ||
| 112 | N499064 | 1 | SCREW | M4 x 0.7P x 6mm T20 | QW | ||
| 113 | N376891 | 2 | PLATE | QW | |||
| 114 | N446578 | 1 | SPRING | x2 | QW | ||
| 115 | N383361 | 2 | WASHER | QW | |||
| 116 | N410969 | 1 | PIN | 3x50.5 | QW | ||
| 117 | N491757 | 2 | SCREW | M4 x 10mm T20 Pan Hd | QW | ||
| 118 | N386788 | 10 | SCREW | M5x12, MAGFORM | QW | ||
| 119 | N383360 | 2 | SCREW | M5x24 PAN HD MAGFORM | QW | ||
| 120 | N403241 | 3 | SCREW | M3x0.5x8 MACHINE | QW | ||
| 122 | N439188 | 1 | O RING | 2.0mm | QW | ||
| 123 | N407991 | 1 | O RING | ID 7.59mm, Dia. 2.62 | QW | ||
| 124 | N527579 | 1 | WASHER | ID 5 x OD 8 x 0.2 Th | QW | ||
| 202 | N703753 | 1 | TRIP SA | INTERMEDIATE | QW | ||
| 203 | N587377 | 1 | TRIP SA | QW | |||
| 204 | N378115 | 1 | SPRING COMPRESSION | QW | |||
| 205 | N378116 | 1 | COVER | QW | |||
| 206 | N367663 | 1 | ADJUSTER DEPTH | QW | |||
| 207 | N367666 | 1 | COVER | QW | |||
| 208 | N379045 | 7 | SCREW | M3x10 PAN HD MAGFORM | QW | ||
| 209 | N512103 | 1 | LABEL | QW | |||
| 211 | N377231 | 1 | FRAME LH | QW | |||
| 212 | N496177 | 1 | FRAME RH | QW | |||
| 213 | N446570 | 1 | MOTOR SA | QW | |||
| 214 | N378063 | 1 | LOCATOR | MOTOR, RIGHT FRAME | QW | ||
| 215 | N377923 | 1 | LOCATOR | MOTOR, LEFT FRAME | QW | ||
| 216 | N376266 | 1 | RETAINER | QW | |||
| 218 | 613619-00 | 3 | SCREW | QW | |||
| 221 | N378032 | 1 | SUPPORT | REAR BUMPER | QW | ||
| 222 | N528907 | 1 | BUMPER | INVERTED | QW | ||
| 223 | N528908 | 1 | RETAINER | BACK BUMPER | QW | ||
| 224 | N367683 | 1 | PLATE | SKID | QW | ||
| 225 | N455371 | 1 | LIFTER | Profile | QW | ||
| 251 | N439725 | 2 | RAIL | QW | |||
| 252 | N378014 | 2 | BUMPER | QW | |||
| 253 | N402150 | 2 | CLIP | QW | |||
| 262 | N476474 | 1 | DRIVER | QW | |||
| 263 | 392206-00 | 1 | CLIP | QW | |||
| 270 | 391814-00 | 2 | GROMMET | QW | |||
| 272 | N446579 | 1 | SOLENOID ASSEMBLY | QW | |||
| 273 | 633207-00 | 1 | PIN | QW | |||
| 274 | N377077 | 1 | SPRING TORSION | QW | |||
| 278 | N377076 | 1 | SLEEVE | QW | |||
| 279 | N491759 | 1 | SCREW | M3 x 0.5P x 6mm T10 | QW | ||
| 301 | N474073 | 1 | MAGAZINE | UPPER | QW | ||
| 302 | 9R192015 | 1 | LINER | QW | |||
| 304 | N474075 | 1 | CONTACT | QW | |||
| 306 | 9R203871 | 1 | PUSHER | SA | QW | ||
| 307 | 9R203861 | 1 | MAGAZINE SA | QW | |||
| 308 | MSC5080-20 | 2 | SCREW | M5x20mm | QW | ||
| 309 | 180569 | 3 | WASHER | QW | |||
| 310 | MHE5080-100 | 1 | LOCK NUT | QW | |||
| 311 | 9R217764 | 1 | SCREW | M5 X 0.8 X 16 | QW | ||
| 312 | N496042 | 1 | HUB | QW | |||
| 313 | N496020 | 1 | PIN | QW | |||
| 331 | N480358 | 1 | LATCH | QW | |||
| 332 | N406158 | 1 | SPRING | QW | |||
| 333 | N480915 | 1 | DOOR | QW | |||
| 334 | N480650 | 1 | NOSE | QW | |||
| 335 | N391844 | 1 | PIN | 3mm x 37mm | QW | ||
| 336 | 391814-00 | 1 | GROMMET | QW | |||
| 337 | N494988 | 1 | ROLLPIN | QW | |||
| 811 | 851325 | 1 | LOCTITE 271 | QW | |||
| 860 | H1400196008 | 1 | Handle | QW | |||
| 861 | N445186 | 1 | KITBOX | QW | |||
| 862 | H1500082520 | 2 | LATCH | QW | |||
| 863 | P910190 | 2 | LATCH | QW | |||
| 864 | P910738 | 1 | FOAM | QW | |||
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCN650-P2 | QW | ||
| 871 | N450536 | 1 | CHARGER SA | DCS565P2-QW / DCB115 | QW |
