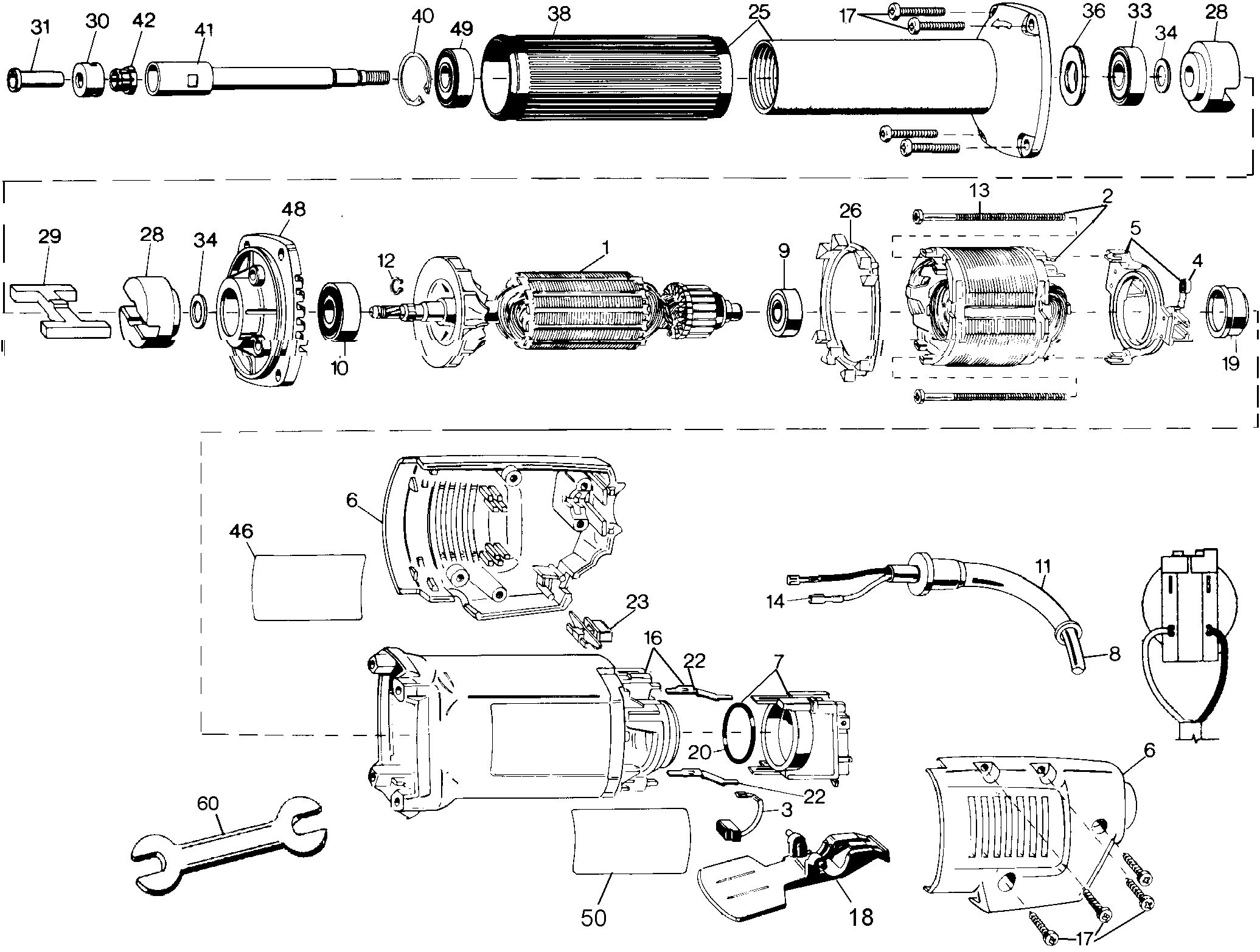

DW887 DIE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 143795-00 | 1 | ARMATURE 230V | B2 | |||
| 2 | 449921-00 | 1 | FIELD SA | INC. 13 | B2 | ||
| 3 | 445861-30 | 2 | BRUSH 220V | B2 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B2 | |||
| 5 | 449899-05 | 1 | RING | INC 4 | B2 | ||
| 6 | 445879-12 | 1 | COVER | SET | B2 | ||
| 7 | 5140110-67 | 1 | SWITCH KIT | B2 | |||
| 8 | 330122-05 | 1 | CORD,PWR SUPPLY | B2 | |||
| 9 | 330003-04 | 1 | BEARING | B2 | |||
| 10 | 605040-15 | 1 | BEARING,BALL | B2 | |||
| 11 | 330005-01 | 1 | CORD PROTECTOR | B2 | |||
| 12 | 444793-00 | 1 | CIRCLIP | B2 | |||
| 13 | 448269-00 | 2 | SCREW | B2 | |||
| 14 | 464228-00 | 2 | TERMINAL | B2 | |||
| 16 | 445857-03 | 1 | FIELDCASE | INC 22 | B2 | ||
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | B2 | ||
| 18 | 150428-00SV | 1 | PADDLE | B2 | |||
| 19 | 445217-01 | 1 | SLEEVE | B2 | |||
| 20 | 700248-00 | 1 | SEAL | B2 | |||
| 22 | 445882-00 | 2 | CONTACT | B2 | |||
| 23 | 447847-00 | 1 | LOCK BUTTON | B2 | |||
| 25 | 384432-00SV | 1 | HOUSING | INC 38 | B2 | ||
| 26 | 445876-00 | 1 | BAFFLE | B2 | |||
| 28 | 5140246-36 | 1 | COUPLING | INCL. SPIDER | B2 | ||
| 29 | 5140246-36 | 1 | COUPLING | INCL. SPIDER | B2 | ||
| 30 | 034808-00 | 1 | BUSH | B2 | |||
| 31 | 021955-00 | 1 | SLEEVE | B2 | |||
| 33 | 605040-15 | 1 | BEARING,BALL | B2 | |||
| 34 | 400834-00 | 2 | WASHER | B2 | |||
| 36 | 448373-00 | 1 | WASHER SPRING | B2 | |||
| 38 | 380725-00 | 1 | SLEEVE | B2 | |||
| 40 | 385244-00 | 1 | CIRCLIP | B2 | |||
| 41 | N115813 | 1 | SPINDLE | B2 | |||
| 42 | 045488-00 | 1 | COLLET | 1/4" | B2 | ||
| 46 | 614848-00 | 1 | NAME PLATE | DW887-B2 TY.2 | B2 | ||
| 48 | 380722-00 | 1 | COVER | B2 | |||
| 49 | 605040-15 | 1 | BEARING,BALL | B2 | |||
| 50 | 395047-00 | 1 | BRAND LABEL | B2 | |||
| 60 | 030076-00 | 2 | SPANNER | 13mm X 16mm | B2 |
