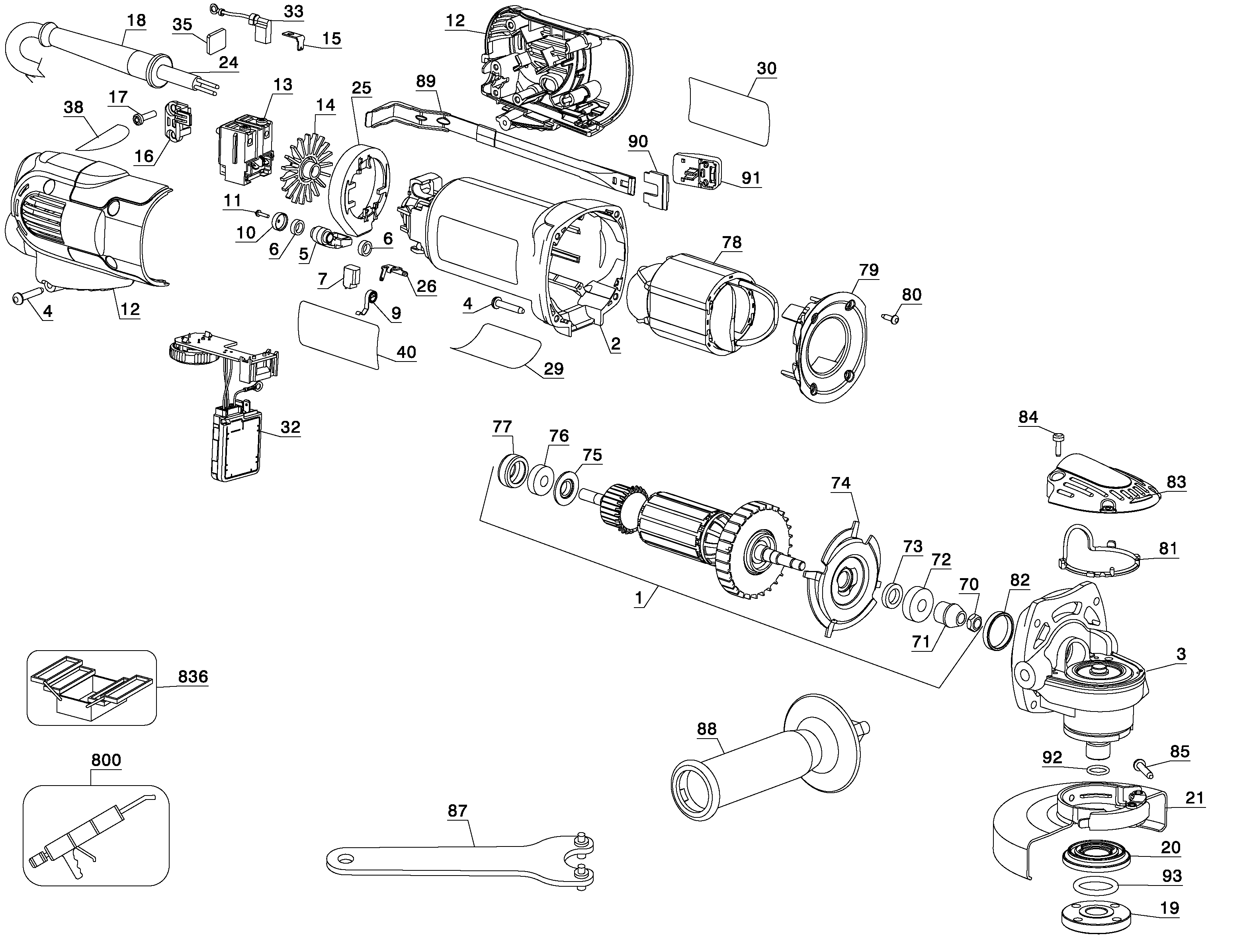

D28136 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N397998 | 1 | ARMATURE SA | PKG'D N397974 | BR | ||
| 2 | 626992-01 | 1 | FIELDCASE | BR | |||
| 3 | 629447-00S | 1 | GEARCASE ASSY | BR | |||
| 4 | 330065-31 | 9 | PLASTIC SCREW | BR | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | BR | ||
| 6 | 623592-00 | 4 | FELT SEAL | BR | |||
| 7 | 650917-01 | 2 | BRUSH | 120V POP OFF | BR | ||
| 9 | 636760-00 | 2 | BRUSH SPRING | BR | |||
| 10 | 623591-00 | 2 | BRUSH CAP | BR | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | BR | ||
| 12 | 626995-00 | 1 | HANDLE SET | BR | |||
| 13 | 945614-01 | 1 | SWITCH | BR | |||
| 14 | 633515-00 | 1 | SEPARATOR | PARTICLE, W/MAGNET | BR | ||
| 15 | 634599-00 | 1 | TERMINAL | BR | |||
| 16 | 628398-00 | 1 | CORD CLAMP | BR | |||
| 17 | 330019-03 | 2 | SCREW | BR | |||
| 18 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 19 | N134467 | 1 | NUT | BR | |||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | BR | |||
| 21 | 650042-00 | 1 | GUARD | 115MM | BR | ||
| 24 | 330122-51 | 1 | CORD & PLUG | BR | |||
| 25 | 627283-00 | 1 | BAFFLE | BR | |||
| 26 | 623593-00 | 2 | TERMINAL | BR | |||
| 29 | 626891-00 | 1 | WARNING LABEL | BR | |||
| 30 | 628885-00 | 1 | BRAND LABEL | BR | |||
| 32 | 642970-01 | 1 | MODULE | BR | |||
| 33 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | BR | ||
| 35 | 633391-00 | 1 | SEAL | TERMINAL | BR | ||
| 38 | 637692-01 | 1 | SPEED LABEL | BR | |||
| 40 | 640973-01 | 1 | NAMEPLATE | D28136-BR | BR | ||
| 70 | 604484-00 | 1 | NUT | BR | |||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | BR | ||
| 72 | 605040-67 | 1 | BEARING | BR | |||
| 73 | 623617-00 | 1 | FELT SEAL | BR | |||
| 74 | N422242 | 1 | RETAINER | BR | |||
| 75 | 623613-00 | 1 | WASHER | BR | |||
| 76 | 605040-02 | 1 | BEARING | BR | |||
| 77 | 641823-00 | 1 | SLEEVE | BR | |||
| 78 | 627125-01 | 1 | FIELD 115V | 115/120V | BR | ||
| 79 | 623572-00 | 1 | BAFFLE FAN | BR | |||
| 80 | 330065-25 | 4 | SCREW | BR | |||
| 81 | 632513-00 | 1 | GASKET | BR | |||
| 82 | 611492-00 | 1 | SLEEVE | BR | |||
| 83 | 627313-00 | 1 | GEARCASE COVER | BR | |||
| 84 | 385676-01 | 4 | SCREW | BR | |||
| 85 | 631609-01 | 1 | SCREW | BR | |||
| 87 | 401680-00 | 1 | WRENCH | BR | |||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | BR | ||
| 89 | 627001-00 | 1 | LINK | BR | |||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | BR | ||
| 91 | 623608-00 | 1 | BUTTON START | BR | |||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | BR | ||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | BR | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | BR | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | BR | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | BR |
