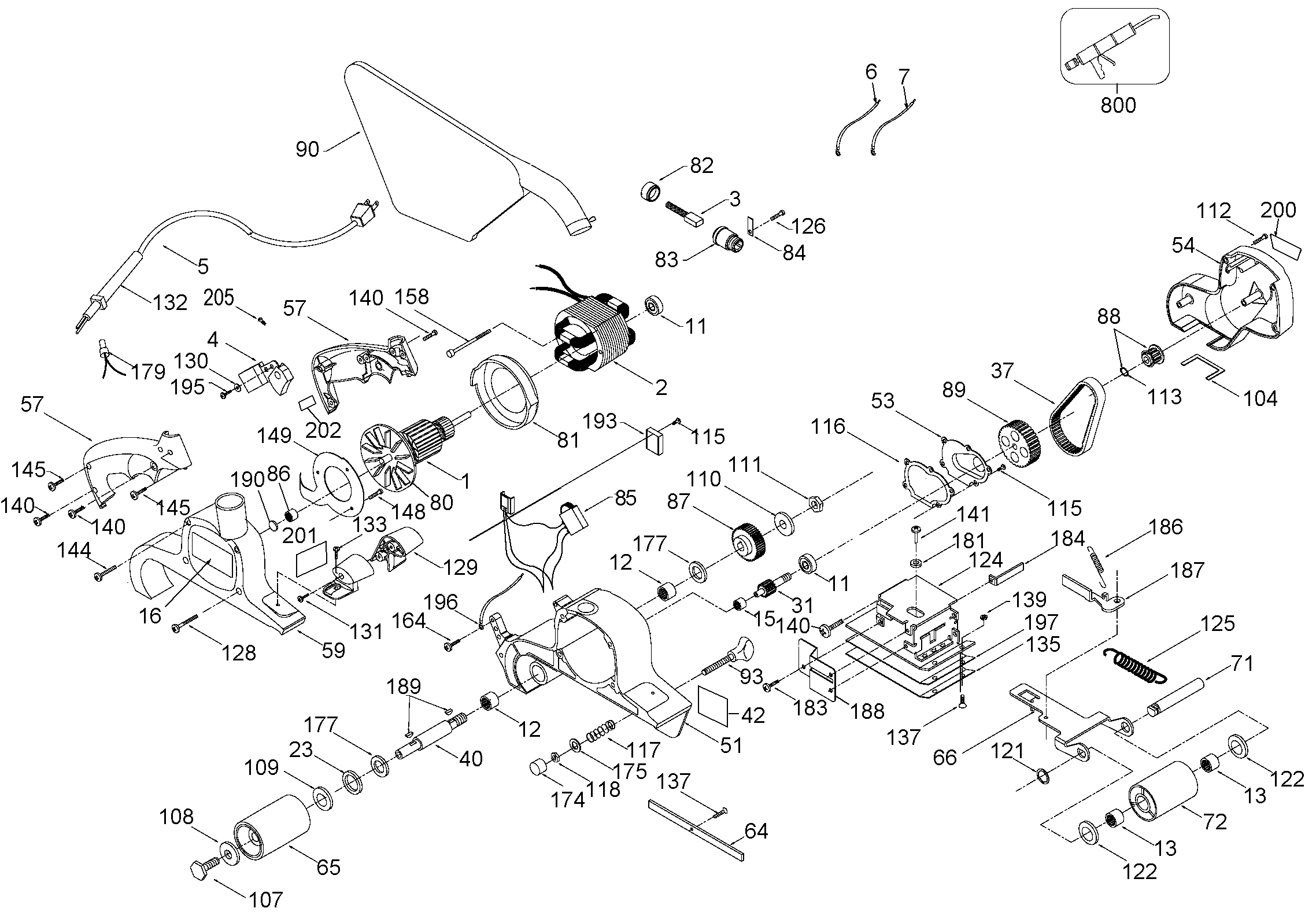

DWP352VS 3 x 21 IN BELT SANDER 101 Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N441736 | 1 | ARMATURE 220/240V | 230V | AR | ||
| 2 | N441735 | 1 | FIELD 220 / 240V | 230V | AR | ||
| 3 | N778654 | 2 | BRUSH & SPRING | AR | |||
| 4 | 395373-01 | 1 | SWITCH | AR | |||
| 5 | N426450 | 1 | CORDSET | AR | |||
| 6 | 887720 | 1 | LEAD SA | AR | |||
| 7 | 887732 | 1 | LEAD SA | AR | |||
| 11 | 330003-04 | 2 | BEARING | AR | |||
| 12 | 803856 | 2 | BEARING | AR | |||
| 13 | 804211 | 2 | BEARING | AR | |||
| 15 | 684188 | 1 | BEARING | AR | |||
| 16 | N045026 | 1 | BRAND LABEL | AR | |||
| 23 | 848537 | 1 | SEAL | AR | |||
| 31 | 899233 | 1 | DRIVE SHAFT | AR | |||
| 37 | N620374 | 1 | BELT | AR | |||
| 40 | 698038 | 1 | SHAFT | AR | |||
| 42 | N420136 | 1 | RATING LABEL | DWP352VS-AR TY2 | AR | ||
| 51 | N045007 | 1 | HOUSING MOTOR | AR | |||
| 53 | 848523 | 1 | COVER | AR | |||
| 54 | 893326 | 1 | COVER | AR | |||
| 57 | N417617 | 1 | HANDLE SA | AR | |||
| 59 | N045006 | 1 | DUST PORT | AR | |||
| 64 | 878380 | 1 | BAR | AR | |||
| 65 | 698041 | 1 | DRIVE PULLEY | AR | |||
| 66 | 878570 | 1 | ARM | AR | |||
| 71 | 878569 | 1 | SHAFT | AR | |||
| 72 | 900527 | 1 | PULLEY | AR | |||
| 80 | N214793 | 1 | FAN | AR | |||
| 81 | 892798 | 1 | BAFFLE FAN | AR | |||
| 82 | 823727 | 2 | CAP | AR | |||
| 83 | 887716 | 2 | BRUSH HOLDER | AR | |||
| 84 | 801271 | 2 | CLIP | AR | |||
| 85 | N354419 | 1 | SWITCH VARIABLE | AR | |||
| 86 | 859293 | 1 | BEARING | AR | |||
| 87 | 878571 | 1 | GEAR | AR | |||
| 88 | 695572 | 1 | DRIVE PULLEY | AR | |||
| 89 | 899231 | 1 | PULLEY | AR | |||
| 90 | N045017 | 1 | DUST BAG ASSY | AR | |||
| 93 | 897160 | 1 | SCREW | AR | |||
| 104 | 852003 | 1 | GASKET | AR | |||
| 107 | 849808 | 1 | SCREW | AR | |||
| 108 | 859359 | 1 | WASHER | AR | |||
| 109 | 848508 | 1 | WASHER | AR | |||
| 110 | 804454 | 1 | WASHER | AR | |||
| 111 | 802943 | 1 | NUT | AR | |||
| 112 | A24384 | 4 | SCREW | 8-32 x1.28 | AR | ||
| 113 | 859169 | 1 | RETAINER | AR | |||
| 115 | 882187 | 6 | SCREW | 8-32x3/8 TAPTITE T20 | AR | ||
| 116 | 848524 | 1 | GASKET | AR | |||
| 117 | 848512 | 1 | SPRING | AR | |||
| 118 | 903693 | 1 | NUT | AR | |||
| 121 | 853455 | 1 | RING | AR | |||
| 122 | 848551 | 2 | WASHER | AR | |||
| 124 | N532967 | 1 | TRACKING BOX | AR | |||
| 125 | 848514 | 1 | SPRING | AR | |||
| 126 | 844107 | 2 | SCREW | 8-32 x .250 Pan Head | AR | ||
| 128 | A24160 | 4 | SCREW | 8-32 x 1.48 | AR | ||
| 129 | N045008 | 1 | HANDLE SA | AR | |||
| 130 | 802995 | 1 | WASHER | AR | |||
| 131 | 879678 | 2 | SCREW | AR | |||
| 132 | 901266 | 1 | CORD PROTECTOR | AR | |||
| 133 | 886538 | 2 | SCREW | 10-24 x .5, Pan Head | AR | ||
| 135 | 903400 | 1 | SHOE SA | Inc. 137,139,197 | AR | ||
| 137 | A24158 | 3 | SCREW | 8-32 x .359 | AR | ||
| 139 | 869687 | 2 | NUT | AR | |||
| 140 | A24159 | 8 | SCREW | 8-32 x .484 | AR | ||
| 141 | 695812 | 1 | SCREW.SPECIAL | 10-32 x .375, w/Lock | AR | ||
| 144 | A26768 | 1 | SCREW | 8-32 x .625 FIL Hd | AR | ||
| 145 | 893792 | 3 | SCREW | AR | |||
| 148 | 875322 | 1 | SCREW | 4-40 x .25 Flat Head | AR | ||
| 149 | 896195 | 1 | BAFFLE | AR | |||
| 158 | 883483 | 2 | SCREW | 10-24 x 1.645 Pan Hd | AR | ||
| 164 | 892780 | 1 | SCREW | AR | |||
| 174 | 696039 | 1 | LOCATOR | AR | |||
| 175 | 801530 | 1 | WASHER | AR | |||
| 177 | 810523 | 2 | WASHER | AR | |||
| 179 | 682063 | 3 | CONNECTOR | AR | |||
| 181 | 695813 | 1 | SPACER | AR | |||
| 183 | A24157 | 3 | SCREW | 6-32 x .234 Pan Head | AR | ||
| 184 | 695868 | 1 | PLATE | AR | |||
| 186 | 698042 | 1 | SPRING | AR | |||
| 187 | 695789 | 1 | LEVER | AR | |||
| 188 | 877537 | 1 | PLATE | AR | |||
| 189 | 878563 | 2 | KEY | AR | |||
| 190 | 850410 | 1 | FELT | AR | |||
| 195 | 882185 | 2 | SCREW | AR | |||
| 196 | 395716-00 | 1 | TERMINAL | AR | |||
| 197 | 903398 | 1 | COVER | CORK ADHESIVE | AR | ||
| 200 | N045023 | 1 | BRAND LABEL | BELT COVER | AR | ||
| 201 | N045025 | 1 | WARNING LABEL | AR | |||
| 202 | A12935 | 1 | LABEL | Ground Plate | AR | ||
| 205 | 384127-01 | 2 | SCREW | AR | |||
| 800 | 878499 | 1 | GREASE | 5.3oz - 150 gms | AR | ||
| 800 | 801946 | 1 | GREASE | CASTORINE 300 PAIL | AR |
