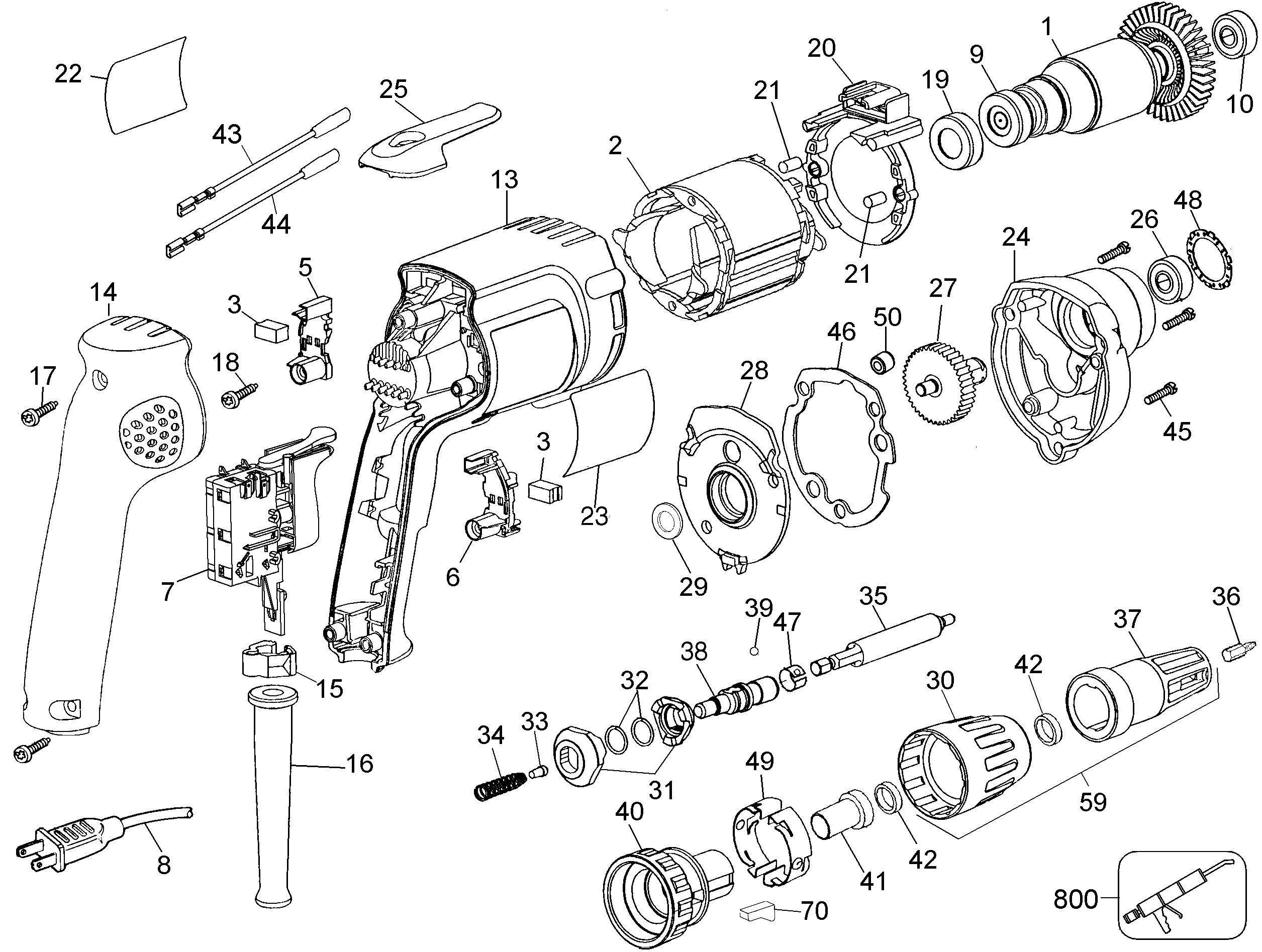

DW255 SCREWDRIVER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176851-06SV | 1 | ARMATURE | BR | |||
| 2 | 620360-03SV | 1 | FIELD & LEADS | BR | |||
| 3 | 176846-04 | 2 | BRUSH 120V | BR | |||
| 5 | N440279 | 1 | BRUSH HOLDER,L | BR | |||
| 6 | N440278 | 1 | BRUSH HOLDER,R | BR | |||
| 7 | N421307 | 1 | VSR SWITCH | BR | |||
| 8 | 330122-74 | 1 | CORDSET | BR | |||
| 9 | 330003-04 | 1 | BEARING | BR | |||
| 10 | 330003-04 | 1 | BEARING | BR | |||
| 13 | 396969-14 | 1 | FIELDCASE | BR | |||
| 14 | 610140-05 | 1 | HANDLE COVER | BR | |||
| 15 | 176833-00 | 1 | CORD CLAMP | BR | |||
| 16 | 148809-00 | 1 | CORD PROTECTOR | NPP | BR | ||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | BR | ||
| 18 | 176951-00 | 2 | SCREW | BR | |||
| 19 | 389824-00 | 1 | BOOT | BR | |||
| 20 | 176811-00 | 1 | BAFFLE | BR | |||
| 21 | 949638-02 | 2 | DAMPER | BR | |||
| 22 | 395047-00 | 1 | BRAND LABEL | BR | |||
| 23 | N026861 | 1 | NAMEPLATE | DW255-BR TY4 | BR | ||
| 24 | 388562-00SV | 1 | GEARCASE | BR | |||
| 25 | N045425 | 1 | CLIP | BR | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | BR | ||
| 27 | 176695-00SV | 1 | SPINDLE & GEAR | 46 TEETH | BR | ||
| 28 | 176621-00 | 1 | GEAR CASE COVER | BR | |||
| 29 | 176727-00 | 1 | WASHER FIBRE | BR | |||
| 30 | 152492-01 | 1 | COLLAR | BR | |||
| 31 | 603478-00 | 2 | CLUTCH | BR | |||
| 31 | N737329 | 2 | CLUTCH | BR | |||
| 32 | 089210-00 | 2 | RETAINER | BR | |||
| 33 | 021287-00 | 1 | GUIDE | BR | |||
| 34 | 86211-00 | 1 | SPRING | BR | |||
| 35 | N449701 | 1 | HOLDER BIT | BR | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | BR | |||
| 37 | 612001-01 | 1 | LOCATOR | BR | |||
| 38 | 176697-00 | 1 | SPINDLE | BR | |||
| 39 | 696631-00 | 1 | BALL | BR | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | BR | ||
| 41 | 450907-00 | 1 | SLEEVE | BR | |||
| 42 | 696534-00 | 2 | SEAL | BR | |||
| 43 | 616118-02 | 1 | LEADWIRE ASSY. | RED 18GA. | BR | ||
| 44 | 616118-03 | 1 | LEADWIRE ASSY. | WHITE 18GA. | BR | ||
| 45 | 330019-14 | 3 | SCREW | BR | |||
| 46 | 176655-00 | 1 | GASKET | BR | |||
| 47 | 094518-00 | 1 | RETAINER | BR | |||
| 48 | 176689-00 | 1 | RETAINER | BR | |||
| 49 | 391436-00 | 2 | SPRING | BR | |||
| 50 | 093128-00 | 1 | BEARING NEEDLE | BR | |||
| 59 | 429560-00 | 1 | NOSEPIECE,PLSTC | INC. 30,37,42 | BR | ||
| 70 | 390437-01 | 2 | PLUG | BR | |||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | BR | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | BR | |
| 800 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | 1-LB | BR |
