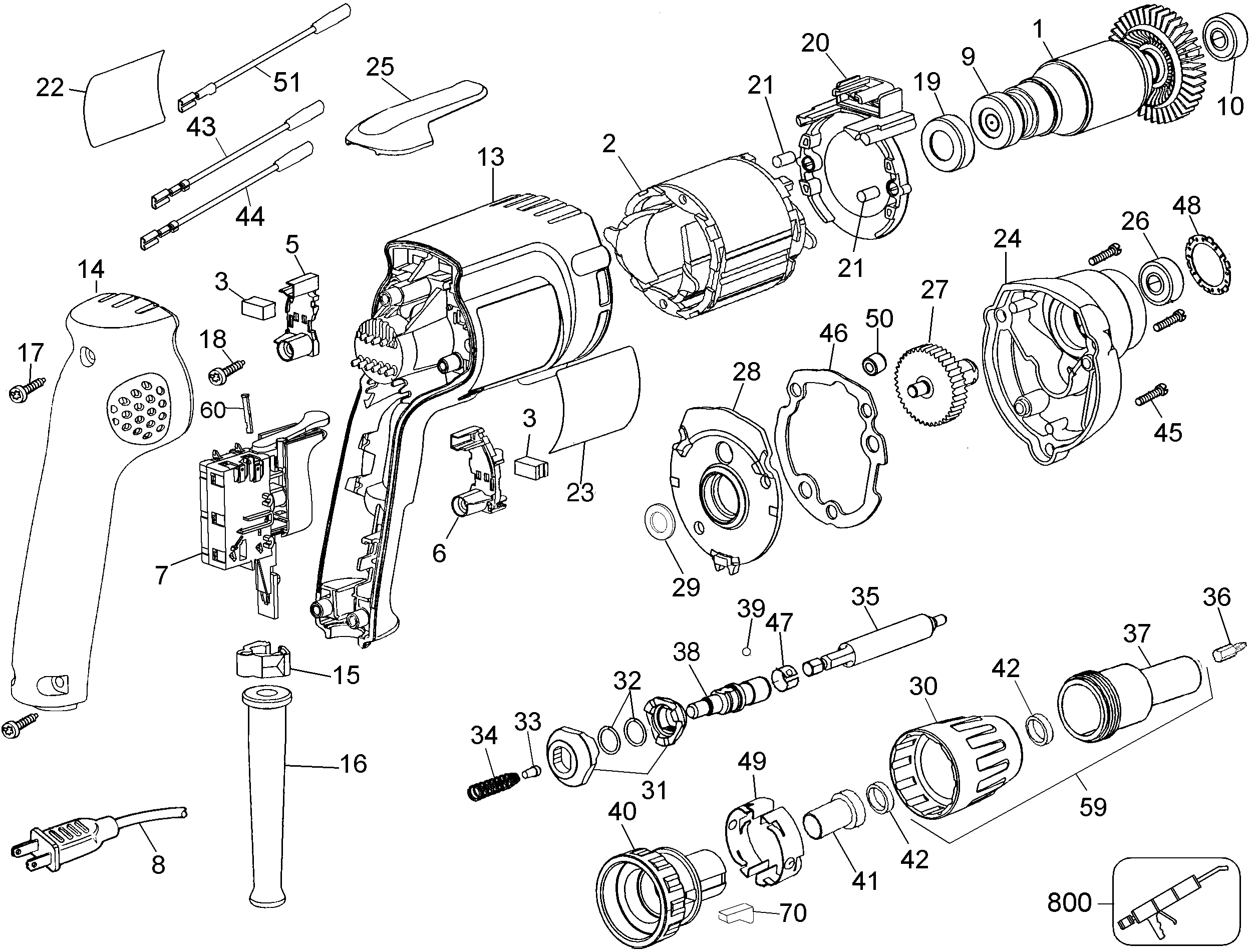

DW253 SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N087427SV | 1 | ARMATURE | B2 | |||
| 2 | N087428SV | 1 | FIELD & LEADS | B2 | |||
| 3 | 176846-04 | 2 | BRUSH 120V | B2 | |||
| 5 | N440279 | 1 | BRUSH HOLDER,L | B2 | |||
| 6 | N440278 | 1 | BRUSH HOLDER,R | B2 | |||
| 7 | 1006250-00 | 1 | SWITCH SA | B2 | |||
| 8 | 330122-74 | 1 | CORDSET | B2 | |||
| 9 | 330003-04 | 1 | BEARING | B2 | |||
| 10 | 330003-04 | 1 | BEARING | B2 | |||
| 13 | 396969-14 | 1 | FIELDCASE | B2 | |||
| 14 | 176816-06 | 1 | HANDLE COVER | B2 | |||
| 15 | 176832-00 | 1 | CORD CLAMP | B2 | |||
| 16 | 148809-00 | 1 | CORD PROTECTOR | NPP | B2 | ||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | B2 | ||
| 18 | 176951-00 | 2 | SCREW | B2 | |||
| 19 | 389824-00 | 1 | BOOT | B2 | |||
| 20 | 176811-00 | 1 | BAFFLE | B2 | |||
| 21 | 941374-01 | 2 | RUBBER | B2 | |||
| 22 | 395047-00 | 1 | BRAND LABEL | B2 | |||
| 23 | N484598 | 1 | RATING LABEL | DW253-B2 TYPE 1 | B2 | ||
| 24 | 388562-01SV | 1 | GEAR CASE ASM | Incl. 26,48 | B2 | ||
| 25 | N045425 | 1 | CLIP | B2 | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B2 | ||
| 27 | 638982-00SV | 1 | SPINDLE & GEAR | 47 TEETH | B2 | ||
| 28 | 386622-00 | 1 | GEARCASE COVER | B2 | |||
| 29 | 176727-00 | 1 | WASHER FIBRE | B2 | |||
| 30 | 152492-01 | 1 | COLLAR | B2 | |||
| 31 | N737329 | 2 | CLUTCH | B2 | |||
| 32 | 089210-00 | 2 | RETAINER | B2 | |||
| 33 | 021287-00 | 1 | GUIDE | B2 | |||
| 34 | 86211-00 | 1 | SPRING | B2 | |||
| 35 | N449701 | 1 | HOLDER BIT | B2 | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | B2 | |||
| 37 | 612001-01 | 1 | LOCATOR | Incl. 42 | B2 | ||
| 38 | 176697-00 | 1 | SPINDLE | B2 | |||
| 39 | 696631-00 | 1 | BALL | B2 | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | INC 41, 42, 49, 70 | B2 | |
| 41 | 450907-00 | 1 | SLEEVE | B2 | |||
| 42 | 696534-00 | 2 | SEAL | B2 | |||
| 43 | 616118-02 | 1 | LEADWIRE ASSY. | RED 18GA. | B2 | ||
| 44 | 616118-03 | 1 | LEADWIRE ASSY. | WHITE 18GA. | B2 | ||
| 45 | 330019-14 | 3 | SCREW | B2 | |||
| 46 | 176655-00 | 1 | GASKET | B2 | |||
| 47 | 094518-00 | 1 | RETAINER | B2 | |||
| 48 | 176689-00 | 1 | RETAINER | B2 | |||
| 49 | 391436-00 | 2 | SPRING | B2 | |||
| 50 | 093128-00 | 1 | BEARING NEEDLE | B2 | |||
| 51 | 616118-06 | 1 | LEADWIRE | B2 | |||
| 59 | 429561-00 | 1 | NOSE | B2 | |||
| 60 | 584551-00 | 1 | INSERT | B2 | |||
| 70 | 390437-01 | 2 | PLUG | B2 | |||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B2 | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B2 | |
| 800 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | 1-LB | B2 |
