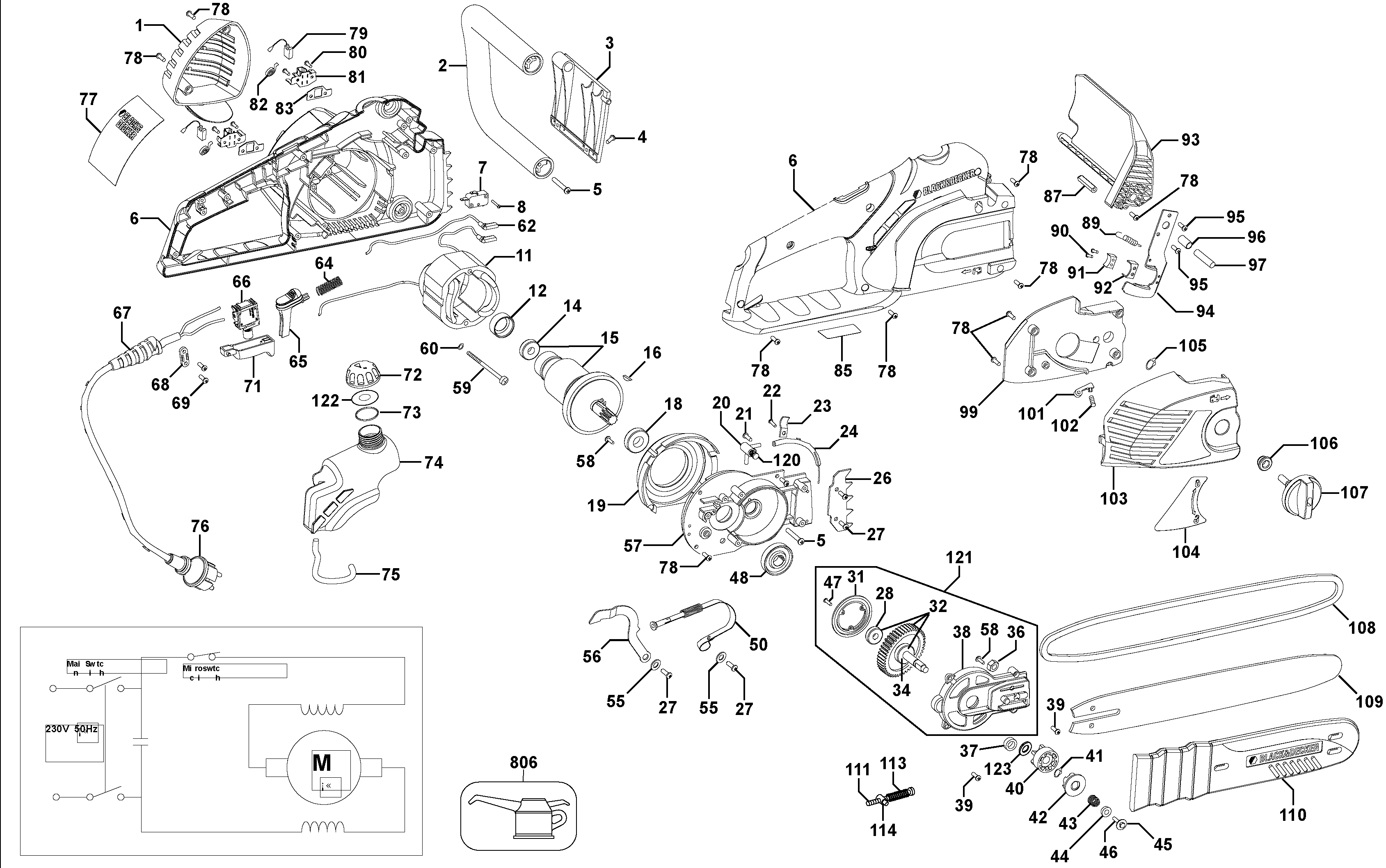

GK1740 CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1003066-00 | 1 | MOTOR COVER | B2C | |||
| 2 | 1003067-00 | 1 | LOOP HANDLE | B2C | |||
| 3 | 1003068-00 | 1 | GUARD LOWER | B2C | |||
| 4 | 1003069-00 | 2 | SCREW | ST4.2 x 13mm | B2C | ||
| 5 | 1003070-00 | 2 | SCREW | ST4.8 x 30mm | B2C | ||
| 6 | 5140051-33 | 1 | HOUSING & COVER | B2C | |||
| 7 | 1003072-00 | 1 | MICRO SWITCH | B2C | |||
| 8 | 1003073-00 | 2 | SCREW | ST2.9 x 20mm | B2C | ||
| 11 | 5140051-21 | 1 | FIELD | B2C | |||
| 12 | 1003075-00 | 1 | BEARING HOLDER | B2C | |||
| 14 | 1003076-00 | 1 | BEARING | 6000 | B2C | ||
| 15 | 5140051-23 | 1 | ARMATURE | Inc. 14 | B2C | ||
| 16 | 1003078-00 | 1 | KEY | B2C | |||
| 18 | 1003079-00 | 1 | BEARING | 6002 | B2C | ||
| 19 | 1003080-00 | 1 | BAFFLE FAN | B2C | |||
| 20 | 1003081-00 | 1 | PUMP SA | B2C | |||
| 21 | 1003082-00 | 1 | SCREW | M4 x 13mm | B2C | ||
| 22 | 1003083-00 | 1 | SCREW | M4 x 10mm | B2C | ||
| 23 | 1003084-00 | 1 | CLAMP | B2C | |||
| 24 | 1003085-00 | 1 | PIPE | B2C | |||
| 26 | 1003086-00 | 1 | GRIP | B2C | |||
| 27 | 1003087-00 | 4 | SCREW | M5 x 10mm | B2C | ||
| 28 | 1003088-00 | 1 | BEARING | 608 | B2C | ||
| 31 | 1003089-00 | 1 | CAM | B2C | |||
| 32 | 1003090-00 | 1 | GEAR | B2C | |||
| 34 | 1003091-00 | 1 | BEARING | 6000 | B2C | ||
| 36 | 1003092-00 | 1 | NUT | B2C | |||
| 37 | 1003093-00 | 1 | RING | B2C | |||
| 38 | 1003094-00 | 1 | COVER GEARCASE | B2C | |||
| 39 | 1003095-00 | 4 | SCREW | M4 x 13mm | B2C | ||
| 40 | 1003096-00 | 1 | PINION | B2C | |||
| 41 | 1003097-00 | 1 | CIRCLIP | B2C | |||
| 42 | 1003098-00 | 1 | CLUTCH | B2C | |||
| 43 | 1003099-00 | 1 | SPRING | B2C | |||
| 44 | 1003100 | 1 | SEAT | B2C | |||
| 45 | 1003101-00 | 1 | WASHER | B2C | |||
| 46 | 1003102-00 | 1 | SCREW | M4 x 25mm - LH | B2C | ||
| 47 | 1003103-00 | 3 | SCREW | B2C | |||
| 48 | 1003104-00 | 1 | WHEEL | B2C | |||
| 50 | 1003105-00 | 1 | BAND BRAKE | B2C | |||
| 55 | 1003106-00 | 2 | WASHER | B2C | |||
| 56 | 1003107-00 | 1 | LEVER | B2C | |||
| 57 | 1003108-00 | 1 | GEARCASE SA | B2C | |||
| 58 | 1003109-00 | 3 | SCREW | B2C | |||
| 59 | 1003110-00 | 2 | SCREW | M5 x 50mm | B2C | ||
| 60 | 1003111-00 | 1 | WASHER SPRING | 5mm | B2C | ||
| 62 | 1003112-00 | 1 | LEAD SWITCH SA | B2C | |||
| 64 | 1003113-00 | 1 | SPRING | B2C | |||
| 65 | 5140051-25 | 1 | LOCK,OFF | B2C | |||
| 66 | 1003115-00 | 1 | SWITCH | B2C | |||
| 67 | 1003116-00 | 1 | CORD PROTECTOR | B2C | |||
| 68 | 1003117-00 | 1 | CORD CLAMP | B2C | |||
| 69 | 1003118-00 | 2 | SCREW | ST4.2 x 13mm | B2C | ||
| 71 | 5140051-26 | 1 | TRIGGER | B2C | |||
| 72 | 5140051-27 | 1 | CAP OIL | B2C | |||
| 73 | 1003122-00 | 1 | O RING | B2C | |||
| 74 | 1003123-00 | 1 | RESERVOIR | B2C | |||
| 75 | 1003124-00 | 1 | PIPE | B2C | |||
| 76 | 5140051-29 | 1 | CORD SET | B2C | |||
| 77 | 1003127-00 | 1 | BRAND LABEL | B2C | |||
| 78 | 1003128-00 | 18 | SCREW | ST4.2 x 18mm | B2C | ||
| 79 | 1003129-00 | 1 | BRUSH PAIR | B2C | |||
| 80 | 1003130-00 | 2 | BRUSH SPRING | B2C | |||
| 81 | 1003131-00 | 4 | SCREW | ST4.2 x 13mm | B2C | ||
| 82 | 1003132-00 | 2 | BRUSH HOLDER | B2C | |||
| 83 | 1003133-00 | 2 | INSULATOR | B2C | |||
| 85 | 188153-02 | 1 | NAME PLATE | B2C | |||
| 87 | 1003138-00 | 1 | PIN | B2C | |||
| 89 | 1003139-00 | 1 | SPRING | B2C | |||
| 90 | 1003140-00 | 2 | SCREW | ST4.2 x 13mm | B2C | ||
| 91 | 1003141-00 | 1 | PAD | B2C | |||
| 92 | 1003142-00 | 1 | SUPPORT | B2C | |||
| 93 | 1003143-00 | 1 | GUARD | B2C | |||
| 94 | 1003144-00 | 1 | PLATE | B2C | |||
| 95 | 1003145-00 | 2 | SCREW | B2C | |||
| 96 | 1003146-00 | 1 | SLEEVE | B2C | |||
| 97 | 1003147-00 | 1 | PIN | B2C | |||
| 99 | 1003148-00 | 1 | BRACKET.INNER | B2C | |||
| 101 | 1003149-00 | 1 | STOP | B2C | |||
| 102 | 1003150-00 | 1 | SPRING | B2C | |||
| 103 | 1003151-00 | 1 | COVER | B2C | |||
| 104 | 1003152-00 | 1 | LABEL | B2C | |||
| 105 | 1003153-00 | 1 | CIRCLIP | B2C | |||
| 106 | 1003154-00 | 1 | RING | B2C | |||
| 107 | 1003155-00 | 1 | KNOB | B2C | |||
| 108 | 0-00 | 1 | ACCESSORY | Saw Chain | B2C | ||
| 109 | 1003158-00 | 1 | BAR CHAIN 40CM | 40CM | B2C | ||
| 110 | 1003161-00 | 1 | SHEATH | 40CM | B2C | ||
| 111 | 1003180-00 | 1 | ADJUSTER | B2C | |||
| 113 | 1003164-00 | 1 | SPRING | B2C | |||
| 114 | 1003165-00 | 1 | PIN | B2C | |||
| 120 | 1003169-00 | 1 | VALVE NEEDLE | B2C | |||
| 121 | 1003170-00 | 1 | GEAR SA | B2C | |||
| 122 | 1003171-00 | 1 | RUBBER SEAL | B2C | |||
| 123 | 1003172-00 | 1 | WASHER SPECIAL | B2C | |||
| 806 | 1003183-00 | 1 | TUBE OIL | 100ml | B2C |
