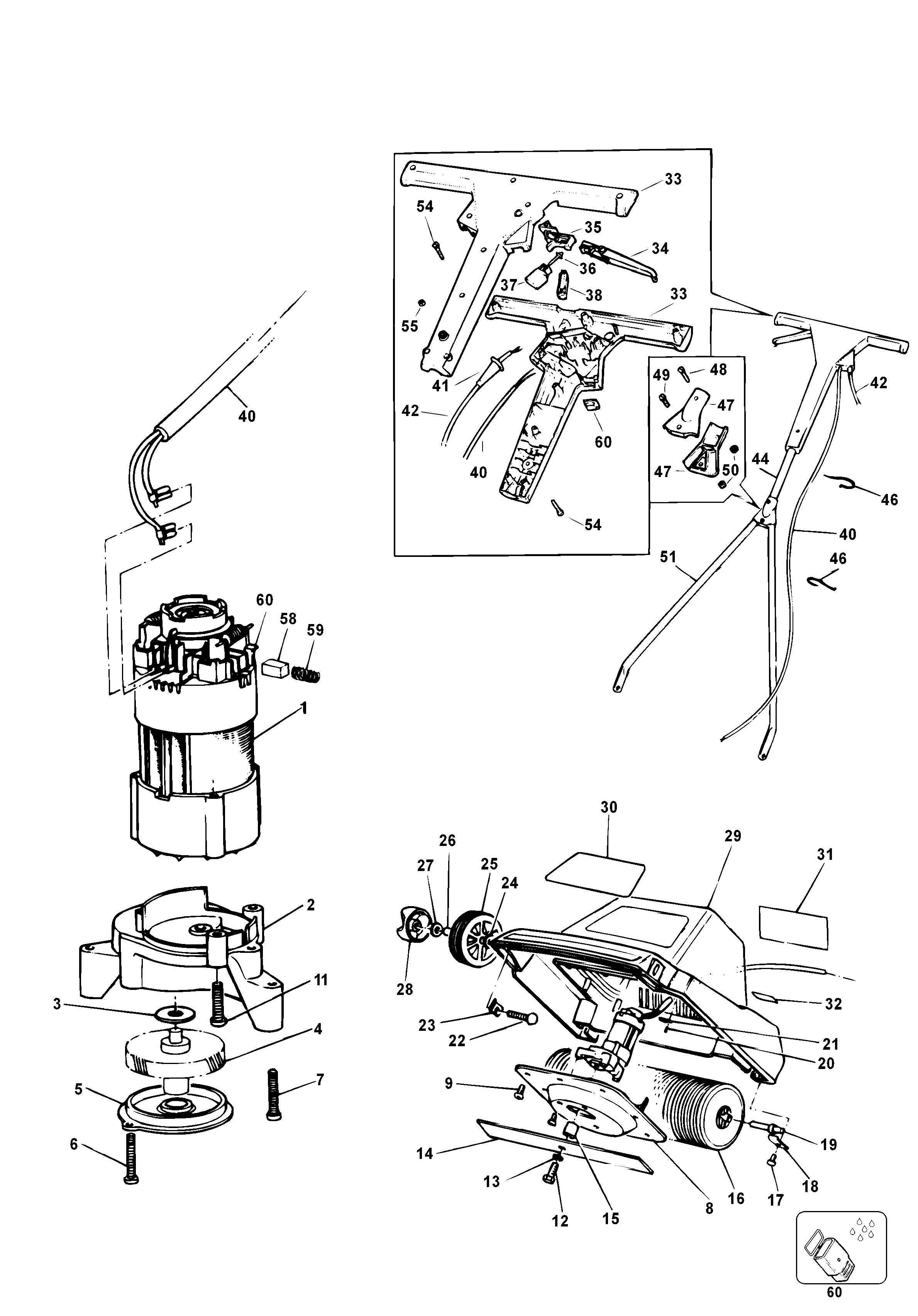

GR102 ROTARY MOWER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	376913-07	1	MOTOR SA		CH
2	749827	1	GEARCASE SA	H1A	CH
2	749827	1	GEARCASE SA	H1C-H1E	CH
2	749827	1	GEARCASE SA	H1B	CH
3	892529	1	WASHER THRUST		CH
4	000000-00	1	NO LONGER AVAILABLE		CH
5	749828	1	GEARCASE COVER	H1A	CH
5	830043	1	GEARCASE COVER SA	H1	CH
5	749828	1	GEARCASE COVER	H1B	CH
5	749828	1	GEARCASE COVER	H1C-H1E	CH
6	812171	2	SCREW		CH
7	745659	3	SCREW.TEMP		CH
8	826549	1	PLATE SA		CH
9	823143	7	SCREW		CH
11	897748	3	SCREW		CH
12	845432	1	SCREW		CH
13	891070	1	WASHER		CH
14	846838	1	BLADE		CH
15	848861	1	SPACER		CH
16	827892	1	ROLLER		CH
17	810269	2	SCREW		CH
18	827884	2	PLATE		CH
19	827883	2	AXLE STUB		CH
20	810269	2	SCREW		CH
21	821070	1	CORD CLAMP		CH
22	798388	2	SCREW.TEMP		CH
23	884005	2	INDICATOR		CH
24	891070	2	WASHER		CH
25	890717	2	WHEEL		CH
26	830618	2	SPACER		CH
27	891070	2	WASHER		CH
28	798389	2	WHEELHUB SA		CH
29	369745	1	CUTTER COVER		CH
31	747266	1	WARNING LABEL		CH
33	795924	1	HANDLE SA	H1C-H1E	CH
33	806060	1	REPAIR KIT	H1	CH
33	806060	1	REPAIR KIT	H1A	CH
33	806060	1	REPAIR KIT	H1B	CH
34	746041	1	LEVER		CH
35	822740	1	BUTTON OFF		CH
36	813506	1	ACTUATOR		CH
37	795780	1	SWITCH		CH
38	793133-01	1	CUT OUT	H1C-H1E	CH
38	846541	1	CUT OUT	H1	CH
38	846541	1	CUT OUT	H1A	CH
38	846541	1	CUT OUT	H1B	CH
39	894789	1	CONNECTING WIRE	H1A	CH
39	894789	1	CONNECTING WIRE	H1	CH
39	894789	1	CONNECTING WIRE	H1B	CH
40	795613-02	1	CABLE SA		CH
40	795613-01	1	CABLE SA	H1C-H1E	CH
41	859013	1	PROTECTOR		CH
42	330048-25	1	CORDSET		CH
43	849256	9	SCREW		CH
44	820857-32	1	HANDLE UPPER		CH
46	812151	2	TIE		CH
47	844838	2	CLAMP		CH
48	844941	1	SCREW		CH
49	898996	1	SCREW		CH
50	840815	2	LOCK NUT		CH
51	848710-32	2	TUBE LOWER		CH
54	898526	1	SCREW		CH
55	892153	1	NUT		CH
58	376143	2	BRUSH		CH
59	847709	2	SPRING		CH
60	795929	1	COVER	H1C-H1E	CH
