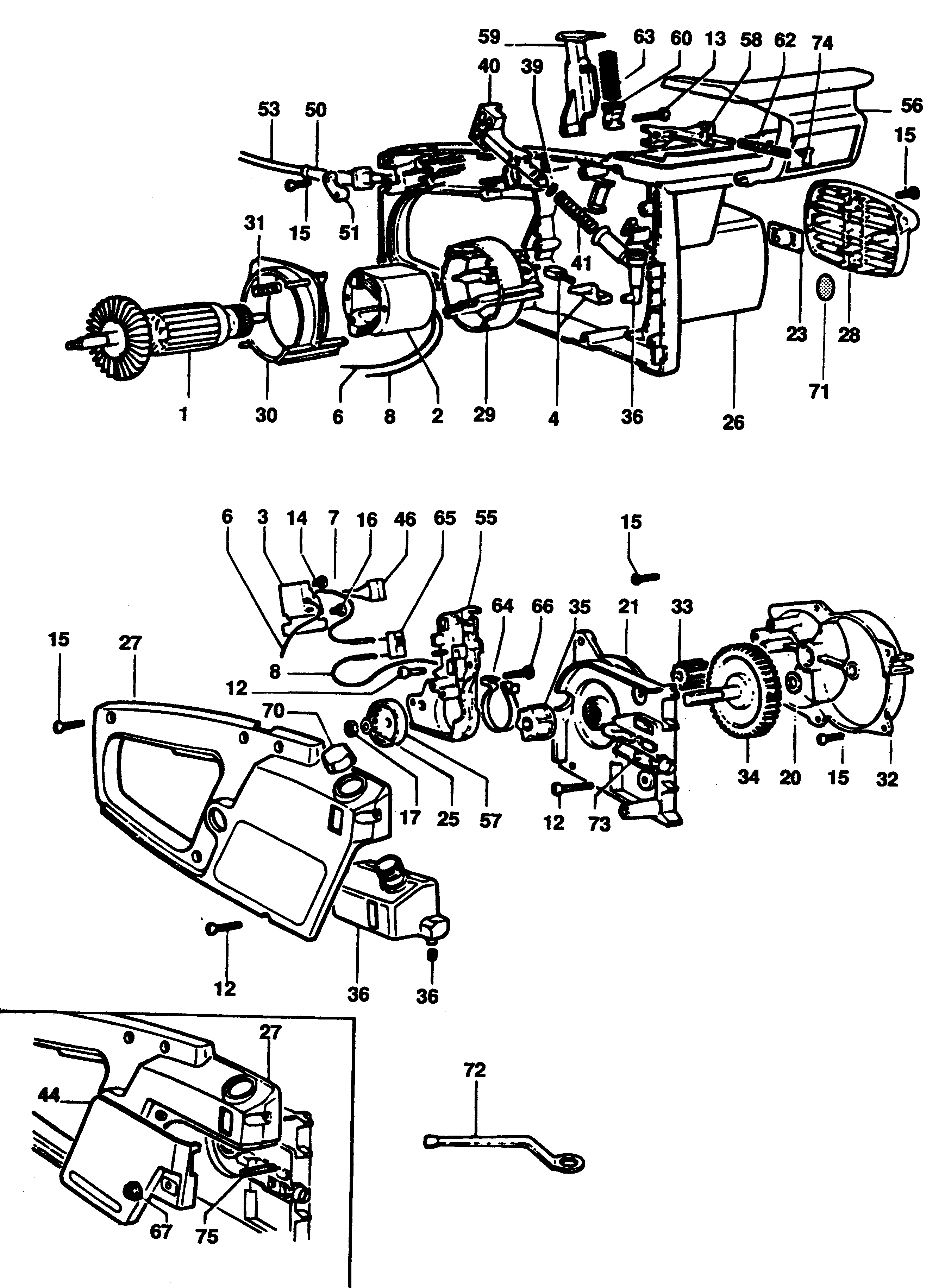

MC2B CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | NLS | 1 | NOT STRUCTURED | CH | |||
| 2 | 327429-10 | 1 | FIELD 230V | CH | |||
| 3 | 323631-00 | 1 | SWITCH | CH | |||
| 4 | 370983-02 | 2 | BRUSH & HOLDER 230V | CH | |||
| 6 | 853719 | 1 | LEAD | CH | |||
| 7 | 321730-01 | 1 | LEAD SA | CH | |||
| 12 | 954183 | 3 | SCREW | CH | |||
| 13 | 750950 | 1 | SCREW | CH | |||
| 14 | 734892 | 2 | SCREW | CH | |||
| 15 | 954567 | 12 | SCREW | CH | |||
| 16 | 990735 | 1 | SCREW | CH | |||
| 17 | 324073-00 | 1 | NUT | TYPE D3 | CH | ||
| 20 | 854978 | 1 | WASHER SHIM | CH | |||
| 21 | 323957-00 | 1 | CASTING SA | CH | |||
| 23 | 853685 | 1 | HEATSINK SA | CH | |||
| 28 | 323462-04 | 1 | END CAP | TYPE D3 | CH | ||
| 29 | 323855-00 | 1 | SUPPORT | TYPE D3 | CH | ||
| 30 | 853711 | 1 | SUPPORT | CH | |||
| 31 | 853710 | 1 | SPRING | CH | |||
| 33 | 853694 | 1 | PINION | CH | |||
| 35 | N542284 | 1 | SPROCKET | CH | |||
| 35 | N542284 | 1 | SPROCKET | CH | |||
| 40 | 840845 | 1 | PLUNGER | CH | |||
| 44 | 853736-02 | 1 | COVER | CH | |||
| 46 | 321384 | 1 | CAPACITOR | CH | |||
| 50 | 859013 | 1 | PROTECTOR | CH | |||
| 51 | 302002 | 1 | CABLE CLAMP | CH | |||
| 53 | 374848-02 | 1 | CORDSET | CH | |||
| 55 | 325718-00 | 1 | PLATE SA | CH | |||
| 56 | 736735 | 1 | LEVER | CH | |||
| 57 | 325381-00 | 1 | GEAR SA | CH | |||
| 58 | 842564 | 1 | BUTTON RELEASE | CH | |||
| 59 | 842912-01 | 1 | LEVER | CH | |||
| 60 | 840774 | 1 | INSERT | CH | |||
| 62 | 736928 | 1 | SPRING | CH | |||
| 63 | 842771 | 1 | SPRING | CH | |||
| 64 | 842565 | 1 | BAND BRAKE | CH | |||
| 65 | 323341-02 | 1 | SWITCH | CH | |||
| 66 | 893444 | 2 | SCREW | CH | |||
| 67 | 885628 | 1 | NUT | CH | |||
| 70 | 853697 | 1 | CAP | CH | |||
| 71 | 323857-01 | 1 | PLATE | TYPE D3 | CH | ||
| 72 | 325194-00 | 1 | SPANNER | CH | |||
| 73 | 843666-49 | 1 | ADJUSTER SA | CH | |||
| 74 | 325701-00 | 1 | CLIP | CH |
