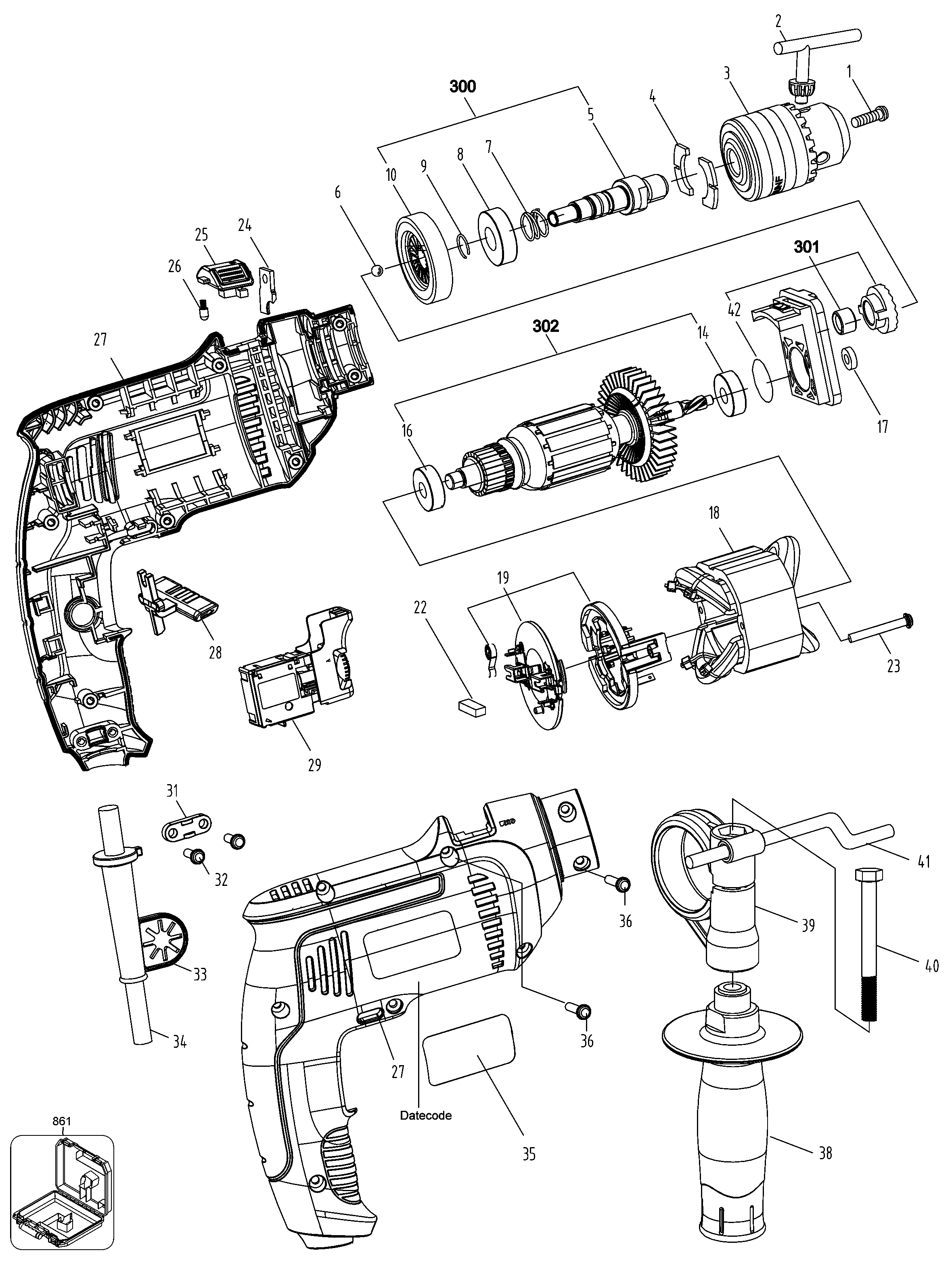

SDH700 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140165-77 | 1 | SCREW | B2 | |||
| 2 | 5140165-78 | 1 | CHUCK KEY | B2 | |||
| 3 | 5140165-79 | 1 | CHUCK | B2 | |||
| 4 | 5140178-92 | 2 | FELT SEAL | B2 | |||
| 5 | 5140178-93 | 1 | SPINDLE | B2 | |||
| 6 | 5140178-94 | 1 | BALL | B2 | |||
| 7 | 5140178-95 | 1 | SPRING | B2 | |||
| 8 | 5140178-96 | 1 | BEARING | B2 | |||
| 9 | 5140155-65 | 1 | CIRCLIP | B2 | |||
| 10 | 5140178-97 | 1 | GEAR | B2 | |||
| 14 | 5140165-96 | 1 | BEARING | B2 | |||
| 16 | 5140155-93 | 1 | BEARING | B2 | |||
| 17 | 5140178-98 | 1 | SLEEVE | B2 | |||
| 18 | 5140178-99 | 1 | FIELD ASSY. | B2 | |||
| 19 | 5140179-01 | 1 | BRUSH HOLDER ASSY | B2 | |||
| 22 | 5140179-02 | 1 | BRUSH | B2 | |||
| 23 | 5140179-04 | 2 | SCREW | B2 | |||
| 24 | 5140179-05 | 1 | PLATE SELECTOR | B2 | |||
| 25 | 5140179-06 | 1 | SELECTOR BUTTON | B2 | |||
| 26 | 5140179-07 | 1 | INDEXING BOLT | B2 | |||
| 27 | 5140179-08 | 1 | MOTOR HOUSING | B2 | |||
| 28 | 5140179-09 | 1 | BLOCK | B2 | |||
| 29 | 5140185-42 | 1 | SWITCH | B2 | |||
| 31 | 5140166-21 | 1 | CORD CLAMP | B2 | |||
| 32 | 5140155-81 | 2 | SCREW | B2 | |||
| 33 | 5140179-12 | 1 | CORD PROTECTOR | B2 | |||
| 34 | 5140179-14 | 1 | CORD | B2 | |||
| 35 | 5140179-18 | 1 | RATING LABEL | B2 | |||
| 36 | 5140156-03 | 8 | SCREW | B2 | |||
| 38 | 5140179-88 | 1 | SIDE HANDLE | B2 | |||
| 39 | 5140179-22 | 1 | CLAMP | B2 | |||
| 40 | 5140179-89 | 1 | SCREW | B2 | |||
| 41 | 5140166-26 | 1 | DEPTH ROD | B2 | |||
| 42 | 5140173-42 | 1 | O-RING | B2 | |||
| 300 | 5140179-25 | 1 | SPINDLE ASSEMBLY | B2 | |||
| 301 | 5140179-26 | 1 | STAND ASSY | B2 | |||
| 302 | 5140179-27 | 1 | ARMATURE ASSY. | B2 | |||
| 861 | 5140179-24 | 1 | KIT BOX | B2 |
