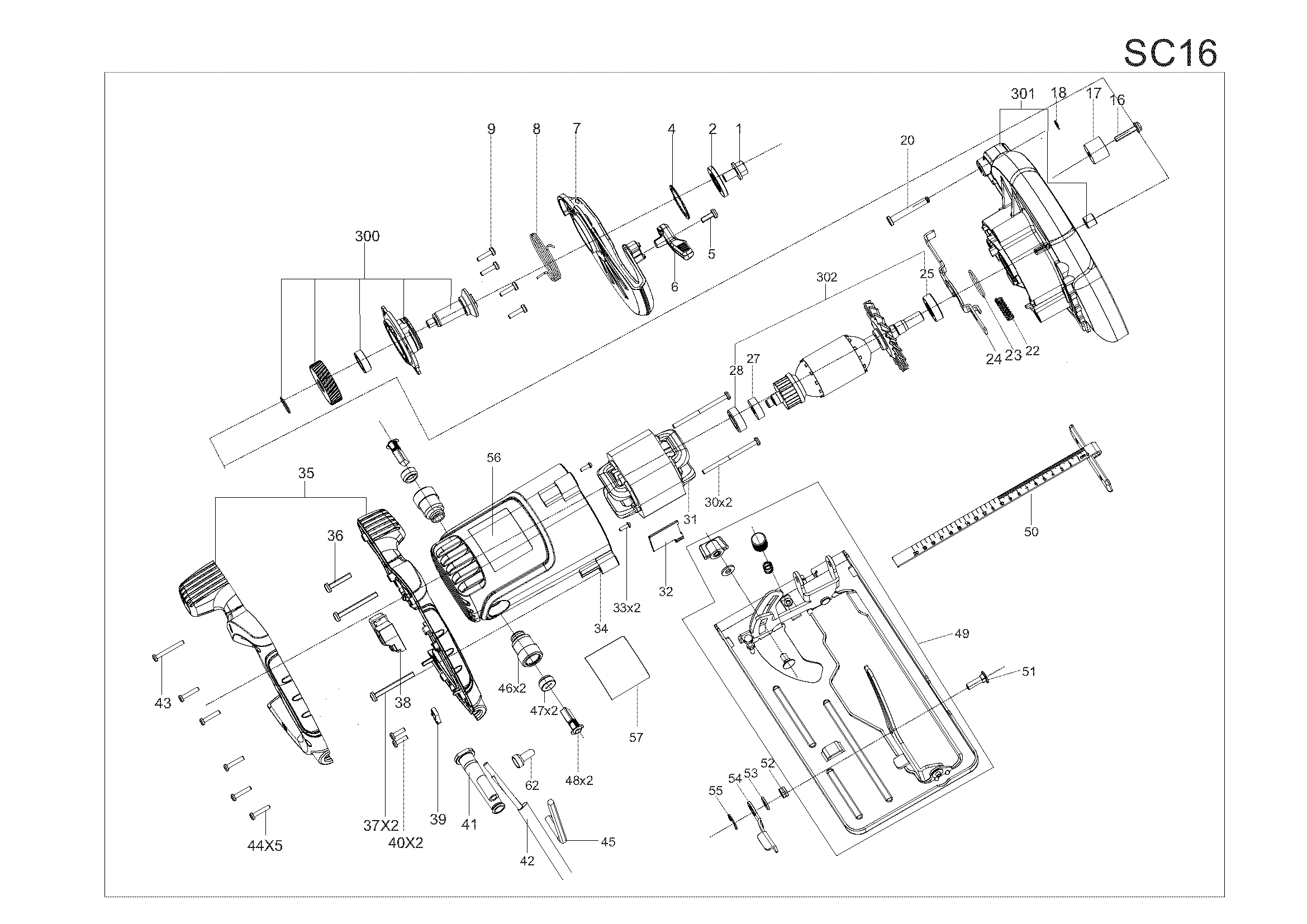

SC16 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N560559 | 1 | SCREW | BR | |||
| 2 | 90632707 | 1 | OUTER FLANGE | BR | |||
| 4 | 90633041 | 1 | SPRING CLIP | BR | |||
| 5 | N582370 | 1 | SCREW | BR | |||
| 6 | N572460 | 1 | LEVER | BR | |||
| 7 | N564954 | 1 | GUARD | BR | |||
| 8 | N100006 | 1 | SPRING | BR | |||
| 9 | N520080 | 4 | SCREW | BR | |||
| 16 | N582381 | 1 | SCREW | BR | |||
| 17 | N575496 | 1 | RING | BR | |||
| 18 | 90578384 | 1 | RETAINER | BR | |||
| 20 | N576774 | 1 | PIN | BR | |||
| 22 | N573373 | 1 | SPRING | BR | |||
| 23 | N602219 | 1 | RING | BR | |||
| 24 | N552648 | 1 | SHAFT | BR | |||
| 25 | N650408 | 1 | BEARING | BR | |||
| 27 | 5140155-93 | 1 | BEARING | BR | |||
| 28 | 5140232-59 | 1 | SLEEVE BEARING | BR | |||
| 30 | 330019-82 | 2 | SCREW | BR | |||
| 31 | N581799 | 1 | FIELD SA | BR | |||
| 32 | N567977 | 1 | CLAMP | BR | |||
| 33 | N520083 | 2 | SCREW | BR | |||
| 34 | N562975 | 1 | FIELD CASE | BR | |||
| 35 | N563418 | 1 | HANDLE SA | BR | |||
| 36 | N582378 | 1 | SCREW | BR | |||
| 37 | N582376 | 2 | SCREW | BR | |||
| 38 | N580300 | 1 | SWITCH SA | BR | |||
| 39 | 5140166-21 | 1 | CORD CLAMP | BR | |||
| 40 | N582387 | 2 | SCREW | BR | |||
| 41 | 90568797 | 1 | CORD PROTECTOR | BR | |||
| 42 | N469971 | 1 | CORDSET | BR | |||
| 43 | N582386 | 1 | SCREW | BR | |||
| 44 | N582383 | 5 | SCREW | BR | |||
| 45 | 90579371 | 1 | HEX KEY | BR | |||
| 46 | N602473 | 2 | BRUSH HOLDER | BR | |||
| 47 | 90632247 | 2 | CAP | BR | |||
| 48 | N581782 | 1 | BRUSH SA | BR | |||
| 49 | N553471 | 1 | SHOE SA | BR | |||
| 50 | N641685 | 1 | FENCE | BR | |||
| 51 | N642342 | 1 | BOLT | BR | |||
| 52 | N641688 | 2 | WASHER | BR | |||
| 53 | N642344 | 1 | NUT | BR | |||
| 54 | N611679 | 1 | KNOB | BR | |||
| 55 | N603500 | 1 | RING | BR | |||
| 56 | N611271 | 1 | RATING LABEL | BR | |||
| 57 | N630495 | 1 | LABEL | BR | |||
| 62 | 5140232-60 | 1 | TERMINAL | BR | |||
| 300 | N640909 | 1 | SPINDLE AND FLANGE | BR | |||
| 301 | N638613 | 1 | GUARD SA | BR | |||
| 302 | N638615 | 1 | ARMATURE SA | BR |
