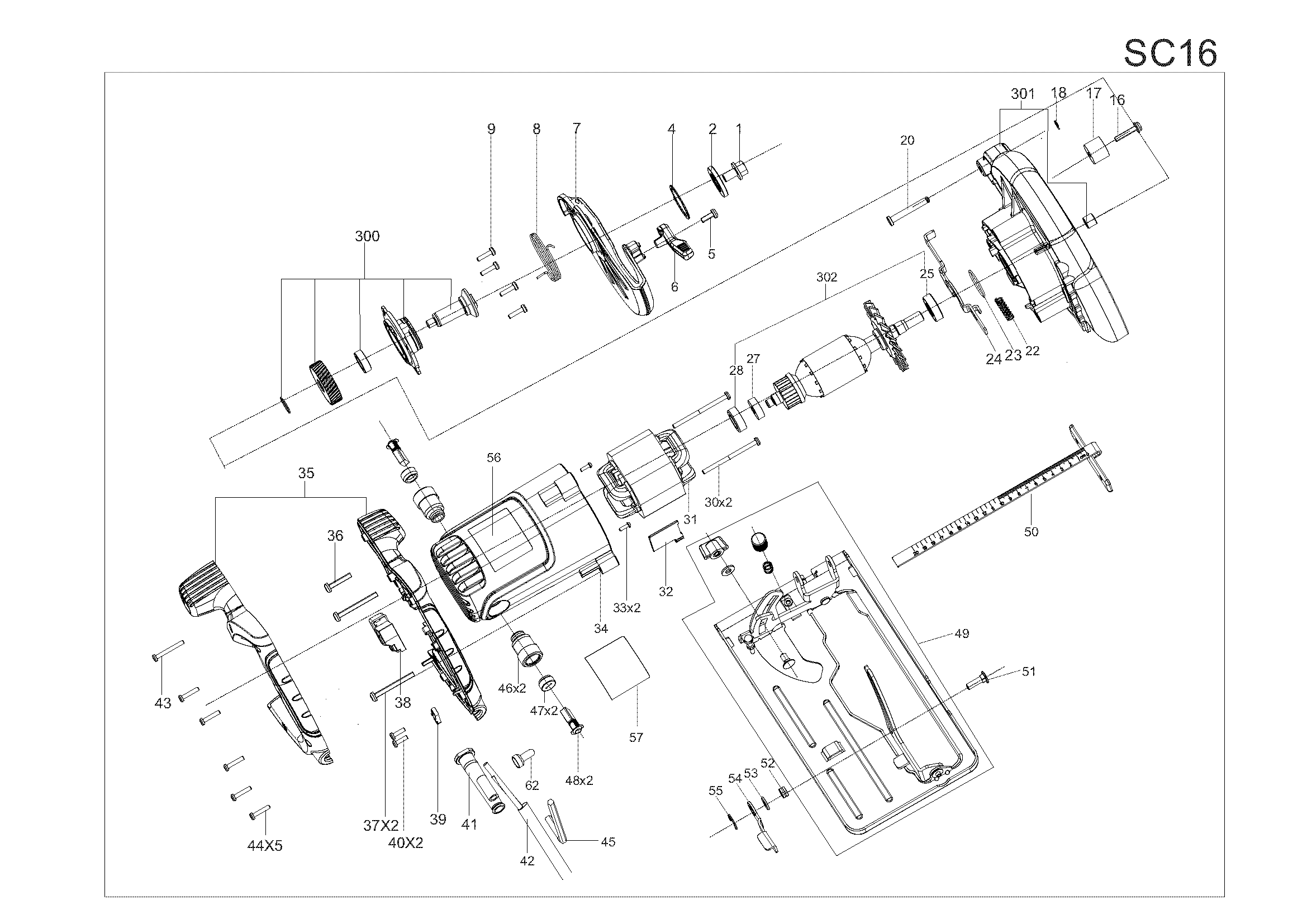

SC16 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N560559 | 1 | SCREW | B2C | |||
| 2 | 90632707 | 1 | OUTER FLANGE | B2C | |||
| 4 | 90633041 | 1 | SPRING CLIP | B2C | |||
| 5 | N582370 | 1 | SCREW | B2C | |||
| 6 | N572460 | 1 | LEVER | B2C | |||
| 7 | N564954 | 1 | GUARD | B2C | |||
| 8 | N100006 | 1 | SPRING | B2C | |||
| 9 | N520080 | 4 | SCREW | B2C | |||
| 16 | N582381 | 1 | SCREW | B2C | |||
| 17 | N575496 | 1 | RING | B2C | |||
| 18 | 90578384 | 1 | RETAINER | B2C | |||
| 20 | N576774 | 1 | PIN | B2C | |||
| 22 | N573373 | 1 | SPRING | B2C | |||
| 23 | N602219 | 1 | RING | B2C | |||
| 24 | N552648 | 1 | SHAFT | B2C | |||
| 25 | N650408 | 1 | BEARING | B2C | |||
| 27 | 5140155-93 | 1 | BEARING | B2C | |||
| 28 | 5140232-59 | 1 | SLEEVE BEARING | B2C | |||
| 30 | 330019-82 | 2 | SCREW | B2C | |||
| 31 | N580293 | 1 | STATOR | B2C | |||
| 32 | N567977 | 1 | CLAMP | B2C | |||
| 33 | N520083 | 2 | SCREW | B2C | |||
| 34 | N562975 | 1 | FIELD CASE | B2C | |||
| 35 | N563418 | 1 | HANDLE SA | B2C | |||
| 36 | N582378 | 1 | SCREW | B2C | |||
| 37 | N582376 | 2 | SCREW | B2C | |||
| 38 | N580300 | 1 | SWITCH SA | B2C | |||
| 39 | 5140166-21 | 1 | CORD CLAMP | B2C | |||
| 40 | N582387 | 2 | SCREW | B2C | |||
| 41 | 90568797 | 1 | CORD PROTECTOR | B2C | |||
| 42 | N649970 | 1 | CORDSET | B2C | |||
| 43 | N582386 | 1 | SCREW | B2C | |||
| 44 | N582383 | 5 | SCREW | B2C | |||
| 45 | 90579371 | 1 | HEX KEY | B2C | |||
| 46 | N602473 | 2 | BRUSH HOLDER | B2C | |||
| 47 | 90632247 | 2 | CAP | B2C | |||
| 48 | N580276 | 1 | BRUSH SA | B2C | |||
| 49 | N553471 | 1 | SHOE SA | B2C | |||
| 50 | N641685 | 1 | FENCE | B2C | |||
| 51 | N642342 | 1 | BOLT | B2C | |||
| 52 | N641688 | 2 | WASHER | B2C | |||
| 53 | N642344 | 1 | NUT | B2C | |||
| 54 | N611679 | 1 | KNOB | B2C | |||
| 55 | N603500 | 1 | RING | B2C | |||
| 56 | N611270 | 1 | RATING LABEL | B2C | |||
| 57 | N630495 | 1 | LABEL | B2C | |||
| 62 | 5140232-60 | 1 | TERMINAL | B2C | |||
| 300 | N640909 | 1 | SPINDLE AND FLANGE | B2C | |||
| 301 | N638613 | 1 | GUARD SA | B2C | |||
| 302 | N638614 | 1 | ARMATURE SA | B2C |
