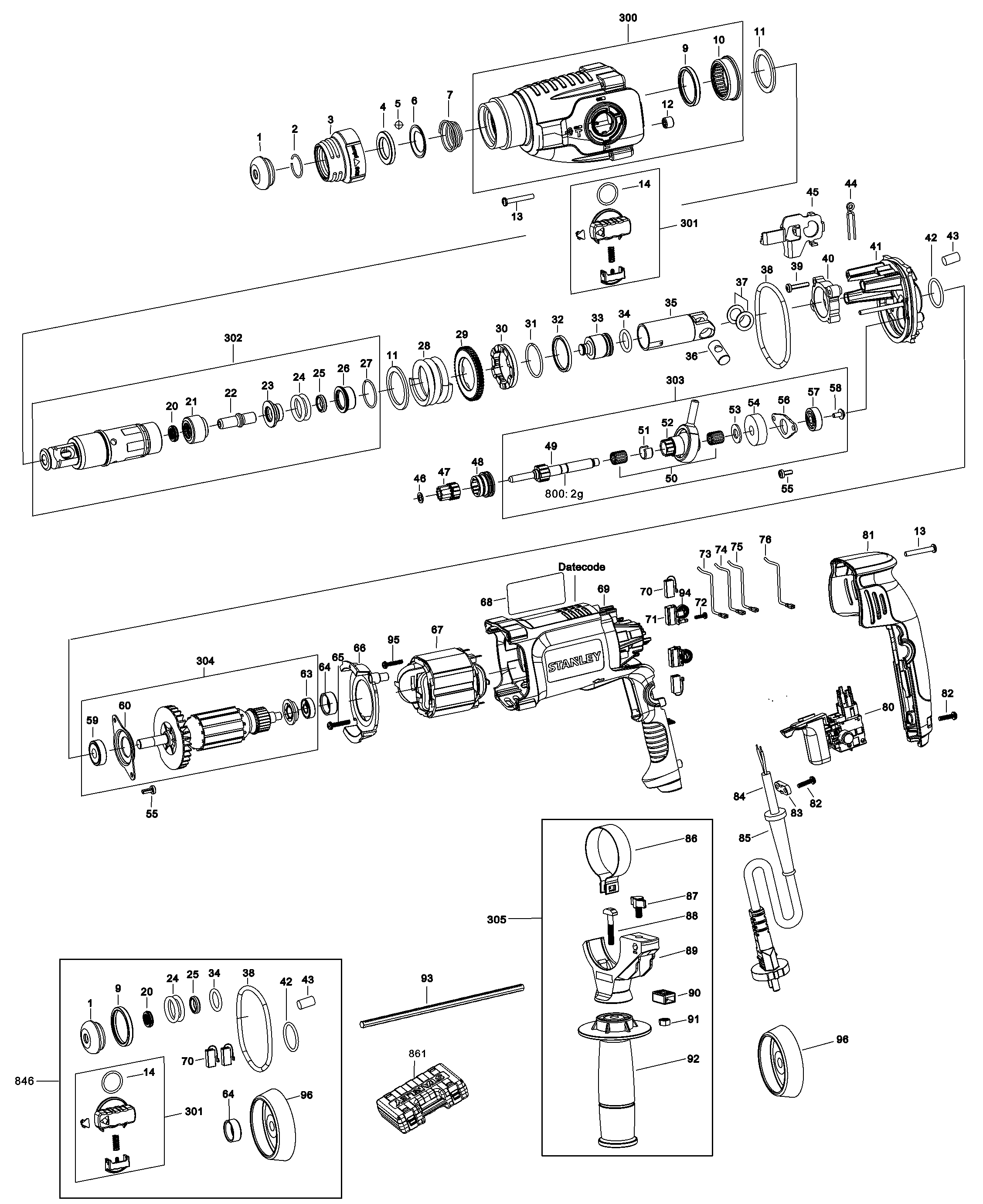

SHR263K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N465557 | 1 | RUBBER BOOT | BR | |||
| 2 | 5140166-48 | 1 | SNAP RING | BR | |||
| 3 | N465555 | 1 | TUBE | BR | |||
| 4 | 5140166-50 | 1 | WASHER- CUP | BR | |||
| 5 | 5140166-51 | 1 | BALL | BR | |||
| 6 | 5140166-52 | 1 | RETAINING RING | BR | |||
| 7 | 5140166-53 | 1 | COMPRESSION SPRING | BR | |||
| 9 | N465532 | 1 | SEAL | BR | |||
| 10 | 577813-00 | 1 | BEARING NEEDLE | BR | |||
| 11 | N465552 | 2 | WASHER | BR | |||
| 12 | N465533 | 1 | BEARING | BR | |||
| 13 | N468888 | 5 | SCREW | BR | |||
| 14 | 5140194-61 | 1 | O-RING | BR | |||
| 20 | N465542 | 1 | RING | BR | |||
| 21 | N465543 | 1 | BEARING | BR | |||
| 22 | N465541 | 1 | BEAT PIECE | BR | |||
| 23 | N465545 | 1 | DAMPER | BR | |||
| 24 | N465544 | 2 | O RING | BR | |||
| 25 | N465547 | 1 | RING | BR | |||
| 26 | N465546 | 1 | RAM | BR | |||
| 27 | N465548 | 1 | RING | BR | |||
| 28 | N465551 | 1 | SPRING | BR | |||
| 29 | N465550 | 1 | GEAR | BR | |||
| 30 | N465549 | 1 | RING | BR | |||
| 31 | N465553 | 1 | RING | BR | |||
| 32 | N465554 | 1 | RING | BR | |||
| 33 | N465560 | 1 | RAM | BR | |||
| 34 | N465561 | 1 | O RING | BR | |||
| 35 | N465559 | 1 | PISTON | BR | |||
| 36 | N465562 | 1 | BEARING SPINDLE | BR | |||
| 37 | N465563 | 2 | WASHER | BR | |||
| 38 | N465535 | 1 | O RING | BR | |||
| 39 | N465538 | 3 | SCREW | BR | |||
| 40 | N465537 | 1 | BEARING | BR | |||
| 41 | N465534 | 1 | HOUSING BEARING | BR | |||
| 42 | 5140166-75 | 1 | O-RING | BR | |||
| 43 | N465536 | 1 | FELT | BR | |||
| 44 | N465523 | 1 | SPRING | BR | |||
| 45 | N465521 | 1 | PLATE | BR | |||
| 46 | N465566 | 1 | WASHER | BR | |||
| 47 | N465567 | 1 | GEAR | BR | |||
| 48 | N465568 | 1 | COLLAR | BR | |||
| 49 | N465565 | 1 | INTER SHAFT | BR | |||
| 50 | 577818-00 | 2 | BEARING CAGE | BR | |||
| 51 | N465570 | 1 | SPACER | BR | |||
| 52 | N465569 | 1 | BEARING | BR | |||
| 53 | N465574 | 1 | WASHER | BR | |||
| 54 | N465573 | 1 | GEAR | BR | |||
| 55 | N468881 | 4 | SCREW | BR | |||
| 56 | N465576 | 1 | BEARING PLATE | BR | |||
| 57 | 5140194-62 | 1 | BALL BEARING | BR | |||
| 58 | N468882 | 1 | SCREW | BR | |||
| 59 | 5140172-07 | 1 | BEARING | BR | |||
| 60 | N465516 | 1 | BEARING PLATE | BR | |||
| 63 | 5140165-04 | 1 | BEARING | BR | |||
| 64 | 5140165-05 | 1 | SLEEVE BEARING | BR | |||
| 65 | N496704 | 2 | SCREW | BR | |||
| 66 | N465511 | 1 | GUIDE | BR | |||
| 67 | N510161 | 1 | FIELD SA 115V | BR | |||
| 68 | N476523 | 1 | RATING LABEL | SHR263-BR TY1 | BR | ||
| 69 | N465509 | 1 | HOUSING MOTOR | BR | |||
| 70 | N470746 | 1 | BRUSH PAIR 115V | BR | |||
| 71 | N465517 | 1 | BRUSH HOLDER | BR | |||
| 72 | 5140165-18 | 4 | SCREW | BR | |||
| 73 | N509285 | 1 | WIRE | BR | |||
| 74 | N509286 | 1 | LEADWIRE | BR | |||
| 75 | N509287 | 1 | LEADWIRE | BR | |||
| 76 | N509288 | 1 | LEADWIRE | BR | |||
| 80 | N470745 | 1 | SWITCH | BR | |||
| 81 | N465510 | 1 | HANDLE SA | BR | |||
| 82 | N468889 | 4 | SCREW | BR | |||
| 83 | 5140166-21 | 1 | CORD CLAMP | BR | |||
| 84 | 5140172-02 | 1 | CORD | BR | |||
| 85 | 5140194-64 | 1 | CORD PROTECTOR | BR | |||
| 86 | 5140194-65 | 1 | COLLAR | BR | |||
| 87 | 5140194-66 | 1 | THUMB SCREW | BR | |||
| 88 | 5140194-67 | 1 | T-HEAD SCREW | BR | |||
| 89 | 5140194-68 | 1 | CLAMP PIECE | BR | |||
| 90 | 5140194-71 | 1 | COVER | BR | |||
| 91 | 5140194-72 | 1 | NUT | BR | |||
| 92 | 5140194-73 | 1 | SIDE HANDLE | BR | |||
| 93 | 5140167-04 | 1 | DEPTH ROD | BR | |||
| 94 | 5140166-14 | 1 | BRUSH SPRING | BR | |||
| 95 | N468887 | 2 | SCREW | BR | |||
| 96 | 5140194-69 | 1 | DUST GUARD | BR | |||
| 300 | N465530 | 1 | GEARCASE SA | BR | |||
| 301 | N465524 | 1 | BUTTON SA | BR | |||
| 302 | N465539 | 1 | SPINDLE SA | BR | |||
| 303 | N465564 | 1 | INTER SHAFT SA | BR | |||
| 304 | N505288 | 1 | ARMATURE 115V | BR | |||
| 305 | 5140167-13 | 1 | SIDE HANDLE ASSEMBLY | BR | |||
| 800 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | BR | ||
| 846 | N510832 | 1 | SERVICE KIT | BR | |||
| 861 | N469697 | 1 | KIT BOX | BR |
