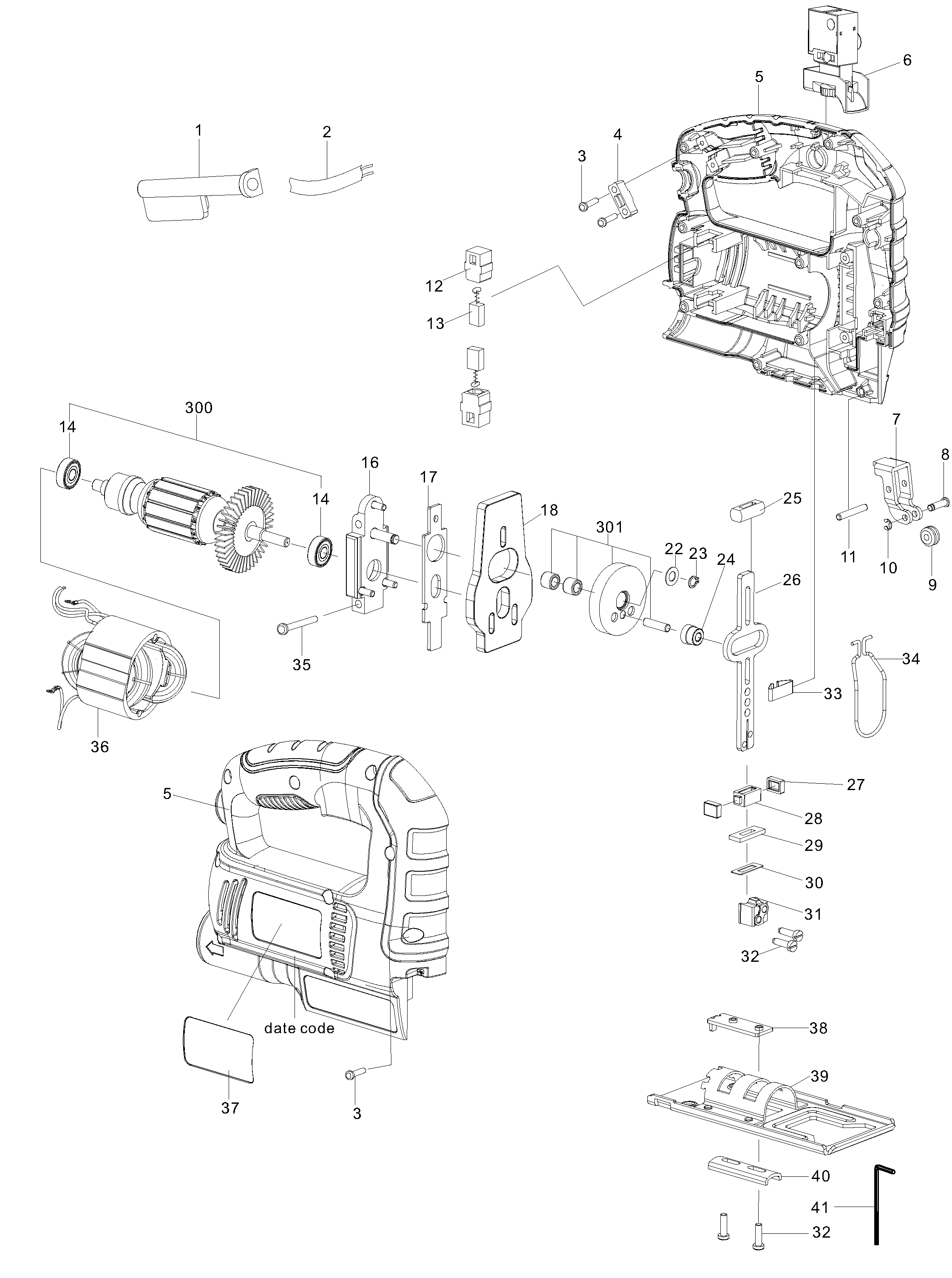

SJ45 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N547083 | 1 | CORD PROTECTOR | AR | |||
| 2 | N579617 | 1 | CORDSET | AR | |||
| 3 | N468889 | 13 | SCREW | AR | |||
| 4 | N547084 | 1 | CORD CLAMP | AR | |||
| 5 | N543554 | 1 | HOUSING SA | AR | |||
| 6 | N544375 | 1 | SWITCH | AR | |||
| 7 | N544918 | 1 | SUPPORT | AR | |||
| 8 | N547070 | 1 | PIN | AR | |||
| 9 | N547069 | 1 | ROLLER | AR | |||
| 10 | N547073 | 1 | RING | AR | |||
| 11 | N543596 | 1 | PIN | AR | |||
| 12 | N547067 | 1 | BRUSH HOLDER | AR | |||
| 13 | N568940 | 1 | BRUSH | AR | |||
| 14 | 5140155-93 | 2 | BEARING | AR | |||
| 16 | N543557 | 1 | PLATE | AR | |||
| 17 | N543562 | 1 | SHAFT | AR | |||
| 18 | N543564 | 1 | COUNTER BALANCE | AR | |||
| 22 | N543575 | 1 | WASHER | AR | |||
| 23 | N547068 | 1 | RING | AR | |||
| 24 | N543584 | 1 | DRIVE ROLLER | AR | |||
| 25 | 5140209-72 | 1 | BEARING | AR | |||
| 26 | N543591 | 1 | SHAFT | AR | |||
| 27 | N543592 | 2 | CARRIER | AR | |||
| 28 | N544379 | 1 | BEARING | AR | |||
| 29 | N595828 | 1 | FELT SEAL | AR | |||
| 30 | 582948-00 | 1 | PLATE | AR | |||
| 31 | 90515265 | 1 | BLADE CLAMP | AR | |||
| 32 | N547074 | 4 | SCREW | AR | |||
| 33 | N544380 | 1 | WASHER | AR | |||
| 34 | N543598 | 1 | COVER | AR | |||
| 35 | N547082 | 2 | SCREW | AR | |||
| 36 | N544378 | 1 | FIELD SA | AR | |||
| 37 | N547596 | 1 | RATING LABEL | AR | |||
| 38 | N546817 | 1 | PLATE LOCK | AR | |||
| 39 | N546815 | 1 | BASE PLATE | AR | |||
| 40 | N546816 | 1 | REST PLATE | AR | |||
| 41 | N548193 | 1 | WRENCH PIN | AR | |||
| 300 | N579298 | 1 | ARMATURE SA | AR | |||
| 301 | N579299 | 1 | GEAR SA | AR |
