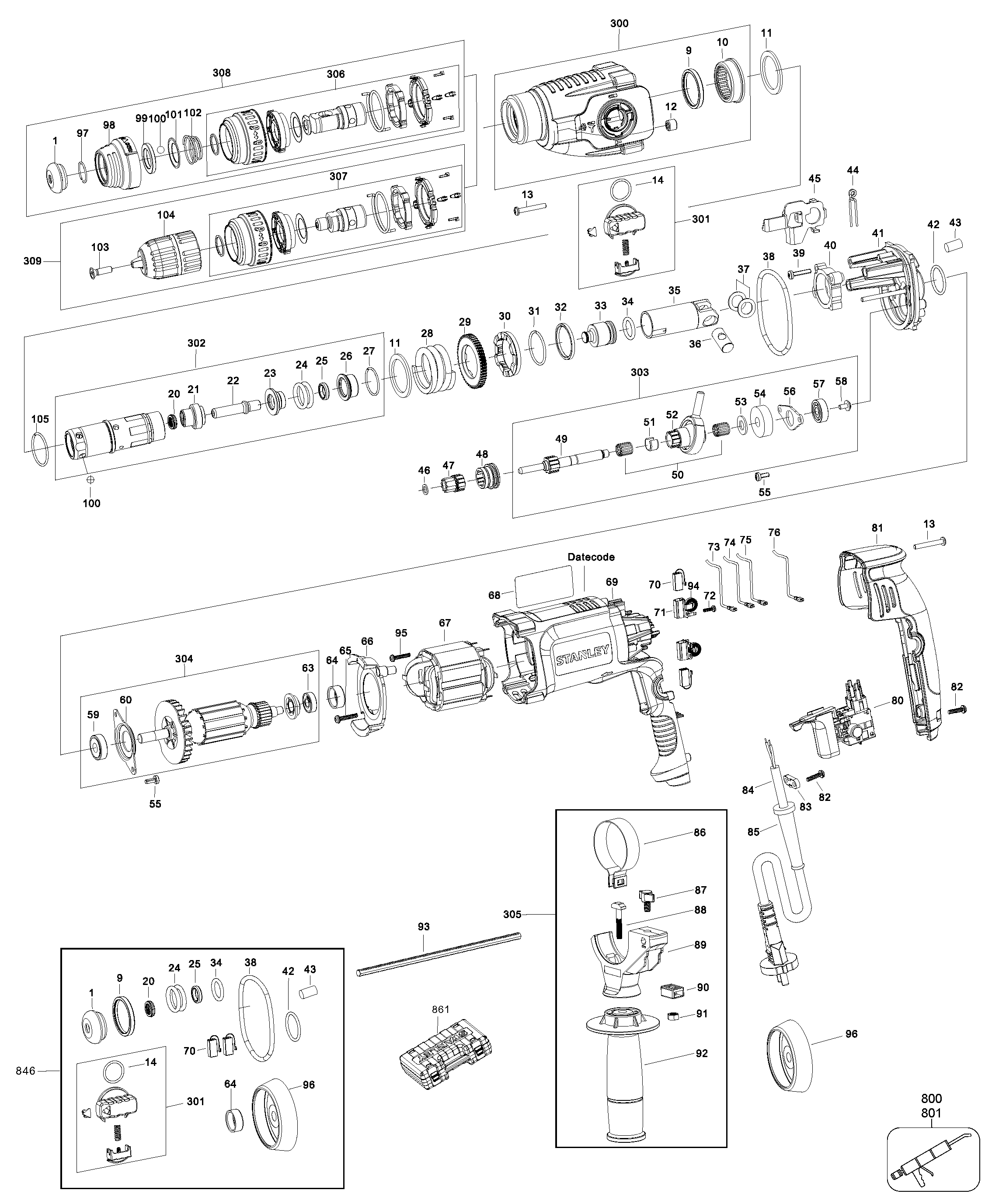

SHR264K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N465557 | 1 | RUBBER BOOT | AR | |||
| 9 | N465532 | 1 | SEAL | AR | |||
| 10 | 577813-00 | 1 | BEARING NEEDLE | AR | |||
| 11 | N465552 | 2 | WASHER | AR | |||
| 12 | N465533 | 1 | BEARING | AR | |||
| 13 | N468888 | 5 | SCREW | AR | |||
| 14 | 5140194-61 | 1 | O-RING | AR | |||
| 20 | N526717 | 1 | RING | AR | |||
| 21 | N525162 | 1 | BEARING | AR | |||
| 22 | N525163 | 1 | TUBE | AR | |||
| 23 | N465545 | 1 | DAMPER | AR | |||
| 24 | N465544 | 2 | O RING | AR | |||
| 25 | N465547 | 1 | RING | AR | |||
| 26 | N465546 | 1 | RAM | AR | |||
| 27 | N465548 | 1 | RING | AR | |||
| 28 | N465551 | 1 | SPRING | AR | |||
| 29 | N465550 | 1 | GEAR | AR | |||
| 30 | N465549 | 1 | RING | AR | |||
| 31 | N465553 | 1 | RING | AR | |||
| 32 | N465554 | 1 | RING | AR | |||
| 33 | N465560 | 1 | RAM | AR | |||
| 34 | N465561 | 1 | O RING | AR | |||
| 35 | N465559 | 1 | PISTON | AR | |||
| 36 | N465562 | 1 | BEARING SPINDLE | AR | |||
| 37 | N465563 | 2 | WASHER | AR | |||
| 38 | N465535 | 1 | O RING | AR | |||
| 39 | N465538 | 3 | SCREW | AR | |||
| 40 | N465537 | 1 | BEARING | AR | |||
| 41 | N465534 | 1 | HOUSING BEARING | AR | |||
| 42 | 5140166-75 | 1 | O-RING | AR | |||
| 43 | N465536 | 1 | FELT | AR | |||
| 44 | N465523 | 1 | SPRING | AR | |||
| 45 | N465521 | 1 | PLATE | AR | |||
| 46 | N465566 | 1 | WASHER | AR | |||
| 47 | N465567 | 1 | GEAR | AR | |||
| 48 | N465568 | 1 | COLLAR | AR | |||
| 49 | N465565 | 1 | INTER SHAFT | AR | |||
| 50 | 577818-00 | 2 | BEARING CAGE | AR | |||
| 51 | N465570 | 1 | SPACER | AR | |||
| 52 | N465569 | 1 | BEARING | AR | |||
| 53 | N465574 | 1 | WASHER | AR | |||
| 54 | N465573 | 1 | GEAR | AR | |||
| 55 | N468881 | 4 | SCREW | AR | |||
| 56 | N465576 | 1 | BEARING PLATE | AR | |||
| 57 | 5140194-62 | 1 | BALL BEARING | AR | |||
| 58 | N468882 | 1 | SCREW | AR | |||
| 59 | 5140172-07 | 1 | BEARING | AR | |||
| 60 | N465516 | 1 | BEARING PLATE | AR | |||
| 63 | 5140165-04 | 1 | BEARING | AR | |||
| 64 | 5140165-05 | 1 | SLEEVE BEARING | AR | |||
| 65 | N496704 | 2 | SCREW | AR | |||
| 66 | N465511 | 1 | GUIDE | AR | |||
| 67 | N465512 | 1 | FIELD SA 230V | AR | |||
| 68 | N530085 | 1 | RATING LABEL | AR | |||
| 69 | N465509 | 1 | HOUSING MOTOR | AR | |||
| 70 | N465518 | 1 | BRUSH PAIR 230V | AR | |||
| 71 | N465517 | 1 | BRUSH HOLDER | AR | |||
| 72 | 49206001 | 4 | SCREW | AR | |||
| 73 | N469365 | 1 | WIRE | AR | |||
| 74 | 5140166-99 | 1 | LEADWIRE | AR | |||
| 75 | 5140194-63 | 2 | LEADWIRE | AR | |||
| 76 | 5140167-34 | 2 | LEADWIRE | AR | |||
| 80 | N468884 | 1 | SWITCH | AR | |||
| 81 | N465510 | 1 | HANDLE SA | AR | |||
| 82 | N468889 | 4 | SCREW | AR | |||
| 83 | 5140166-21 | 1 | CORD CLAMP | AR | |||
| 84 | 5140174-54 | 1 | CORD | AR | |||
| 85 | 5140194-64 | 1 | CORD PROTECTOR | AR | |||
| 86 | 5140194-65 | 1 | COLLAR | AR | |||
| 87 | 5140194-66 | 1 | THUMB SCREW | AR | |||
| 88 | 5140194-67 | 1 | T-HEAD SCREW | AR | |||
| 89 | 5140194-68 | 1 | CLAMP PIECE | AR | |||
| 90 | 5140194-71 | 1 | COVER | AR | |||
| 91 | 5140194-72 | 1 | NUT | AR | |||
| 92 | 5140194-73 | 1 | SIDE HANDLE | AR | |||
| 93 | 5140167-04 | 1 | DEPTH ROD | AR | |||
| 94 | 5140166-14 | 1 | BRUSH SPRING | AR | |||
| 95 | N468887 | 2 | SCREW | AR | |||
| 96 | 5140194-69 | 1 | DUST GUARD | AR | |||
| 97 | 5140166-48 | 1 | SNAP RING | AR | |||
| 98 | N525157 | 1 | TUBE | AR | |||
| 99 | 5140166-50 | 1 | WASHER- CUP | AR | |||
| 100 | 5140166-51 | 5 | BALL | AR | |||
| 101 | 5140166-52 | 1 | RETAINING RING | AR | |||
| 102 | 5140166-53 | 1 | COMPRESSION SPRING | AR | |||
| 103 | 5140165-77 | 1 | SCREW | AR | |||
| 104 | N525159 | 1 | CHUCK | AR | |||
| 105 | N525161 | 1 | RING | AR | |||
| 300 | N579936 | 1 | GEARCASE SA | AR | |||
| 301 | N465524 | 1 | BUTTON SA | AR | |||
| 302 | N579937 | 1 | SPINDLE SA | AR | |||
| 303 | N465564 | 1 | INTER SHAFT SA | AR | |||
| 304 | N582783 | 1 | ARMATURE SA | AR | |||
| 305 | N479434 | 1 | HANDLE SIDE SA | AR | |||
| 306 | N525166 | 1 | SPINDLE SA | AR | |||
| 307 | N525167 | 1 | SPINDLE SA | AR | |||
| 308 | N525164 | 1 | CHUCK SA | AR | |||
| 309 | N525165 | 1 | CHUCK SA | AR | |||
| 800 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | AR | ||
| 801 | N505291 | 1 | GREASE | AR | |||
| 846 | N510826 | 1 | SERVICE KIT | AR | |||
| 861 | N469697 | 1 | KIT BOX | AR |
