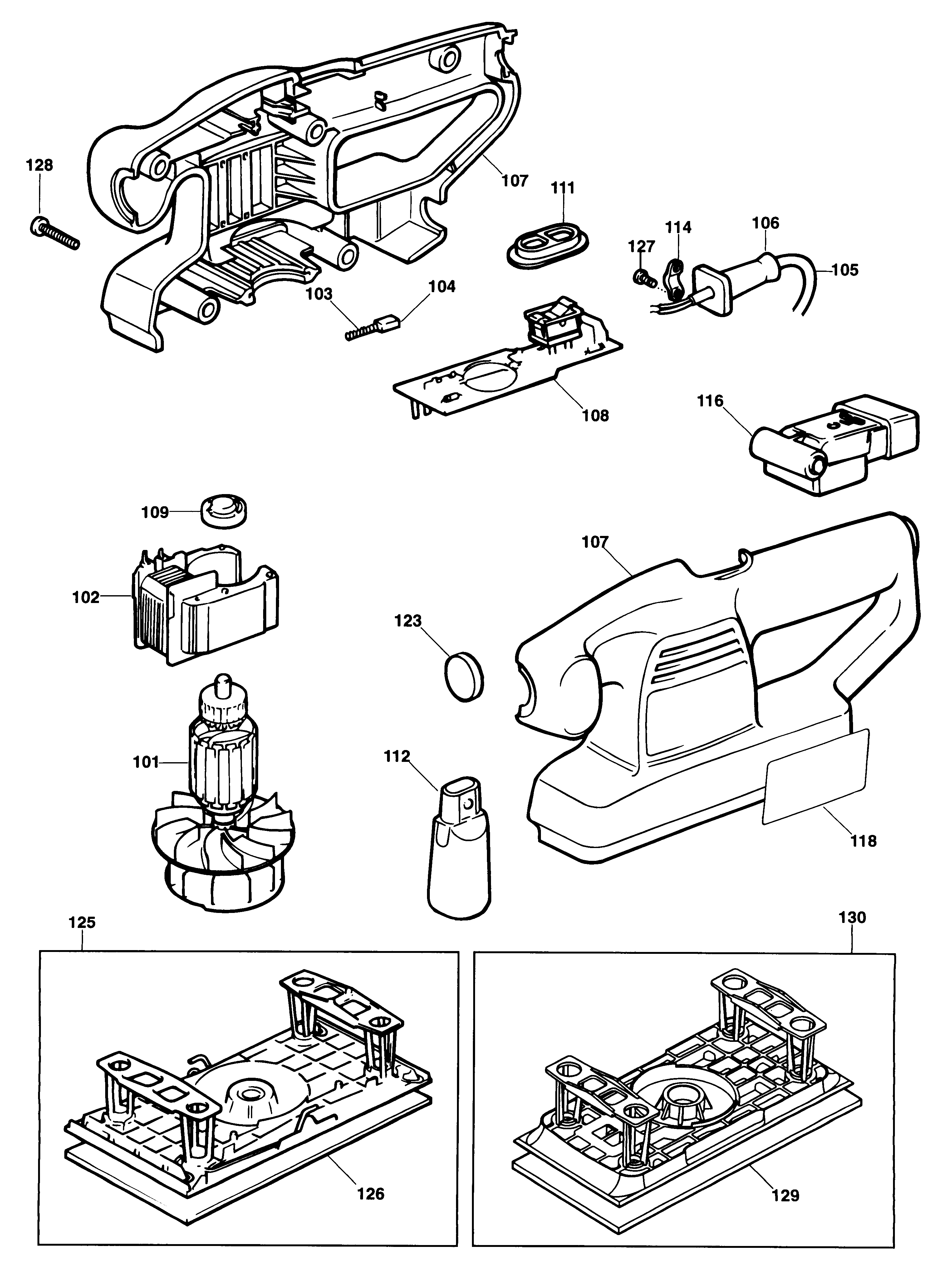

KA180 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 794109 | 1 | ARMATURE SA | CH | |||
| 101 | 794109 | 1 | ARMATURE SA | XD | CH | ||
| 101 | 794109 | 1 | ARMATURE SA | A9 | CH | ||
| 102 | 732470 | 1 | FIELD | XD | CH | ||
| 102 | 732470 | 1 | FIELD | CH | |||
| 102 | 732470 | 1 | FIELD | A9 | CH | ||
| 103 | 830501 | 2 | SPRING | A9 | CH | ||
| 103 | 830501 | 2 | SPRING | CH | |||
| 103 | 830501 | 2 | SPRING | XD | CH | ||
| 103 | 830501 | 1 | SPRING | CH | |||
| 104 | 736703 | 2 | BRUSH | XD | CH | ||
| 104 | 736703 | 2 | BRUSH | CH | |||
| 104 | 736703 | 1 | BRUSH | CH | |||
| 104 | 736703 | 2 | BRUSH | A9 | CH | ||
| 105 | 330060-53 | 1 | CORDSET | XD | CH | ||
| 105 | 372067-01 | 1 | CORDSET | A9 | CH | ||
| 105 | 330080-05 | 1 | CORDSET | CH | |||
| 106 | 770235 | 1 | PROTECTOR | CH | |||
| 107 | 376818-49 | 1 | CLAMSHELL PAIR | TYPE 1 | CH | ||
| 107 | 375243-01 | 1 | CLAMSHELL PAIR | TYPE 2 | CH | ||
| 108 | 808496 | 1 | PCB | XD | CH | ||
| 108 | 808496 | 1 | PCB | CH | |||
| 108 | 808496 | 1 | PCB | A9 | CH | ||
| 109 | 732460 | 1 | BEARING REAR | CH | |||
| 111 | 808495-01 | 1 | ACTUATOR | CH | |||
| 112 | 368608 | 1 | VACUUM ADAPTOR | CH | |||
| 114 | 821070 | 1 | CORD CLAMP | CH | |||
| 116 | 374742 | 1 | VACUUM ADAPTOR | CH | |||
| 118 | 808499-03 | 1 | BRAND LABEL | KA180 | CH | ||
| 118 | 808499-01 | 1 | BRAND LABEL | KA185 | CH | ||
| 118 | 808499-05 | 1 | BRAND LABEL | KA186 | CH | ||
| 123 | 808498-01 | 1 | INSERT | CH | |||
| 125 | 90541001 | 1 | SHOE SA | SPRING CLIP | CH | ||
| 126 | 90541001 | 1 | SHOE SA | SPRING CLIP | CH | ||
| 127 | 373158 | 2 | SCREW | CH | |||
| 128 | 849256 | 5 | SCREW | TYPE 1 | CH | ||
| 128 | 747329 | 5 | SCREW | TYPE 2 | CH | ||
| 129 | 373507 | 1 | PAD | VELCRO | CH | ||
| 130 | 373521 | 1 | SHOE SA | VELCRO | CH |
