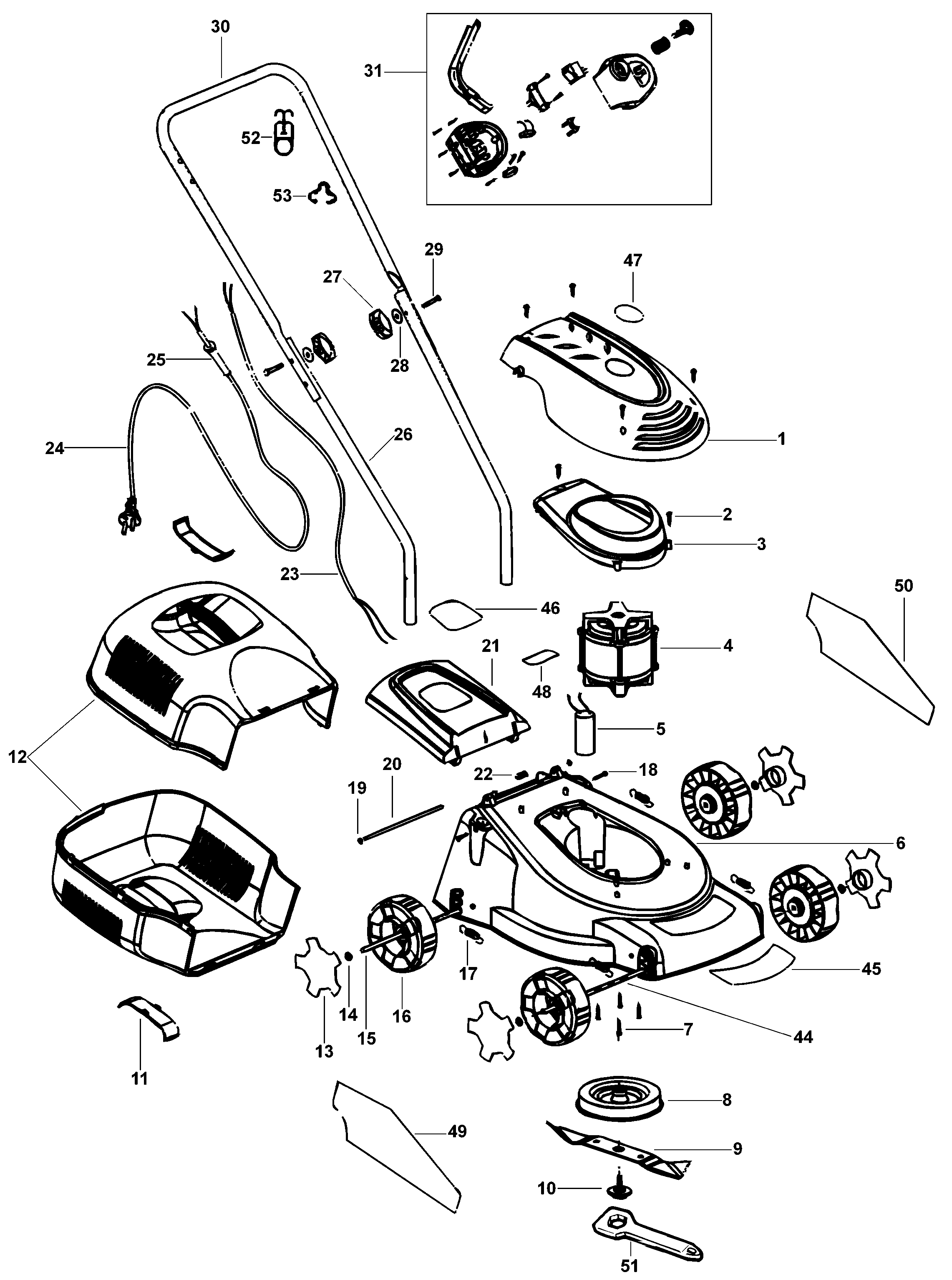

GR348 LAWN MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140043-53 | 1 | COVER | AR | |||
| 2 | 596028-00 | 3 | SCREW | AR | |||
| 3 | 596029-00 | 1 | MOTOR COVER | AR | |||
| 4 | 596094-00 | 1 | MOTOR | AR | |||
| 5 | 596095-00 | 1 | CAPACITOR | AR | |||
| 6 | 596096-00 | 1 | CUTTER DECK | AR | |||
| 7 | 596033-00 | 4 | SCREW | AR | |||
| 8 | 596034-00 | 1 | FAN | AR | |||
| 9 | 596097-00 | 1 | BLADE | AR | |||
| 10 | 596036-00 | 1 | BLADE BOLT | AR | |||
| 11 | 596037-00 | 2 | INSERT | AR | |||
| 12 | 596038-00 | 1 | GRASSBOX | AR | |||
| 13 | 5140043-29 | 4 | WHEEL COVER | AR | |||
| 14 | 596040-00 | 4 | LOCKING RING | AR | |||
| 15 | 596098-00 | 1 | AXLE REAR | AR | |||
| 16 | 5140043-30 | 4 | WHEEL | AR | |||
| 17 | 596043-00 | 4 | SPRING | AR | |||
| 18 | 596044-00 | 2 | SCREW | AR | |||
| 19 | 596045-00 | 2 | RING | AR | |||
| 20 | 596046-00 | 1 | ROD | AR | |||
| 21 | 5140043-31 | 1 | GRASSFLAP | AR | |||
| 22 | 596048-00 | 1 | SPRING | AR | |||
| 23 | 596049-00 | 1 | MOTOR CABLE | AR | |||
| 24 | 5140043-33 | 1 | CORD SET | AR | |||
| 25 | 596051-00 | 1 | CORD PROTECTOR | AR | |||
| 26 | 596052-00 | 1 | LOWER HANDLE | AR | |||
| 27 | 596053-00 | 2 | KNOB | AR | |||
| 28 | 596054-00 | 2 | WASHER | AR | |||
| 29 | 596055-00 | 2 | BOLT | AR | |||
| 30 | 596056-00 | 1 | HANDLE UPPER | AR | |||
| 31 | 5140043-38 | 1 | SWITCH ASSEMBLY | AR | |||
| 44 | 596099-00 | 1 | AXLE FRONT | AR | |||
| 45 | 5140043-43 | 1 | BRAND LABEL | AR | |||
| 46 | 5140043-44 | 1 | WARNING LABEL | AR | |||
| 47 | 5140043-45 | 1 | SAFETY LABEL | AR | |||
| 48 | 5140043-57 | 1 | RATING PLATE | AR | |||
| 49 | 5140043-62 | 1 | LABEL | AR | |||
| 50 | 5140043-63 | 1 | LABEL | AR | |||
| 51 | 597564-00 | 1 | SPANNER BLADE | AR | |||
| 52 | 597565-00 | 1 | CABLE GUIDE | AR | |||
| 53 | 597566-00 | 1 | CLIP CABLE | AR |
