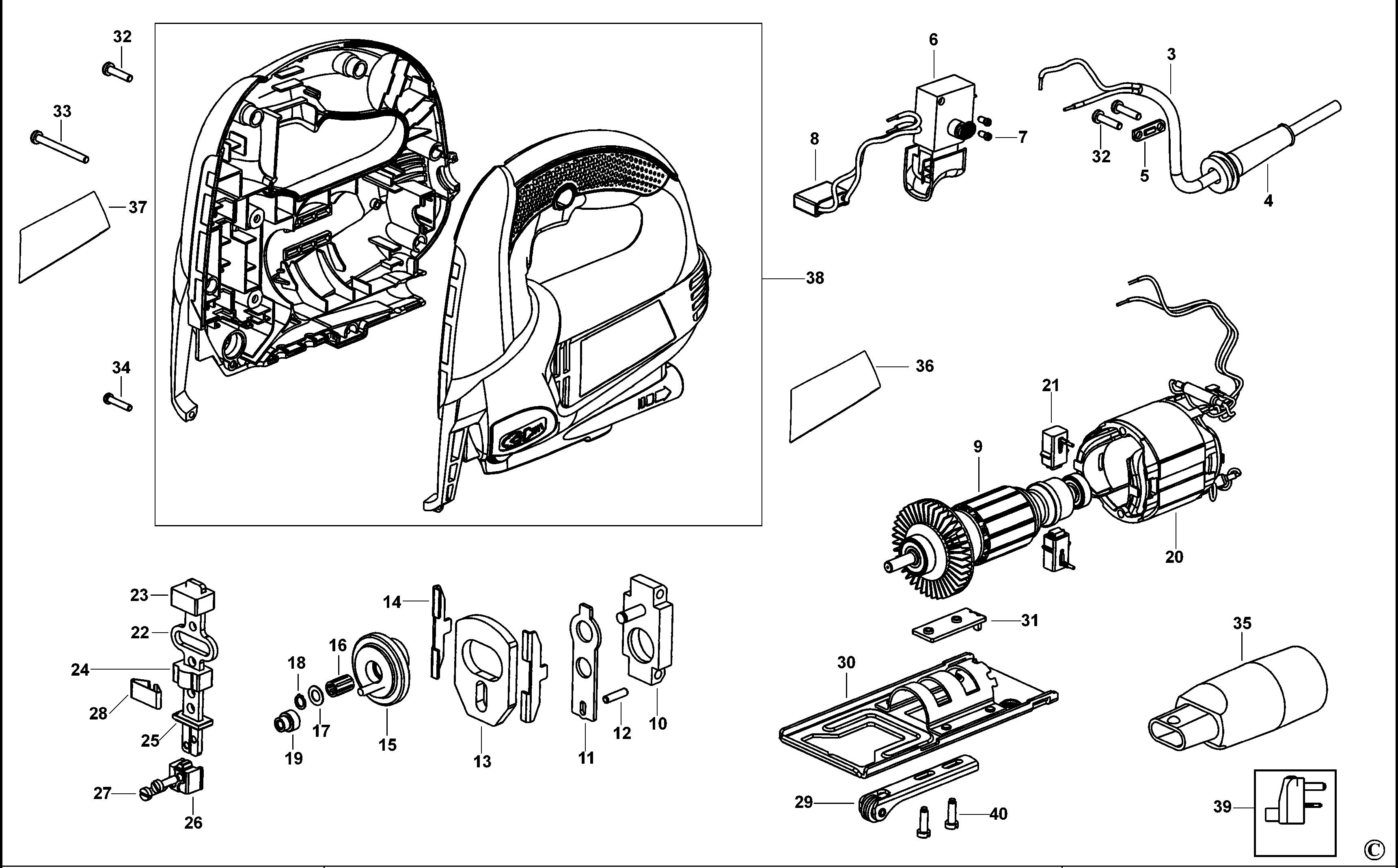

KS600E JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 3 | 562161-19 | 1 | CORDSET | A9 | ||||
| 4 | 148481-00 | 1 | CORD PROTECTOR | A9 | ||||
| 5 | 329301-00 | 1 | CORD CLAMP | A9 | ||||
| 6 | 90513109 | 1 | SWITCH | 230v | A9 | |||
| 7 | 90512961 | 2 | SCREW | A9 | ||||
| 8 | 90513112 | 1 | CAPACITOR | A9 | ||||
| 9 | 90513113 | 1 | ARMATURE SA | A9 | ||||
| 10 | N814526 | 1 | BEARING BLOCK | A9 | ||||
| 11 | 90510501 | 1 | FORK | A9 | ||||
| 12 | 330041-07 | 1 | PIN | A9 | ||||
| 13 | 90510500 | 1 | COUNTERWEIGHT | A9 | ||||
| 14 | 90510499 | 2 | GUIDE | A9 | ||||
| 15 | 90510503 | 1 | GEAR SA | A9 | ||||
| 16 | 90512896 | 1 | BEARING NEEDLE | A9 | ||||
| 17 | 582717-00 | 1 | WASHER | A9 | ||||
| 18 | 90510502 | 1 | RETAINER | 6 X 0.65 | A9 | |||
| 19 | 90510504 | 1 | DRIVE ROLLER | A9 | ||||
| 20 | 90513214 | 1 | FIELD SA 230V | A9 | ||||
| 21 | 90549938 | 2 | BRUSHBOX SA | A9 | ||||
| 22 | 90512881 | 1 | RECIPROCATOR | A9 | ||||
| 23 | 90510505 | 1 | BEARING | A9 | ||||
| 24 | 90510509 | 1 | BEARING | A9 | ||||
| 25 | 90510510 | 1 | FELT SEAL | A9 | ||||
| 26 | 90515265 | 1 | BLADE CLAMP | A9 | ||||
| 27 | 797123 | 2 | SCREW | A9 | ||||
| 28 | 90513143 | 1 | LEAF SPRING | A9 | ||||
| 29 | 90512888 | 1 | BLADE SUPPORT SA | A9 | ||||
| 30 | 90512884 | 1 | SHOE | A9 | ||||
| 31 | 90512885 | 1 | PLATE LOCK | A9 | ||||
| 32 | 330019-03 | 8 | SCREW | A9 | ||||
| 33 | 330019-07 | 2 | SCREW | A9 | ||||
| 34 | 330019-00 | 1 | SCREW | M3x16 T10 PLASTITE | A9 | |||
| 35 | 368608 | 1 | VACUUM ADAPTOR | A9 | ||||
| 36 | 90513704 | 1 | BRAND LABEL | A9 | ||||
| 37 | N515016 | 1 | RATING LABEL | A9 | ||||
| 38 | 90512878N | 1 | CLAMSHELL SET | A9 | ||||
| 40 | 90519315 | 2 | SCREW | A9 |
