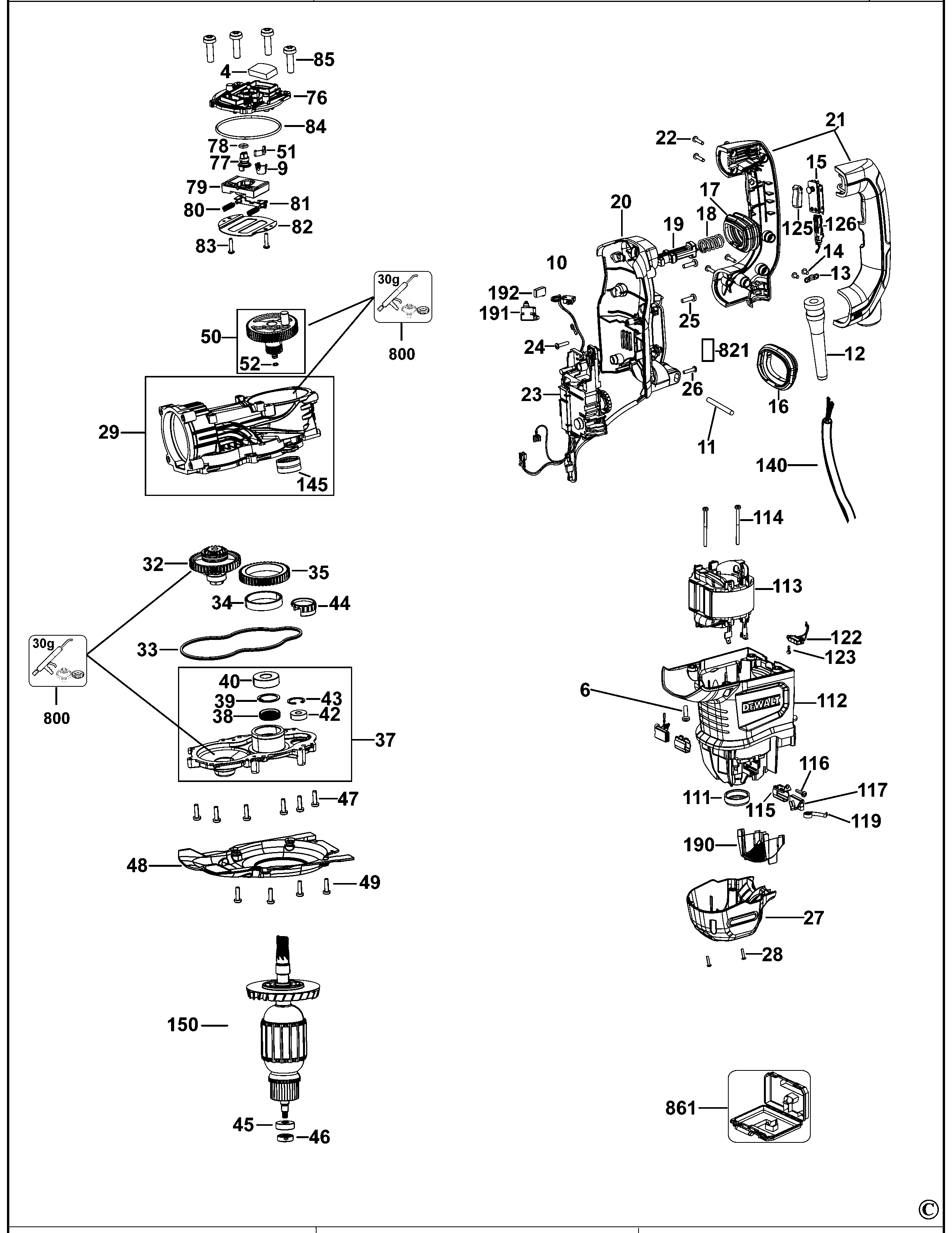

D25773 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N513078 | 1 | SIDE LH | SILVER | B1 |  |
|
| 3 | N513079 | 1 | SIDE RH | SILVER | B1 | |
|
| 4 | N481045 | 1 | FELT | B1 | |
||
| 5 | N410169 | 1 | COVER-TOP | B1 | |
||
| 6 | N548557 | 8 | SCREW | M5 X 18 T25 | B1 | |
|
| 7 | N463694 | 1 | SELECTOR | MODE | B1 | |
|
| 8 | 330065-08 | 1 | SCREW | M4x18 T20 | B1 | |
|
| 9 | N607940 | 1 | CAP | B1 | |
||
| 10 | N519469 | 1 | LENS | B1 | |||
| 11 | N453525 | 1 | PIN | 6 X 60 | B1 |  |
|
| 12 | 323091-01 | 1 | CORD PROTECTOR | B1 | |
||
| 13 | 329301-00 | 1 | CORD CLAMP | B1 | |
||
| 14 | 330065-04 | 2 | SCREW | B1 | |
||
| 15 | N467530 | 1 | SWITCH | B1 | |
||
| 16 | N453629 | 1 | BELLOWS | LOWER | B1 | |
|
| 17 | N453630 | 1 | BELLOWS | UPPER | B1 | |
|
| 18 | N501559 | 1 | SPRING | 31.75 X 18.29 | B1 | |
|
| 19 | N152623 | 1 | STOP | B1 | |
||
| 20 | N410165 | 1 | PANEL.REAR | B1 | |
||
| 21 | N580489 | 1 | CLAMSHELL SET | LOCK ON | B1 | |
|
| 22 | 330065-08 | 6 | SCREW | M4x18 T20 | B1 | |
|
| 23 | N592362 | 1 | CONTROL MODULE SA | 10KG | B1 | |
|
| 24 | 330065-08 | 1 | SCREW | M4x18 T20 | B1 | |
|
| 25 | N548557 | 4 | SCREW | M5 X 18 T25 | B1 | |
|
| 26 | 330065-08 | 2 | SCREW | M4x18 T20 | B1 | |
|
| 27 | N389340 | 1 | END CAP | B1 | |
||
| 28 | 330065-08 | 4 | SCREW | M4x18 T20 | B1 | |
|
| 29 | N580501 | 1 | HOUSING SA | B1 | |
||
| 32 | N580503 | 1 | CLUTCH SA | B1 | |
||
| 33 | N447147 | 1 | SEAL | 8-10KG | B1 | |
|
| 34 | N398520 | 1 | BEARING SINTER | B1 | |
||
| 35 | N580506 | 1 | GEAR | B1 | |
||
| 37 | N580507 | 1 | GEARCASE COVER SA | B1 | |
||
| 38 | N422626 | 1 | SEAL | B1 | |
||
| 39 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | B1 | |
|
| 40 | 605040-27 | 1 | BEARING | B1 | |
||
| 42 | 330003-60 | 1 | BEARING | B1 | |
||
| 43 | N362699 | 1 | CIRCLIP | B1 | |
||
| 44 | N537281 | 1 | SPACER | B1 | |
||
| 45 | 330003-60 | 1 | BEARING | B1 | |
||
| 46 | N466979 | 1 | MAGNET | B1 | |
||
| 47 | N548557 | 6 | SCREW | M5 X 18 T25 | B1 | |
|
| 48 | N405298 | 1 | BAFFLE | B1 | |
||
| 49 | N548557 | 4 | SCREW | M5 X 18 T25 | B1 | |
|
| 50 | N580511 | 1 | CRANKSHAFT | B1 | |
||
| 51 | N520790 | 1 | DETENT | B1 | |
||
| 52 | N537973 | 1 | O RING | B1 | |
||
| 53 | N662675 | 1 | CON ROD | 10KG | B1 | |
|
| 54 | N431764 | 1 | PISTON | B1 | |
||
| 55 | N026610 | 1 | PIN | B1 | |
||
| 56 | N439990 | 1 | PISTON RING | B1 | |
||
| 57 | 487296-00 | 1 | O RING | B1 | |
||
| 58 | N580516 | 1 | CYLINDER SA | 10kg | B1 | |
|
| 59 | N587667 | 3 | O RING | B1 | |
||
| 60 | N580521 | 1 | RAM SA | 10KG | B1 | |
|
| 61 | 487296-00 | 1 | O RING | B1 | |
||
| 62 | N400498 | 1 | BUSH | B1 | |
||
| 63 | N389365 | 1 | O RING | 20 X 6 | B1 | |
|
| 64 | N476023 | 1 | DAMPER | B1 | |
||
| 65 | N515559 | 1 | DAMPER | B1 | |
||
| 66 | N389693 | 1 | WASHER | B1 | |
||
| 67 | N580522 | 1 | SPINDLE | 10KG | B1 | |
|
| 68 | N580524 | 1 | SPINDLE | 10KG SDS MAX | B1 | |
|
| 69 | N548304 | 5 | PIN | 9 X 6.4 | B1 | |
|
| 70 | N475966 | 1 | RING | B1 | |
||
| 71 | N514255 | 1 | DAMPER | B1 | |
||
| 72 | N392234 | 2 | WASHER | B1 | |
||
| 73 | N580525 | 1 | BEAT PIECE | 10KG | B1 | |
|
| 74 | N594490 | 1 | SEAL | 25 X 33 X 4.3 | B1 | |
|
| 75 | N432561 | 1 | O RING | 25 X 4 | B1 | |
|
| 76 | N409943 | 1 | COVER | B1 | |
||
| 77 | N504016 | 1 | ECCENTRIC | B1 | |
||
| 78 | N515556 | 1 | O RING | 8 X 2.2 | B1 | |
|
| 79 | N410143 | 1 | SLIDER | B1 | |
||
| 80 | N520791 | 2 | SPRING | B1 | |
||
| 81 | N410898 | 1 | CONNECTOR | B1 | |
||
| 82 | N427022 | 1 | PLATE | B1 | |
||
| 83 | 330065-08 | 2 | SCREW | M4x18 T20 | B1 | |
|
| 84 | N455140 | 1 | O RING | 81 X 3 | B1 | |
|
| 85 | N548557 | 4 | SCREW | M5 X 18 T25 | B1 | |
|
| 86 | N481044 | 1 | SLIDER | 10KG | B1 | |
|
| 87 | N580526 | 1 | BEVEL GEAR | B1 | |
||
| 88 | N580533 | 1 | SLEEVE | B1 | |
||
| 89 | N497938 | 1 | SPRING | B1 | |
||
| 90 | N580535 | 1 | HOUSING FRONT | B1 | |
||
| 93 | N392582 | 1 | SEAL | B1 | |
||
| 94 | N181847 | 1 | LOCKING RING | B1 | |
||
| 95 | N416527 | 1 | COVER | B1 | |
||
| 96 | N431324 | 1 | GASKET | B1 | |
||
| 97 | N420195 | 1 | BUSH | B1 | |
||
| 98 | 949886-32 | 4 | SCREW | B1 | |
||
| 99 | N516486 | 1 | GUIDE | B1 | |
||
| 100 | N520784 | 1 | SPRING | B1 | |
||
| 101 | N520782 | 1 | SPRING | B1 | |
||
| 102 | N408040 | 1 | BUSH | B1 | |
||
| 103 | N511836 | 2 | LOCKING DEVICE | B1 | |
||
| 104 | N511805 | 1 | DAMPER | B1 | |
||
| 105 | N511834 | 1 | BUSH | B1 | |
||
| 106 | N468816 | 1 | SLEEVE | B1 | |
||
| 107 | 487244-00 | 1 | RUBBER | B1 | |
||
| 108 | N516487 | 1 | WASHER | B1 | |
||
| 109 | N516487 | 1 | WASHER | B1 | |
||
| 110 | 487238-01 | 1 | SEAL | B1 | |
||
| 111 | N449094 | 1 | COVER BEARING | B1 | |
||
| 112 | N580536 | 1 | HOUSING MOTOR | B1 | |
||
| 113 | N580537 | 1 | FIELD 230V | B1 | |
||
| 114 | 330019-30 | 2 | SCREW | B1 | |
||
| 115 | N425665 | 2 | BRUSH HOLDER SA | B1 | |
||
| 116 | 330065-08 | 2 | SCREW | M4x18 T20 | B1 | |
|
| 117 | N630264 | 1 | BRUSH PAIR SA | B1 | |
||
| 119 | N523745 | 2 | BRUSH SPRING | B1 | |
||
| 122 | N448156 | 1 | COIL | B1 | |
||
| 123 | N086775 | 1 | SCREW | B1 | |||
| 125 | N640362 | 1 | TRIGGER | B1 | |
||
| 126 | N518647 | 1 | SWITCH LOCK-ON | B1 | |
||
| 130 | N412213 | 1 | HANDLE SIDE SA | B1 | |
||
| 131 | N552104 | 1 | BOLT | M8 X 75 | B1 | |
|
| 132 | N412984 | 1 | CLAMP | B1 | |
||
| 133 | N413396 | 1 | WASHER | B1 | |||
| 134 | N411953 | 1 | CLAMP | B1 | |
||
| 135 | N499183 | 1 | HANDLE SA | B1 | |
||
| 136 | N580512 | 1 | PISTON SA | B1 | |
||
| 140 | N518939 | 1 | CORDSET | B1 | |
||
| 145 | N408073 | 1 | BEARING,NEEDLE | B1 | |
||
| 150 | N580509 | 1 | ARMATURE 230V | B1 | |
||
| 165 | N578605 | 1 | FELT | B1 | |
||
| 190 | N602345 | 1 | COVER | B1 | |
||
| 191 | N516505 | 1 | MICRO SWITCH | B1 | |
||
| 192 | 620051-00 | 1 | PAD | B1 | |
||
| 300 | N593930 | 1 | SERVICE KIT 230V | 10KG COMBI | B1 | |
|
| 800 | 578970-06 | 1 | GREASE 150 GMS | B1 | |
||
| 821 | N551301 | 1 | RATING LABEL | B1 | |||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | B1 | |
||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | B1 | |
||
| 861 | N508182 | 1 | KITBOX | B1 | |
