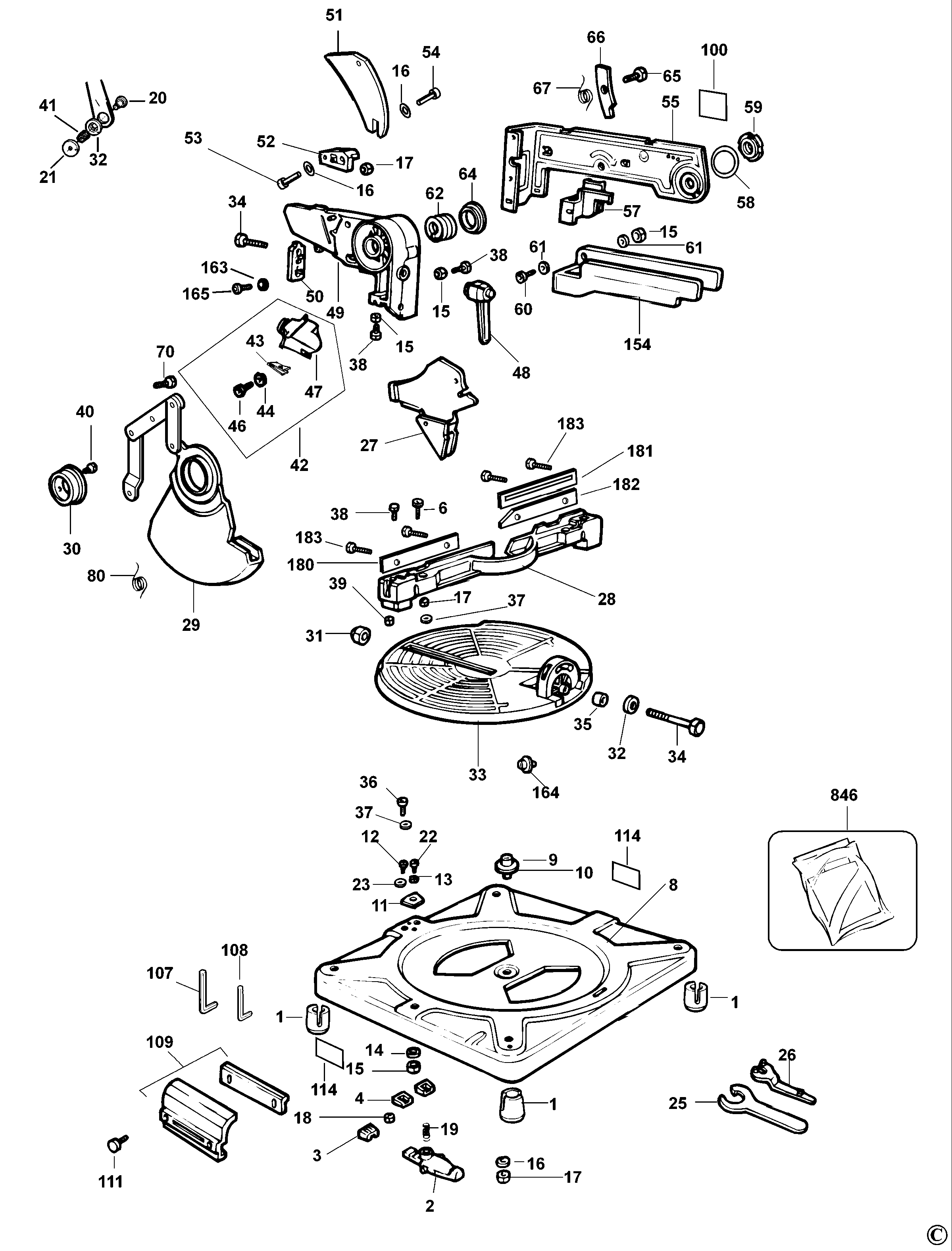

DW710 MITRE SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 402804-00 | 4 | FOOT | GB | |||
| 2 | 862002-00 | 1 | LEVER | GB |  |
||
| 3 | 760427-00 | 1 | CAP | GB | |
||
| 4 | 863612-00 | 1 | BRACKET | GB | |
||
| 5 | 860094-03 | 2 | SCREW | GB |  |
||
| 6 | 862428-00 | 1 | KNOB | GB | |
||
| 7 | 249412-22 | 1 | SCREW | GB | |
||
| 8 | 863608-07 | 1 | BASE | GB | |
||
| 9 | 863072-00 | 1 | PIN | GB | |
||
| 10 | 863702-00 | 1 | SPACER | GB | |
||
| 11 | 863686-00 | 1 | POINTER | GB | |
||
| 12 | 860093-17 | 1 | SCREW | GB | |
||
| 13 | 860074-00 | 1 | WASHER SPRING | GB | |
||
| 14 | 860074-02 | 1 | WASHER | GB | |
||
| 15 | 942895-01 | 1 | KNOB | GB | |
||
| 16 | 860074-03 | 1 | WASHER | GB | |
||
| 17 | 860092-05 | 1 | NUT | GB | |
||
| 18 | 860083-02 | 1 | NUT | GB | |
||
| 19 | 123255-01 | 1 | SPRING | GB | |
||
| 20 | 863046-00 | 1 | LOCK SCREW | GB | |
||
| 21 | 863047-00 | 1 | CAP | GB | |
||
| 22 | 860084-03 | 1 | SCREW | GB | |
||
| 23 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 25 | 949751-07 | 1 | SPANNER 10-13MM | GB | |
||
| 26 | 939072-00 | 1 | SPANNER | GB | |
||
| 27 | 861918-04 | 1 | GUARD | GB | |
||
| 28 | 862099-01 | 1 | FENCE | GB | |
||
| 29 | 864693-04 | 1 | GUARD SA | GB | |
||
| 29 | 864693-04 | 1 | GUARD SA | GB | |
||
| 30 | 863039-02 | 1 | HUB | GB | |
||
| 31 | 860092-01 | 1 | NUT | GB | |
||
| 32 | 863048-00 | 1 | BUSH | GB | |
||
| 33 | 869232-00 | 1 | TABLE ROTARY | GB | |
||
| 34 | 860086-10 | 1 | SCREW | GB | |
||
| 35 | 949748-01 | 1 | BUSH | GB | |
||
| 36 | 760219-00 | 1 | SCREW | GB | |
||
| 37 | 862447-00 | 3 | SPACER | GB | |
||
| 38 | 860085-09 | 1 | SCREW.TEMP | GB | |
||
| 39 | 860083-12 | 1 | NUT M6 | GB | |
||
| 40 | 330045-49 | 2 | SCREW | GB | |
||
| 41 | 949722-18 | 1 | SPRING | GB | |
||
| 42 | 868478-00 | 1 | DUST EXTRACTOR | GB | |
||
| 43 | 865410-00 | 1 | FASTENER | GB | |
||
| 44 | 939625-00 | 1 | WASHER | GB | |
||
| 46 | 860084-21 | 1 | SCREW | GB | |
||
| 47 | 868478-00 | 1 | DUST EXTRACTOR | GB | |
||
| 48 | 949884-01 | 1 | LEVER | GB | |
||
| 49 | 862182-00 | 1 | SUPPORT | GB | |
||
| 50 | 945641-00 | 1 | PLATE | GB | |
||
| 51 | 861919-01 | 1 | RIVING KNIFE | GB | |
||
| 52 | 862075-01 | 1 | SPACER | GB | |
||
| 53 | 860093-00 | 1 | SCREW | GB | |
||
| 54 | 949886-16 | 1 | SCREW | GB | |
||
| 55 | 861890-02 | 1 | FRAME | GB | |||
| 56 | 949886-21 | 1 | BOLT | GB | |
||
| 57 | 861920-00 | 1 | SPACER | GB | |
||
| 58 | 949761-02 | 1 | SHIM | GB | |
||
| 59 | 949759-01 | 1 | LOCK NUT | GB | |
||
| 60 | 860085-07 | 1 | SCREW | GB | |
||
| 61 | 720959-00 | 1 | WASHER | GB | |
||
| 62 | 863606-00 | 1 | SPRING LH | GB | |
||
| 63 | 863590-00 | 1 | SPRING RH | GB | |
||
| 64 | 863611-00 | 1 | SHIM | GB | |
||
| 65 | 863602-00 | 1 | SCREW | GB | |
||
| 66 | 863610-00 | 1 | PLATE | GB | |
||
| 67 | 863604-00 | 1 | SPRING | GB | |
||
| 68 | 863607-00 | 1 | PIN | GB | |
||
| 69 | 861692-00 | 1 | CLAMP | GB | |
||
| 70 | 863262-00 | 1 | SCREW | GB | |
||
| 71 | 860094-02 | 1 | SCREW | GB | |
||
| 72 | 863605-00 | 1 | PIN | GB | |
||
| 73 | 943030-00 | 1 | O RING | GB | |
||
| 74 | 860088-10 | 1 | PIN | GB | |
||
| 75 | 949853-04 | 1 | SCREW | GB | |
||
| 78 | 946469-00 | 1 | KNOB | GB | |
||
| 79 | 863026-00 | 1 | GASKET | GB | |
||
| 80 | 863604-01 | 1 | SPRING | GB | |
||
| 81 | 944650-00 | 1 | WASHER SPRING | GB | |
||
| 82 | 863573-00 | 1 | INLET | GB | |
||
| 83 | 862429-04 | 1 | HANDLE & COVER | GB | |||
| 83 | 862429-05 | 1 | HANDLE & COVER | GB | |
||
| 84 | 863613-01 | 1 | ROD | GB | |
||
| 85 | 402803-02 | 1 | GUARD UPPER | GB | |
||
| 86 | 868082-00 | 1 | SPRING | GB | |
||
| 87 | 861963-00 | 1 | LOCKING PIN | GB | |
||
| 88 | 861953-00 | 1 | CAP | GB | |
||
| 89 | 949772-23 | 1 | CAPACITOR | GB | |
||
| 90 | 861930-00 | 1 | SWITCH SA | GB | |
||
| 91 | 861964-00 | 1 | COVER | GB | |||
| 93 | 860084-09 | 1 | SCREW | GB | |
||
| 94 | 863026-00 | 1 | GASKET | GB | |
||
| 95 | 860075-00 | 1 | WASHER | GB | |
||
| 96 | 860085-07 | 1 | SCREW | GB | |
||
| 97 | 861056-00 | 1 | OUTER FLANGE | GB | |
||
| 98 | 720959-00 | 4 | WASHER | GB | |
||
| 99 | 860094-03 | 3 | SCREW | GB | |
||
| 100 | 868693-01 | 1 | LABEL | GB | |||
| 101 | 860084-22 | 4 | SCREW | GB | |
||
| 102 | 861057-01 | 1 | INNER FLANGE | GB | |
||
| 103 | 869232-01 | 1 | TABLE | GB | |
||
| 104 | 402801-00 | 1 | BRACKET | GB | |
||
| 105 | 930076-00 | 1 | SCREW | GB | |
||
| 106 | 949886-16 | 1 | SCREW | GB | |
||
| 107 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 108 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 109 | 863044-02 | 1 | HANDLE SA | GB | |
||
| 111 | 330045-49 | 1 | SCREW | GB | |
||
| 112 | N162669 | 1 | GUARD UPPER | GB | |
||
| 113 | 949876-06 | 1 | WASHER | GB | |
||
| 114 | 625450-00 | 2 | LABEL | GB | |
||
| 115 | 861464-00 | 1 | KNOB | GB | |
||
| 116 | 860073-08 | 1 | WASHER | GB | |
||
| 117 | 391358-01 | 1 | HOLDER | GB | |
||
| 118 | 720688-02 | 1 | SCREW | 3.9x13 | GB | |
|
| 119 | 861978-00 | 1 | FENCE | GB | |
||
| 120 | 861748-00 | 1 | PLASTIC INSERT | GB | |
||
| 121 | 861982-00 | 1 | FENCE SA | GB | |
||
| 122 | N162670 | 1 | PIVOT | GB | |
||
| 123 | 402800-00 | 1 | BRACKET | GB | |
||
| 124 | 868520-00 | 1 | CORD PROTECTOR | GB | |
||
| 125 | 868313-11 | 1 | CORDSET | GB | GB | |
|
| 126 | 861422-02 | 1 | FENCE | GB | |
||
| 127 | 861453-00 | 1 | SPACER | GB | |
||
| 128 | 949886-11 | 2 | SCREW | GB | |
||
| 129 | 861421-01 | 1 | SUPPORT | GB | |
||
| 130 | 862180-08 | 1 | SUPPORT BRACKET | GB | |
||
| 131 | 861452-00 | 1 | KNOB | GB | |
||
| 132 | 941622-00 | 1 | SPRING | GB | |
||
| 133 | 861423-00 | 1 | END CAP | GB | |
||
| 134 | 860073-14 | 2 | WASHER | GB | |
||
| 135 | 860084-11 | 1 | SCREW | GB | |
||
| 136 | 860445-00 | 1 | COVER | GB | |
||
| 137 | 945841-00 | 1 | FAN | GB | |
||
| 138 | 861345-00 | 1 | HOUSING SA | GB | |
||
| 139 | 861336-02 | 1 | BRAKE | GB | |
||
| 140 | 863015-00 | 1 | TIE ROD | GB | |
||
| 141 | N164678 | 1 | GUARD SA | GB | |
||
| 142 | 868412-04 | 1 | STATOR SA 230V | GB | |
||
| 143 | 860080-02 | 1 | RING | GB | |
||
| 144 | 863025-00 | 1 | SHEATH | GB | |
||
| 145 | 861349-00 | 1 | CIRCLIP | GB | |
||
| 146 | 861338-00 | 1 | SPRING | GB | |
||
| 148 | 860806-00 | 1 | RING | GB | |
||
| 149 | 861721-12 | 1 | BEARING | GB | |
||
| 150 | 868768-07 | 1 | BEARING | GB | |
||
| 154 | 861917-01 | 1 | GUARD | GB | |
||
| 155 | 941535-00 | 1 | NUT | GB | |
||
| 156 | 860083-13 | 2 | NUT | GB | |
||
| 157 | 860610-01 | 1 | PUSHROD | GB | |
||
| 158 | 931997-00 | 1 | SCREW | GB | |
||
| 159 | 863576-01 | 1 | SCALE | GB | |
||
| 160 | 860083-04 | 1 | NUT | GB | |
||
| 161 | 860094-02 | 1 | SCREW | GB | |
||
| 162 | 123106-00 | 1 | STRAP | GB | |
||
| 163 | 863599-02 | 1 | SPACER | GB | |
||
| 164 | 864049-00 | 4 | SPACER | GB | |
||
| 165 | 860093-07 | 1 | SCREW | GB | |
||
| 166 | 949702-17 | 1 | SCREW | GB | |
||
| 168 | 861257-00 | 1 | CONNECTOR | GB | |
||
| 180 | 869204-00 | 1 | FENCE RH | GB | |
||
| 181 | 869120-00 | 1 | FENCE LH | GB | |||
| 182 | 869120-02 | 1 | FENCE LH | GB | |
||
| 183 | 869076-00 | 5 | SCREW | GB | |
||
| 846 | 861446-00 | 1 | PARTS PACK | GB | |
||
| 847 | 868411-01 | 1 | ROTOR SA | GB | |
