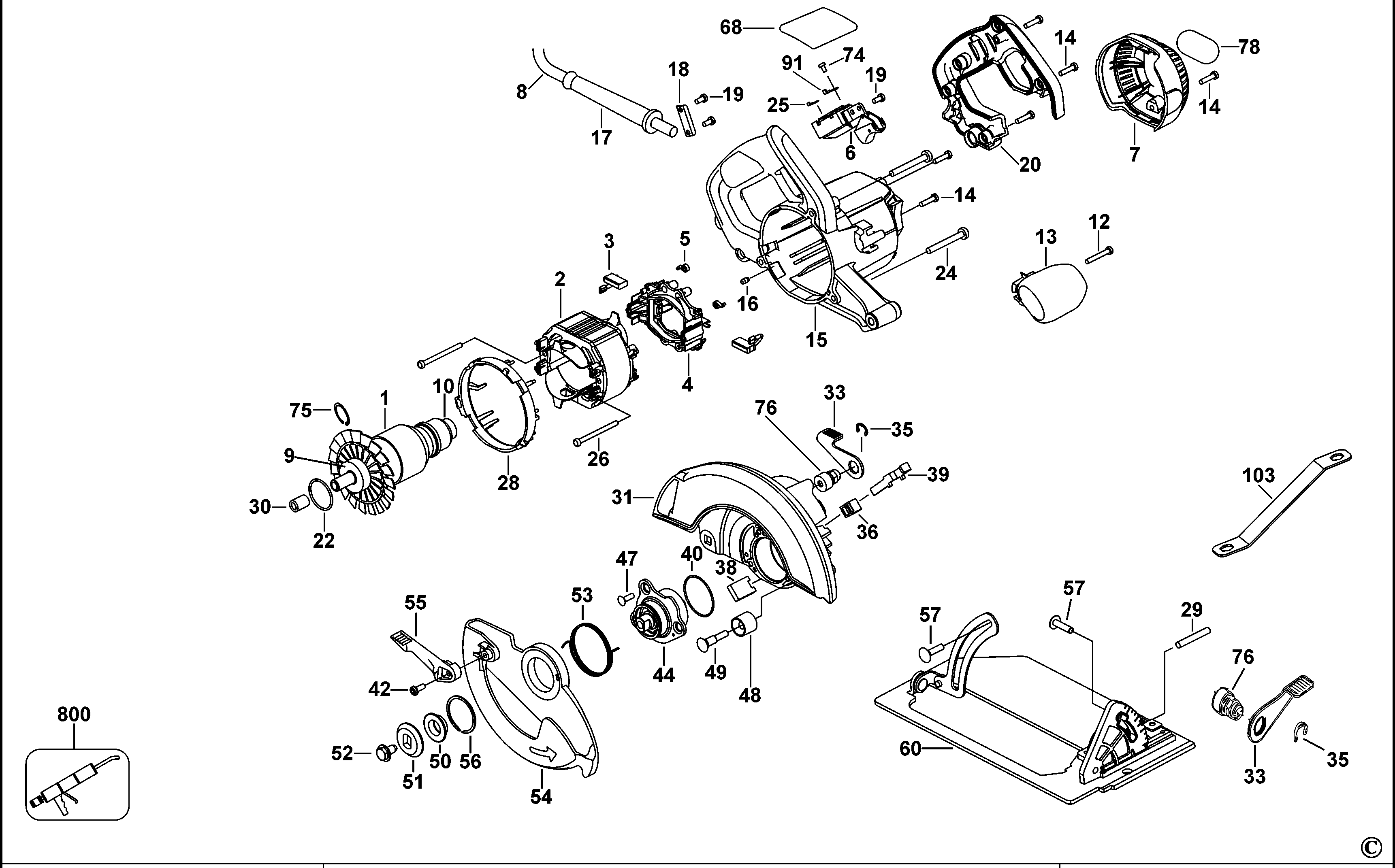

DW368 CIRCULAR SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 623502-00 | 1 | ARMATURE 230V | B1 | |||
| 2 | 623514-01 | 1 | FIELD 230V | B1 |  |
||
| 3 | N032830 | 2 | BRUSH & LEAD | B1 | |
||
| 4 | 622171-00 | 1 | BRUSH PLATE | B1 | |||
| 6 | 389524-00 | 1 | SWITCH | B1 | |
||
| 7 | 389510-00 | 1 | END CAP | B1 | |
||
| 8 | 330079-35 | 1 | CORDSET | 230V | B1 | ||
| 9 | 605040-27 | 1 | BEARING | B1 |  |
||
| 10 | 330003-60 | 1 | BEARING | B1 | |
||
| 12 | 330019-15 | 1 | SCREW | B1 | |
||
| 13 | 389553-00 | 1 | HANDLE | B1 | |
||
| 14 | 330019-13 | 9 | SCREW | M4X19 T20 | B1 | |
|
| 15 | 389511-01 | 1 | FIELD CASE | B1 | |
||
| 16 | 145312-00 | 1 | PLUG | B1 | |
||
| 17 | 330005-02 | 1 | CORD PROTECTOR | B1 | |
||
| 18 | 381065-00 | 1 | CORD CLAMP | B1 | |||
| 19 | 330019-10 | 3 | SCREW | B1 | |
||
| 20 | 389519-01 | 1 | HANDLE COVER | B1 | |
||
| 22 | 701297-00 | 1 | SEAL | B1 | |
||
| 24 | 330045-21 | 3 | SCREW | B1 | |
||
| 26 | 330019-30 | 2 | SCREW | B1 | |
||
| 28 | 389507-00 | 1 | BAFFLE | B1 | |
||
| 29 | 389562-00 | 1 | PIN | B1 | |
||
| 30 | 330004-06 | 1 | BEARING NEEDLE | B1 | |
||
| 31 | 645235-00 | 1 | GUARD UPPER | B1 | |||
| 33 | 145347-00 | 2 | LEVER | B1 | |
||
| 35 | 152211-00 | 2 | RING | B1 | |
||
| 36 | 389506-00 | 1 | SPRING | B1 | |
||
| 38 | 389563-00 | 1 | SEAL | B1 | |
||
| 39 | 612472-00 | 1 | SPINDLE LOCK | B1 | |
||
| 42 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | B1 | |
|
| 44 | 621510-00 | 1 | SPINDLE & GEAR | B1 | |||
| 47 | 647098-00 | 3 | SCREW | B1 | |||
| 47 | 098103-17 | 3 | SCREW | B1 | |||
| 48 | 381066-00 | 1 | BUMPER | B1 | |
||
| 49 | 381075-00 | 1 | SCREW | B1 | |
||
| 50 | 389504-00 | 1 | WASHER INNER CLAMP | B1 | |
||
| 51 | 145343-01 | 1 | WASHER OUTER CLAMP | B1 | |
||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | B1 | |
||
| 53 | 389501-01 | 1 | SPRING | B1 | |
||
| 54 | 642766-00 | 1 | GUARD LOWER | B1 | |||
| 55 | 389572-00 | 1 | LEVER | B1 | |
||
| 56 | 388496-02 | 1 | RING | B1 | |
||
| 56 | 388496-02 | 1 | RING | B1 | |
||
| 57 | 098128-90 | 2 | CARRIAGE BOLT | B1 | |
||
| 60 | 389550-01SV | 1 | SHOE SA | B1 | |
||
| 68 | 647024-00 | 1 | NAMEPLATE | B1 | |||
| 74 | 384127-01 | 4 | SCREW | B1 | |
||
| 75 | 144803-00 | 1 | CIRCLIP | B1 | |
||
| 76 | 610744-00 | 2 | NUT | B1 | |
||
| 78 | 389549-00 | 1 | LABEL | B1 | |
||
| 103 | 145378-01 | 1 | WRENCH | B1 | |
