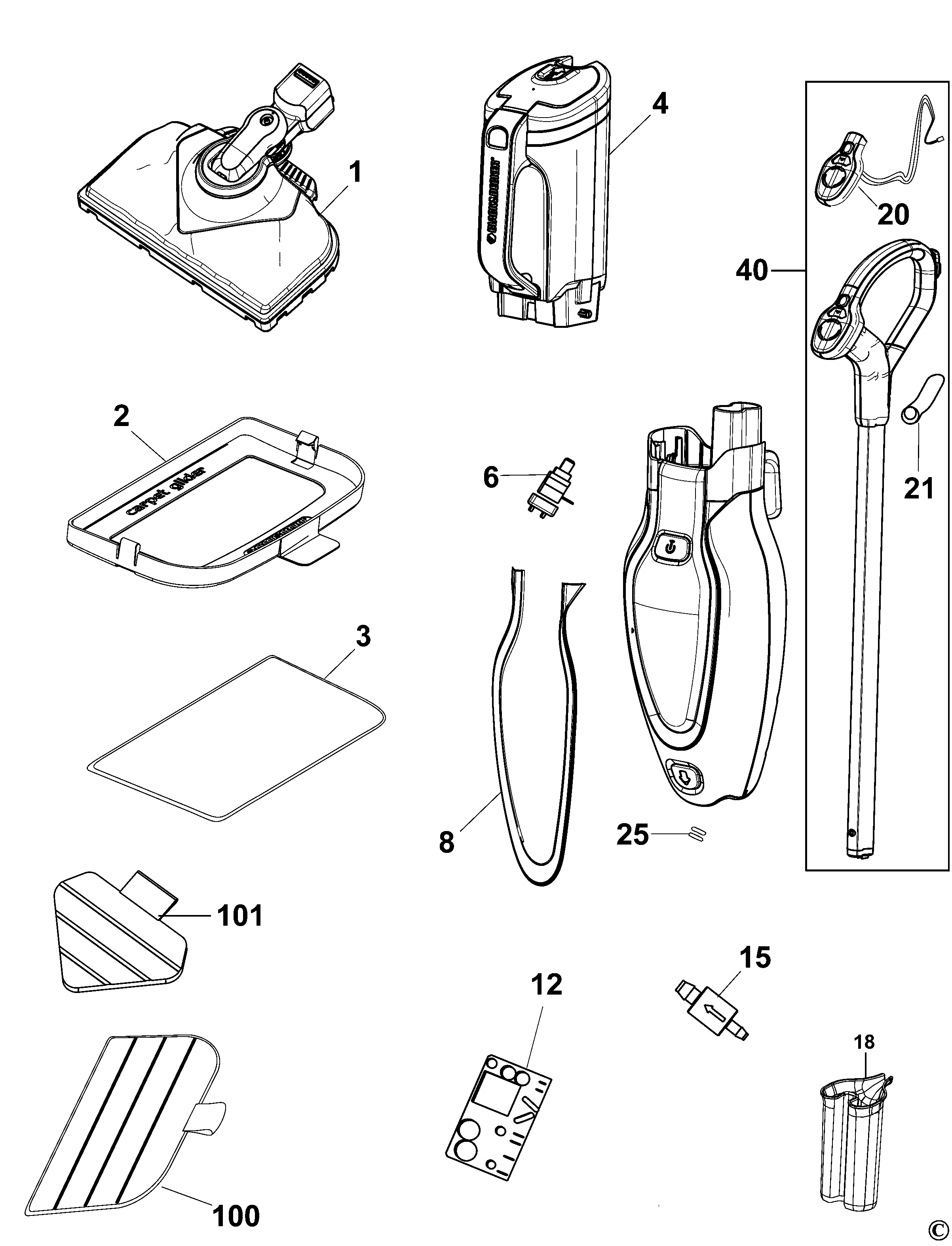

FSM16CD STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90575387-01 | 1 | PARQUET FLOOR HEAD | RED | GB |  |
|
| 1 | 429942-00 | 1 | FIELD | GB | |||
| 2 | 90585491 | 1 | TOOL CARPET | GB | |
||
| 3 | 90590822 | 1 | STAND | GB | |
||
| 4 | N703837 | 1 | TANK | GB | |
||
| 4 | 624548-00SV | 2 | CONTROL MODULE | GB | |||
| 5 | N055724 | 1 | LEAD BLACK | Black, 18GA | GB |  |
|
| 6 | 90583080 | 1 | SWITCH | GB | |
||
| 7 | 152274-36 | 1 | VSR SWITCH | GB | |||
| 8 | 90575910 | 1 | PANEL FRONT | GB | |||
| 9 | 330003-11 | 2 | BEARING | GB | |
||
| 11 | 626403-00 | 1 | ARM | GB | |||
| 12 | 90577995 | 1 | PCB SA | GB | |
||
| 12 | 616340-00 | 1 | SHOE | GB | |||
| 13 | 144689-01 | 1 | BRUSH | GB | |
||
| 15 | 90589659 | 1 | VALVE | GB | |
||
| 15 | 388828-00SV | 8 | SPINDLE LOCK | GB | |||
| 16 | 151336-00 | 1 | ADAPTOR | GB | |
||
| 17 | 624195-01 | 1 | BRACKET | GB | |||
| 18 | 90587424 | 1 | CONTAINER | GB | |
||
| 18 | 641495-00SV | 1 | GEARCASE COVER SA | GB | |
||
| 19 | 133820-00 | 1 | PIN | GB | |
||
| 20 | 90584649 | 1 | CONTROL PANEL | GB | |||
| 20 | 380651-00 | 1 | CORDSET | GB | |
||
| 21 | 90580120 | 1 | HOOK | GB | |
||
| 21 | 629591-00SV | 1 | SHOE ASSEMBLY | GB | |||
| 22 | 575580-06 | 1 | HOUSING LOWER | Green | GB | ||
| 23 | N425372 | 1 | FIELD CASE | GB | |||
| 24 | 396992-01 | 2 | KNOB | GB | |
||
| 25 | 90585863 | 2 | O RING | GB | |||
| 25 | A19377 | 1 | WARNING LABEL | GB | |||
| 26 | 632378-00 | 1 | NAMEPLATE | DC628KA TY1 | GB | ||
| 27 | 976613 | 1 | NUT | GB | |
||
| 28 | 624281-01 | 1 | CAP | NON VS | GB | ||
| 29 | 90569691-01 | 1 | HOLDER | GB | |
||
| 30 | 147727-06 | 1 | HANDLE & COVER | GB | |
||
| 31 | N541864 | 4 | FAN | GB | |
||
| 34 | 607792-00 | 1 | MANUAL, SEARS | GB | |||
| 34 | 656400-00 | 1 | WARNING LABEL | GB | |||
| 35 | N191590 | 1 | LOCK NUT | GB | |
||
| 39 | 151225-00 | 1 | COLLAR | GB | |
||
| 40 | 90580111 | 1 | HANDLE SA | GB | |||
| 40 | 098162-18 | 7 | SPRING PIN | GB | |||
| 41 | 935813-00 | 1 | WASHER | GB | |||
| 43 | N211574 | 1 | MAGNET | KIT | GB | ||
| 44 | N142240 | 1 | NAME PLATE | GB | |||
| 46 | E604200050I1 | 1 | SPANNER | GB | |
||
| 46 | 284405-00 | 1 | LOCTITE 5145 | GB | |
||
| 47 | 093128-00 | 1 | BEARING NEEDLE | GB | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 51 | 037464-00 | 1 | RETAINING RING | GB | |||
| 52 | N415395 | 1 | CLAMP | GB | |
||
| 53 | 429932-00 | 1 | ARM LINK | GB | |
||
| 54 | 581240-00 | 1 | BAFFLE FAN | GB | |
||
| 55 | 370167-00 | 2 | SCREW | GB | |
||
| 56 | 626629-00 | 1 | LEVER | MITER LOCK | GB | ||
| 57 | 383438-00 | 1 | PLATE | GB | |||
| 58 | 635247-00 | 1 | REFLECTOR SA | GB | |
||
| 59 | 641134-00 | 1 | WASHER SPRING | GB | |
||
| 60 | N674939 | 1 | LABEL | BRUSHLESS | GB | ||
| 61 | 151239-02 | 1 | FIELD | GB | |||
| 62 | N077722 | 1 | RATING LABEL | GB | |||
| 63 | 330073-33 | 1 | CORDSET | GB | |||
| 64 | 241545-03 | 1 | KNOB | GB | |
||
| 65 | 380554-00 | 1 | PLATE | GB | |
||
| 66 | N857946 | 1 | HOUSING ASSEMBLY | DCS382 | GB | ||
| 67 | 5140001-74 | 1 | PANEL | GB | |
||
| 100 | 90585868 | 1 | PAD SA | GB | |
||
| 801 | 284255-00 | 1 | HOSE,1-1/2''X7' | CVJ GREASE | GB | ||
| 861 | N459099 | 1 | NUT | GB | |
||
| 861 | 447532-00 | 2 | NUT,DUMP VALVE | GB | |||
| 861 | 617553-00 | 1 | KITBOX | GB | |
||
| 875 | 605097-00 | 1 | BLADE BOLT | M8x1.25-6G-L.H. THRE | GB |
