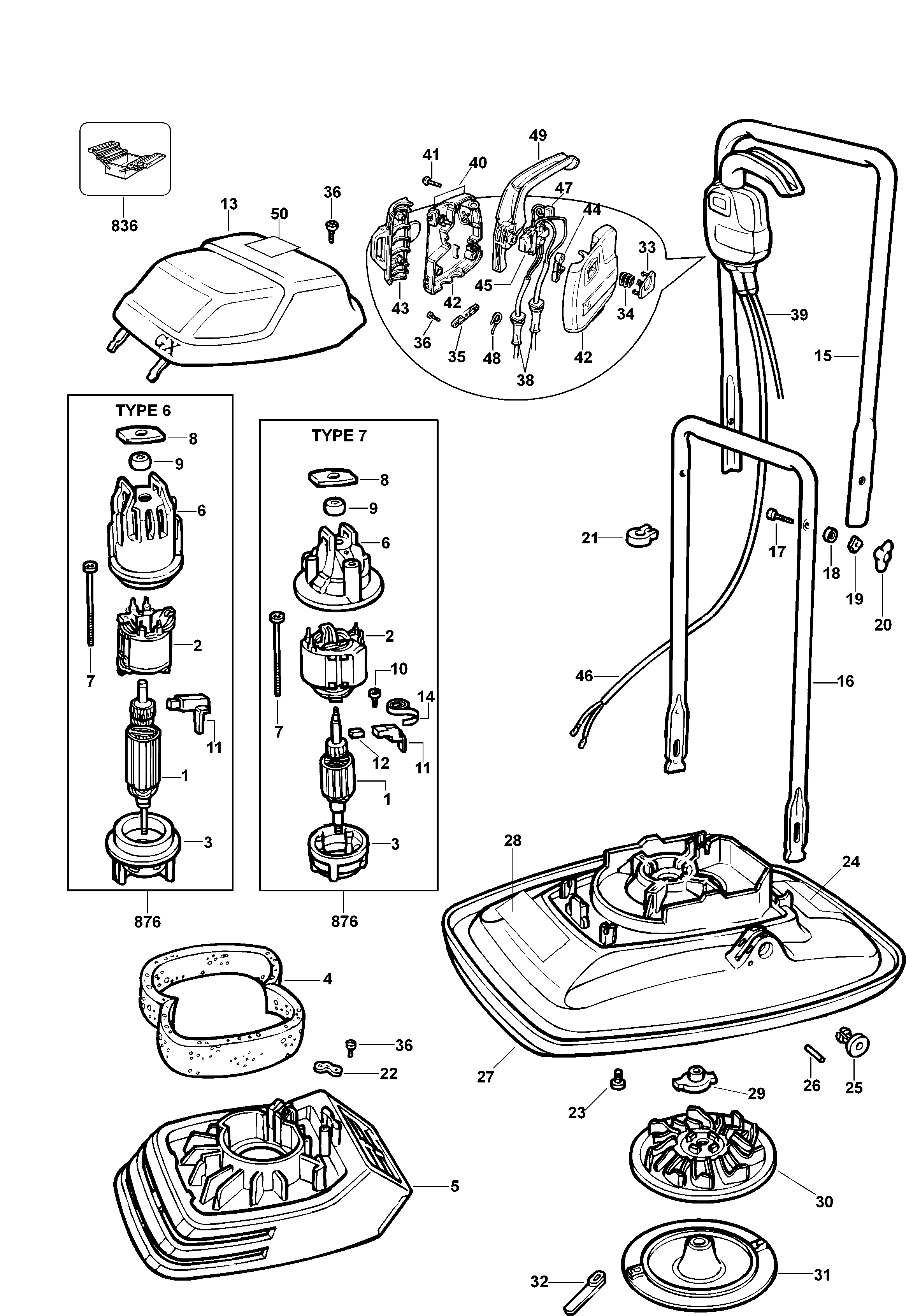

GX295 MOWER Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 806302-01 | 1 | ARMATURE | TYPE 7 | GB |  |
|
| 1 | 370083-02 | 1 | ARMATURE | TYPE 6 & 8 | GB | |
|
| 2 | 806164-03 | 1 | FIELD | TYPE 7 | GB | |
|
| 2 | 370084-02 | 1 | FIELD | TYPE 6 & 8 | GB | |
|
| 3 | 370430-01 | 1 | MOUNT | TYPE 6 & 8 | GB | |
|
| 3 | 805950 | 1 | HOUSING SA | TYPE 7 | GB | |
|
| 4 | 830666 | 1 | FILTER | GB | |
||
| 5 | 375015 | 1 | SHROUD | GB | |
||
| 6 | 807849-49 | 1 | HOUSING SA | TYPE 7 | GB | |
|
| 6 | 371984-49 | 1 | HOUSING SA | TYPE 6 & 8 | GB | |
|
| 7 | 844217-02 | 2 | SCREW.SPECIAL | GB | |
||
| 8 | 854155 | 1 | RETAINER | GB | |
||
| 9 | 890075 | 1 | BEARING | GB | |
||
| 10 | 894748 | 2 | O RING | TYPE 7 | GB | |
|
| 11 | 797573-01 | 2 | BRUSHBOX SA | TYPE 7 | GB | |
|
| 11 | 370983-02 | 2 | BRUSH & HOLDER 230V | TYPE 6 & 8 | GB | |
|
| 12 | 797059-01 | 2 | BRUSH | TYPE 7 | GB | |
|
| 13 | 375014 | 1 | MOTOR COVER | GB | |
||
| 14 | 792996 | 2 | SPRING | GB | |
||
| 15 | 369701 | 1 | HANDLE UPPER | GB | |
||
| 16 | 808707 | 1 | HANDLE | GB | |
||
| 17 | 830664 | 2 | BOLT | GB | |
||
| 18 | 830832 | 2 | WASHER M6 | GB | |
||
| 19 | 844568 | 2 | WASHER M6 | GB | |
||
| 20 | 844565 | 2 | NUT WING | GB | |
||
| 21 | 915859 | 1 | CLIP CABLE | GB | |||
| 22 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 23 | 849256 | 4 | SCREW | GB | |
||
| 24 | 371910-01 | 1 | WARNING LABEL | B1 | GB | |
|
| 24 | 371910-01 | 1 | WARNING LABEL | GB | |
||
| 25 | 373155-01 | 2 | PIN | GB | |
||
| 26 | 830768 | 2 | SPIROL PIN | GB | |
||
| 27 | 371065 | 1 | CUTTER COVER | GB | |
||
| 28 | 371908 | 1 | BRAND LABEL | B1 | GB | |
|
| 28 | 371908 | 1 | BRAND LABEL | GB | |
||
| 29 | 370570 | 1 | MOUNT | TYPE 6 & 8 | GB | |
|
| 29 | 843849 | 1 | MOUNT | TYPE 7 | GB | |
|
| 30 | 368698-02 | 1 | IMPELLOR | GB | |
||
| 31 | 371337-01 | 1 | BLADE CARRIER | TYPE 6 & 8 | GB | |
|
| 31 | 371337-02 | 1 | BLADE CARRIER | TYPE 7 | GB | |
|
| 32 | 370572 | 1 | BLADE | Pack x 10 | GB | |
|
| 33 | 373092 | 1 | BUTTON LOCK-OFF | GB | |
||
| 34 | 827137 | 1 | SPRING | GB | |
||
| 35 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 36 | 810269 | 6 | SCREW | GB | |
||
| 38 | 770235 | 2 | PROTECTOR | GB | |
||
| 39 | 808240-13 | 1 | CABLE SA | B1 | GB | |
|
| 39 | 808240-02 | 1 | CABLE SA | GB | |
||
| 41 | 809961 | 6 | SCREW | GB | |||
| 42 | 799361-03 | 1 | CLAMSHELL | GB | |
||
| 43 | 799364 | 1 | PLATE | GB | |
||
| 44 | 797929 | 1 | ACTUATOR | GB | |
||
| 45 | 794164 | 1 | SWITCH | GB | |
||
| 46 | 805032-14 | 1 | CABLE SA | B1 | GB | |
|
| 46 | 805032-14 | 1 | CABLE SA | GB | |
||
| 47 | 807285-06 | 1 | CAPACITOR | GB | |
||
| 48 | 827135 | 1 | SPRING | GB | |
||
| 49 | 373094 | 1 | LEVER | GB | |
||
| 50 | 371501 | 1 | LABEL | GB | |
||
| 836 | 559586-99 | 1 | S.T.WRENCH | GB | |
||
| 876 | 806166-10 | 1 | MOTOR SA | TYPE 7 | GB | |
|
| 876 | 370082-02 | 1 | MOTOR SA | TYPE 6 & 8 | GB | |
