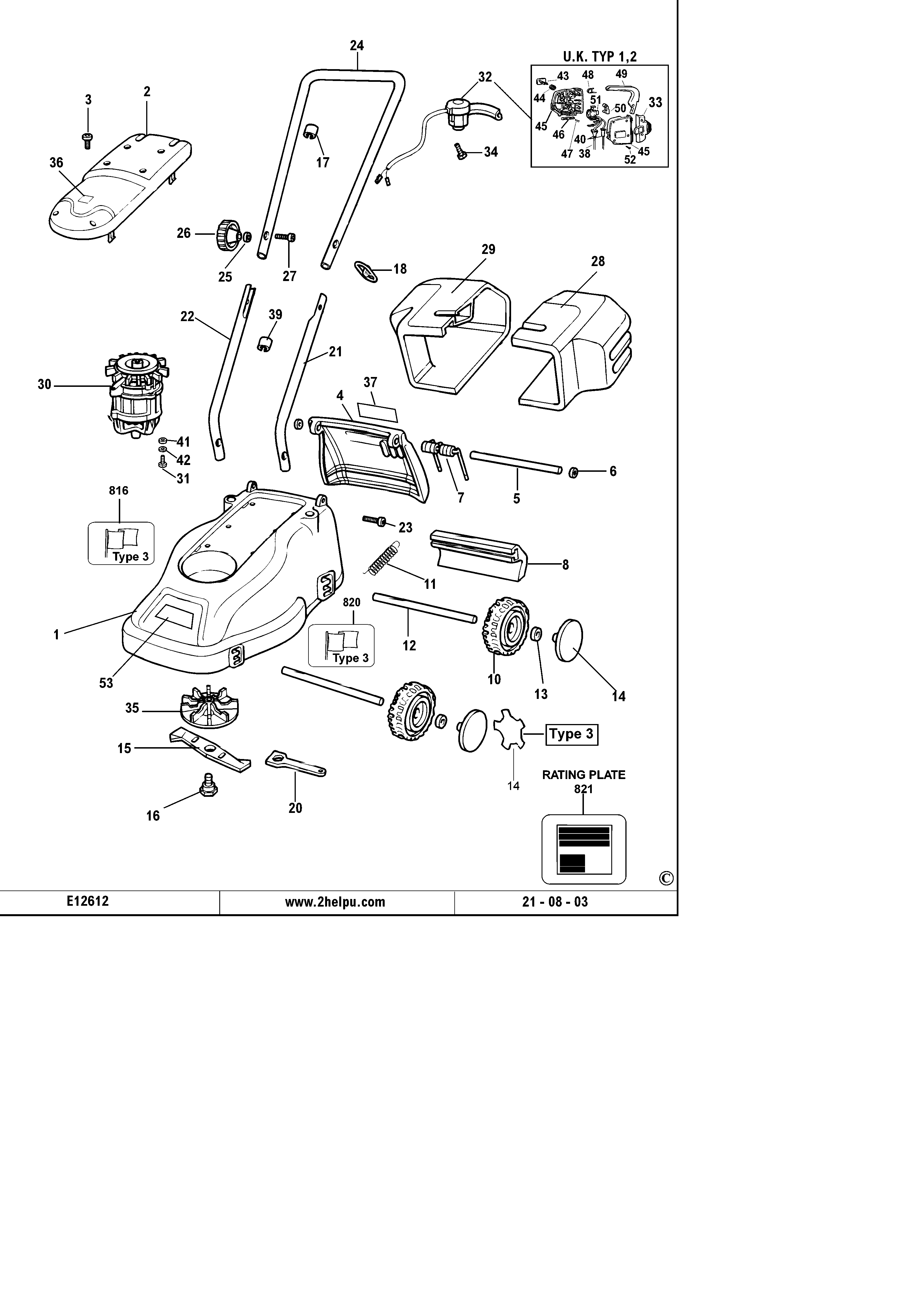

GR340 ROTARY MOWER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569076-00 | 1 | CUTTER DECK | B1 |  |
||
| 2 | 569078-00 | 1 | MOTOR COVER | B1 | |
||
| 3 | 568022-00 | 6 | SCREW | B1 | |
||
| 4 | 569079-00 | 1 | FLAP | B1 | |
||
| 5 | 568413-00 | 1 | AXLE | B1 | |
||
| 6 | 559821-00 | 2 | RETAINER | B1 | |
||
| 7 | 568414-00 | 2 | SPRING | B1 | |
||
| 8 | 568415-00 | 1 | FLAP | B1 | |
||
| 10 | 569077-00 | 4 | WHEEL | B1 | |
||
| 11 | 568416-00 | 4 | SPRING | B1 | |
||
| 12 | 568417-00 | 2 | AXLE | B1 | |
||
| 13 | 568054-00 | 4 | RETAINER | B1 | |
||
| 14 | 569075-00 | 4 | CAP | B1 | |
||
| 15 | 568942-00 | 1 | BLADE | B1 | |
||
| 16 | 559839-00 | 1 | BLADE BOLT | B1 | |
||
| 17 | 559798-00 | 2 | CLIP CABLE | B1 | |
||
| 18 | 559799-00 | 1 | RETAINER | B1 | |||
| 20 | 568063-00 | 1 | SPANNER | B1 | |
||
| 21 | 568420-00 | 1 | LOWER HANDLE | B1 | |
||
| 22 | 568421-00 | 1 | LOWER HANDLE | B1 | |
||
| 23 | 568020-00 | 2 | SCREW | B1 | |
||
| 24 | 568423-00 | 1 | HANDLE UPPER | B1 | |
||
| 25 | 279746-00 | 2 | SPACER 340060 | B1 | |
||
| 26 | 279745-00 | 2 | KNOB 340050 | B1 | |
||
| 27 | 279714-00 | 2 | SCREW 109420 | B1 | |
||
| 28 | 568425-00 | 1 | GRASSBOX | B1 | |
||
| 29 | 568424-00 | 1 | GRASSBOX | B1 | |
||
| 30 | 568426-00 | 1 | MOTOR SA | B1 | |
||
| 31 | 559824-00 | 4 | BOLT | B1 | |
||
| 33 | 568855-00 | 1 | SWITCH COVER | T.F.G | B1 | |
|
| 34 | 568059-00 | 2 | SCREW | B1 | |
||
| 35 | 568429-00 | 1 | FAN | B1 | |
||
| 36 | 569081-00 | 1 | AUTO STOP LABEL | B1 | |
||
| 37 | 569082-00 | 1 | WARNING LABEL | B1 | |
||
| 39 | 279753-00 | 1 | CLAMP 409500 | B1 | |
||
| 41 | 279718-00 | 4 | SPACER 144460 | B1 | |
||
| 42 | 559816-00 | 4 | WASHER | B1 | |
||
| 53 | 569080-00 | 1 | BRAND LABEL | B1 | |
||
| 816 | 569083-00 | 1 | LABEL | R/H Side | B1 | |
|
| 820 | 569084-00 | 1 | LABEL | L/H Side | B1 | |
|
| 821 | 569036-00 | 1 | RATING PLATE | B&D Blank | B1 | |
