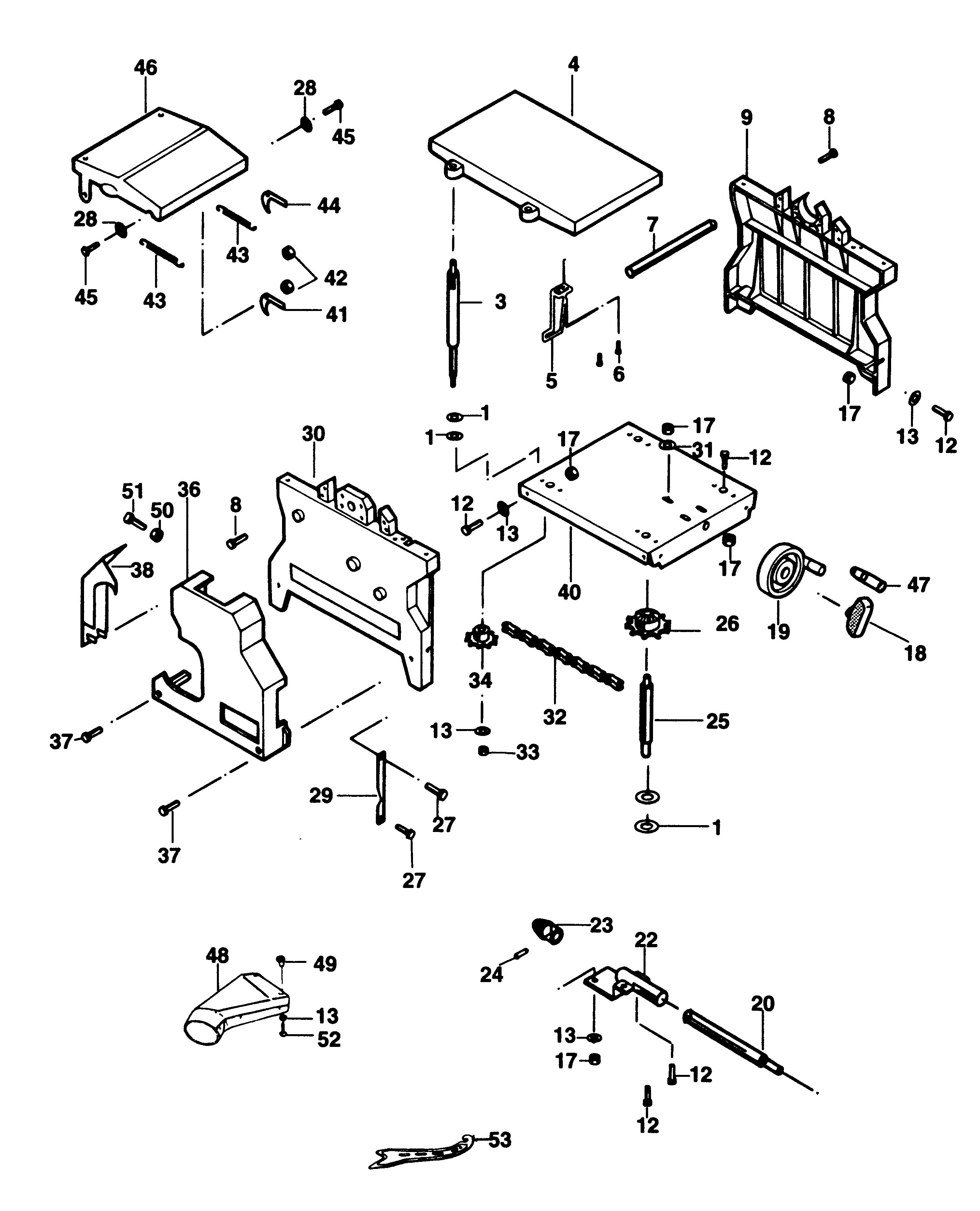

DW1163 TLOUŠŤKOVAČKA Type 2 | Výkresy
Dokumenty
Seznam náhradních dílů
Zobrazte si rozevírací nabídku, pro některé výrobky může být k dispozici více výkresů
Verze pro tisk
Zobrazit celou stránku
| Položka č. | Číslo výrobku | Množství na | Popis výrobku | General Description | Další info | Trhy | Stav výrobku | Směrná cena |
|---|---|---|---|---|---|---|---|---|
| 1 | 860226-03 | 10 | DISTANČNÍ VLOŽKA | CH |  |
20.80 CZK | ||
| 3 | 123288-00 | 1 | VŘETENO | CH | |
551.20 CZK | ||
| 3 | 123288-00 | 4 | VŘETENO | CH | |
551.20 CZK | ||
| 4 | 123317-02 | 1 | STŮL | CH | |
3270.80 CZK | ||
| 5 | 123293-03 | 99 | UKAZATEL | CH | |
62.40 CZK | ||
| 6 | 860238-04 | 2 | ŠROUB | CH |  |
20.80 CZK | ||
| 7 | 123211-00 | 1 | TYČ | CH | |
106.60 CZK | ||
| 8 | 860093-06 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 9 | 867439-00 | 1 | LEVÝ NÁLITEK | CH | |
1747.20 CZK | ||
| 12 | 860085-04 | 14 | ŠROUB | CH | |
13.00 CZK | ||
| 13 | 860073-03 | 1 | WASHER M8 | CH | |
13.00 CZK | ||
| 13 | 860073-03 | 15 | WASHER M8 | CH | |
13.00 CZK | ||
| 17 | 860083-04 | 16 | MATICE | CH | |
13.00 CZK | ||
| 18 | 866962-01 | 1 | OVLADAČ | CH | |
20.80 CZK | ||
| 19 | 946474-00 | 1 | RUKOJEŤ SA | CH | |
215.80 CZK | ||
| 20 | 866089-01 | 1 | VŘETENO | CH | |
600.60 CZK | ||
| 22 | 123283-01 | 1 | PODPĚRA | CH | |
509.60 CZK | ||
| 23 | 866089-01 | 1 | VŘETENO | CH | |
600.60 CZK | ||
| 24 | 760233-00 | 1 | KOLÍK | CH | |
13.00 CZK | ||
| 25 | 123225-00 | 1 | KOLÍK | CH | |
70.20 CZK | ||
| 26 | 860585-00 | 1 | PŘEVOD | CH | |
52.00 CZK | ||
| 27 | 860094-02 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 28 | 860073-00 | 2 | PODLOŽKA | CH | |
13.00 CZK | ||
| 29 | 863662-00 | 1 | MĚŘÍTKO | CH | |
31.20 CZK | ||
| 30 | 867438-00 | 1 | PRAVÝ BOK | CH | |
1747.20 CZK | ||
| 31 | 949876-05 | 3 | PODLOŽKA | CH | |
13.00 CZK | ||
| 32 | 123237-00 | 1 | ŘETĚZ | CH | |
702.00 CZK | ||
| 33 | 860092-01 | 4 | MATICE | CH | |
13.00 CZK | ||
| 34 | 123222-00 | 4 | PASTOREK | CH | |
31.20 CZK | ||
| 36 | 123215-00 | 1 | KRYT | CH | |
215.80 CZK | ||
| 37 | 760998-00 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 38 | 123216-00 | 1 | KRYT | CH | |
106.60 CZK | ||
| 40 | 132096 | 1 | ZÁKLADNA | CH | |
1346.80 CZK | ||
| 41 | 123265-01 | 1 | PRAVÝ HÁK | CH | |
36.40 CZK | ||
| 42 | 860083-01 | 2 | MATICE | CH | |
13.00 CZK | ||
| 43 | 123203-00 | 2 | PRUŽINA | CH | |
70.20 CZK | ||
| 44 | 123263-01 | 1 | LEVÝ HÁK | CH | |
36.40 CZK | ||
| 45 | 860089-25 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 46 | 123269-02 | 1 | KRYT | CH | |
751.40 CZK | ||
| 47 | 860263-00 | 1 | HANDLE | CH | |
31.20 CZK | ||
| 48 | 863664-01 | 1 | ADAPTÉR | CH | |
1146.60 CZK | ||
| 49 | 946469-00 | 2 | OVLADAČ | CH | |
20.80 CZK | ||
| 52 | 860301-00 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 53 | 860610-01 | 1 | TLAČNÁ TYČ | CH | |
106.60 CZK | ||
| 101 | 860094-02 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 102 | 123230-00 | 1 | REJSTŘÍK | CH | |
20.80 CZK | ||
| 103 | 32357 | 1 | MĚŘÍTKO | CH | |
452.40 CZK | ||
| 104 | 860085-19 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 105 | 860073-03 | 13 | WASHER M8 | CH | |
13.00 CZK | ||
| 106 | 867461-00 | 1 | HOBLOVKA | CH | |
2392.00 CZK | ||
| 107 | 860083-18 | 4 | NUT M5 | CH | |
13.00 CZK | ||
| 108 | 860083-02 | 4 | MATICE | CH | |
13.00 CZK | ||
| 109 | 860085-06 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 110 | 860083-04 | 26 | MATICE | CH | |
13.00 CZK | ||
| 111 | 860074-03 | 4 | PODLOŽKA | CH | |
13.00 CZK | ||
| 112 | 860079-04 | 4 | UPÍNACÍ PŘÍPRAVEK | CH | |
13.00 CZK | ||
| 113 | 863647-00 | 2 | KOLÍK | CH | |
252.20 CZK | ||
| 114 | 860093-11 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 115 | 123255-00 | 2 | PRUŽINA | CH | |
13.00 CZK | ||
| 116 | 863414-00 | 2 | POJISTKA | CH | |
52.00 CZK | ||
| 117 | 863971-00 | 3 | PODLOŽKA | CH | |
20.80 CZK | ||
| 118 | 860093-07 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 119 | 860093-02 | 8 | ŠROUB | CH | |
13.00 CZK | ||
| 120 | 123308-02 | 1 | PODPĚRA STOLU | CH | |
702.00 CZK | ||
| 121 | 860074-02 | 4 | PODLOŽKA | CH | |
13.00 CZK | ||
| 122 | 860093-06 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 123 | 865405-01 | 2 | OVLADAČ | CH | |
83.20 CZK | ||
| 124 | 123291-00 | 2 | ŠROUB | CH | 52.00 CZK | |||
| 125 | 123290-01 | 2 | ŠROUB | CH | |
127.40 CZK | ||
| 126 | 720959-00 | 5 | PODLOŽKA | CH | |
13.00 CZK | ||
| 127 | 860093-15 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 128 | 123296-01 | 2 | KONZOLA | CH | |
70.20 CZK | ||
| 129 | 123312-03 | 1 | PODPĚRA STOLU | CH | |
1045.20 CZK | ||
| 130 | 949853-08 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 131 | 949853-07 | 4 | ŠROUB | CH | |
31.20 CZK | ||
| 132 | 949886-11 | 5 | ŠROUB | CH | |
13.00 CZK | ||
| 133 | 863289-00 | 2 | KOLÍK | CH | |
20.80 CZK | ||
| 134 | 123275-01 | 1 | TYČ | CH | |
127.40 CZK | ||
| 135 | 942049-00 | 1 | PRUŽNÁ PODLOŽKA | CH | |
13.00 CZK | ||
| 136 | 863656-00 | 1 | TŘMEN | CH | |
174.20 CZK | ||
| 137 | 860092-00 | 1 | MATICE | CH | |
13.00 CZK | ||
| 138 | 123295-00 | 1 | KOLÍK | CH | |
41.60 CZK | ||
| 139 | 949886-16 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 140 | 866688-01 | 1 | HANDLE | CH | |
70.20 CZK | ||
| 141 | 863660-00 | 1 | OVLADAČ | CH | |
174.20 CZK | ||
| 142 | 123227-00 | 1 | LOCK-NUT | CH | |
91.00 CZK | ||
| 143 | 176456 | 1 | HOBLOVKA | CH | |
2581.80 CZK | ||
| 144 | 863653-00 | 5 | SPOJKA | CH | |
62.40 CZK | ||
| 145 | 123274-01 | 2 | PODPĚRA | CH | |
332.80 CZK | ||
| 146 | 863218-00 | 4 | KOLÍK | CH | |
57.20 CZK | ||
| 147 | 863702-00 | 4 | DISTANČNÍ VLOŽKA | CH | |
20.80 CZK | ||
| 148 | 860060-01 | 2 | NÝT | CH | |
13.00 CZK | ||
| 149 | 860098-04 | 1 | WRENCH 6 MM | CH | |
20.80 CZK | ||
| 151 | 860093-00 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 152 | 860393-03 | 2 | LEVÁ KONZOLA | CH | |
62.40 CZK | ||
| 153 | 76923 | 2 | PRAVÁ KONZOLA | CH | |
57.20 CZK | ||
| 154 | 860429-00 | 4 | NÁRAZNÍK | CH | |
26.00 CZK | ||
| 155 | 860387-00 | 4 | NOHA | CH | |
174.20 CZK | ||
| 156 | 860392-00 | 4 | NOHA | CH | |
31.20 CZK | ||
| 201 | 123286-00 | 2 | PASTOREK | CH | |
52.00 CZK | ||
| 202 | 123236-00 | 1 | ŘETĚZ | CH | |
215.80 CZK | ||
| 203 | 860226-02 | 4 | PODLOŽKA | CH | |
13.00 CZK | ||
| 204 | 123281-02 | 2 | VÁLEC | CH | |
800.80 CZK | ||
| 205 | 860318-00 | 1 | KLÍČ | CH | |
26.00 CZK | ||
| 206 | 865513-00 | 1 | FRÉZOVACÍ BLOK SA | CH | 7664.80 CZK | |||
| 207 | 942043-00 | 4 | ŠROUB | CH | |
20.80 CZK | ||
| 208 | 863658-00 | 4 | BLOK | CH | |
41.60 CZK | ||
| 209 | 868768-10 | 2 | LOŽISKO | CH | |
215.80 CZK | ||
| 210 | 863644-00 | 4 | ŠROUB | CH | |
70.20 CZK | ||
| 211 | 949703-04 | 8 | ŠROUB | CH | |
13.00 CZK | ||
| 212 | 123266-00 | 2 | BLOKOVACÍ KLÍN | CH | |
751.40 CZK | ||
| 214 | 860093-06 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 215 | 860074-03 | 4 | PODLOŽKA | CH | |
13.00 CZK | ||
| 216 | 941563-00 | 4 | MATICE | CH | |
26.00 CZK | ||
| 217 | 123232-00 | 2 | PRUŽINA | CH | |
31.20 CZK | ||
| 218 | 123233-00 | 2 | PRUŽINA | CH | |
31.20 CZK | ||
| 219 | 123210-00 | 49 | ZAŘÍZENÍ PROTI ZPĚTNÉMU RÁZU | CH | |
20.80 CZK | ||
| 220 | 860073-04 | 25 | PODLOŽKA | CH | |
13.00 CZK | ||
| 221 | 123212-00 | 1 | TYČOVÝ PLOT | CH | |
83.20 CZK | ||
| 222 | 123264-00 | 2 | POUZDRO | CH | |
26.00 CZK | ||
| 223 | 860083-05 | 1 | NUT RH | CH | |
13.00 CZK | ||
| 224 | 860074-04 | 1 | PODLOŽKA | CH | |
13.00 CZK | ||
| 225 | 860074-05 | 1 | PODLOŽKA | CH | |
20.80 CZK | ||
| 226 | 860083-03 | 6 | MATICE | CH | |
13.00 CZK | ||
| 227 | 123298-00 | 3 | POJISTNÝ KOLÍK | CH | |
26.00 CZK | ||
| 228 | 123287-00 | 1 | KOLÍK | CH | |
174.20 CZK | ||
| 229 | 123318-00 | 1 | PÁKA | CH | |
600.60 CZK | ||
| 230 | 860367-00 | 1 | HANDLE | CH | |
26.00 CZK | ||
| 231 | 123228-00 | 1 | PÁKA | CH | |
70.20 CZK | ||
| 232 | 863807-00 | 1 | DESKA | CH | |
20.80 CZK | ||
| 233 | 860331-00 | 1 | PRUŽINA | CH | |
20.80 CZK | ||
| 234 | 860073-10 | 1 | PODLOŽKA | CH | |
13.00 CZK | ||
| 235 | 123218-00 | 1 | OZUBENÝ KOTOUČ | CH | |
174.20 CZK | ||
| 236 | 860079-02 | 2 | POJISTNÝ KROUŽEK | CH | |
13.00 CZK | ||
| 237 | 123246-00 | 1 | OZUBENÝ ŘEMEN | CH | |
291.20 CZK | ||
| 238 | 123219-00 | 2 | POUZDRO | CH | |
106.60 CZK | ||
| 239 | 123316-00 | 1 | ŘEMENICE | CH | |
252.20 CZK | ||
| 240 | 860079-04 | 1 | UPÍNACÍ PŘÍPRAVEK | CH | |
13.00 CZK | ||
| 241 | 123240-00 | 1 | PASTOREK | CH | |
31.20 CZK | ||
| 242 | 863702-00 | 1 | DISTANČNÍ VLOŽKA | CH | |
20.80 CZK | ||
| 243 | 123220-00 | 1 | KOLÍK | CH | |
31.20 CZK | ||
| 244 | 860073-14 | 1 | PODLOŽKA | CH | |
13.00 CZK | ||
| 245 | 949754-14 | 1 | ŘEMEN | CH | |
252.20 CZK | ||
| 246 | 123234-00 | 1 | PRUŽINA | CH | |
31.20 CZK | ||
| 247 | 123300-00 | 1 | ŘEMENICE | CH | |
252.20 CZK | ||
| 248 | 941880-00 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 249 | 123211-00 | 1 | TYČ | CH | |
106.60 CZK | ||
| 250 | 943271-00 | 1 | HEX KEY 2.5 MM | CH | |
13.00 CZK | ||
| 251 | 949751-07 | 1 | SPANNER 10-13MM | CH | |
57.20 CZK | ||
| 252 | 863648-00 | 1 | UKAZATEL | CH | |
52.00 CZK | ||
| 253 | 867450-00 | 1 | PŘÍRUBA | CH | |
452.40 CZK | ||
| 254 | 863665-00 | 1 | VÍČKO | CH | |
62.40 CZK | ||
| 255 | 860085-10 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 256 | 860074-02 | 2 | PODLOŽKA | CH | |
13.00 CZK | ||
| 313 | 944652-00 | 1 | PRŮCHODKA | CH | |
332.80 CZK | ||
| 314 | 868541-01 | 1 | STATOR SA 400V | CH | |
6481.80 CZK | ||
| 316 | 860687-04 | 1 | KONCOVÁ KRYTKA | CH | |
106.60 CZK | ||
| 317 | 860094-01 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 317 | 860094-01 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 318 | 945841-00 | 1 | VENTILÁTOR | CH | |
70.20 CZK | ||
| 321 | 860701-03 | 1 | KRYT | CH | |
366.60 CZK | ||
| 322 | 860718-00 | 2 | TĚSNĚNÍ | CH | |
91.00 CZK | ||
| 323 | 860080-02 | 1 | KROUŽEK | CH | |
20.80 CZK | ||
| 324 | 868768-08 | 1 | LOŽISKO | CH | |
174.20 CZK | ||
| 325 | 860446-01 | 1 | ŠROUB | CH | |
20.80 CZK | ||
| 325 | 860446-01 | 4 | ŠROUB | CH | |
20.80 CZK | ||
| 326 | 861510-01 | 1 | ROTOR | CH | |
1903.20 CZK | ||
| 327 | 860539-01 | 1 | KLÍČ | CH | |
20.80 CZK | ||
| 329 | 860073-14 | 1 | PODLOŽKA | CH | |
13.00 CZK | ||
| 330 | 860093-15 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 331 | 123294-00 | 1 | DISTANČNÍ VLOŽKA | CH | |
57.20 CZK | ||
| 332 | 942043-00 | 1 | ŠROUB | CH | |
20.80 CZK | ||
| 333 | 949702-19 | 2 | ŠROUB | CH | |
26.00 CZK | ||
| 334 | 123292-00 | 2 | DISTANČNÍ VLOŽKA | CH | |
62.40 CZK | ||
| 335 | 867441-00 | 1 | ŘEMENICE | CH | |
252.20 CZK | ||
| 337 | 860699-02 | 1 | VŘETENO | CH | |
408.20 CZK | ||
| 338 | 860073-03 | 3 | WASHER M8 | CH | |
13.00 CZK | ||
| 339 | 860083-04 | 3 | MATICE | CH | |
13.00 CZK | ||
| 341 | 868768-10 | 1 | LOŽISKO | CH | |
215.80 CZK | ||
| 374 | 868387-13 | 1 | MOTOR A SPÍNACÍ SKŘÍŇKA SA | CH | |
14950.00 CZK | ||
| 375 | 868387-04 | 1 | MOTOR SA | CH | |
9453.60 CZK | ||
| 376 | 865912-00 | 1 | SWITCHBOX SA | CH | |
6929.00 CZK | ||
| 377 | 946260-02 | 1 | TLAČÍTKO VYPNUTO | CH | |
850.20 CZK | ||
| 378 | 946260-01 | 1 | TLAČÍTKO ZAPNUTO | CH | |
452.40 CZK | ||
| 379 | 869070-00 | 1 | KRYT HORNÍ | CH | |
551.20 CZK | ||
| 380 | 865903-00 | 1 | DESKA | CH | |
106.60 CZK | ||
| 381 | 860090-02 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 382 | 941633-00 | 3 | PODLOŽKA | CH | |
13.00 CZK | ||
| 383 | 865901-00 | 3 | PRŮCHODKA | CH | |
13.00 CZK | ||
| 384 | 942421-00 | 1 | DESKA | CH | |
13.00 CZK | ||
| 386 | 933652-00 | 2 | PODLOŽKA | CH | |
13.00 CZK | ||
| 387 | 861149-00 | 1 | CHRÁNIČ STRUNY | CH | |
140.40 CZK | ||
| 388 | 867460-00 | 1 | KABEL A ZÁSTRČKA | CH | |
1245.40 CZK | ||
| 390 | 860094-05 | 6 | ŠROUB | CH | |
13.00 CZK | ||
| 391 | 865900-00 | 1 | KONTAKT | CH | |
1094.60 CZK | ||
| 392 | 865899-00 | 1 | KONTAKT | CH | |
1903.20 CZK | ||
| 393 | 942508-00 | 1 | SVORKOVNICE | CH | |
252.20 CZK | ||
| 394 | 943022-01 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 418 | 860311-00 | 1 | VÍČKO | CH | |
20.80 CZK | ||
| 419 | 860305-00 | 1 | DISTANČNÍ VLOŽKA | CH | |
70.20 CZK | ||
| 420 | 860085-07 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 421 | 860074-02 | 2 | PODLOŽKA | CH | |
13.00 CZK | ||
| 422 | 860306-00 | 1 | KONZOLA | CH | |
106.60 CZK | ||
| 424 | 860311-01 | 1 | VÍČKO | CH | |
20.80 CZK | ||
| 425 | 860373-00 | 2 | DESKA | CH | |
26.00 CZK | ||
| 426 | 860074-03 | 5 | PODLOŽKA | CH | |
13.00 CZK | ||
| 428 | 860310-00 | 2 | MATICE | CH | |
31.20 CZK | ||
| 429 | 943209-00 | 2 | ŠROUB | CH | |
20.80 CZK | ||
| 430 | 860093-00 | 4 | ŠROUB | CH | |
13.00 CZK | ||
| 431 | 860083-02 | 2 | MATICE | CH | |
13.00 CZK | ||
| 432 | 862169-00 | 1 | KONZOLA | CH | |
215.80 CZK | ||
| 433 | 860073-01 | 2 | PODLOŽKA | CH | |
13.00 CZK | ||
| 434 | 860089-18 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 435 | 860083-04 | 4 | MATICE | CH | |
13.00 CZK | ||
| 436 | 862484-00 | 1 | VODÍTKO | CH | |
291.20 CZK | ||
| 436 | 862484-00 | 1 | VODÍTKO | CH | |
291.20 CZK | ||
| 437 | 860309-00 | 1 | VLOŽKA | CH | |
26.00 CZK | ||
| 438 | 860085-06 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 439 | 862482-02 | 1 | PRAVÍTKO | CH | |
951.60 CZK | ||
| 440 | 860308-00 | 1 | KOLÍK | CH | |
83.20 CZK | ||
| 441 | 860083-03 | 2 | MATICE | CH | |
13.00 CZK | ||
| 442 | 861841-00 | 1 | PÁKA | CH | |
106.60 CZK | ||
| 443 | 860312-00 | 1 | VÍČKO | CH | |
62.40 CZK | ||
| 444 | 860674-00 | 2 | PÁKA | CH | |
156.00 CZK | ||
| 445 | 860394-00 | 2 | PRUŽINA | CH | |
127.40 CZK | ||
| 446 | 860365-00 | 4 | VÍČKO | CH | |
41.60 CZK | ||
| 447 | 930574-00 | 1 | HEX KEY 5 MM | CH | |
20.80 CZK | ||
| 448 | 938539-00 | 1 | KLÍČ | CH | |
20.80 CZK | ||
| 469 | 865911-00 | 1 | KRYT SA | CH | |
1588.60 CZK | ||
| 470 | 865910-00 | 1 | PODPĚRA | CH | |
174.20 CZK | ||
| 471 | 860093-08 | 1 | ŠROUB | CH | |
13.00 CZK | ||
| 472 | 863310-00 | 1 | OVLADAČ | CH | |
31.20 CZK | ||
| 473 | 720959-00 | 1 | PODLOŽKA | CH | |
13.00 CZK | ||
| 474 | 860092-00 | 3 | MATICE | CH | |
13.00 CZK | ||
| 475 | 860092-03 | 1 | NUT M5 | CH | |
13.00 CZK | ||
| 476 | 949867-10 | 2 | KOLÍK | CH | |
13.00 CZK | ||
| 477 | 865909-00 | 1 | KRYT | CH | |
215.80 CZK | ||
| 478 | 944881-00 | 1 | TYČ | CH | |
106.60 CZK | ||
| 479 | 860301-14 | 2 | ŠROUB | CH | |
13.00 CZK | ||
| 480 | 944880-00 | 1 | RAMENO | CH | |
140.40 CZK | ||
| 481 | 860092-05 | 1 | MATICE | CH | |
13.00 CZK | ||
| 482 | 944877-01 | 1 | KONZOLA | CH | |
332.80 CZK | ||
| 483 | 860073-03 | 1 | WASHER M8 | CH | |
13.00 CZK | ||
| 484 | 860086-06 | 1 | ŠROUB | CH | |
20.80 CZK | ||
| 485 | 949882-01 | 1 | WRENCH 4 MM | CH | |
20.80 CZK |
* Jedná se o orientační ceny, které se mohou lišit a jsou uvedeny bez DPH a náklady na dopravu.Vyhrazujeme si právo na změnu cen a podmínek bez předchozího upozornění.
