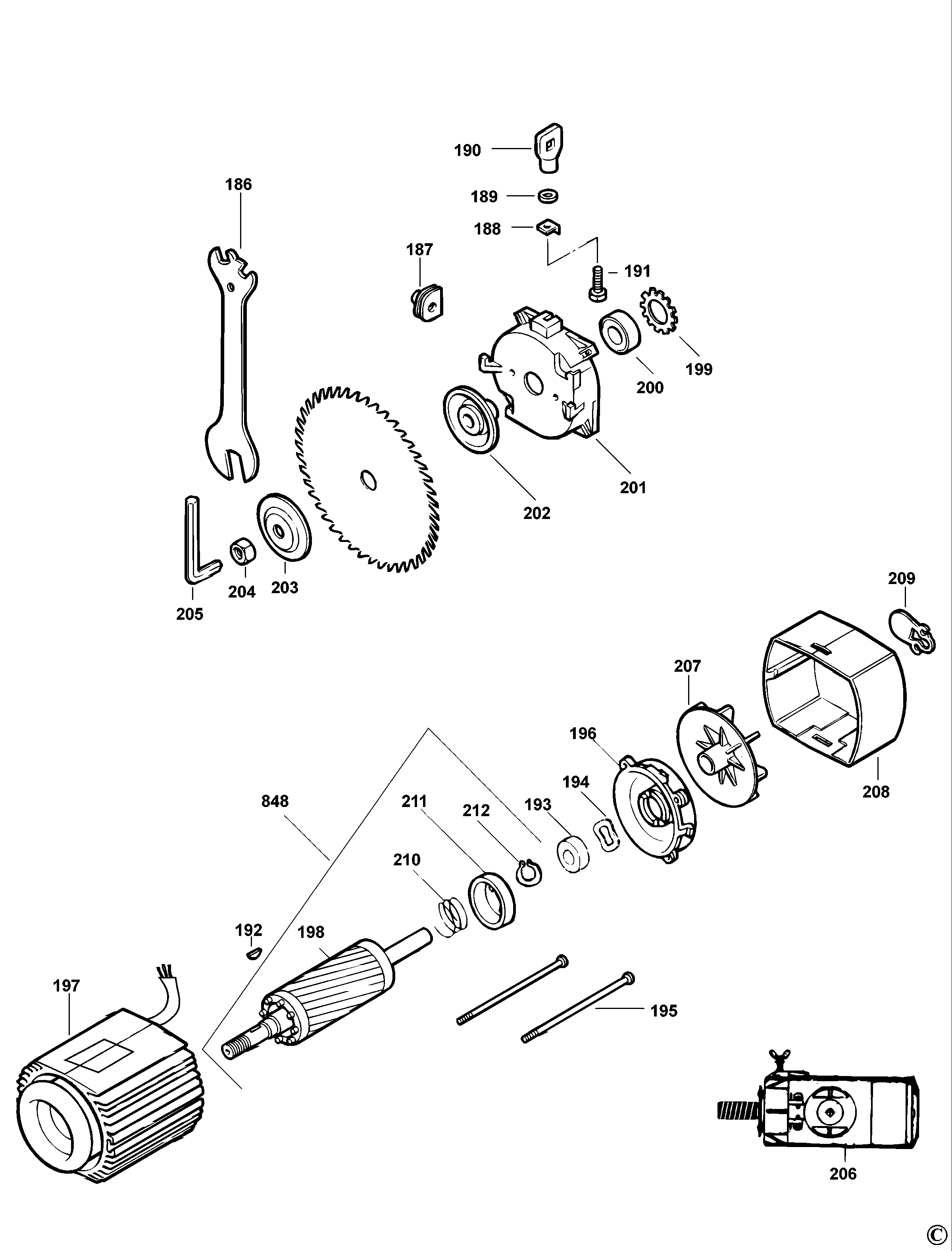

DW720K PILA S RADIÁLNÍM RAMENEM Type 3 | Výkresy
Dokumenty
Seznam náhradních dílů
Zobrazte si rozevírací nabídku, pro některé výrobky může být k dispozici více výkresů
Verze pro tisk
Zobrazit celou stránku
| Položka č. | Číslo výrobku | Množství na | Popis výrobku | General Description | Další info | Trhy | Stav výrobku | Směrná cena |
|---|---|---|---|---|---|---|---|---|
| 1 | 860792-00 | 1 | OVLADAČ SA | DE |  |
91.00 CZK | ||
| 2 | 934401-00 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 3 | 860093-06 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 4 | 860073-06 | 1 | DISTANČNÍ PODLOŽKA | DE | |
13.00 CZK | ||
| 5 | 860784-00 | 1 | VÍČKO | DE | |
106.60 CZK | ||
| 6 | 860531-00 | 4 | ŠROUB | DE | |
20.80 CZK | ||
| 7 | 860073-00 | 2 | PODLOŽKA | DE | |
13.00 CZK | ||
| 8 | 860237-00 | 1 | UKAZATEL | DE | |
41.60 CZK | ||
| 9 | 860085-11 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 10 | 863723-00 | 1 | PRUŽINA | DE | |
41.60 CZK | ||
| 11 | 860301-00 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 12 | 860787-90 | 1 | PODPĚRA | DE | |
91.00 CZK | ||
| 13 | 860074-03 | 2 | PODLOŽKA | DE | |
13.00 CZK | ||
| 14 | 860093-07 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 15 | 946469-00 | 2 | OVLADAČ | DE |  |
20.80 CZK | ||
| 16 | 720959-00 | 3 | PODLOŽKA | DE | |
13.00 CZK | ||
| 17 | 860852-90 | 1 | RAMENO | DE | |
106.60 CZK | ||
| 18 | 860786-00 | 1 | GUMOVÝ DORAZ | DE | |
20.80 CZK | ||
| 19 | 860839-00 | 1 | KRYT | DE | |
291.20 CZK | ||
| 20 | N152003 | 1 | FSO REPAIR KIT | DE | |
3270.80 CZK | ||
| 23 | 860799-04 | 1 | RAMENO | DE | 4901.00 CZK | |||
| 24 | 860429-00 | 1 | NÁRAZNÍK | DE | |
26.00 CZK | ||
| 25 | 930574-00 | 1 | HEX KEY 5 MM | DE | |
20.80 CZK | ||
| 26 | 860093-05 | 2 | SCREW.TEMP | DE | |
13.00 CZK | ||
| 27 | 861110-01 | 1 | KONCOVÁ KRYTKA | DE | |
140.40 CZK | ||
| 29 | 860790-00 | 1 | SLOUPEK SA | DE | |
800.80 CZK | ||
| 30 | 860791-00 | 1 | VYCHYLOVACÍ TRUBKA SA | DE | |
2392.00 CZK | ||
| 31 | 860083-04 | 8 | MATICE | DE | |
13.00 CZK | ||
| 32 | 860073-03 | 2 | WASHER M8 | DE | |
13.00 CZK | ||
| 33 | 860085-05 | 4 | ŠROUB | DE | |
20.80 CZK | ||
| 34 | 860073-04 | 4 | PODLOŽKA | DE | |
13.00 CZK | ||
| 35 | 860083-05 | 6 | NUT RH | DE | |
13.00 CZK | ||
| 36 | 860085-02 | 2 | ŠROUB | DE | |
20.80 CZK | ||
| 37 | 860016-04 | 1 | ZÁKLADNA | DE | |
2392.00 CZK | ||
| 38 | 860086-00 | 1 | ŠROUB | DE | |
52.00 CZK | ||
| 39 | 860065-00 | 2 | DISTANČNÍ VLOŽKA | DE | |
36.40 CZK | ||
| 41 | 860096-06 | 1 | KOLÍK | DE | |
13.00 CZK | ||
| 42 | 860831-90 | 1 | PASTOREK | DE | |
332.80 CZK | ||
| 43 | 860423-00 | 1 | WRENCH | DE | |
140.40 CZK | ||
| 44 | 860232-00 | 2 | MATICE | DE | |
62.40 CZK | ||
| 45 | 860231-00 | 2 | ŠROUB | DE | |
252.20 CZK | ||
| 46 | 860800-01 | 1 | PÁKA | DE | |
252.20 CZK | ||
| 49 | 860795-00 | 1 | PÁKA | DE | |
215.80 CZK | ||
| 50 | 860074-04 | 1 | PODLOŽKA | DE | |
13.00 CZK | ||
| 51 | 864672-01 | 1 | ZÁPADKA | DE | |
215.80 CZK | ||
| 52 | 860843-02 | 1 | KONZOLA | DE | |
13.00 CZK | ||
| 53 | 949853-11 | 2 | ŠROUB | DE | |
332.80 CZK | ||
| 55 | 860226-01 | 3 | PODLOŽKA | DE | |
20.80 CZK | ||
| 56 | 860802-90 | 1 | PODLOŽKA | DE | |
31.20 CZK | ||
| 57 | 860301-00 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 59 | 860858-00 | 1 | PŘÍCHYTKA | DE | |
31.20 CZK | ||
| 60 | 860083-03 | 1 | MATICE | DE | |
13.00 CZK | ||
| 61 | 860521-00 | 2 | SVORKA | DE | |
20.80 CZK | ||
| 62 | 860090-02 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 63 | 860083-01 | 2 | MATICE | DE | |
13.00 CZK | ||
| 64 | 860520-00 | 1 | SVORKA | DE | 26.00 CZK | |||
| 65 | 863636-00 | 2 | PŘÍČNÍK KRÁTKÝ | DE | |
600.60 CZK | ||
| 66 | 863639-00 | 2 | CROSSBAR LONG | DE | |
1245.40 CZK | ||
| 67 | 863637-00 | 2 | CROSSBAR LONG | DE | |
652.60 CZK | ||
| 68 | 863640-00 | 4 | NOHA | DE | |
332.80 CZK | ||
| 69 | 863638-00 | 2 | PŘÍČNÍK KRÁTKÝ | DE | |
652.60 CZK | ||
| 70 | 862419-00 | 4 | NOHA | DE | |
83.20 CZK | ||
| 71 | 860085-04 | 12 | ŠROUB | DE | |
13.00 CZK | ||
| 72 | 860083-14 | 12 | MATICE | DE | |
13.00 CZK | ||
| 76 | 864944-01 | 1 | STŮL | DE | |
452.40 CZK | ||
| 77 | 864914-00 | 1 | VODÍTKO | DE | 174.20 CZK | |||
| 78 | 860073-03 | 9 | WASHER M8 | DE | |
13.00 CZK | ||
| 79 | 864946-00 | 1 | DESKA | DE | 127.40 CZK | |||
| 80 | 864945-01 | 1 | VLOŽKA | DE | |
215.80 CZK | ||
| 81 | 864943-01 | 1 | STŮL | DE | |
850.20 CZK | ||
| 83 | 860007-00 | 1 | TYČ | DE | |
174.20 CZK | ||
| 86 | 868535-00 | 1 | TYČ | DE | |
252.20 CZK | ||
| 87 | 860074-03 | 19 | PODLOŽKA | DE | |
13.00 CZK | ||
| 88 | 860083-04 | 19 | MATICE | DE | |
13.00 CZK | ||
| 89 | 860610-01 | 1 | TLAČNÁ TYČ | DE | |
106.60 CZK | ||
| 90 | 868533-00 | 1 | ZÁKLADNA SA | DE | |
3762.20 CZK | ||
| 91 | 868534-00 | 1 | TYČ | DE | |
252.20 CZK | ||
| 92 | 860069-00 | 2 | POSUVNÝ KONTAKT | DE | |
26.00 CZK | ||
| 93 | 860083-03 | 2 | MATICE | DE | |
13.00 CZK | ||
| 94 | 860070-00 | 2 | KONZOLA | DE | 41.60 CZK | |||
| 95 | 863310-00 | 2 | OVLADAČ | DE | |
31.20 CZK | ||
| 96 | 949703-09 | 9 | ŠROUB | DE | |
20.80 CZK | ||
| 97 | 863130-04 | 2 | OPĚRNÁ KONZOLA | DE | |
106.60 CZK | ||
| 98 | 864947-02 | 1 | STŮL | DE | |
408.20 CZK | ||
| 100 | 868459-00 | 6 | SCREW.SPECIAL | DE | |
83.20 CZK | ||
| 102 | 869235-00 | 1 | SKŘÍŇKA NA KLÍČE | DE | |
215.80 CZK | ||
| 104 | 860083-04 | 4 | MATICE | DE | |
13.00 CZK | ||
| 105 | 860073-03 | 4 | WASHER M8 | DE | |
13.00 CZK | ||
| 106 | 941614-00 | 4 | NOHA | DE | |
41.60 CZK | ||
| 120 | 760421-00 | 2 | HŘÍDEL | DE | |
106.60 CZK | ||
| 121 | 860123-00 | 1 | OTOČNÝ HŘÍDEL | DE | |
1539.20 CZK | ||
| 122 | 860154-00 | 3 | LOŽISKO | DE | |
800.80 CZK | ||
| 123 | 760417-00 | 1 | HŘÍDEL | DE | |
127.40 CZK | ||
| 124 | 949894-06 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 125 | 863727-00 | 1 | UKAZATEL | DE | |
62.40 CZK | ||
| 126 | 862427-00 | 1 | OVLADAČ | DE | |
20.80 CZK | ||
| 127 | 860121-00 | 1 | SVORKA | DE | |
156.00 CZK | ||
| 128 | 860122-00 | 1 | DISTANČNÍ VLOŽKA | DE | |
26.00 CZK | ||
| 129 | 938539-00 | 1 | KLÍČ | DE | |
20.80 CZK | ||
| 130 | 860088-27 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 131 | 860074-03 | 5 | PODLOŽKA | DE | |
13.00 CZK | ||
| 132 | 860083-08 | 3 | MATICE | DE | |
13.00 CZK | ||
| 133 | 860817-01 | 1 | KRYT | DE | |
36.40 CZK | ||
| 134 | 949882-01 | 1 | WRENCH 4 MM | DE | |
20.80 CZK | ||
| 135 | 863977-00 | 1 | KOLÍK | DE | |
452.40 CZK | ||
| 136 | 860112-11 | 2 | PRUŽINA | DE | |
52.00 CZK | ||
| 137 | 860835-00 | 1 | PODPĚRA | DE | |
551.20 CZK | ||
| 138 | 860098-04 | 1 | WRENCH 6 MM | DE | |
20.80 CZK | ||
| 139 | 946469-00 | 1 | OVLADAČ | DE | |
20.80 CZK | ||
| 140 | 860093-00 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 141 | 860119-01 | 1 | PŘEDNÍ LOŽISKOVÝ ČEP | DE | |
215.80 CZK | ||
| 142 | 860120-00 | 2 | DESKA | DE | |
31.20 CZK | ||
| 143 | 860093-18 | 3 | ŠROUB | DE | |
20.80 CZK | ||
| 144 | 860531-00 | 2 | ŠROUB | DE | |
20.80 CZK | ||
| 145 | 862721-01 | 1 | UKAZATEL | DE | |
57.20 CZK | ||
| 146 | 860830-00 | 1 | DESKA | DE | |
70.20 CZK | ||
| 147 | 860827-00 | 1 | KRYT | DE | |
509.60 CZK | ||
| 148 | 860828-00 | 1 | DESKA | DE | |
57.20 CZK | ||
| 149 | 860796-01 | 1 | OVLADAČ | DE | |
36.40 CZK | ||
| 150 | 860809-00 | 1 | DESKA | DE | |
70.20 CZK | ||
| 151 | 864057-01 | 1 | SVORKA | DE | 332.80 CZK | |||
| 152 | 860113-00 | 1 | SVORKA | DE | |
91.00 CZK | ||
| 153 | 860086-11 | 1 | ŠROUB | DE | |
26.00 CZK | ||
| 154 | 860092-00 | 2 | MATICE | DE | |
13.00 CZK | ||
| 155 | 720959-00 | 2 | PODLOŽKA | DE | |
13.00 CZK | ||
| 156 | 860822-00 | 1 | ZADNÍ DESKA | DE | |
57.20 CZK | ||
| 157 | 941602-00 | 1 | PODLOŽKA | DE | |
13.00 CZK | ||
| 158 | 860093-00 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 159 | N045684 | 1 | TŘMEN | DE | |
2581.80 CZK | ||
| 160 | 860824-00 | 1 | KROUŽEK SA | DE | |
902.20 CZK | ||
| 161 | 860818-01 | 1 | PŘÍCHYTKA | DE | |
70.20 CZK | ||
| 162 | 860085-06 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 163 | 760427-00 | 1 | VÍČKO | DE | |
20.80 CZK | ||
| 164 | 860816-00 | 1 | PŘÍCHYTKA | DE | |
20.80 CZK | ||
| 165 | 860073-01 | 1 | PODLOŽKA | DE | |
13.00 CZK | ||
| 166 | 860092-03 | 1 | NUT M5 | DE | |
13.00 CZK | ||
| 167 | 860074-03 | 1 | PODLOŽKA | DE | |
13.00 CZK | ||
| 168 | 860825-00 | 1 | SVORKA | DE | |
106.60 CZK | ||
| 169 | 860829-00 | 1 | UKAZATEL | DE | |
57.20 CZK | ||
| 170 | 860205-06 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 171 | 860814-10 | 1 | HLAVA VÁLCE | DE | |
951.60 CZK | ||
| 172 | 863726-00 | 1 | KONZOLA | DE | |
31.20 CZK | ||
| 173 | 860094-03 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 174 | 860820-00 | 2 | PRUŽINA | DE | |
31.20 CZK | ||
| 176 | 863010-00 | 1 | DESKA | DE | |
57.20 CZK | ||
| 186 | 860153-00 | 1 | WRENCH | DE | |
140.40 CZK | ||
| 187 | 860447-00 | 1 | POUZDRO | DE | |
127.40 CZK | ||
| 188 | 860807-00 | 1 | DESKA | DE | |
26.00 CZK | ||
| 189 | 860073-03 | 1 | WASHER M8 | DE | |
13.00 CZK | ||
| 190 | 860655-01 | 1 | MATICE | DE | |
20.80 CZK | ||
| 191 | 860085-19 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 192 | 860318-01 | 1 | KLÍČ | DE | |
20.80 CZK | ||
| 193 | 868768-07 | 1 | LOŽISKO | DE | |
127.40 CZK | ||
| 194 | 860080-02 | 1 | KROUŽEK | DE | |
20.80 CZK | ||
| 195 | 860446-00 | 4 | TYČ | DE | |
13.00 CZK | ||
| 196 | 861345-00 | 1 | SKŘÍŇ SA | DE | |
291.20 CZK | ||
| 198 | 868424-03 | 1 | ROTOR 1 FÁZE | DE | |
1690.00 CZK | ||
| 199 | 860806-00 | 1 | KROUŽEK | DE | |
26.00 CZK | ||
| 200 | 861721-12 | 1 | LOŽISKO | DE | |
70.20 CZK | ||
| 201 | 860808-00 | 1 | SKŘÍŇ | DE | |
600.60 CZK | ||
| 202 | 863266-00 | 1 | VNITŘNÍ PŘÍRUBA | DE | |
291.20 CZK | ||
| 203 | 861241-00 | 1 | VNĚJŠÍ PŘÍRUBA | DE | |
57.20 CZK | ||
| 204 | 860126-01 | 1 | MATICE | DE | |
174.20 CZK | ||
| 205 | 860098-05 | 1 | HEX KEY 8 MM | DE | |
57.20 CZK | ||
| 207 | 860444-00 | 1 | VENTILÁTOR | DE | |
70.20 CZK | ||
| 208 | 860445-00 | 1 | KRYT | DE | |
106.60 CZK | ||
| 209 | 863112-00 | 1 | VÍČKO | DE | |
13.00 CZK | ||
| 210 | 861338-00 | 1 | PRUŽINA | DE | |
20.80 CZK | ||
| 211 | 861336-02 | 1 | BRZDA | DE | |
91.00 CZK | ||
| 212 | 861349-00 | 1 | POJISTNÝ KROUŽEK | DE | |
13.00 CZK | ||
| 213 | 949700-03 | 1 | SPONKA | DE | |
140.40 CZK | ||
| 214 | 863261-00 | 1 | CHRÁNIČ | DE | |
509.60 CZK | ||
| 215 | 949700-06 | 1 | SPONKA | DE | |
91.00 CZK | ||
| 230 | 930076-00 | 7 | ŠROUB | DE | |
13.00 CZK | ||
| 233 | 860093-00 | 4 | ŠROUB | DE | |
13.00 CZK | ||
| 234 | 860083-02 | 2 | MATICE | DE | |
13.00 CZK | ||
| 235 | 863318-00 | 1 | PRAVÁ RUKOJEŤ | DE | |
140.40 CZK | ||
| 237 | 863198-00 | 1 | DESKA | DE | |
20.80 CZK | ||
| 238 | 863849-00 | 1 | VÍČKO | DE | |
20.80 CZK | ||
| 239 | 860083-03 | 1 | MATICE | DE | |
13.00 CZK | ||
| 240 | 949886-10 | 2 | ŠROUB | DE | |
26.00 CZK | ||
| 241 | 863319-00 | 1 | LEVÁ RUKOJEŤ | DE | |
140.40 CZK | ||
| 242 | 860093-20 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 243 | 860083-04 | 1 | MATICE | DE | |
13.00 CZK | ||
| 244 | 863116-00 | 1 | SPONKA | DE | |
62.40 CZK | ||
| 245 | 863111-00 | 2 | BLOK | DE | |
41.60 CZK | ||
| 246 | 944590-00 | 2 | MATICE | DE | |
20.80 CZK | ||
| 247 | 860094-03 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 248 | 860084-05 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 249 | 860843-03 | 1 | PÁS | DE | |
20.80 CZK | ||
| 251 | 860695-00 | 1 | POUZDRO | DE | |
31.20 CZK | ||
| 257 | 861257-02 | 1 | SPOJKA | DE | |
62.40 CZK | ||
| 270 | 946469-00 | 1 | OVLADAČ | DE | |
20.80 CZK | ||
| 271 | 860075-00 | 4 | PODLOŽKA | DE | |
13.00 CZK | ||
| 272 | 863709-00 | 1 | PODPĚRA | DE | |
83.20 CZK | ||
| 273 | 863703-00 | 1 | CHRÁNIČ | DE | |
41.60 CZK | ||
| 274 | 864095-00 | 1 | PRODLUŽOVACÍ TRUBKA | DE | |
106.60 CZK | ||
| 275 | 863708-00 | 1 | ÚHELNÍK | DE | |
52.00 CZK | ||
| 276 | 860073-01 | 2 | PODLOŽKA | DE | |
13.00 CZK | ||
| 278 | 861842-00 | 2 | OVLADAČ | DE | |
36.40 CZK | ||
| 279 | 943023-00 | 3 | ŠROUB | DE | |
13.00 CZK | ||
| 280 | 863707-01 | 1 | KONZOLA | DE | |
106.60 CZK | ||
| 281 | 860094-06 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 282 | 249412-20 | 2 | ŠROUB | DE | |
13.00 CZK | ||
| 283 | 864053-00 | 4 | PODLOŽKA | DE | |
62.40 CZK | ||
| 284 | 860301-00 | 3 | ŠROUB | DE | |
13.00 CZK | ||
| 285 | 864086-00 | 2 | PODLOŽKA | DE | |
31.20 CZK | ||
| 286 | 860074-02 | 3 | PODLOŽKA | DE | |
13.00 CZK | ||
| 287 | 860083-03 | 2 | MATICE | DE | |
13.00 CZK | ||
| 290 | 860094-12 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 292 | 863705-00 | 1 | POUZDRO | DE | |
31.20 CZK | ||
| 293 | 864054-00 | 2 | VÁLEC | DE | |
36.40 CZK | ||
| 296 | 864814-01 | 1 | ZPĚTNÝ RÁZ SA | DE | |
751.40 CZK | ||
| 297 | 760219-00 | 1 | ŠROUB | DE | |
13.00 CZK | ||
| 299 | 863599-02 | 1 | DISTANČNÍ VLOŽKA | DE | |
31.20 CZK | ||
| 300 | 760483-00 | 1 | PRUŽINA | DE | |
13.00 CZK | ||
| 301 | 863073-00 | 1 | VÍČKO | DE | |
31.20 CZK | ||
| 302 | 863320-00 | 1 | PÁKA | DE | |
41.60 CZK | ||
| 303 | 949891-03 | 1 | ŠROUB | DE | |
20.80 CZK | ||
| 304 | 861221-00 | 2 | PRUŽINA | DE | |
52.00 CZK | ||
| 305 | 860083-15 | 1 | MATICE | DE | |
13.00 CZK | ||
| 306 | 861239-00 | 1 | PRUŽINA | DE | |
83.20 CZK | ||
| 307 | 860073-03 | 1 | WASHER M8 | DE | |
13.00 CZK | ||
| 309 | 862235-04 | 1 | KRYT | DE | |
902.20 CZK | ||
| 310 | 863706-01 | 1 | CHRÁNIČ | DE | |
252.20 CZK | ||
| 311 | 862417-00 | 1 | KRYT | DE | |
127.40 CZK | ||
| 312 | 862084-01 | 1 | PÁKA | DE | |
91.00 CZK | ||
| 313 | 863269-00 | 1 | ŠTÍPACÍ KLÍN | DE | 140.40 CZK | |||
| 314 | 862083-00 | 1 | KONZOLA | DE | |
452.40 CZK | ||
| 315 | 863775-01 | 1 | KONZOLA | DE | |
106.60 CZK | ||
| 316 | 863434-00 | 1 | CHRÁNIČ | DE | 106.60 CZK | |||
| 319 | 760601-00 | 1 | SKŘÍŇKA NA KLÍČE | DE | |
70.20 CZK | ||
| 320 | 945632-90 | 1 | KONZOLA | DE | |
332.80 CZK | ||
| 846 | 869322-00 | 1 | KRYT SA | DE | |
8512.40 CZK | ||
| 847 | 864427-02 | 1 | BALENÍ DÍLŮ | DE | |
800.80 CZK | ||
| 848 | 868424-05 | 1 | ROTOR SA | From DC 01-2003 | DE | |
1747.20 CZK | |
| 848 | 868424-01 | 1 | ROTOR SA | Up to DC 52-2002 | DE | |
1833.00 CZK |
* Jedná se o orientační ceny, které se mohou lišit a jsou uvedeny bez DPH a náklady na dopravu.Vyhrazujeme si právo na změnu cen a podmínek bez předchozího upozornění.
