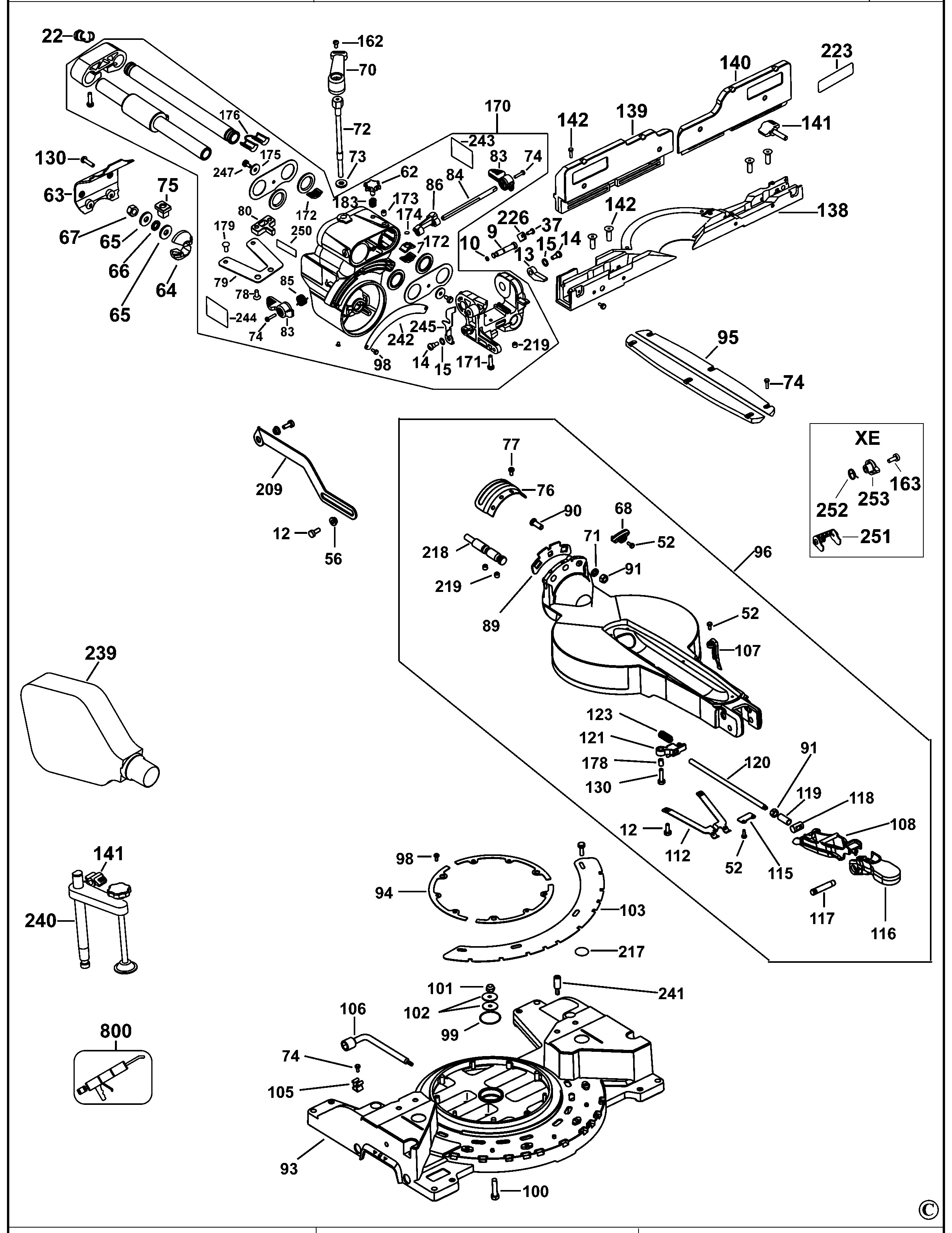

DW717 POKOSOVÁ PILA Type 2 | Výkresy
Dokumenty
Seznam náhradních dílů
Zobrazte si rozevírací nabídku, pro některé výrobky může být k dispozici více výkresů
Verze pro tisk
Zobrazit celou stránku
| Položka č. | Číslo výrobku | Množství na | Popis výrobku | General Description | Další info | Trhy | Stav výrobku | Směrná cena |
|---|---|---|---|---|---|---|---|---|
| 2 | 641445-00 | 1 | KRYT ŘEMENU | XJ |  |
215.80 CZK | ||
| 3 | 330045-14 | 9 | ŠROUB | XJ |  |
13.00 CZK | ||
| 4 | 146751-00 | 1 | HŘÍDEL | XJ | |
62.40 CZK | ||
| 5 | 146732-00 | 2 | DISTANČNÍ VLOŽKA | XJ | |
20.80 CZK | ||
| 6 | N039404 | 1 | PRUŽINA | XJ | |
291.20 CZK | ||
| 7 | 150075-00 | 2 | ŠROUB | XJ | |
20.80 CZK | ||
| 8 | 148296-00 | 2 | PODLOŽKA | XJ | |
20.80 CZK | ||
| 9 | 387130-00 | 1 | POJISTNÝ KOLÍK | XJ | |
70.20 CZK | ||
| 10 | 34158-00 | 1 | TĚSNĚNÍ | XJ | |
13.00 CZK | ||
| 12 | 330045-23 | 5 | ŠROUB | XJ | |
20.80 CZK | ||
| 13 | 153603-01 | 1 | ZÁPADKA | XJ | |
31.20 CZK | ||
| 14 | 153639-00 | 1 | ŠROUB | XJ | |
20.80 CZK | ||
| 15 | 153655-00 | 1 | PODLOŽKA | XJ | |
13.00 CZK | ||
| 16 | N185664 | 1 | ŠROUB | XJ | |
|||
| 17 | 150718-00 | 1 | NUT WING | XJ | |
13.00 CZK | ||
| 19 | 385915-02 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 20 | 618198-00 | 1 | ŠROUB | XJ | |
20.80 CZK | ||
| 23 | 145344-01 | 1 | ŠROUB ŘEZNÉHO NÁSTROJE | M8 X 20 LH | XJ | |
20.80 CZK | |
| 24 | 151962-01 | 1 | VNĚJŠÍ SVORKA | XJ | |
41.60 CZK | ||
| 26 | 644999-00 | 1 | VNITŘNÍ UPÍNACÍ PODLOŽKA | XJ | |
83.20 CZK | ||
| 28 | 641465-00SV | 1 | HNACÍ ÚSTROJÍ A VŘETENO SA | XJ | |
1346.80 CZK | ||
| 29 | 330003-66 | 1 | BEARING,BALL | XJ | |
174.20 CZK | ||
| 30 | 391616-00 | 1 | JEHLOVÉ LOŽISKO | XJ | |
57.20 CZK | ||
| 33 | 605040-69 | 1 | LOŽISKO | XJ | |
91.00 CZK | ||
| 34 | N066269SV | 1 | HŘÍDEL SA | w/PULLEY | XJ | |
600.60 CZK | |
| 35 | 153752-00 | 2 | UPÍNACÍ PŘÍPRAVEK | XJ | |
13.00 CZK | ||
| 36 | 618244-01 | 1 | UPÍNACÍ DESKA | XJ | |
20.80 CZK | ||
| 37 | 330045-49 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 44 | 641495-00SV | 1 | KRYT PŘEVODOVKY SA | XJ | |
1495.00 CZK | ||
| 45 | 641459-00 | 1 | TĚSNĚNÍ | XJ | |
62.40 CZK | ||
| 47 | 641463-00 | 1 | ŘEMEN | XJ | |
252.20 CZK | ||
| 48 | N004510 | 1 | HNACÍ ŘEMENICE | XJ | |
91.00 CZK | ||
| 49 | 153561-00 | 1 | POJISTNÝ KOLÍK | XJ | |
31.20 CZK | ||
| 50 | 448176-00 | 1 | PRUŽINA | XJ | |
13.00 CZK | ||
| 51 | 393071-00 | 1 | DESKA | XJ | |
13.00 CZK | ||
| 52 | 330045-45 | 5 | ŠROUB | XJ | |
13.00 CZK | ||
| 53 | 153559-00 | 1 | PODLOŽKA | XJ | |
13.00 CZK | ||
| 56 | 146740-00 | 2 | OBJÍMKA | XJ | |
20.80 CZK | ||
| 57 | 394589-01 | 2 | ŠROUB | XJ | |
20.80 CZK | ||
| 57 | 641470-00 | 1 | ŠROUB | XJ | |
20.80 CZK | ||
| 60 | 330045-15 | 8 | ŠROUB | M5 X 20 | XJ | |
20.80 CZK | |
| 62 | 618156-00 | 1 | ZAJIŠŤOVACÍ KNOFLÍK | XJ | |
57.20 CZK | ||
| 63 | 641455-00 | 1 | PODPĚRNÁ DESKA | SUPPORT HOUSING | XJ | |
70.20 CZK | |
| 64 | 618145-00 | 2 | POUZDRO | TAPERED | XJ | |
62.40 CZK | |
| 65 | 153769-01 | 2 | OPĚRNÁ PODLOŽKA | XJ | |
26.00 CZK | ||
| 66 | 153451-00 | 1 | AXIÁLNÍ LOŽISKO | XJ | |
20.80 CZK | ||
| 67 | 625393-00 | 1 | POJISTNÁ MATICE | PREVAILING TORQUE | XJ | |
13.00 CZK | |
| 68 | 641425-00 | 1 | UKAZATEL | XJ | |
20.80 CZK | ||
| 70 | 618236-00 | 1 | HANDLE | BEVEL LOCK | XJ | |
70.20 CZK | |
| 71 | 330016-03 | 3 | PODLOŽKA | XJ | |
13.00 CZK | ||
| 72 | 618148-00 | 1 | TYČ | BEVEL | XJ | |
70.20 CZK | |
| 73 | 603636-00 | 1 | OPĚRNÁ PODLOŽKA | XJ | |
20.80 CZK | ||
| 74 | 330045-06 | 11 | ŠROUB | XJ | |
13.00 CZK | ||
| 75 | 618160-00 | 1 | BLOK | BEVEL CLAMP | XJ | |
41.60 CZK | |
| 76 | 626440-00 | 1 | PRUŽINA | XJ | |
70.20 CZK | ||
| 77 | 098103-18 | 4 | ŠROUB | XJ | ||||
| 78 | 98104-17 | 4 | ŠROUB | M6x16 FLT HD THD FMG | XJ | |
13.00 CZK | |
| 79 | 641466-00 | 1 | PRUŽINA | XJ | |
91.00 CZK | ||
| 80 | 641467-00 | 1 | ZÁPADKA | BEVEL DETENT | XJ | |
70.20 CZK | |
| 83 | N019349 | 2 | PÁKA SA | BEVEL DETENT | XJ | |
31.20 CZK | |
| 84 | 618153-00 | 1 | TYČ | DETENT ACTUATION | XJ | |
57.20 CZK | |
| 85 | 618259-00 | 1 | ZKRUTNÁ PRUŽINA | XJ | |
13.00 CZK | ||
| 86 | N059591 | 1 | VAČKA | BEVEL ACTUATION | XJ | |
26.00 CZK | |
| 89 | N091092 | 1 | DESKA | BEVEL | XJ | |
106.60 CZK | |
| 90 | 98130-25 | 3 | VRATOVÝ ŠROUB | XJ | |
20.80 CZK | ||
| 91 | 330015-03 | 4 | MATICE | M8x1.25 | XJ | |
13.00 CZK | |
| 93 | 641486-00SV | 1 | ZÁKLADNA SA | XJ | |
3762.20 CZK | ||
| 94 | 641416-00 | 3 | DESKA | XJ | |
31.20 CZK | ||
| 95 | 641453-00 | 2 | DESKA | XJ | |
91.00 CZK | ||
| 96 | 641498-00SV | 1 | STŮL SA | XJ | ||||
| 98 | 330045-05 | 12 | ŠROUB | XJ | |
13.00 CZK | ||
| 99 | 49787-00 | 1 | O-KROUŽEK | XJ | |
13.00 CZK | ||
| 100 | 98025-35 | 1 | ŠROUB | XJ | |
20.80 CZK | ||
| 101 | N044739 | 1 | POJISTNÁ MATICE | XJ | |
13.00 CZK | ||
| 102 | 153792-00 | 2 | PODLOŽKA | XJ | |
13.00 CZK | ||
| 103 | 641443-00 | 1 | ZÁPADKA | XJ | |
366.60 CZK | ||
| 104 | 604410-00 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 105 | 391358-01 | 1 | DRŽÁK | XJ | |
31.20 CZK | ||
| 106 | 608563-01 | 1 | SPECIÁLNÍ KLÍČ | M13 - T30 | XJ | |
91.00 CZK | |
| 107 | 641452-00 | 1 | UKAZATEL | MITER | XJ | |
20.80 CZK | |
| 108 | 641446-00 | 1 | OVLADAČ | DETENT | XJ | |
57.20 CZK | |
| 110 | 330045-44 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 112 | 397070-00 | 1 | PRUŽINA | XJ | |
83.20 CZK | ||
| 115 | 641448-00 | 1 | UPÍNACÍ PŘÍPRAVEK | XJ | |
13.00 CZK | ||
| 116 | 641456-00 | 1 | PÁKA | MITER LOCK | XJ | |
91.00 CZK | |
| 117 | 659090-00 | 1 | KOLÍK | MITER DRIVE | XJ | |
52.00 CZK | |
| 118 | 624460-00 | 1 | KOLÍK | XJ | |
26.00 CZK | ||
| 119 | 624461-00 | 1 | OBJÍMKA | XJ | |
20.80 CZK | ||
| 120 | 641447-00 | 1 | TYČ | MITER LOCK | XJ | |
62.40 CZK | |
| 121 | 641424-00 | 1 | BLOK | MITER CLAMP | XJ | |
83.20 CZK | |
| 123 | 618253-00 | 1 | STLAČENÍ PRUŽINY | XJ | |
13.00 CZK | ||
| 124 | 624730-00 | 1 | RUKOJEŤ SA | XJ | |
252.20 CZK | ||
| 125 | 330045-18 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 126 | 330019-32 | 5 | ŠROUB | XJ | |
13.00 CZK | ||
| 127 | 618270-00 | 1 | KRYT | HANDLE CAVITY | DCODE <2015-05 | XJ | |
57.20 CZK |
| 128 | N548978V | 1 | SPÍNAČ | XJ | ||||
| 129 | 384127-01 | 4 | ŠROUB | XJ | |
13.00 CZK | ||
| 130 | 330045-23 | 3 | ŠROUB | XJ | |
20.80 CZK | ||
| 131 | 618276-00 | 1 | KABEL MOTORU | XJ | |
215.80 CZK | ||
| 133 | 641438-00 | 1 | HANDLE | XJ | |
91.00 CZK | ||
| 134 | 330019-22 | 1 | ŠROUB | M5.74x32 | XJ | |
13.00 CZK | |
| 135 | 659008-00 | 1 | KABELOVÁ PŘÍCHYTKA | XJ | |
20.80 CZK | ||
| 136 | N467585 | 1 | KABEL SA | CORD, LASER | XJ | |||
| 137 | 641430-00 | 1 | KRYT | LASER WIRE | XJ | |
20.80 CZK | |
| 140 | 641475-00SV | 1 | PRAVÉ PRAVÍTKO | XJ | ||||
| 141 | 147107-02 | 3 | SPODNÍ OVLADAČ | XJ | |
31.20 CZK | ||
| 142 | 098105-03 | 5 | ŠROUB | XJ | ||||
| 143 | 391317-00 | 1 | PŘENOSNÉ POUZDRO | XJ | |
252.20 CZK | ||
| 146 | 394036-00 | 1 | DESKA | XJ | |
252.20 CZK | ||
| 147 | 394034-00 | 1 | ŠROUB | XJ | |
26.00 CZK | ||
| 148 | 605040-32 | 1 | LOŽISKO | XJ | 106.60 CZK | |||
| 149 | N110359 | 1 | LOŽISKO | XJ | |
36.40 CZK | ||
| 150 | 144803-00 | 1 | POJISTNÝ KROUŽEK | XJ | |
20.80 CZK | ||
| 151 | 145312-00 | 1 | KOLÍK | XJ | |
13.00 CZK | ||
| 152 | 98094-55 | 4 | ŠROUB | M5 X 55mm T25 | XJ | |
13.00 CZK | |
| 154 | 330019-13 | 4 | ŠROUB | M4X19 T20 | XJ | |
13.00 CZK | |
| 155 | 330019-19 | 2 | ŠROUB | XJ | |
20.80 CZK | ||
| 156 | 391375-00 | 1 | BAFFLE FAN | XJ | |
52.00 CZK | ||
| 157 | 389512-01 | 1 | BRUSH PLATE | XJ | |
332.80 CZK | ||
| 158 | 391325-00 | 1 | IDENTIFIKAČNÍ ŠTÍTEK | XJ | |
13.00 CZK | ||
| 160 | 153783-00 | 1 | KROUŽEK | XJ | |
20.80 CZK | ||
| 162 | 330045-13 | 3 | ŠROUB | M5x0.8x10 MTL THDFMG | XJ | |
13.00 CZK | |
| 163 | 330019-12 | 1 | ŠROUB | XJ | |
13.00 CZK | ||
| 170 | 641496-00SV | 1 | TRUNION | XJ | |
6929.00 CZK | ||
| 171 | 650165-00 | 8 | ŠROUB | M6 X 25 | XJ | |
13.00 CZK | |
| 172 | 397118-00 | 3 | VODÍTKO | XJ | |
41.60 CZK | ||
| 173 | 153576-04 | 1 | ŠROUB | XJ | |
57.20 CZK | ||
| 174 | 613497-00 | 1 | TLAČNÁ DESKA | XJ | |
13.00 CZK | ||
| 175 | 153586-00 | 2 | PODLOŽKA | XJ | |
20.80 CZK | ||
| 176 | 660786-00 | 1 | POUZDRO | XJ | ||||
| 178 | 641444-00 | 1 | OBJÍMKA | XJ | |
26.00 CZK | ||
| 179 | 330045-24 | 2 | ŠROUB | XJ | |
13.00 CZK | ||
| 180 | 385915-04 | 2 | ŠROUB | XJ | |
13.00 CZK | ||
| 182 | 682149-00 | 1 | POUZDRO | XJ | |
70.20 CZK | ||
| 183 | 659919-00 | 1 | PRUŽINA | XJ | |
26.00 CZK | ||
| 193 | 645746-00 | 1 | POUZDRO | XJ | |
36.40 CZK | ||
| 200 | 395021-00 | 1 | ŠTÍTEK | XJ | |
57.20 CZK | ||
| 202 | 148608-00 | 2 | VLOŽKA | XJ | |
13.00 CZK | ||
| 203 | 386780-00 | 2 | LOŽISKO | XJ | |
57.20 CZK | ||
| 207 | 641432-00 | 1 | OTOČNÝ BLOK | XJ | 127.40 CZK | |||
| 208 | 146768-00 | 1 | NÁRAZNÍK | XJ | |
20.80 CZK | ||
| 209 | 641436-00 | 1 | SPOJ | XJ | |
70.20 CZK | ||
| 212 | 146750-03 | 1 | UPÍNACÍ DESKA | XJ | |
52.00 CZK | ||
| 213 | N034013 | 1 | PRUŽINA | XJ | ||||
| 214 | 148295-00 | 1 | OBJÍMKA | XJ | |
31.20 CZK | ||
| 215 | 625825-00 | 2 | VÁLEC | XJ | |
20.80 CZK | ||
| 216 | 142273-00 | 5 | KROUŽEK | XJ | |
13.00 CZK | ||
| 217 | 394976-00 | 2 | ŠTÍTEK | WARNING | XJ | |
41.60 CZK | |
| 218 | 618234-00 | 1 | ZÁVRTNÝ ŠROUB | XJ | |
83.20 CZK | ||
| 219 | 153666-00 | 4 | ŠROUB | set screw M8 x 8mm long | XJ | |
13.00 CZK | |
| 221 | 145332-00 | 4 | SVORKA | XJ | |
13.00 CZK | ||
| 222 | 450212-00 | 1 | SVORKA | XJ | |
20.80 CZK | ||
| 224 | 381028-08 | 2 | UHLÍK A VODIČ | XJ | |
127.40 CZK | ||
| 225 | 395716-00 | 3 | SVORKA | RING | XJ | |
20.80 CZK | |
| 226 | 660029-00 | 2 | PŘÍCHYTKA STRUNY | XJ | |
20.80 CZK | ||
| 230 | 152852-00 | 1 | ŠROUB | XJ | |
26.00 CZK | ||
| 231 | 386196-00 | 1 | PRUŽINA | XJ | |
31.20 CZK | ||
| 236 | 618159-01 | 1 | VODIČ SA | LASER POWER SUPPLY | XJ | |
215.80 CZK | |
| 237 | 393520-00 | 1 | SVORKOVNICE | XJ | |
83.20 CZK | ||
| 238 | 388414-01 | 1 | POUZDRO | XJ | |
41.60 CZK | ||
| 239 | 147734-06 | 1 | DUSTBAG | XJ | |
106.60 CZK | ||
| 240 | 630065-00 | 1 | SVORKA SA | XJ | |
252.20 CZK | ||
| 241 | 641442-00 | 2 | ŠROUB | THREAD FORMING | XJ | |
31.20 CZK | |
| 242 | 641426-00 | 1 | MĚŘÍTKO ŠIKMÝCH ŘEZŮ | XJ | |
62.40 CZK | ||
| 243 | 618277-00 | 1 | ŠTÍTEK OTOČNÝ | RIGHT | RH | XJ | |
26.00 CZK |
| 244 | 618278-00 | 1 | ŠTÍTEK OTOČNÝ | LEFT | LH | XJ | |
26.00 CZK |
| 245 | 641427-00 | 1 | SPOJ | SLIDE LOCK | XJ | |
41.60 CZK | |
| 247 | 616001-00 | 2 | ŠROUB | XJ | |
13.00 CZK | ||
| 248 | 641482-00 | 1 | DEFLEKTOR | RIGHT | XJ | |
20.80 CZK | |
| 249 | 641481-00 | 1 | DEFLEKTOR | XJ | |
20.80 CZK | ||
| 250 | 641483-00 | 1 | ŠTÍTEK | SLIDE LOCK | XJ | |
31.20 CZK | |
| 251 | 641421-00 | 1 | HŘÍDEL | XJ | ||||
| 252 | 641423-00 | 2 | PRUŽINA | XJ | ||||
| 253 | 641422-00 | 2 | OVLADAČ | MITER OVERRIDE | XJ | |||
| 255 | N175841 | 1 | OTVOR PRO ODVOD PRACHU | XJ | |
174.20 CZK | ||
| 256 | 330019-02 | 3 | ŠROUB | XJ | |
13.00 CZK | ||
| 259 | 330019-05 | 2 | ŠROUB | XJ | |
13.00 CZK | ||
| 260 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | XJ | |
13.00 CZK | |
| 261 | 661663-00 | 1 | LOPATKA | XJ | |
70.20 CZK | ||
| 262 | 661662-00 | 1 | KRYT | Euro Compliance | XJ | |
57.20 CZK | |
| 263 | 330019-11 | 2 | ŠROUB | M4.55x13 T20 | XJ | |
13.00 CZK | |
| 800 | 5140061-28 | 1 | MAZIVO | XJ | |
1094.60 CZK | ||
| 800 | 93488-00 | 1 | MAZIVO | XJ | |
252.20 CZK |
* Jedná se o orientační ceny, které se mohou lišit a jsou uvedeny bez DPH a náklady na dopravu.Vyhrazujeme si právo na změnu cen a podmínek bez předchozího upozornění.
