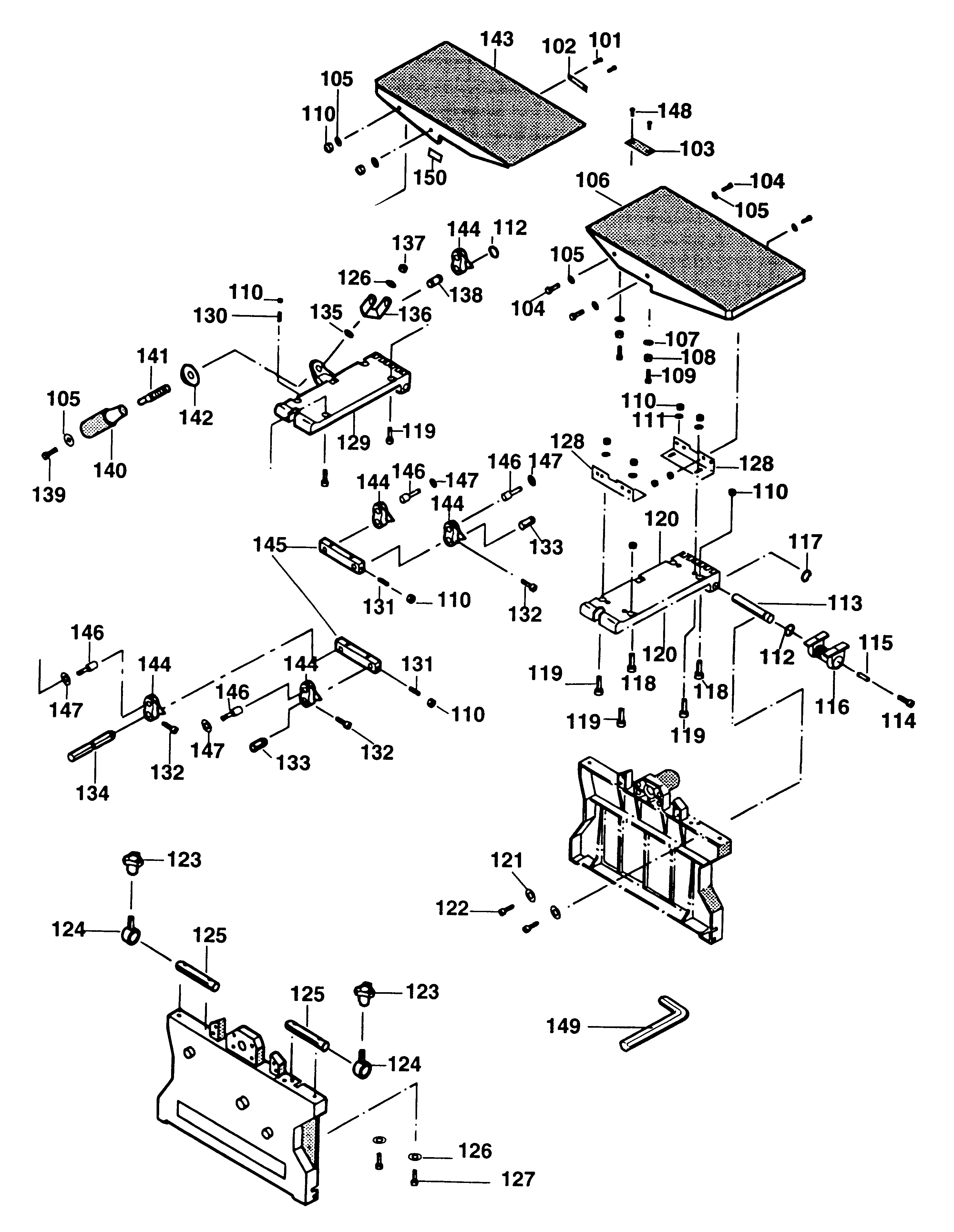

EPT1151 HOBEL-SPANNTIEFEN Type 1 | Zeichnungen
Dokumente
Parts List
Bitte Drop-down-Menü beachten, da es für einige Produkte mehrere Zeichnungen geben kann
Druckfreundlich
Ganze Seite anzeigen
| Item No. | Product Number | Qty Per | Product Description | ALLGEMEINE BESCHREIBUNG | Other Info | Märkte | Product Status | Richtpreis |
|---|---|---|---|---|---|---|---|---|
| 1 | 860226-03 | 11 | DISTANZSCHEIBE | XJ |  |
0.80 EUR | ||
| 3 | 123288-00 | 4 | SPINDEL | XJ | |
22.30 EUR | ||
| 4 | 123317-02 | 1 | TISCH | XJ | |
134.30 EUR | ||
| 5 | 132366 | 1 | ZEIGER | XJ | |
3.80 EUR | ||
| 6 | 860238-04 | 2 | SCHRAUBE | XJ |  |
0.80 EUR | ||
| 7 | 123211-00 | 1 | SCHIENE | XJ | |
4.40 EUR | ||
| 8 | 860093-06 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 10 | 863665-00 | 1 | KAPPE | XJ | |
2.60 EUR | ||
| 12 | 860085-04 | 14 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 13 | 860073-03 | 17 | WASHER M8 | CH 1 Ph | XJ | |
0.80 EUR | |
| 13 | 860073-03 | 15 | WASHER M8 | GB 1 Ph | XJ | |
0.80 EUR | |
| 13 | 860073-03 | 17 | WASHER M8 | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 13 | 860073-03 | 15 | WASHER M8 | ES 1 Ph | XJ | |
0.80 EUR | |
| 14 | 860083-15 | 4 | MUTTER | XJ | |
0.80 EUR | ||
| 15 | 32004 | 4 | FUSS | XJ | |
1.30 EUR | ||
| 16 | 860093-00 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 17 | 860083-04 | 16 | MUTTER | XJ | |
0.80 EUR | ||
| 18 | 866962-01 | 1 | KNOPF | XJ | |
0.90 EUR | ||
| 19 | 946474-00 | 1 | GRIFF ZSB | XJ | |
13.90 EUR | ||
| 20 | 866089-01 | 1 | SPINDEL | XJ | |
25.10 EUR | ||
| 21 | 123244-00 | 2 | BUCHSE | XJ | |
1.10 EUR | ||
| 22 | 123283-01 | 1 | HALTERUNG | XJ | |
20.90 EUR | ||
| 23 | 866089-01 | 1 | SPINDEL | XJ | |
25.10 EUR | ||
| 24 | 760233-00 | 1 | STIFT | XJ | |
0.80 EUR | ||
| 25 | 123225-00 | 1 | STIFT | XJ | |
2.90 EUR | ||
| 26 | 860585-00 | 1 | GETRIEBE | XJ | |
2.20 EUR | ||
| 27 | 860094-02 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 28 | 860073-00 | 5 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 29 | 863662-00 | 1 | SKALA | XJ | |
1.30 EUR | ||
| 30 | 176479 | 1 | SEITE RECHTS | XJ | |
54.40 EUR | ||
| 31 | 949876-05 | 3 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 32 | 123237-00 | 1 | KETTE | XJ | |
22.30 EUR | ||
| 33 | 860092-01 | 4 | MUTTER | XJ | |
0.80 EUR | ||
| 34 | 123222-00 | 4 | ZWISCHENWELLE | XJ | |
1.30 EUR | ||
| 35 | 37530 | 1 | TYPENSCHILD | CH 1 Ph | XJ | |
3.80 EUR | |
| 35 | 37530 | 1 | TYPENSCHILD | AT-DE, 1 Ph | XJ | |
3.80 EUR | |
| 35 | 37530 | 1 | TYPENSCHILD | ES 1 Ph | XJ | |
3.80 EUR | |
| 35 | 37609 | 1 | TYPENSCHILD | GB 1 Ph | XJ | |
3.80 EUR | |
| 36 | 123215-00 | 1 | RAHMEN | XJ | |
9.00 EUR | ||
| 37 | 760998-00 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 38 | 123216-00 | 1 | RAHMEN | XJ | |
4.40 EUR | ||
| 39 | 862620-00 | 1 | TYPENSCHILD | XJ | |
2.40 EUR | ||
| 40 | 132096 | 1 | BODENPLATTE | XJ | |
54.40 EUR | ||
| 41 | 123263-01 | 1 | HAKEN LINKS | XJ | |
1.50 EUR | ||
| 42 | 860083-01 | 2 | MUTTER | XJ | |
0.80 EUR | ||
| 43 | 123203-00 | 2 | FEDER | XJ | |
2.90 EUR | ||
| 44 | 123265-01 | 1 | HAKEN RECHTS | XJ | |
1.50 EUR | ||
| 45 | 860089-25 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 46 | 123269-02 | 1 | SCHUTZ | XJ | |
31.40 EUR | ||
| 47 | 860263-00 | 1 | HANDLE | XJ | |
5.40 EUR | ||
| 48 | 863664-01 | 1 | ADAPTER | CH 1 Ph | XJ | |
47.90 EUR | |
| 48 | 863664-01 | 1 | ADAPTER | AT-DE, 1 Ph | XJ | |
47.90 EUR | |
| 49 | 946469-00 | 2 | KNOPF | CH 1 Ph | XJ | |
0.90 EUR | |
| 49 | 946469-00 | 2 | KNOPF | AT-DE, 1 Ph | XJ | |
0.90 EUR | |
| 50 | 865410-00 | 1 | BEFESTIGER | GB 1 Ph | XJ | |
0.80 EUR | |
| 51 | 860084-21 | 1 | SCHRAUBE | GB 1 Ph | XJ | |
0.80 EUR | |
| 52 | 860301-00 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 52 | 860301-00 | 2 | SCHRAUBE | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 101 | 860094-02 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 102 | 123230-00 | 1 | MERKMAL | XJ | |
0.90 EUR | ||
| 103 | 32357 | 1 | SKALA | XJ | |
18.30 EUR | ||
| 104 | 860085-19 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 105 | 860073-03 | 9 | WASHER M8 | XJ | |
0.80 EUR | ||
| 106 | 176444 | 1 | HOBELTISCH | CH 1 Ph | XJ | |
64.90 EUR | |
| 106 | 867461-00 | 1 | HOBELTISCH | GB 1 Ph | XJ | |
97.60 EUR | |
| 106 | 867461-00 | 1 | HOBELTISCH | AT-DE, 1 Ph | XJ | |
97.60 EUR | |
| 106 | 867461-00 | 1 | HOBELTISCH | ES 1 Ph | XJ | |
97.60 EUR | |
| 107 | 860083-18 | 4 | MUTTER M5 | XJ | |
0.80 EUR | ||
| 108 | 860083-02 | 4 | MUTTER | XJ | |
0.80 EUR | ||
| 109 | 860085-06 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 110 | 860083-04 | 18 | MUTTER | XJ | |
0.80 EUR | ||
| 111 | 860074-03 | 4 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 112 | 860079-04 | 4 | HALTER | XJ | |
0.80 EUR | ||
| 113 | 863647-00 | 1 | STIFT | XJ | |
9.99 EUR | ||
| 114 | 860093-11 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 115 | 123255-00 | 2 | FEDER | XJ | |
0.80 EUR | ||
| 116 | 863414-00 | 2 | SCHLOSS | XJ | |
2.20 EUR | ||
| 117 | 863971-00 | 3 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 118 | 860093-07 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 119 | 860093-02 | 8 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 120 | 123308-02 | 1 | TISCHHALTERUNG | GB 1 Ph | XJ | |
29.30 EUR | |
| 120 | 123308-02 | 1 | TISCHHALTERUNG | AT-DE, 1 Ph | XJ | |
29.30 EUR | |
| 120 | 123308-02 | 1 | TISCHHALTERUNG | ES 1 Ph | XJ | |
29.30 EUR | |
| 120 | 176428 | 1 | TISCHHALTERUNG | CH 1 Ph | XJ | |
34.80 EUR | |
| 121 | 860074-02 | 4 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 122 | 860093-06 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 123 | 865405-01 | 2 | KNOPF | XJ | |
3.50 EUR | ||
| 124 | 123291-00 | 2 | BOLZEN | XJ | |
2.20 EUR | ||
| 125 | 123290-01 | 2 | SCHRAUBE | XJ | |
5.40 EUR | ||
| 126 | 720959-00 | 5 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 127 | 860093-15 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 128 | 123296-01 | 2 | HALTER | XJ | |
2.90 EUR | ||
| 129 | 123312-03 | 1 | TISCHHALTERUNG | XJ | |
43.70 EUR | ||
| 130 | 949853-08 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 131 | 949853-07 | 4 | SCHRAUBE | XJ | |
1.30 EUR | ||
| 132 | 949886-11 | 5 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 133 | 863289-00 | 2 | STIFT | XJ | |
0.90 EUR | ||
| 134 | 123275-01 | 1 | SCHIENE | XJ | |
5.40 EUR | ||
| 135 | 942049-00 | 1 | FEDERSCHEIBE | XJ | |
0.80 EUR | ||
| 136 | 863656-00 | 1 | BUEGEL | XJ | |
7.20 EUR | ||
| 137 | 860092-00 | 1 | MUTTER | XJ | |
0.80 EUR | ||
| 138 | 123295-00 | 1 | STIFT | XJ | |
1.80 EUR | ||
| 139 | 949886-16 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 140 | 866688-01 | 1 | HANDLE | XJ | |
2.90 EUR | ||
| 141 | 863660-00 | 1 | KNOPF | XJ | |
7.20 EUR | ||
| 142 | 123227-00 | 1 | LOCK-NUT | XJ | |
3.80 EUR | ||
| 143 | 176456 | 1 | HOBELTISCH | XJ | |
106.10 EUR | ||
| 144 | 863653-00 | 5 | VERBINDER | XJ | |
2.60 EUR | ||
| 145 | 123274-01 | 2 | HALTERUNG | XJ | |
13.90 EUR | ||
| 146 | 863218-00 | 4 | STIFT | XJ | |
2.40 EUR | ||
| 147 | 863702-00 | 4 | DISTANZSCHEIBE | XJ | |
0.80 EUR | ||
| 148 | 860060-01 | 2 | NIETE | XJ | |
0.80 EUR | ||
| 149 | 860098-04 | 1 | WRENCH 6 MM | XJ | |
0.90 EUR | ||
| 150 | 32392 | 2 | TYPENSCHILD | XJ | |
1.80 EUR | ||
| 201 | 123286-00 | 2 | ZWISCHENWELLE | XJ | |
2.20 EUR | ||
| 202 | 123236-00 | 1 | KETTE | XJ | |
9.00 EUR | ||
| 203 | 860226-02 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 204 | 123281-02 | 2 | ROLLER | XJ | |
47.90 EUR | ||
| 205 | 860318-00 | 1 | SCHLUESSEL | XJ | |
1.10 EUR | ||
| 206 | 131426 | 1 | SCHNEIDBLOCK ZSB | XJ | |
336.70 EUR | ||
| 207 | 942043-00 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 208 | 863658-00 | 2 | BLOCK | XJ | |
2.20 EUR | ||
| 209 | 868768-10 | 2 | KUGELLAGER | XJ | |
9.99 EUR | ||
| 210 | 863644-00 | 2 | SCHRAUBE | XJ | |
2.90 EUR | ||
| 211 | 949703-04 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 212 | 123266-00 | 2 | FESTSTELLKEIL | XJ | |
52.00 EUR | ||
| 214 | 860093-06 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 215 | 860074-03 | 4 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 216 | 941563-00 | 4 | MUTTER | XJ | |
1.10 EUR | ||
| 217 | 123232-00 | 2 | FEDER | XJ | |
1.30 EUR | ||
| 218 | 123233-00 | 2 | FEDER | XJ | |
1.30 EUR | ||
| 219 | 123210-00 | 49 | ANTI-RUECKSCHLAG | XJ | |
0.90 EUR | ||
| 220 | 860073-04 | 25 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 221 | 123212-00 | 1 | ANSCHLAGSCHIENE | XJ | |
3.50 EUR | ||
| 222 | 123264-00 | 2 | BUCHSE | XJ | |
1.10 EUR | ||
| 223 | 860083-05 | 1 | NUT RH | XJ | |
0.80 EUR | ||
| 224 | 860074-04 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 225 | 860074-05 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 226 | 860083-03 | 4 | MUTTER | XJ | |
0.80 EUR | ||
| 227 | 123298-00 | 3 | FESTSTELLSTIFT | XJ | |
1.10 EUR | ||
| 228 | 123287-00 | 1 | STIFT | XJ | |
7.20 EUR | ||
| 229 | 123318-00 | 1 | HEBEL | XJ | |
25.10 EUR | ||
| 230 | 860367-00 | 1 | HANDLE | XJ | |
1.30 EUR | ||
| 231 | 123228-00 | 1 | HEBEL | XJ | |
2.90 EUR | ||
| 232 | 863807-00 | 1 | PLATTE | XJ | |
0.80 EUR | ||
| 233 | 860331-00 | 1 | FEDER | XJ | |
0.90 EUR | ||
| 234 | 860073-10 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 235 | 123218-00 | 1 | ZAHNRAD | XJ | |
12.20 EUR | ||
| 236 | 860079-02 | 2 | SPRENGRING | XJ | |
0.80 EUR | ||
| 237 | 123246-00 | 1 | ZAHNRIEMEN | XJ | |
12.20 EUR | ||
| 238 | 123219-00 | 1 | BUCHSE | XJ | |
5.90 EUR | ||
| 239 | 123316-00 | 1 | ANTRIEBSRAD | XJ | |
9.99 EUR | ||
| 240 | 860079-04 | 1 | HALTER | XJ | |
0.80 EUR | ||
| 241 | 123240-00 | 1 | ZWISCHENWELLE | XJ | |
1.30 EUR | ||
| 242 | 863702-00 | 1 | DISTANZSCHEIBE | XJ | |
0.80 EUR | ||
| 243 | 123220-00 | 1 | STIFT | XJ | |
1.30 EUR | ||
| 244 | 860075-00 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 245 | 949754-05 | 1 | RIEMEN | XJ | |
18.30 EUR | ||
| 246 | 123234-00 | 1 | FEDER | XJ | |
1.30 EUR | ||
| 247 | 123300-00 | 1 | ANTRIEBSRAD | XJ | |
9.99 EUR | ||
| 248 | 941880-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 249 | 123211-00 | 2 | SCHIENE | XJ | |
4.40 EUR | ||
| 250 | 943271-00 | 1 | HEX KEY 2.5 MM | XJ | |
0.80 EUR | ||
| 251 | 949751-07 | 1 | SPANNER 10-13MM | XJ | |
2.40 EUR | ||
| 252 | 863648-00 | 1 | INSTRUMENT | AT-DE, 1 Ph | XJ | |
2.20 EUR | |
| 301 | 860094-01 | 3 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 302 | 860060-01 | 2 | NIETE | XJ | |
0.80 EUR | ||
| 304 | 944454-00 | 1 | ABDECKUNG | XJ | |
5.40 EUR | ||
| 305 | 860133-00 | 1 | KAPPE | XJ | |
20.90 EUR | ||
| 306 | 860692-00 | 1 | KLIXON | XJ | |
78.10 EUR | ||
| 307 | 860094-03 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 308 | 944650-00 | 1 | FEDERSCHEIBE | XJ | |
0.80 EUR | ||
| 309 | 863877-00 | 1 | RING | XJ | |
0.90 EUR | ||
| 310 | 949747-07 | 1 | KAPPE | XJ | |
1.50 EUR | ||
| 312 | 944653-00 | 1 | KABELDURCHFUEHRUNG | XJ | |
15.30 EUR | ||
| 313 | 944652-00 | 1 | KABELDURCHFUEHRUNG | XJ | |
20.90 EUR | ||
| 315 | 860088-25 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 316 | 860687-03 | 1 | ENDKAPPE | XJ | |
5.40 EUR | ||
| 317 | 860094-05 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 318 | 860688-00 | 1 | LÜFTER | XJ | |
7.20 EUR | ||
| 321 | 860701-00 | 1 | GEHAEUSE | XJ | |
16.70 EUR | ||
| 322 | 860718-00 | 2 | DICHTUNG | XJ | |
3.80 EUR | ||
| 323 | 860080-02 | 1 | RING | XJ | |
0.80 EUR | ||
| 324 | 868768-08 | 1 | KUGELLAGER | XJ | |
7.20 EUR | ||
| 325 | 860446-01 | 4 | BOLZEN | XJ | |
0.90 EUR | ||
| 326 | 868425-01 | 1 | ANKER | XJ | |
66.40 EUR | ||
| 327 | 860539-01 | 1 | SCHLUESSEL | XJ | |
0.80 EUR | ||
| 328 | 198756 | 1 | STATOR 220V | GB 1 Ph | XJ | |
200.30 EUR | |
| 328 | 198755 | 1 | STATOR 1 PH | CH 1 Ph | XJ | |
200.30 EUR | |
| 328 | 198755 | 1 | STATOR 1 PH | AT-DE, 1 Ph | XJ | |
200.30 EUR | |
| 328 | 198755 | 1 | STATOR 1 PH | ES 1 Ph | XJ | |
200.30 EUR | |
| 329 | 860073-14 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 330 | 860093-15 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 331 | 123294-00 | 1 | DISTANZSCHEIBE | XJ | |
2.40 EUR | ||
| 332 | 942043-00 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 333 | 949702-19 | 2 | SCHRAUBE | XJ | |
1.10 EUR | ||
| 334 | 123292-00 | 2 | DISTANZSCHEIBE | XJ | |
2.60 EUR | ||
| 335 | 176576 | 1 | ANTRIEBSRAD | XJ | |
22.30 EUR | ||
| 337 | 860699-02 | 1 | AUFNAHMEDORN | XJ | |
16.70 EUR | ||
| 338 | 860073-03 | 3 | WASHER M8 | XJ | |
0.80 EUR | ||
| 339 | 860083-04 | 3 | MUTTER | XJ | |
0.80 EUR | ||
| 341 | 868768-10 | 1 | KUGELLAGER | XJ | |
9.99 EUR | ||
| 344 | 860540-00 | 4 | VERBINDER | XJ | |
0.80 EUR | ||
| 345 | 944455-00 | 1 | KONDENSATOR | XJ | |
12.20 EUR | ||
| 348 | 860702-00 | 1 | GEHAEUSE | XJ | |
67.30 EUR | ||
| 349 | 860094-00 | 1 | SCREW.TEMP | XJ | |
0.80 EUR | ||
| 350 | 860708-00 | 1 | DICHTUNG | XJ | |
2.60 EUR | ||
| 355 | 144432 | 1 | KABEL | GB 1 Ph | XJ | |
5.90 EUR | |
| 355 | 144432 | 1 | KABEL | ES 1 Ph | XJ | |
5.90 EUR | |
| 356 | 44895 | 1 | SWITCH 1 PH | GB 1 Ph | XJ | |
97.60 EUR | |
| 356 | 44895 | 1 | SWITCH 1 PH | ES 1 Ph | XJ | |
97.60 EUR | |
| 357 | 149199 | 1 | KABEL | ES 1 Ph | XJ | |
16.70 EUR | |
| 357 | 949863-23 | 1 | KABEL ZSB | GB 1 Ph | XJ | |
45.70 EUR | |
| 358 | 132097 | 1 | SCHALTERHALTERUNG | GB 1 Ph | XJ | |
9.00 EUR | |
| 358 | 132097 | 1 | SCHALTERHALTERUNG | ES 1 Ph | XJ | |
9.00 EUR | |
| 359 | 11269 | 2 | SCHRAUBE | GB 1 Ph | XJ | |
0.80 EUR | |
| 359 | 11269 | 2 | SCHRAUBE | ES 1 Ph | XJ | |
0.80 EUR | |
| 360 | 860089-01 | 2 | SCHRAUBE | GB 1 Ph | XJ | |
0.80 EUR | |
| 360 | 860089-01 | 2 | SCHRAUBE | ES 1 Ph | XJ | |
0.80 EUR | |
| 361 | 860094-01 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 362 | 946085-00 | 1 | VERBINDER | XJ | |
7.20 EUR | ||
| 363 | 860073-01 | 1 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 364 | 11802 | 2 | EINLASS | GB 1 Ph | XJ | |
1.30 EUR | |
| 364 | 11802 | 2 | EINLASS | ES 1 Ph | XJ | |
1.30 EUR | |
| 365 | 11804 | 2 | KABELDURCHFUEHRUNG | GB 1 Ph | XJ | |
0.80 EUR | |
| 365 | 11804 | 2 | KABELDURCHFUEHRUNG | ES 1 Ph | XJ | |
0.80 EUR | |
| 366 | 44875 | 2 | MUTTER | GB 1 Ph | XJ | |
0.90 EUR | |
| 366 | 44875 | 2 | MUTTER | ES 1 Ph | XJ | |
0.90 EUR | |
| 367 | 760998-00 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 368 | 863561-00 | 1 | PLATTE | CH 1 Ph | XJ | |
6.50 EUR | |
| 368 | 863561-00 | 1 | PLATTE | AT-DE, 1 Ph | XJ | |
6.50 EUR | |
| 369 | 860093-14 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 369 | 860093-14 | 2 | SCHRAUBE | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 370 | 44515 | 1 | SWITCH 1 PH | CH 1 Ph | XJ | |
78.10 EUR | |
| 370 | 44515 | 1 | SWITCH 1 PH | AT-DE, 1 Ph | XJ | |
78.10 EUR | |
| 371 | 860089-13 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 371 | 860089-13 | 2 | SCHRAUBE | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 372 | 860083-02 | 2 | MUTTER | CH 1 Ph | XJ | |
0.80 EUR | |
| 372 | 860083-02 | 2 | MUTTER | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 373 | 860074-03 | 2 | UNTERLEGSCHEIBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 373 | 860074-03 | 2 | UNTERLEGSCHEIBE | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 401 | 32393 | 1 | STOP | GB 1 Ph | XJ | |
0.80 EUR | |
| 401 | 32393 | 1 | STOP | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 401 | 32393 | 1 | STOP | ES 1 Ph | XJ | |
0.80 EUR | |
| 402 | 199428 | 1 | SCHUTZ ZSB | GB 1 Ph | XJ | |
106.10 EUR | |
| 402 | 199428 | 1 | SCHUTZ ZSB | AT-DE, 1 Ph | XJ | |
106.10 EUR | |
| 402 | 199428 | 1 | SCHUTZ ZSB | ES 1 Ph | XJ | |
106.10 EUR | |
| 403 | 860205-06 | 2 | SCHRAUBE | GB 1 Ph | XJ | |
0.80 EUR | |
| 403 | 860205-06 | 2 | SCHRAUBE | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 403 | 860205-06 | 2 | SCHRAUBE | ES 1 Ph | XJ | |
0.80 EUR | |
| 404 | 32309 | 1 | PLATTE | GB 1 Ph | XJ | |
2.40 EUR | |
| 404 | 32309 | 1 | PLATTE | AT-DE, 1 Ph | XJ | |
2.40 EUR | |
| 404 | 32309 | 1 | PLATTE | ES 1 Ph | XJ | |
2.40 EUR | |
| 405 | 32378 | 1 | KNOPF | GB 1 Ph | XJ | |
3.80 EUR | |
| 405 | 32378 | 1 | KNOPF | AT-DE, 1 Ph | XJ | |
3.80 EUR | |
| 405 | 32378 | 1 | KNOPF | ES 1 Ph | XJ | |
3.80 EUR | |
| 406 | 860073-03 | 3 | WASHER M8 | GB 1 Ph | XJ | |
0.80 EUR | |
| 406 | 860073-03 | 3 | WASHER M8 | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 406 | 860073-03 | 3 | WASHER M8 | ES 1 Ph | XJ | |
0.80 EUR | |
| 408 | 32307 | 2 | SCHIENE | GB 1 Ph | XJ | |
15.30 EUR | |
| 408 | 32307 | 2 | SCHIENE | AT-DE, 1 Ph | XJ | |
15.30 EUR | |
| 408 | 32307 | 2 | SCHIENE | ES 1 Ph | XJ | |
15.30 EUR | |
| 409 | 32306 | 1 | HALTERUNG | GB 1 Ph | XJ | |
3.80 EUR | |
| 409 | 32306 | 1 | HALTERUNG | AT-DE, 1 Ph | XJ | |
3.80 EUR | |
| 409 | 32306 | 1 | HALTERUNG | ES 1 Ph | XJ | |
3.80 EUR | |
| 411 | 860092-00 | 2 | MUTTER | GB 1 Ph | XJ | |
0.80 EUR | |
| 411 | 860092-00 | 2 | MUTTER | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 411 | 860092-00 | 2 | MUTTER | ES 1 Ph | XJ | |
0.80 EUR | |
| 412 | 32311 | 1 | FEDER | GB 1 Ph | XJ | |
1.50 EUR | |
| 412 | 32311 | 1 | FEDER | AT-DE, 1 Ph | XJ | |
1.50 EUR | |
| 412 | 32311 | 1 | FEDER | ES 1 Ph | XJ | |
1.50 EUR | |
| 413 | 860079-03 | 1 | SPRENGRING | GB 1 Ph | XJ | |
0.80 EUR | |
| 413 | 860079-03 | 1 | SPRENGRING | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 413 | 860079-03 | 1 | SPRENGRING | ES 1 Ph | XJ | |
0.80 EUR | |
| 414 | 32310 | 1 | FEDER | AT-DE, 1 Ph | XJ | |
3.80 EUR | |
| 414 | 32310 | 1 | FEDER | ES 1 Ph | XJ | |
3.80 EUR | |
| 414 | 31909 | 1 | FEDER | GB 1 Ph | XJ | |
4.40 EUR | |
| 415 | 32305 | 1 | STIFT | GB 1 Ph | XJ | |
7.20 EUR | |
| 415 | 32305 | 1 | STIFT | AT-DE, 1 Ph | XJ | |
7.20 EUR | |
| 415 | 32305 | 1 | STIFT | ES 1 Ph | XJ | |
7.20 EUR | |
| 416 | 11453 | 1 | STIFT | GB 1 Ph | XJ | |
0.80 EUR | |
| 416 | 11453 | 1 | STIFT | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 416 | 11453 | 1 | STIFT | ES 1 Ph | XJ | |
0.80 EUR | |
| 417 | 860083-04 | 1 | MUTTER | GB 1 Ph | XJ | |
0.80 EUR | |
| 417 | 860083-04 | 1 | MUTTER | AT-DE, 1 Ph | XJ | |
0.80 EUR | |
| 417 | 860083-04 | 1 | MUTTER | ES 1 Ph | XJ | |
0.80 EUR | |
| 418 | 860311-00 | 1 | KAPPE | XJ | |
0.80 EUR | ||
| 419 | 860305-00 | 1 | DISTANZSCHEIBE | XJ | |
2.90 EUR | ||
| 420 | 860085-07 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 421 | 860074-02 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 422 | 860306-00 | 1 | HALTER | XJ | |
4.40 EUR | ||
| 423 | 861840-00 | 2 | HANDLE | XJ | |
4.40 EUR | ||
| 424 | 860311-01 | 1 | KAPPE | XJ | |
0.80 EUR | ||
| 425 | 860373-00 | 2 | PLATTE | XJ | |
1.10 EUR | ||
| 426 | 860074-03 | 5 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 427 | 860093-04 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 428 | 860310-00 | 2 | MUTTER | XJ | |
1.30 EUR | ||
| 429 | 943520-00 | 2 | BOLZEN | XJ | |
0.80 EUR | ||
| 430 | 860093-00 | 4 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 431 | 860083-02 | 2 | MUTTER | XJ | |
0.80 EUR | ||
| 432 | 862169-00 | 1 | HALTER | XJ | |
9.00 EUR | ||
| 433 | 860073-01 | 2 | UNTERLEGSCHEIBE | XJ | |
0.80 EUR | ||
| 434 | 860089-18 | 2 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 435 | 860083-04 | 4 | MUTTER | XJ | |
0.80 EUR | ||
| 436 | 862484-00 | 1 | FUHRUNG | XJ | |
12.20 EUR | ||
| 436 | 862484-00 | 1 | FUHRUNG | XJ | |
12.20 EUR | ||
| 437 | 860309-00 | 1 | EINSATZ | XJ | |
1.10 EUR | ||
| 438 | 860085-06 | 1 | SCHRAUBE | XJ | |
0.80 EUR | ||
| 439 | 35039 | 1 | ANSCHLAG | XJ | |
45.70 EUR | ||
| 440 | 860308-00 | 1 | STIFT | XJ | |
3.50 EUR | ||
| 441 | 860083-03 | 2 | MUTTER | XJ | |
0.80 EUR | ||
| 442 | 860093-17 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 443 | 132445 | 1 | HALTERUNG | CH 1 Ph | XJ | |
27.30 EUR | |
| 444 | 860074-01 | 2 | UNTERLEGSCHEIBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 445 | 11276 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 446 | 32273 | 1 | DISTANZSCHEIBE | CH 1 Ph | XJ | |
12.20 EUR | |
| 447 | 860093-06 | 2 | SCHRAUBE | CH 1 Ph | XJ | |
0.80 EUR | |
| 448 | 860075-00 | 2 | UNTERLEGSCHEIBE | CH 1 Ph | XJ | |
0.80 EUR |
* Die angezeigten Preise sind unverbindliche Listenpreise ohne MwSt und Versandkosten.Wir behalten uns das Recht vor, Preise und Bedingungen ohne vorherige Ankündigung zu ändern.
