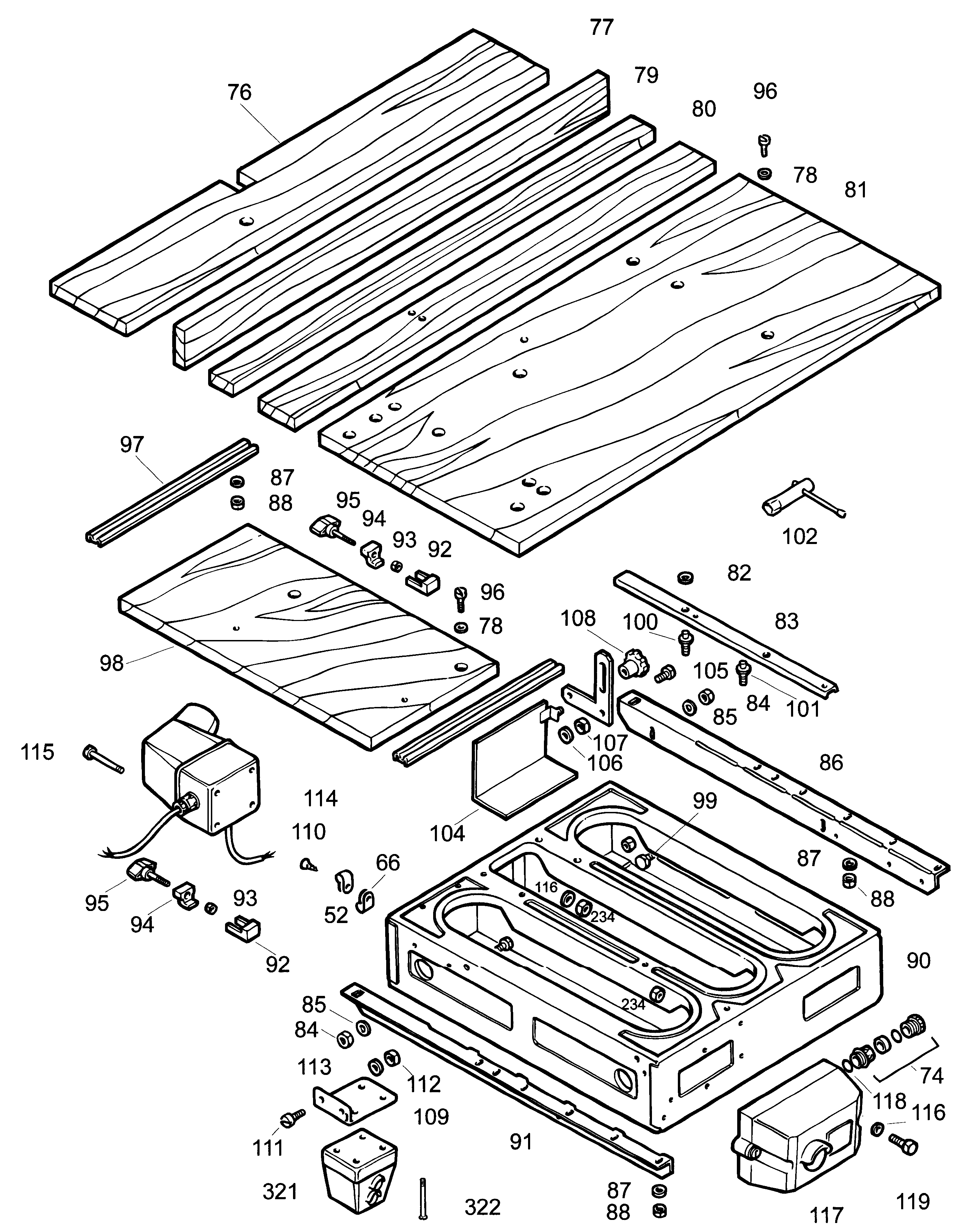

DW1251 RADIAL ARM SAW Type 1 | Tegninger
Dokumenter
Artikeliste
Se rullemenuen, da nogle produkter muligvis har flere tegninger
Udskrivningsvenlig
Vis hele siden
| Item No. | Product Number | Qty Per | Product Description | BESKRIVELSE | Other Info | Markets | Product Status | Vejledende pris |
|---|---|---|---|---|---|---|---|---|
| 1 | 860792-00 | 1 | KNOB SA | DK |  |
51.44 DKK | ||
| 2 | 934401-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 3 | 860085-10 | 2 | SCREW | DK | |
17.34 DKK | ||
| 5 | 860784-00 | 1 | CAP | DK | |
42.60 DKK | ||
| 6 | 860531-00 | 3 | SCREW | DK | |
17.34 DKK | ||
| 7 | 860073-00 | 2 | WASHER | DK | |
17.34 DKK | ||
| 8 | 860237-00 | 1 | POINTER | DK | |
17.34 DKK | ||
| 10 | 863723-00 | 1 | SPRING | DK |  |
17.34 DKK | ||
| 11 | 860301-00 | 2 | SCREW | DK | |
17.34 DKK | ||
| 12 | 860787-90 | 1 | SUPPORT | DK | |
51.44 DKK | ||
| 13 | 860074-03 | 2 | WASHER | DK | |
17.34 DKK | ||
| 14 | 860093-07 | 2 | SCREW | DK | |
17.34 DKK | ||
| 15 | 946469-00 | 2 | KNOB | DK | |
17.34 DKK | ||
| 16 | 720959-00 | 2 | WASHER | DK | |
17.34 DKK | ||
| 17 | 860852-90 | 1 | ARM | DK | |
62.12 DKK | ||
| 18 | 860786-00 | 1 | STOP RUBBER | DK | |
17.34 DKK | ||
| 19 | 860839-00 | 1 | COVER | DK | |
166.32 DKK | ||
| 19 | 132507 | 1 | CASE EMERGENCY STOP | DK | |
226.26 DKK | ||
| 22 | 863722-00 | 1 | SCALE | DK | |
42.60 DKK | ||
| 23 | 860799-04 | 1 | ARM | DK | |
1699.06 DKK | ||
| 24 | 860429-00 | 1 | BUMPER | DK | |
17.34 DKK | ||
| 25 | 930574-00 | 1 | HEX KEY 5 MM | DK | |
17.34 DKK | ||
| 26 | 860093-05 | 2 | SCREW.TEMP | DK | |
17.34 DKK | ||
| 27 | 76514 | 1 | CAP | DK | |
70.63 DKK | ||
| 29 | 860790-00 | 1 | COLUMN SA | DK | |
1775.04 DKK | ||
| 30 | 860791-00 | 1 | TUBE ELEVATING SA | DK | |
626.40 DKK | ||
| 31 | 860083-04 | 6 | NUT | DK | |
17.34 DKK | ||
| 32 | 860073-03 | 2 | WASHER M8 | DK | |
17.34 DKK | ||
| 33 | 860085-05 | 4 | SCREW | DK | |
17.34 DKK | ||
| 34 | 860073-04 | 5 | WASHER | DK | |
17.34 DKK | ||
| 35 | 860083-05 | 6 | NUT RH | DK | |
17.34 DKK | ||
| 36 | 860085-02 | 2 | SCREW | DK | |
17.34 DKK | ||
| 37 | 860016-03 | 1 | BASE | DK | |
1099.92 DKK | ||
| 38 | 860086-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 39 | 860065-00 | 2 | SPACER | DK | |
17.34 DKK | ||
| 41 | 860096-06 | 1 | PIN | DK | |
17.34 DKK | ||
| 42 | 860831-90 | 1 | PINION | DK | |
184.49 DKK | ||
| 43 | 860423-00 | 1 | WRENCH | DK | |
70.63 DKK | ||
| 44 | 860232-00 | 2 | NUT | DK | |
23.66 DKK | ||
| 45 | 860231-00 | 2 | SCREW | DK | |
62.12 DKK | ||
| 46 | 860800-00 | 1 | LEVER | DK | |
126.85 DKK | ||
| 48 | 11467 | 1 | PIN | DK | |
17.34 DKK | ||
| 49 | 860795-00 | 1 | LEVER | DK | |
126.85 DKK | ||
| 50 | 860074-04 | 1 | WASHER | DK | |
17.34 DKK | ||
| 51 | 860228-01 | 1 | LATCH | DK | |
42.60 DKK | ||
| 52 | 860843-02 | 1 | BRACKET | DK | |
17.34 DKK | ||
| 53 | 949853-11 | 2 | SCREW | DK | 17.34 DKK | |||
| 55 | 860226-01 | 1 | WASHER | DK | |
17.34 DKK | ||
| 56 | 860802-90 | 1 | WASHER | DK | |
17.34 DKK | ||
| 57 | 860301-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 58 | 720959-00 | 1 | WASHER | DK | |
17.34 DKK | ||
| 59 | 860858-00 | 1 | CATCH | DK | |
17.34 DKK | ||
| 60 | 860083-03 | 1 | NUT | DK | |
17.34 DKK | ||
| 65 | 44878 | 1 | BUTTON | DK | |
281.96 DKK | ||
| 66 | 860843-01 | 2 | CLAMP | DK | |
17.34 DKK | ||
| 67 | 44885 | 1 | CONTACT | DK | |
184.49 DKK | ||
| 68 | 44875 | 1 | NUT | DK | |
17.34 DKK | ||
| 69 | 44876 | 1 | SWITCHBOX | DK | |
388.86 DKK | ||
| 70 | 860089-25 | 2 | SCREW | DK | |
17.34 DKK | ||
| 71 | 33900 | 1 | WASHER LOCK | DK | |
80.45 DKK | ||
| 72 | 860083-10 | 2 | NUT | DK | |
17.34 DKK | ||
| 73 | 11804 | 1 | GROMMET | DK | |
17.34 DKK | ||
| 74 | 11802 | 2 | INLET | DK | |
17.34 DKK | ||
| 75 | 860695-00 | 2 | BUSH | DK | |
17.34 DKK | ||
| 76 | 864944-00 | 1 | TABLE | DK | |
226.26 DKK | ||
| 77 | 864914-00 | 1 | GUIDE | DK | |
113.57 DKK | ||
| 78 | 860073-03 | 12 | WASHER M8 | DK | |
17.34 DKK | ||
| 79 | 864946-00 | 1 | BOARD | DK | |
70.63 DKK | ||
| 80 | 864945-00 | 1 | ELEMENT | DK | |
113.57 DKK | ||
| 81 | 864943-00 | 1 | TABLE | DK | |
418.45 DKK | ||
| 82 | 860077-02 | 1 | QUICKLOCK | DK | |
17.34 DKK | ||
| 83 | 860007-00 | 1 | BAR | DK | |
113.57 DKK | ||
| 84 | 860083-05 | 4 | NUT RH | DK | |
17.34 DKK | ||
| 85 | 860074-04 | 4 | WASHER | DK | |
17.34 DKK | ||
| 86 | 860005-00 | 1 | BAR | DK | |
92.05 DKK | ||
| 87 | 860074-03 | 12 | WASHER | DK | |
17.34 DKK | ||
| 88 | 860083-04 | 12 | NUT | DK | |
17.34 DKK | ||
| 90 | 860004-07 | 1 | BASE | DK | |
1338.83 DKK | ||
| 90 | 860004-00 | 1 | BASE SA | DK | |
1240.51 DKK | ||
| 91 | 860006-00 | 1 | BAR | DK | |
92.05 DKK | ||
| 92 | 860069-00 | 2 | SLIDER | DK | |
17.34 DKK | ||
| 93 | 860083-03 | 2 | NUT | DK | |
17.34 DKK | ||
| 94 | 860070-00 | 2 | BRACKET | DK | |
17.34 DKK | ||
| 95 | 863310-00 | 2 | KNOB | DK | |
17.34 DKK | ||
| 96 | 860089-31 | 14 | SCREW | DK | |
17.34 DKK | ||
| 97 | 863130-04 | 2 | SUPPORT BRACKET | DK | |
62.12 DKK | ||
| 98 | 55271 | 1 | TABLE | DK | |
327.79 DKK | ||
| 99 | 860085-00 | 4 | BOLT | DK | |
17.34 DKK | ||
| 100 | 760565-01 | 1 | STUD | DK | |
25.50 DKK | ||
| 101 | 860842-00 | 1 | STUD | DK | |
166.32 DKK | ||
| 102 | 869235-00 | 1 | SPANNER BOX | DK | |
126.85 DKK | ||
| 103 | 860083-15 | 2 | NUT | DK | |
17.34 DKK | ||
| 104 | 133408 | 1 | WASHER 1MM | DK | |
17.34 DKK | ||
| 104 | 133596 | 1 | HOLDER | DK | |
17.34 DKK | ||
| 105 | 860085-03 | 1 | BOLT | DK | |
17.34 DKK | ||
| 106 | 860073-03 | 1 | WASHER M8 | DK | |
17.34 DKK | ||
| 107 | 860083-04 | 1 | NUT | DK | |
17.34 DKK | ||
| 108 | 946469-00 | 1 | KNOB | DK | |
17.34 DKK | ||
| 110 | 930076-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 114 | 44872 | 1 | SWITCHBOX SA | DK | ||||
| 115 | 949701-03 | 1 | SCREW | DK | |
17.34 DKK | ||
| 116 | 860073-01 | 4 | WASHER | DK | |
17.34 DKK | ||
| 117 | 44893 | 1 | SWITCHBOX SA | DK | |
1428.78 DKK | ||
| 118 | 11804 | 2 | GROMMET | DK | |
17.34 DKK | ||
| 119 | 860089-17 | 2 | SCREW.TEMP | DK | |
17.34 DKK | ||
| 120 | 760421-00 | 2 | SHAFT | DK | |
62.12 DKK | ||
| 121 | 860123-00 | 1 | PIVOT SHAFT | DK | |
80.45 DKK | ||
| 122 | 860154-00 | 3 | BEARING | DK | |
327.79 DKK | ||
| 123 | 760417-00 | 1 | SHAFT | DK | |
70.63 DKK | ||
| 124 | 949894-06 | 2 | SCREW | DK | |
17.34 DKK | ||
| 125 | 863727-00 | 1 | POINTER | DK | |
23.66 DKK | ||
| 126 | 862427-00 | 1 | KNOB | DK | |
17.34 DKK | ||
| 127 | 860121-00 | 1 | CLAMP | DK | |
92.05 DKK | ||
| 128 | 860122-00 | 1 | SPACER | DK | |
17.34 DKK | ||
| 129 | 938539-00 | 1 | KEY | DK | |
17.34 DKK | ||
| 130 | 860088-27 | 1 | SCREW | DK | |
17.34 DKK | ||
| 131 | 860074-03 | 2 | WASHER | DK | |
17.34 DKK | ||
| 132 | 860083-08 | 3 | NUT | DK | |
17.34 DKK | ||
| 133 | 860817-01 | 1 | COVER | DK | |
17.34 DKK | ||
| 134 | 949882-01 | 1 | WRENCH 4 MM | DK | |
17.34 DKK | ||
| 135 | 863977-00 | 1 | PIN | DK | |
251.01 DKK | ||
| 136 | 860112-11 | 2 | SPRING | DK | |
17.34 DKK | ||
| 137 | 860835-00 | 1 | SUPPORT | DK | |
150.00 DKK | ||
| 138 | 860098-04 | 1 | WRENCH 6 MM | DK | |
17.34 DKK | ||
| 139 | 946469-00 | 1 | KNOB | DK | |
17.34 DKK | ||
| 140 | 860093-00 | 2 | SCREW | DK | |
17.34 DKK | ||
| 141 | 860119-01 | 1 | FRONT TRUNNION | DK | |
126.85 DKK | ||
| 142 | 860120-00 | 1 | PLATE | DK | |
17.34 DKK | ||
| 143 | 860093-18 | 3 | SCREW | DK | |
17.34 DKK | ||
| 144 | 860531-00 | 2 | SCREW | DK | |
17.34 DKK | ||
| 145 | 860832-00 | 1 | POINTER | DK | |
35.48 DKK | ||
| 146 | 860830-00 | 1 | PLATE | DK | |
30.77 DKK | ||
| 147 | 860827-00 | 1 | SHIELD | DK | |
17.34 DKK | ||
| 148 | 860828-00 | 1 | PLATE | DK | |
23.66 DKK | ||
| 149 | 860796-01 | 1 | KNOB | DK | |
17.34 DKK | ||
| 150 | 860809-00 | 2 | PLATE | DK | |
35.48 DKK | ||
| 151 | 864057-01 | 1 | CLAMP | DK | |
166.32 DKK | ||
| 152 | 860113-00 | 1 | CLAMP | DK | |
35.48 DKK | ||
| 153 | 860086-11 | 1 | SCREW | DK | |
17.34 DKK | ||
| 154 | 860092-00 | 2 | NUT | DK | |
17.34 DKK | ||
| 155 | 720959-00 | 2 | WASHER | DK | |
17.34 DKK | ||
| 156 | 860822-00 | 1 | BACKPLATE | DK | |
23.66 DKK | ||
| 157 | 941602-00 | 1 | WASHER | DK | |
17.34 DKK | ||
| 158 | 860093-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 159 | 860823-02 | 1 | YOKE | DK | |
504.67 DKK | ||
| 160 | 860824-00 | 1 | RING SA | DK | |
504.67 DKK | ||
| 161 | 860818-01 | 1 | CATCH | DK | |
30.77 DKK | ||
| 162 | 860085-06 | 1 | SCREW | DK | |
17.34 DKK | ||
| 163 | 760427-00 | 1 | CAP | DK | |
17.34 DKK | ||
| 164 | 860816-00 | 1 | CATCH | DK | |
17.34 DKK | ||
| 165 | 860073-01 | 1 | WASHER | DK | |
17.34 DKK | ||
| 166 | 860092-03 | 1 | NUT M5 | DK | |
17.34 DKK | ||
| 167 | 860074-03 | 1 | WASHER | DK | |
17.34 DKK | ||
| 168 | 860825-00 | 1 | CLAMP | DK | |
30.77 DKK | ||
| 169 | 860829-00 | 1 | POINTER | DK | |
17.34 DKK | ||
| 170 | 860205-06 | 2 | SCREW | DK | |
17.34 DKK | ||
| 171 | 860814-03 | 1 | ROLLER HEAD | DK | |
418.45 DKK | ||
| 172 | 863726-00 | 1 | BRACKET | DK | |
17.34 DKK | ||
| 173 | 860094-03 | 1 | SCREW | DK | |
17.34 DKK | ||
| 173 | 860094-03 | 2 | SCREW | DK | |
17.34 DKK | ||
| 173 | 860094-03 | 4 | SCREW | DK | |
17.34 DKK | ||
| 174 | 860820-00 | 2 | SPRING | DK | |
17.34 DKK | ||
| 186 | 860153-00 | 1 | WRENCH | DK | |
80.45 DKK | ||
| 187 | 860447-00 | 1 | BUSHING | DK | |
51.44 DKK | ||
| 188 | 860807-00 | 1 | PLATE | DK | |
17.34 DKK | ||
| 189 | 860073-03 | 1 | WASHER M8 | DK | |
17.34 DKK | ||
| 190 | 860655-01 | 1 | NUT | DK | |
17.34 DKK | ||
| 191 | 860085-19 | 1 | SCREW | DK | |
17.34 DKK | ||
| 192 | 860318-01 | 1 | KEY | DK | 17.34 DKK | |||
| 193 | 868768-07 | 1 | BEARING | DK | |
70.63 DKK | ||
| 194 | 860080-02 | 1 | RING | DK | |
17.34 DKK | ||
| 195 | 860446-00 | 3 | ROD | DK | |
17.34 DKK | ||
| 196 | 860443-00 | 1 | END CAP | DK | |
70.63 DKK | ||
| 197 | 868413-00 | 1 | STATOR | DK | |
2053.98 DKK | ||
| 198 | 197302 | 1 | ROTOR 1 PH | DK | |
1099.92 DKK | ||
| 199 | 860806-00 | 1 | RING | DK | |
17.34 DKK | ||
| 200 | 861721-12 | 1 | BEARING | DK | |
35.48 DKK | ||
| 201 | 860808-00 | 1 | HOUSING | DK | |
251.01 DKK | ||
| 202 | 863266-00 | 1 | INNER FLANGE | DK | |
166.32 DKK | ||
| 203 | 861241-00 | 1 | OUTER FLANGE | DK | |
25.50 DKK | ||
| 204 | 860126-01 | 1 | NUT | DK | |
35.48 DKK | ||
| 205 | 860098-05 | 1 | HEX KEY 8 MM | DK | |
17.34 DKK | ||
| 207 | 176541 | 1 | FAN | DK | |
226.26 DKK | ||
| 208 | 31533 | 1 | COVER | DK | |
62.12 DKK | ||
| 210 | 863010-00 | 1 | PLATE | DK | |
25.50 DKK | ||
| 212 | 31531 | 1 | LEVER | DK | |
17.34 DKK | ||
| 213 | 31530 | 1 | SUPPORT | DK | |
17.34 DKK | ||
| 214 | 11275 | 1 | SCREW | DK | |
17.34 DKK | ||
| 215 | 31668 | 1 | SPRING | DK | |
17.34 DKK | ||
| 216 | 31532 | 1 | PLATE | DK | |
113.57 DKK | ||
| 217 | 11439 | 1 | CIRCLIP | DK | |
17.34 DKK | ||
| 218 | 860088-25 | 1 | SCREW | DK | |
17.34 DKK | ||
| 220 | 38123 | 2 | NUT | DK | |
35.48 DKK | ||
| 230 | 930076-00 | 7 | SCREW | DK | |
17.34 DKK | ||
| 231 | 868649-00 | 1 | HANDLE SA | DK | |
281.96 DKK | ||
| 233 | 860093-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 234 | 860083-02 | 2 | NUT | DK | |
17.34 DKK | ||
| 235 | 863318-00 | 1 | HANDLE RH | DK | |
62.12 DKK | ||
| 236 | 949772-28 | 1 | CAPACITOR | DK | |
113.57 DKK | ||
| 237 | 863198-00 | 1 | PLATE | DK | |
17.34 DKK | ||
| 238 | 863849-00 | 1 | CAP | DK | |
17.34 DKK | ||
| 239 | 860083-03 | 1 | NUT | DK | |
17.34 DKK | ||
| 240 | 949886-10 | 2 | SCREW | DK | |
17.34 DKK | ||
| 241 | 863319-00 | 1 | HANDLE LH | DK | |
62.12 DKK | ||
| 242 | 860093-20 | 1 | SCREW | DK | |
17.34 DKK | ||
| 243 | 860083-04 | 1 | NUT | DK | |
17.34 DKK | ||
| 244 | 863116-00 | 1 | CLIP | DK | |
17.34 DKK | ||
| 245 | 863111-00 | 2 | BLOCK | DK | |
17.34 DKK | ||
| 246 | 944590-00 | 2 | NUT | DK | |
17.34 DKK | ||
| 247 | 860094-03 | 1 | SCREW | DK | |
17.34 DKK | ||
| 248 | 860084-20 | 1 | SCREW | DK | |
17.34 DKK | ||
| 249 | 860843-01 | 1 | CLAMP | DK | |
17.34 DKK | ||
| 250 | 860843-02 | 1 | BRACKET | DK | |
17.34 DKK | ||
| 251 | 949784-06 | 1 | CONNECTOR | DK | |
17.34 DKK | ||
| 252 | 861385-04 | 1 | SWITCH SA | DK | |
863.44 DKK | ||
| 253 | 44537 | 1 | CABLE SA | DK | ||||
| 255 | 862420-00 | 1 | REDUCER | DK | |
17.34 DKK | ||
| 256 | 863124-17 | 1 | BUTTON START | DK | |
113.57 DKK | ||
| 256 | 863124-17 | 1 | BUTTON START | DK | |
113.57 DKK | ||
| 257 | 863124-16 | 1 | BUTTON STOP | DK | |
113.57 DKK | ||
| 258 | 942415-00 | 1 | COVER | DK | |
51.44 DKK | ||
| 259 | 860468-02 | 1 | CONNECTOR | DK | |
17.34 DKK | ||
| 260 | 863259-00 | 1 | PROTECTOR | DK | |
17.34 DKK | ||
| 261 | 860540-00 | 1 | CONNECTOR | DK | |
17.34 DKK | ||
| 262 | 860084-03 | 2 | SCREW | DK | |
17.34 DKK | ||
| 270 | 946469-00 | 1 | KNOB | DK | |
17.34 DKK | ||
| 271 | 860075-00 | 3 | WASHER | DK | |
17.34 DKK | ||
| 272 | 863709-00 | 1 | SUPPORT | DK | |
42.60 DKK | ||
| 273 | 863703-00 | 1 | PROTECTOR | DK | |
17.34 DKK | ||
| 274 | 864095-00 | 1 | TUBE EXTRACTION | DK | |
51.44 DKK | ||
| 275 | 863708-00 | 1 | SQUARE | DK | |
17.34 DKK | ||
| 276 | 860074-01 | 1 | WASHER | DK | |
17.34 DKK | ||
| 277 | 861842-01 | 1 | KNOB | DK | |
17.34 DKK | ||
| 279 | 760273-00 | 3 | SCREW | DK | |
17.34 DKK | ||
| 280 | 863707-01 | 1 | BRACKET | DK | |
51.44 DKK | ||
| 281 | 760998-00 | 2 | SCREW | DK | |
17.34 DKK | ||
| 282 | 249412-20 | 4 | SCREW | DK | |
17.34 DKK | ||
| 283 | 864053-00 | 4 | WASHER | DK | |
23.66 DKK | ||
| 284 | 860301-00 | 2 | SCREW | DK | |
17.34 DKK | ||
| 285 | 864086-00 | 2 | SHIM | DK | |
17.34 DKK | ||
| 286 | 860074-02 | 1 | WASHER | DK | |
17.34 DKK | ||
| 287 | 860083-03 | 2 | NUT | DK | |
17.34 DKK | ||
| 290 | 941518-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 291 | 860075-00 | 1 | WASHER | DK | |
17.34 DKK | ||
| 292 | 863705-00 | 1 | BUSH | DK | |
17.34 DKK | ||
| 293 | 864054-00 | 2 | ROLLER | DK | |
17.34 DKK | ||
| 296 | 864814-01 | 1 | KICK BACK SA | DK | |
311.56 DKK | ||
| 297 | 760219-00 | 1 | SCREW | DK | |
17.34 DKK | ||
| 309 | 862235-04 | 1 | GUARD | DK | |
418.45 DKK | ||
| 311 | 862417-00 | 1 | GUARD | DK | |
62.12 DKK | ||
| 312 | 862084-01 | 1 | LEVER | DK | |
42.60 DKK | ||
| 313 | 33552 | 1 | KNIFE | DK | |
35.48 DKK | ||
| 314 | 862083-00 | 1 | BRACKET | DK | |
113.57 DKK | ||
| 315 | 863775-01 | 1 | BRACKET | DK | |
51.44 DKK | ||
| 320 | 33551 | 1 | RIVING KNIFE | DK | |
42.60 DKK | ||
| 876 | 868407-00 | 1 | MOTOR 1 PH | DK | |
3651.42 DKK |
* Dette er vejledende priser, som kan variere og er ekskl. moms og fragt. Vi forbeholder os retten til at ændre priser og betingelser uden forudgående varsel.
