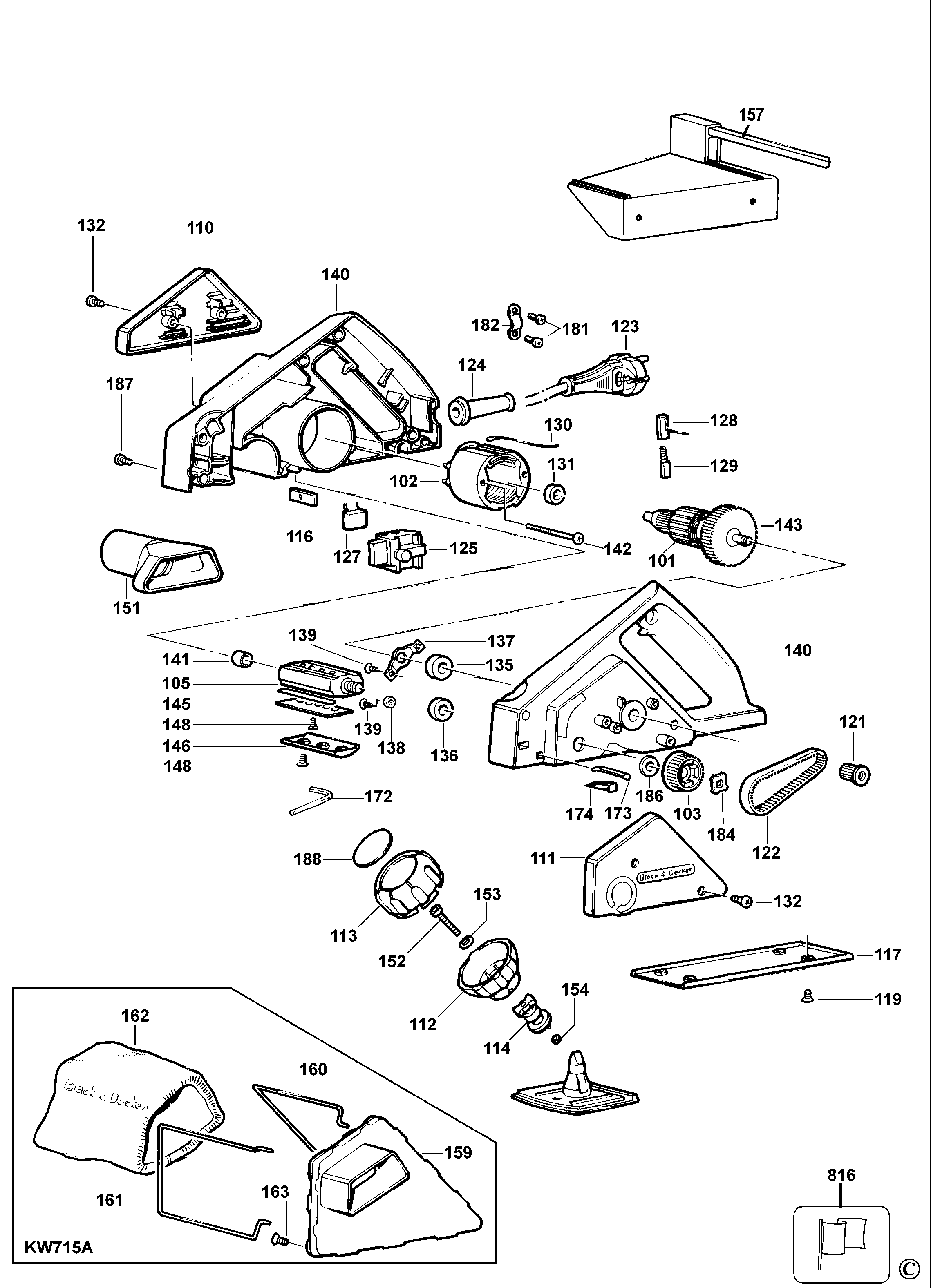

KW715 RABOTEUSE Type 3 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 574369-05 | 1 | S/E ARMATURE | GB |  |
||
| 102 | 572640-33 | 1 | S/E CHAMP | GB | |
||
| 103 | 324950-00 | 1 | POULIE | GB | |
||
| 105 | 325830-49 | 1 | S/E TAMBOUR PORTE LAME | GB | |
||
| 110 | 918595-01 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 111 | 325479-00 | 1 | COUVERCLE DE COURROIE | GB | |
||
| 112 | 377436 | 1 | BOUTON INFERIEUR | GB | |
||
| 113 | 377435-01 | 1 | BOUTON SUPERIEUR | GB | |
||
| 114 | 377432 | 1 | CAME | GB | |
||
| 116 | 918405 | 1 | PLAQUE | GB |  |
||
| 117 | 917294 | 1 | PLAQUE DE BASE | GB | |
||
| 119 | 911216 | 4 | VIS | GB | |
||
| 121 | 324767-00 | 1 | POULIE | GB | |
||
| 122 | 324830-02 | 1 | COURROIE | GB | |
||
| 123 | 330060-53 | 1 | JEU DE CORDONS | GB | |||
| 124 | 770235 | 1 | PROTECTEUR | GB | |
||
| 125 | 322001 | 1 | INTERRUPTEUR | Lock-Off | GB | |
|
| 127 | 321384 | 1 | CONDENSATEUR | GB | |
||
| 128 | 877898 | 2 | PORTE-BALAIS | GB | |
||
| 129 | 915068-01 | 2 | BALAI ET RESSORT | SINGULAR | GB | |
|
| 130 | 878846 | 2 | LEAD 360MM | GB | |
||
| 131 | 878817 | 1 | S/E PALIER | GB | |
||
| 132 | 809961 | 4 | VIS | GB | |
||
| 135 | 330003-31 | 1 | PALIER | GB | |
||
| 136 | 330003-39 | 1 | PALIER | GB | |
||
| 137 | 916980 | 1 | PLAQUE | GB | |
||
| 138 | 917307 | 2 | RONDELLE AVANT | GB | |
||
| 139 | 911388 | 4 | VIS | GB | |
||
| 140 | 372937-05 | 1 | JEU DE COQUILLES | KW715T | GB | |
|
| 141 | 330004-02 | 1 | ROULEMENT A AIGUILLES | GB | |
||
| 142 | 917424 | 2 | VIS | GB | |
||
| 143 | 917752 | 1 | VENTILATEUR | GB | |
||
| 145 | 878428 | 2 | SUPPORT | GB | |
||
| 146 | 918610 | 2 | COUVERCLE | GB | |
||
| 148 | 325377-00 | 10 | SCREW.TEMP | GB | |
||
| 151 | 917451 | 1 | ADAPTATEUR | GB | |
||
| 152 | 571286-00 | 1 | BOULON | GB | |
||
| 153 | 571287-00 | 1 | RONDELLE ELASTIQUE | GB | |
||
| 154 | 892153 | 1 | ECROU | GB | |
||
| 157 | 878192 | 1 | GUIDE | GB | |
||
| 159 | 917549 | 1 | PLAQUE | GB | |||
| 160 | 917552 | 1 | SUPPORT | GB | |
||
| 161 | 917551 | 1 | SUPPORT | GB | |
||
| 162 | 369640-01 | 1 | SAC RECUPERATEUR | GB | |
||
| 163 | 795941 | 4 | SCREW.TEMP | GB | |
||
| 172 | 807043 | 1 | CLE A BOUGIE | 4mm | GB | |
|
| 173 | 870490 | 1 | RESSORT | GB | |
||
| 174 | 321327 | 1 | INSERT | GB | |
||
| 184 | 325558-00 | 1 | ENTRETOISE | GB | |
||
| 187 | 370367 | 6 | SCREW.SPECIAL | GB | |
||
| 188 | 570801-00 | 1 | ETIQUETTE | GB | |
||
| 816 | 326858-04 | 1 | ETIQUETTE MARQUE | GB | |
