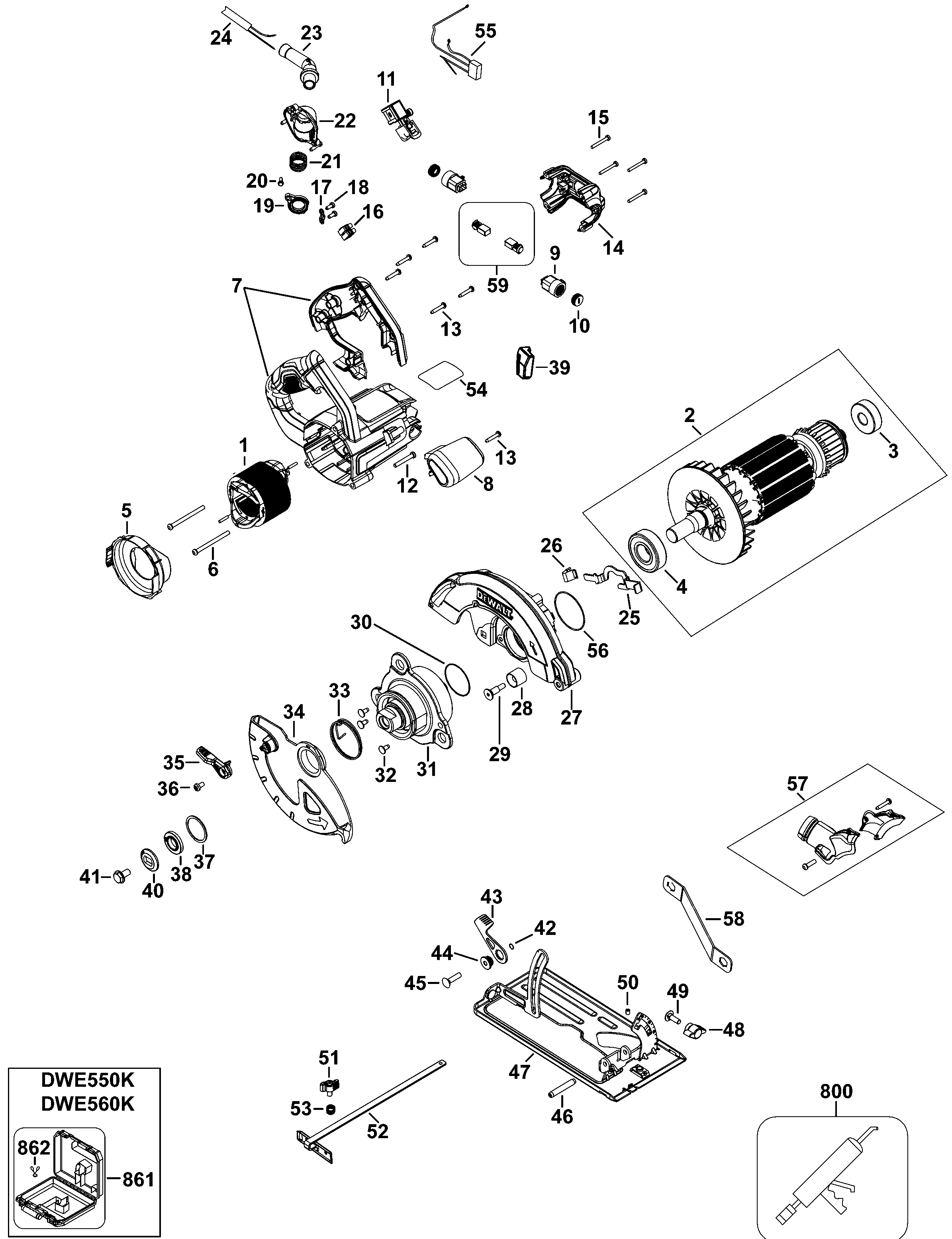

DWE560 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N178803 | 1 | FIELD SA 115V | B3 | |||
| 2 | N178811 | 1 | ARMATURE SA | 115V | Inc. 3,4 | B3 | |
| 3 | N110359 | 1 | BEARING | B3 | |||
| 4 | 605040-59 | 1 | BEARING | B3 | |||
| 5 | N083602 | 1 | BAFFLE | B3 | |||
| 6 | 330019-19 | 2 | SCREW | B3 | |||
| 7 | N195192 | 1 | FIELD CASE | B3 | |||
| 8 | N086362 | 1 | HANDLE | B3 | |||
| 9 | N172018 | 2 | BRUSH HOLDER | B3 | |||
| 10 | N024448 | 2 | BRUSH CAP | B3 | |||
| 11 | N092201 | 1 | SWITCH | B3 | |||
| 12 | 330045-20 | 3 | SCREW | M5*45 T25 | B3 | ||
| 13 | 330065-31 | 6 | PLASTIC SCREW | B3 | |||
| 14 | N083601 | 1 | END CAP | B3 | |||
| 15 | 330065-27 | 4 | SCREW | M3.5 X 30 TX15 | B3 | ||
| 16 | 320078-00 | 1 | TERMINAL BLOCK | B3 | |||
| 17 | 821070 | 1 | CORD CLAMP | B3 | |||
| 18 | N017542 | 2 | PLASTIC SCREW | B3 | |||
| 19 | N105376 | 1 | PROTECTOR | B3 | |||
| 20 | 330019-02 | 1 | SCREW | B3 | |||
| 21 | N083610 | 1 | SPRING | B3 | |||
| 22 | N102412 | 1 | HOLDER | B3 | |||
| 23 | N083609 | 1 | CORD PROTECTOR | B3 | |||
| 24 | N114588 | 1 | CORD SET | B3 | |||
| 25 | N083584 | 1 | SPINDLE LOCK | B3 | |||
| 26 | N130051 | 1 | SPRING | B3 | |||
| 27 | N177902 | 1 | GEARCASE SA | B3 | |||
| 28 | 381066-00 | 1 | BUMPER | B3 | |||
| 29 | N086355 | 1 | SCREW | B3 | |||
| 30 | N134472 | 1 | O RING | B3 | |||
| 31 | N183366 | 1 | SPINDLE SA | B3 | |||
| 32 | 385915-04 | 3 | SCREW | B3 | |||
| 33 | N083599 | 1 | SPRING | B3 | |||
| 34 | N083598 | 1 | GUARD LOWER | B3 | |||
| 35 | N086628 | 1 | LEVER | B3 | |||
| 36 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | B3 | ||
| 37 | N152544 | 1 | RETAINER | B3 | |||
| 38 | N112958 | 1 | INNER FLANGE | B3 | |||
| 39 | N191811 | 1 | RUBBER SEAL | B3 | |||
| 40 | 145343-01 | 1 | WASHER OUTER CLAMP | B3 | |||
| 41 | 145344-00 | 1 | SCREW.SPECIAL | B3 | |||
| 42 | 152211-00 | 1 | RING | B3 | |||
| 43 | 145347-00 | 1 | LEVER | B3 | |||
| 44 | N111116 | 1 | NUT | B3 | |||
| 45 | N143277 | 1 | CARRIAGE BOLT | M6 | B3 | ||
| 46 | 389562-00 | 1 | PIN | B3 | |||
| 47 | N136649 | 1 | SHOE SA | B3 | |||
| 48 | N116044 | 1 | WING NUT | B3 | |||
| 49 | N038133 | 1 | BOLT | B3 | |||
| 50 | N094309 | 1 | SCREW | M5 | B3 | ||
| 51 | N116069 | 1 | KNOB | B3 | |||
| 52 | N083612 | 1 | FENCE | B3 | |||
| 53 | N170858 | 1 | SPRING | B3 | |||
| 54 | N141348 | 1 | NAME PLATE | DWE560-B3 | B3 | ||
| 55 | N106861 | 1 | CAPACITOR | B3 | |||
| 56 | N100358 | 1 | O RING | B3 | |||
| 57 | N195215 | 1 | DUST PORT | EURO | B3 | ||
| 58 | N035355 | 1 | SPANNER | B3 | |||
| 59 | N179043 | 1 | BRUSH PAIR 115V | EURO | B3 | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B3 | ||
| 861 | N044228 | 1 | KITBOX | B3 | |||
| 862 | 605265-00 | 1 | SPRING CLIP | B3 |
