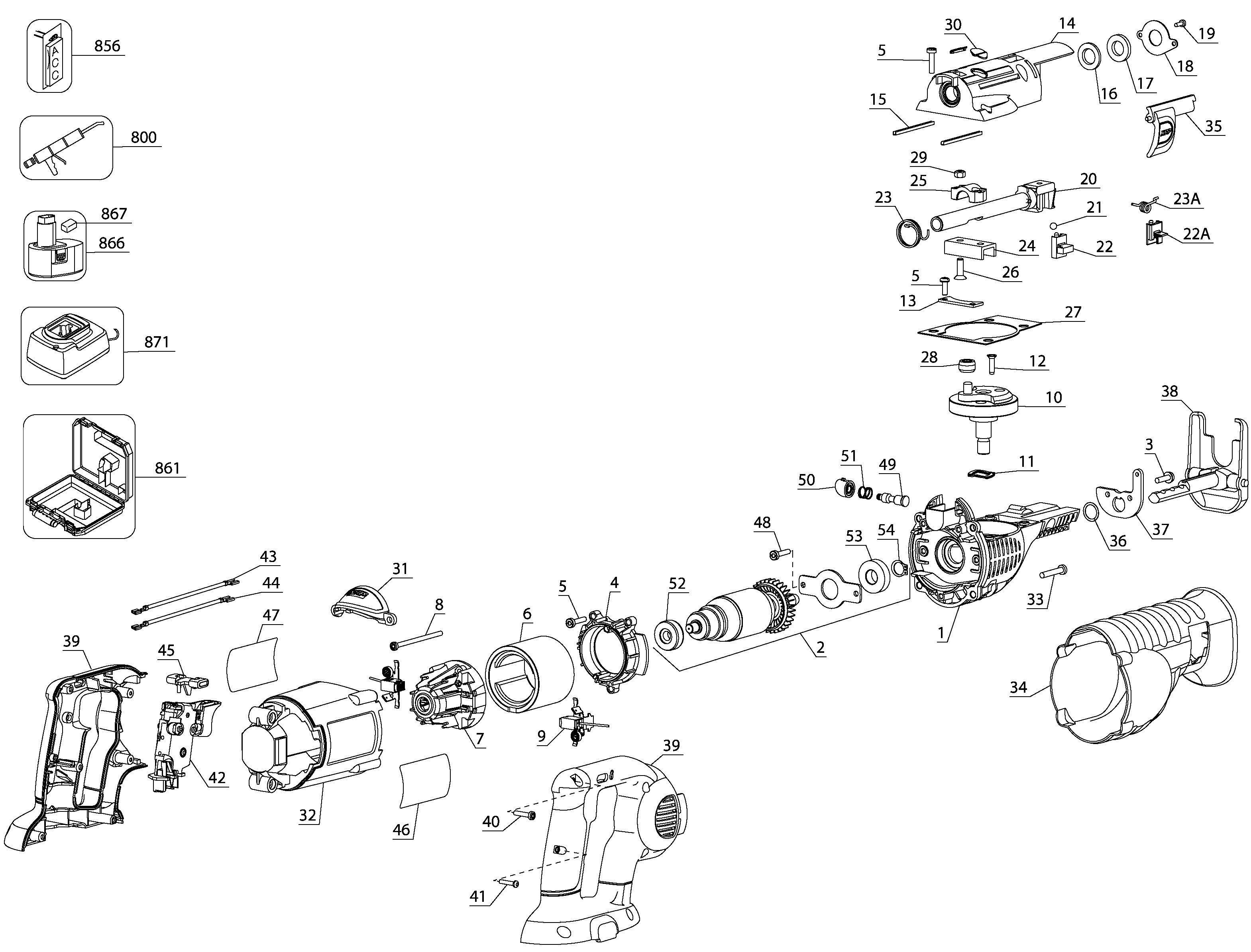

DC385K CORDLESS RECIPROCATING SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL. 49,50,51 | AR | ||
| 2 | 617376-00SV | 1 | ARMATURE SA | incl. 52,53,54 | AR | ||
| 3 | 142940-00 | 2 | SCREW | AR | |||
| 4 | 613137-00 | 1 | BAFFLE FAN | AR | |||
| 5 | 613619-00 | 9 | SCREW | AR | |||
| 6 | 611202-00SV | 1 | MAGNET | AR | |||
| 7 | N171820 | 1 | SUPPORT BEARING | AR | |||
| 8 | 330019-25 | 2 | SCREW | AR | |||
| 9 | 610126-00 | 2 | BRUSHBOX SA | AR | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | AR | |||
| 11 | 619618-00 | 1 | WASHER SPECIAL | AR | |||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | AR | ||
| 13 | 621173-00 | 1 | SUPPORT PLATE | AR | |||
| 14 | N027851SV | 1 | GEARCASE COVER | AR | |||
| 15 | 621979-00 | 2 | STRIP | AR | |||
| 16 | 618733-00 | 1 | SEAL | AR | |||
| 17 | 618477-00 | 1 | FELT SEAL | AR | |||
| 18 | N020720 | 1 | COVERPLATE | AR | |||
| 19 | 330045-43 | 1 | SCREW | AR | |||
| 20 | N026647 | 1 | SHAFT SA | AR | |||
| 21 | 000903-00 | 1 | BALL | AR | |||
| 22 | N252639 | 1 | SLIDER | After 201624 | AR | ||
| 22 | 622647-00 | 1 | SLIDER | AR | |||
| 23 | 622659-00 | 1 | SPRING TORSION | AR | |||
| 23 | N426742 | 1 | SPRING | After 201624 | AR | ||
| 24 | 658115-00 | 1 | YOKE | AR | |||
| 25 | 617000-00 | 1 | SADDLE | AR | |||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | AR | ||
| 27 | N063272 | 1 | GASKET | AR | |||
| 28 | N021857 | 1 | BEARING | AR | |||
| 29 | 622485-00 | 2 | LOCK NUT | AR | |||
| 30 | 621927-00 | 2 | COVER | AR | |||
| 31 | N030977 | 1 | INSERT | AR | |||
| 32 | N914377 | 1 | MOTOR HOUSING | pckgd N264499 | Does NOT need #31. | AR | |
| 33 | 330019-45 | 4 | SCREW | AR | |||
| 34 | N084697 | 1 | BOOT | AR | |||
| 35 | 617208-00SV | 1 | LEVER | AR | |||
| 36 | 50049-00 | 1 | RING | AR | |||
| 37 | 617008-00 | 1 | BRACKET | AR | |||
| 38 | 623511-00SV | 1 | SHOE SA | AR | |||
| 39 | N104712 | 1 | CLAMSHELL SET | 18V Li-Ion | AR | ||
| 39 | N104712 | 1 | CLAMSHELL SET | 18V Li-Ion | AR | ||
| 40 | 330019-04 | 6 | SCREW | AR | |||
| 41 | 682211-00 | 1 | SCREW | AR | |||
| 42 | 152274-19SV | 1 | SWITCH | INCL 45 | AR | ||
| 43 | 617383-00 | 1 | LEAD BROWN | BROWN | AR | ||
| 44 | 617384-00 | 1 | LEAD PURPLE | PURPLE | AR | ||
| 45 | 607100-00 | 1 | LEVER LOCK-OFF | AR | |||
| 46 | 614878-00 | 1 | IDENTITY LABEL | AR | |||
| 47 | 636477-00 | 1 | NAMEPLATE | AR | |||
| 48 | 330045-45 | 2 | SCREW | AR | |||
| 49 | 615983-00 | 1 | LOCK PIN | AR | |||
| 50 | 617733-00 | 1 | CAP | AR | |||
| 51 | 618427-00 | 1 | SPRING | AR | |||
| 52 | 391032-00 | 1 | BEARING & SEAL | AR | |||
| 53 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | AR | ||
| 54 | 696060-00 | 1 | RETAINER | AR | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | AR | ||
| 856 | 628977-00 | 1 | BLADE SET | 2 BLADES/8TPI | AR | ||
| 861 | N152704 | 1 | KITBOX | AR | |||
| 866 | DC9096 | 1 | BATTERY 18V - 2.4AH | Ni-Cad | AR | ||
| 867 | 645221-00 | 1 | CAP | AR | |||
| 871 | DW9116-AR | 1 | CHARGER | AR |
